• Model NO.：MZ1
• Warranty：1 Year
• Customized：Customized
• Condition：New
• After-sales Service：online support
• Spindle number：21 bits
• Distance between spindles：32 mm
• Max drilling depth：50 mm
• Motor power：1.5 KW
• Revolving speed of spindle：2840 rpm
• Pressure of compresser air：0.6Mpa
• Outline size：1100*1400*1300 mm
• N.W：380 KG
• Transport Package：Film Package
• Specification：2000x1300x1300mm
• Trademark：ZICAR
• Origin：China
• HS Code：8465950000
• Production Capacity：100sets,Month

Basic Info.

Model NO. MZ1 Warranty 1 Year Customized Customized Condition New After-sales Service online support Spindle number 21 bits Distance between spindles 32 mm Max drilling depth 50 mm Motor power 1.5 KW Revolving speed of spindle 2840 rpm Pressure of compresser air 0.6Mpa Outline size 1100*1400*1300 mm N.W 380 KG Transport Package Film Package Specification 2000x1300x1300mm Trademark ZICAR Origin China HS Code 8465950000 Production Capacity 100sets/Month

Product Description

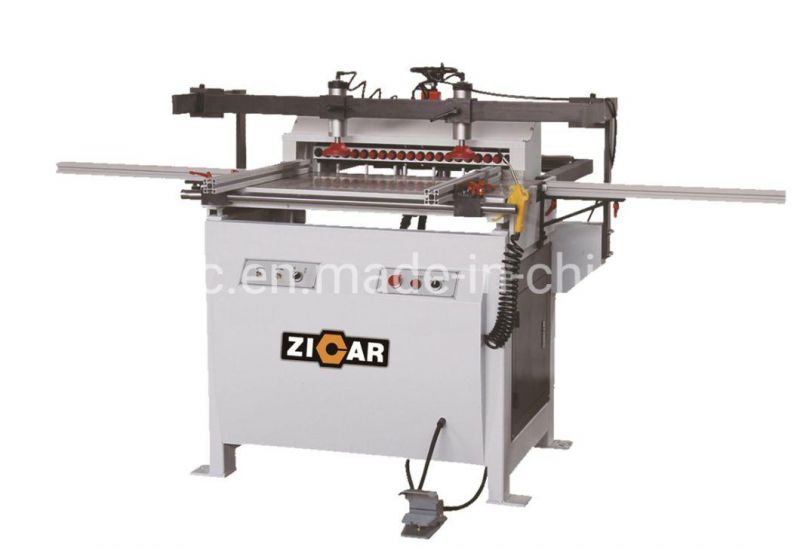

ZICAR wood dowel multi-boring machine MZ1
Features and Parameters
Row drill is a machine which can drill many holes on the plate at one time according to the demand. This machine is mainly used for cutting, slotting and vertical drilling of customized furniture such as cabinets and wardrobes. It can be used as cabinet or door panel. Suitable for large and medium-sized customized furniture factory.

Model	MZ1
Spindle number	21 bits
Distance between spindles	32 mm
Max drilling depth	50 mm
Motor power	1.5 KW
Revolving speed of spindle	2840 rpm
Pressure of compresser air	0.6Mpa
Outline size	1100*1400*1300 mm
N.W	380 KG
