• Model NO.：XC400
• Vacuum Pump：5.5kw
• Transport Package：Wrapped in Layers of Wrapping Film and Ponchos
• Specification：1900KG
• Trademark：Mars
• Origin：China
• HS Code：8465990000
• Production Capacity：300sets,Month

Basic Info.

Model NO. XC400 Vacuum Pump 5.5kw Transport Package Wrapped in Layers of Wrapping Film and Ponchos Specification 1900KG Trademark Mars Origin China HS Code 8465990000 Production Capacity 300sets/Month

Product Description

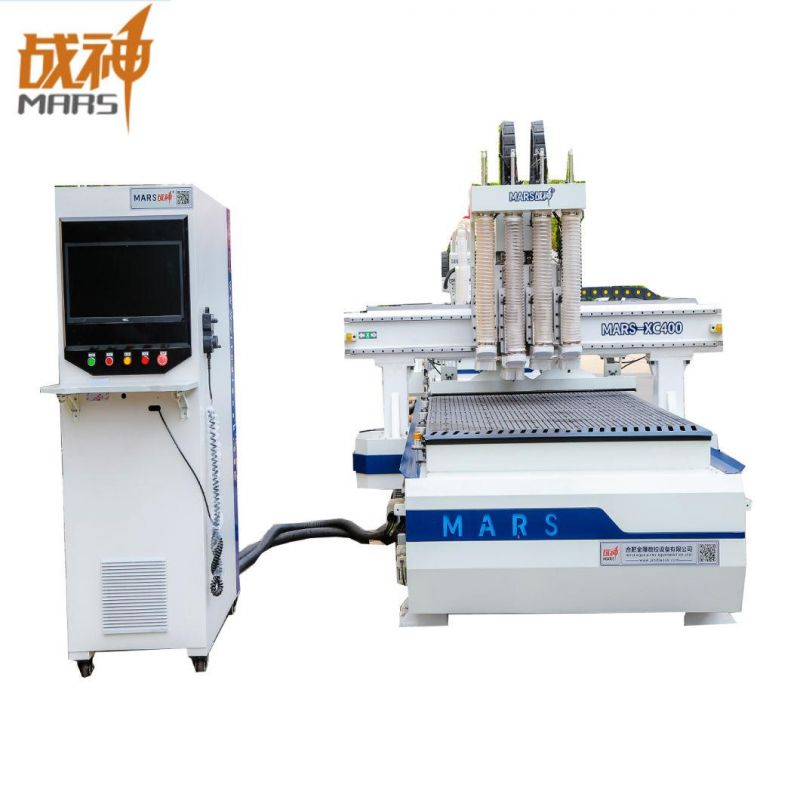

Wood CNC Router Machine/CNC Engraving Machine/Panel Furniture Machine
Keywords: 15 years experience of production
                      ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                      Three Brand: Mars, Golden Eagle,Borio




Description:
Wood CNC Router Machine/CNC Engraving Machine/Panel Furniture Machine is MARS featured machine for processing wooden doors,cabinets,wood panels,office furniture,tables&chairs,doors&windows,wooden speakers,game cabinets,computer desks,sewing machines,musical instruments and etc..Now popular in the market, it's economic machining center of woodworking cutting machine.

Functions:
The functions of this machine include milling,drilling,cutting and other processing.

Applicable Materials:
Stone,graphite,acrylic,PVC,MDF,artifical stone,plexiglass,plastic,copper and aluminum.


Application Scope:
Wooden doors,cabinets,wood panels,office furniture,tables&chairs,doors&windows,wooden speakers,game cabinets,computer desks,sewing machines,musical instruments and etc..


Parameters:

Model	Wood CNC Router Machine/CNC Engraving Machine/Panel Furniture Machine
Working Stoke	1230*2450*200mm
Body Structure	Thick-walled steel tube welded, w/ tempering
Spindle Power	HQD 6KW+4.5KW+4.5KW+4.5KW air cooling spindle
Spindle Speed	0 ~ 24000 rpm/min
Control System	Syntec/ Osai/ NC Studio
Drive System	Yaskawa/ Delta servo motor
Lubrication System	Automatic
Transmission	XY axis rack and pinion, Z axis ball screw
Guide Rail	Taiwan Hiwin linear rail
Transforme	630VA
Vacuum Pump	5.5KW
Max Travelling Speed	25m/min
Max Processing Speed	15m/min
Dictate Format	G code/ HPGL
Engraving Tool	¢3.175/ 4/ 6/ 12.7mm
Working Accuracy	±0.02mm
Re-positioning Accuracy	±0.05mm
Support Software	Professional cutting optimization software
Working Voltage	AC380/ 3PH/ 50HZ
Net Weight	1900KG
Machine Size	2300*3600*1800mm

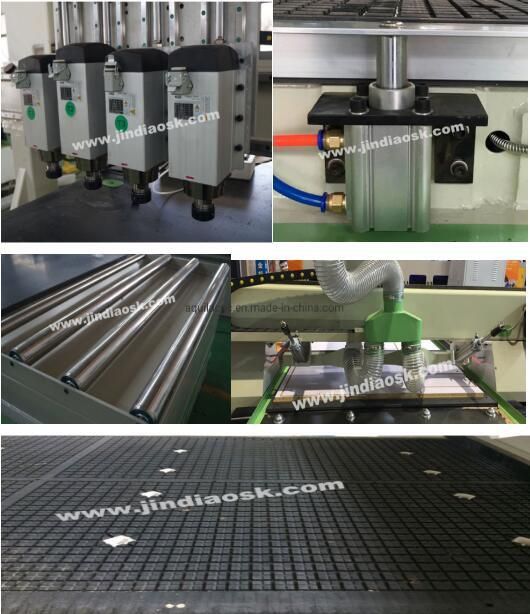

Accessories:

Performance Features:
1. Industrial thick square steel tube welded frame, with tempering aging treatment, to ensure strong, durable, without any deformation.
2. Imported precision ball screw, high speed, high precision, long service life.
3. With break-point and power-off memory function, ensure continuous processing after an accident of tool breaking or power-off.
4. Advanced CNC system, simple operation, easy maintenance, user-friendly design to meet the diverse needs of customers.
5. Compatible with any advanced CAD/CAM software, including Type3/ ArtCAM/ CAXA/ UG / pro-e/ Mastercam/ JDPaint/ Wentai, etc..

Samples:
