ZICAR woodworking woodwork wood 4 side wood planer four side planer moulder with 5 spindles

JAYA INTERNATIONAL CO., LTD.
  • Warranty:one year
  • Type:Four-Side Planer
  • Working Depth:8~120mm
  • Working Width:25~210mm
  • Drivetrain:Feed Drivetrain
  • Enter Method:Hydraulic

Base Info

  • Model NO.:M521A
  • Motor Power:34.6kw
  • Cutter Shaft:20
  • Spindle Speed:10~40m,min
  • Process Type:Heavy Processing
  • Certification:CE, ISO
  • After-sales Service:online support
  • Feeding Speed:10-50mm,min
  • Former Table Size Length:1800mm
  • Main Shaft Diameter:40mm
  • Main Shaft Revolution:8000r,min
  • Pneumatic Source Pressure:O. 6MPa
  • 1st Lower Shaft:5.5kw
  • 1st Upper shaft:7.5kw
  • Right Vertical Shaft:5.5kw
  • Left Vertical Shaft:5.5kw
  • Feeding Motor:4kw
  • General Power:30.25kw
  • Dust Outlet Diameter:140mm
  • Feeding Wheel Diameter:140mm
  • (L x W x H):3550*1630*1750
  • Net Weight:3100kg
  • Transport Package:Film Package or Plywood Case
  • Specification:4100*1700*1760mm
  • Trademark:ZICAR
  • Origin:China
  • HS Code:846592
  • Production Capacity:100pieces,Month

Description

Overview

Product Parameters

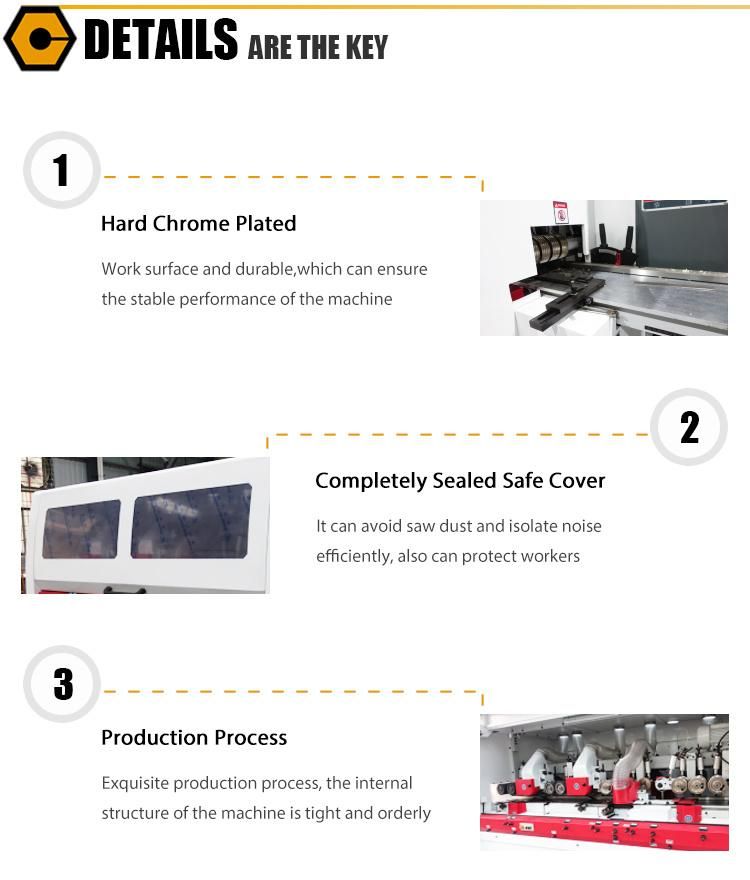

Detailed Photos

ZICAR woodworking woodwork wood 4 side wood planer four side planer moulder with 5 spindlesZICAR woodworking woodwork wood 4 side wood planer four side planer moulder with 5 spindles

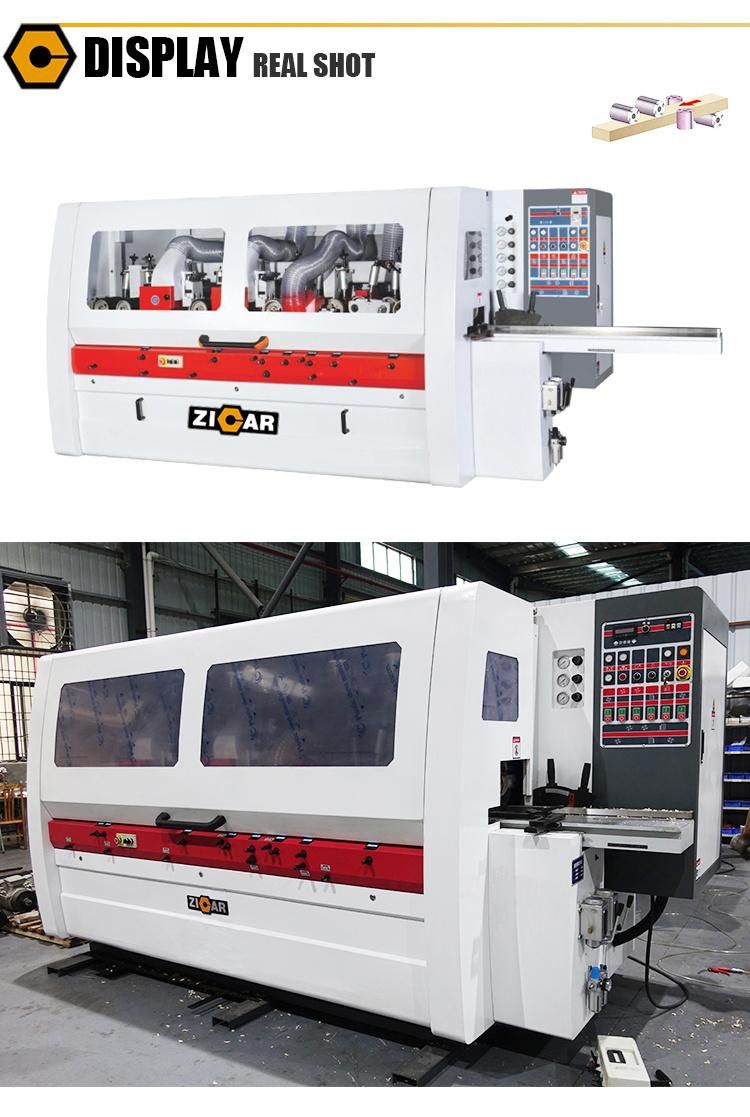

Product Display


ZICAR woodworking woodwork wood 4 side wood planer four side planer moulder with 5 spindles

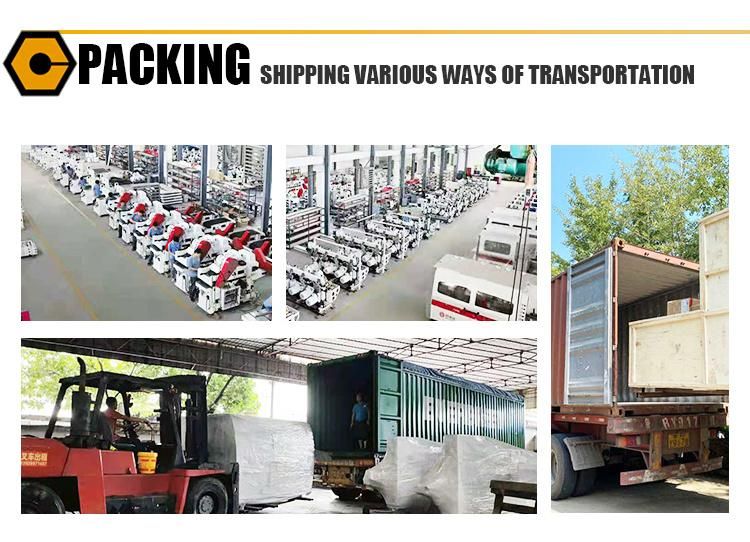

Packaging & Shipping

ZICAR woodworking woodwork wood 4 side wood planer four side planer moulder with 5 spindles

Certifications

ZICAR woodworking woodwork wood 4 side wood planer four side planer moulder with 5 spindles

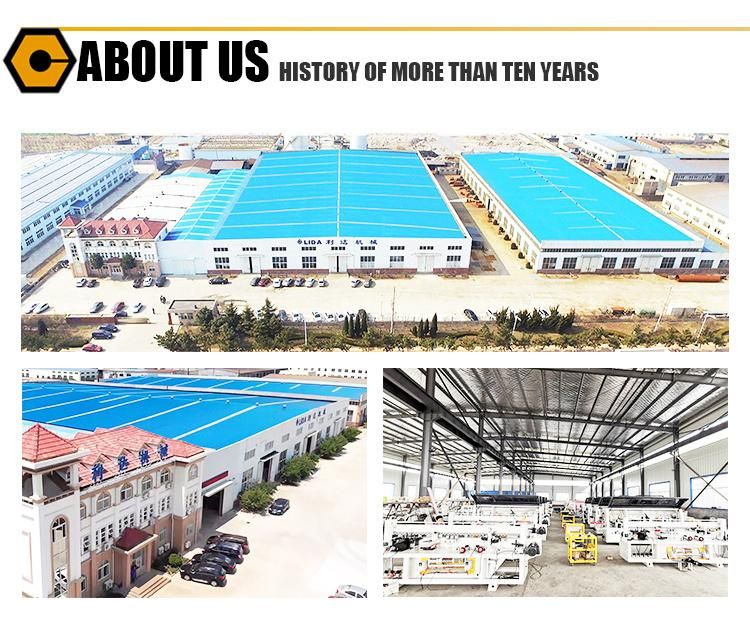

Company Profile

ZICAR woodworking woodwork wood 4 side wood planer four side planer moulder with 5 spindlesFAQ


1.Our Payment Way?
L/C and T/T or other ways.

2.Delivery Time?
30 days after downpayment.We have our own forwarder and we havelong term cooperation with each other and have closely relationshipwith each other,so there is no problem in shipment.

3.Our Warranty?
(1)One year guarantee from the delivery date of this machine under the normal operation of oneshift per day.
(2)We will be responsible for the maintenance of damaged part which is under normal situationduring warranty period, and all the round-trip courier transportation cost of damaged/repairedreplacement parts in warranty period should be borne by the buyer. Wearing parts are notincluded.
(3)24 hour technical support by email or calling.
(4)User-friendly English manual for machine using and maintaining.

4.Our srvices?
(1)One-stop service, meet needs of the customers from individuals to international companies.
(2)OEM service accepted.
(3)Separate trading office: Jaya Trading with 30 experienced sales offering full scale service.
(4)After sale Service: experienced and knowledgeable team of technical support , provide engineer oversea service.
