Plywood Sanding Machine with Automatic Roller Conveyor
Shandong Minghung Wood Machinery Co., Ltd.- Type：Sanding Machine
- Automatic：Automatic
- Certification：CE, ISO
- Name：Plywood Sanding Machine
- Max Sanding Width：40-1300mm
- Sanding Length：More Than 780mm
Base Info
- Model NO.：MH-BSG1213R-R
- Thickness：2.5-80mm
- Abrasive Belt Speed：25m,Min
- Abrasive Belt Size：1300*2620mm
- Voltage：380V
- Main Motor Power：55kw, 45kw
- Keyword：Sanding
- The Capacity of Dust Collection：15000m3,H
- Weight：8100kg
- Transport Package：Plastic Film
- Specification：3100*2900*2400mm
- Trademark：MINGHUNG
- Origin：Linyi City, China
- HS Code：846593
- Production Capacity：200sets,Year
Description
Max Sanding board width
40-1300mm
Sanding board thickness
2.5-80mm
Sanding board length
>780mm
Abrasive belt speed
25m/min
Abrasive belt size
1300*2620mm
Voltage
380v
Frequency
50hz
Main motors power
55kw; 45kw
Convey feeding motor power
7.5kw
Feeding speed
20-40m/min
Lifting motor
0.75kw
Brushing motor
0.75kw
Total power
109kw
Working pressure of compress air
0.6mpa
The capacity of dust collection
15000m³/h
size
3100*2900*2440mm
Weight
8100kg
ADVANTAGES:
<1> The diameter of Steel rod and rubber roller are standard and big, make sure its strong.
<2> The speed of sanding machine is fast, improve production capacity.
<3> Machine has device for collect the dust, keep clean.
<4> There has buttons for your operation, easy and convenient.
<5> The electric components use Schneider brand.
FACTORY:

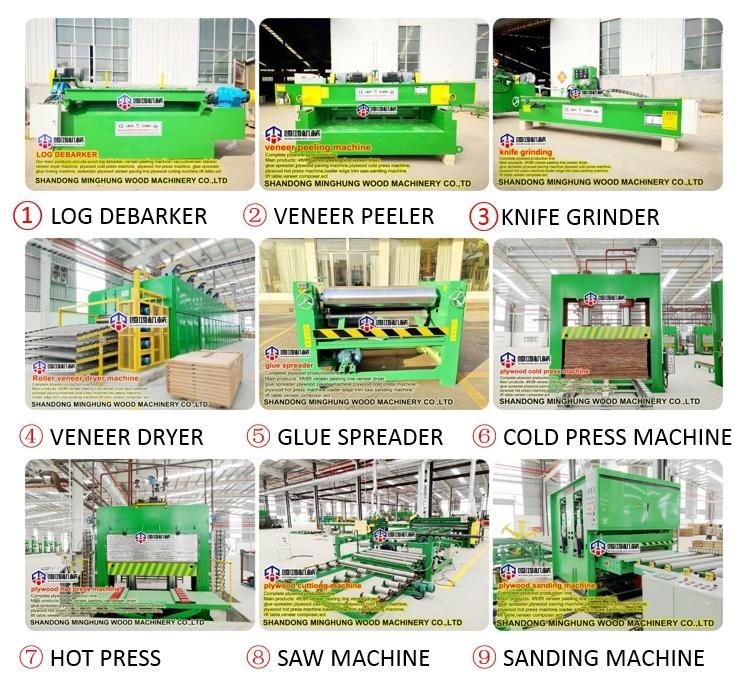

>Machine we produce:
wood debarker, veneer peeling machine, veneer stacker, knife grinder, veneer dryer machine, glue spreader,
plywood veneer lay-out machine, core composer, plywood cold press machine, plywood hot press machine,
plywood DD saw, sanding machine, lift table.
>Principle:
through many years improvment and development, we have had our own company value, that is offer good and suitable plywood machine to every our client forever, and help their business create much value.
Because we know this, so we insist make our machine well, from the beginning, choose machine material and spare parts, our experienced purchasing manager choose the better one through company different, then our designer will discuss and design machine, then our professional workers will start produce machine, each production step will be responsible by different workers.
the whole production line will be tested at least 5 times to make sure our machine in good conditions.
>Certification:
All our plywood machine have CE, and test report.

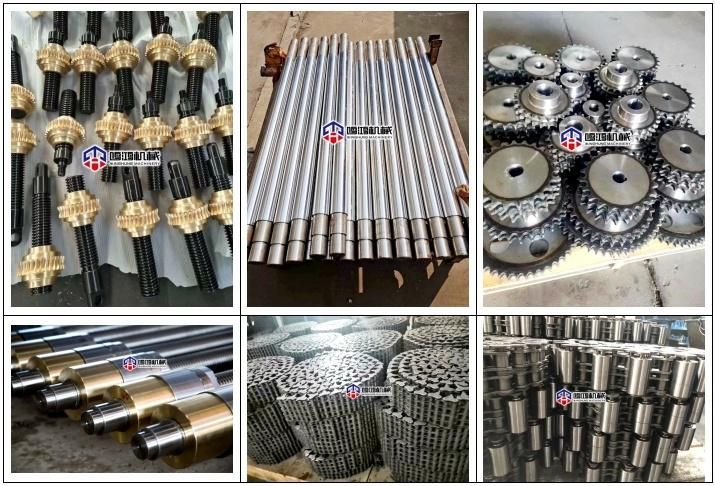

FACTORY EXISTING SPARE PARTS:
whatever our sanding machine, or other plywood machinery, we all choose the good one, and after our designer finish the drawings, our workers will seriously and responsible treat each production step, different production steps will be responsible by different professional and experienced workers, make sure our machine quality is very good and stable.
CLIENTS:
With our clients, we are not just partners, we are friends.
So, we will always think of the problem standing on your position, think how to help you save cost and create benefits.
We welcome you come to visit our factory and check machine by yourself, and produce machine according to your needs.
DELIVERY:
Before loading, we will test machine and send you videos.
When loading, we will share loading pictures with you.
After ship leave, we will offer container and ship information to you, and prepare all documents for your custom clearance.
