• Model NO.：CA-1325,1530,2030,2040
• Certification：ISO, CE
• CNC or Not：CNC
• Voltage：220V
• X,Y,Z Working Area：1300X2500X200mm
• Table Size：1700X3040mm
• X,Y,Z Traveling Positioning Accuracy：+-0.03,300mm
• X,Y,Z Repositioning Positioning Accuracy：+-0.05mm
• Lathe Structure：Welded Structure
• X, Y Structure：Rack Gear Transmission, Shaft Linear Bearings
• Z Structure：Ball Screw, Shaft Linear Bearings
• Max. Consume Power：6.5kw
• Max. Speed：0-32000mm,Min
• Max. Working Speed：0-20000mm,Min
• Spindle Power Motor：3.2kw Water-Coolant Spindle
• Spindle Speed：0-24000rpm
• Drive Mode：Stepper Motor and Driver
• Operating System：Nc-Studio
• Command：G Code, *Uoo, *Mmg, *Plt
• Transport Package：Plywood
• Specification：1325,1530,2030,2040
• Trademark：CAMEL CNC
• Origin：China
• Production Capacity：500 Sets,Month
• Package size per unit product：3100.00cm * 2210.00cm * 1820.00cm
• Gross weight per unit product：1400.000kg

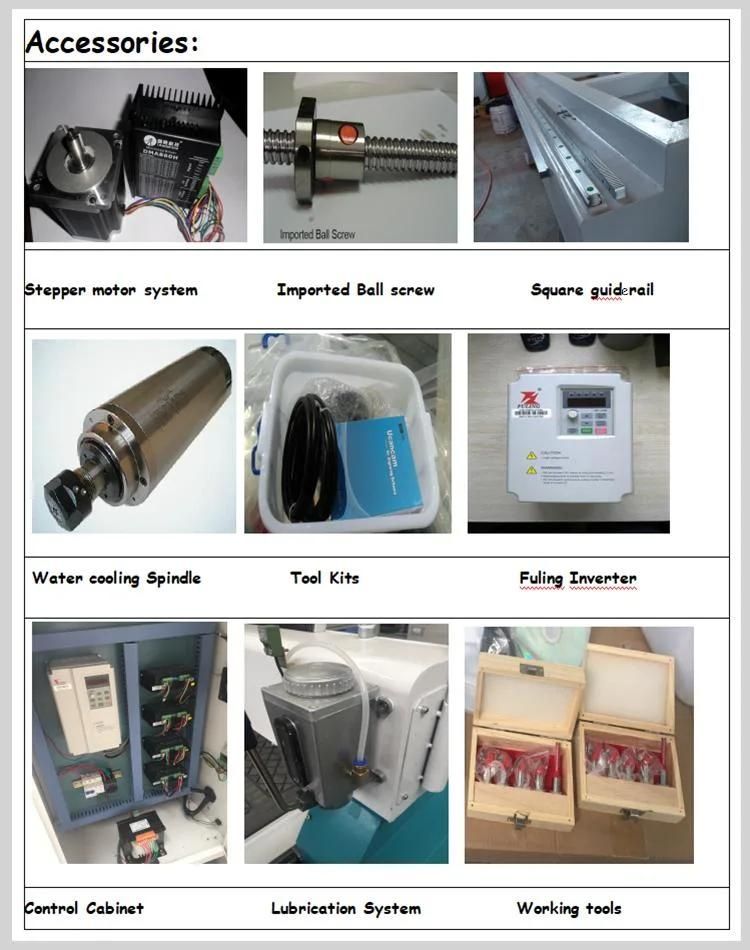

Product acessories
