• Model NO.：DH-40, WC-40 Diesel Engine Wood Chipper
• Condition：New
• Power Type：Diesel
• Feeding System：Hydraulic Feeding
• Color：Based on Your Needs
• Working Efficiency：8-9cbm,H
• Use：Chipping Wood
• Discharge Chute Rotation：360 Degrees
• Transport Package：Iron Steel Crate Package
• Specification：1800*1470*1350mm
• Trademark：WFMC
• Origin：Weifang
• HS Code：84368000
• Production Capacity：400 Units,Month

Basic Info.

Model NO. DH-40, WC-40 Diesel Engine Wood Chipper Condition New Power Type Diesel Feeding System Hydraulic Feeding Color Based on Your Needs Working Efficiency 8-9cbm/H Use Chipping Wood Discharge Chute Rotation 360 Degrees Transport Package Iron Steel Crate Package Specification 1800*1470*1350mm Trademark WFMC Origin Weifang HS Code 84368000 Production Capacity 400 Units/Month

Product Description

Features:

- Changchai durable diesel engines

- Electric start and stop

- 8 inch(20cm) Max. chip capacity, chip size 10-50mm adjustable

- Smart instrument panels on the screen

- Free instrument panels are added to this wood chipper. It is easier and more simple for operators to handle, you can

configure the chipper.

Product Description:

- Rotor(Flywheel)

At the heart of the chipper are an oversize heavy-duty rotor and reversible chipping blades. The large diameter rotor has a faster tip speed for improved chipping action and the heavy gauge steel keeps your momentum to power through 8" diameter tree trunks.

- Blades
High-quality CR-12 material cutting blades. 2 rotor blades and 1 bed blade, round disc housing, easy-to-change blades and belts. The reversible blades are precision cut tool steel and hardened, keeping a sharp cutting edge and maximizing the performance of the chipper.

- Hydraulic Feeding System

The model comes equipped with a hydraulic-driven dual in-feed roller system. The dual in-feed rollers pull the brush into the chipper allowing for a much more efficient chipping process. They are driven through the chipper's self-contained hydraulic system. These motors drive two brush/branch infeed rollers and dramatically improve the feed system over a single roller or gravity-fed wood chippers.

- Air vents

Blowing force is maximized with air intake vents on the side of the chipper. Air enters through the vents and powers the chips out of the chute far enough. Equipped with a radiator could help the diesel engine more efficiently and extend service life.

- Adjustable discharge hood chute

Easily control where you want the chips with an adjustable exit chute. The chute swivels 360 degrees and the top deflector adjusts the distance.

- 2" hitching ball, can be used in Europe, Australia, the USA, etc.
- Jockey wheel
- Road/turf tire
- Optional color according to specific requirements.

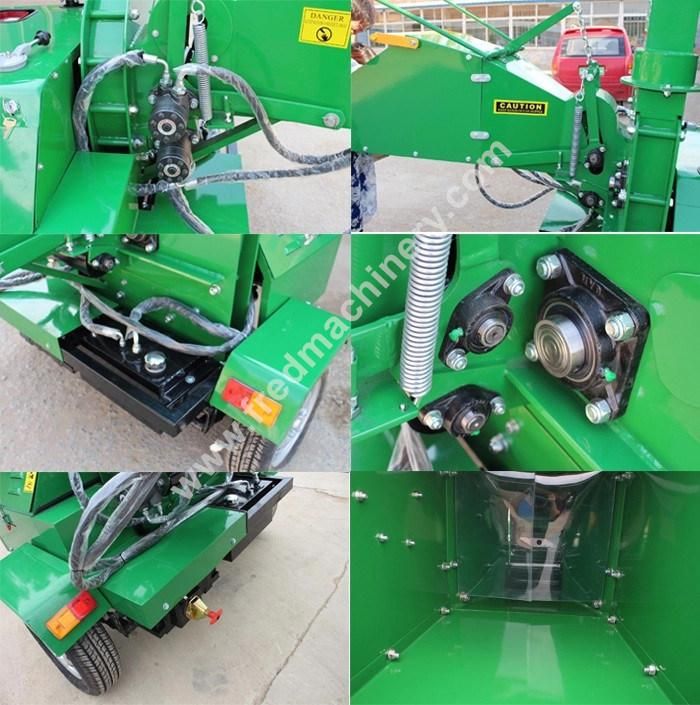

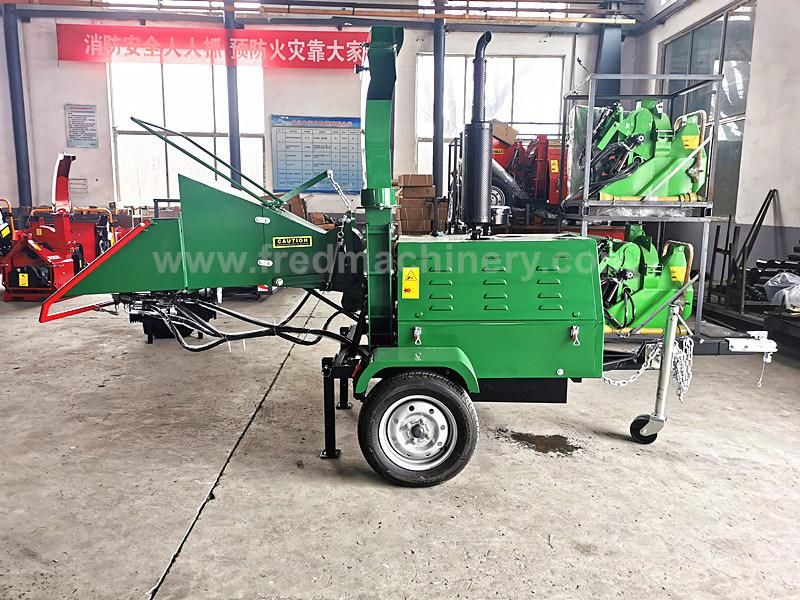

Detailed pictures:

Technical Specifications:


Model	DH-40
Chipping capacity	8 inches(200mm)
Diesel Engine	Model 490Q(electric start, 4 cylinders, 2000rpm)
Power	40HP
Flywheel size(dia.)	24 inches(600mm)
Flywheel thickness	25mm
Flywheel weight	95kg
Flywheel turning speed	1025rpm
Number of cutting knife	2
Number of the bed knife	1
In-feeding system	Hydraulic feeding(adjustable speed, stop-reverse-forward function)
Hydraulic oil tank volume	26L
Number of hydraulic motors	2
Discharge chute rotation	360 degrees
In-feeding opening	200x210mm
Machine Structure Net Weight	750kg
Sawdust size	Thickness<4mm
Working efficiency	8-9cbm/h
Configuration	Turning light, road or turf tire, 2" hitch ball, safety chains, leaf springs on the axle

Certifications:



FAQ:


Why choose our company to buy a wood chipper?	1. As manufacturer, large product range have excellent quality and competitive price. 2.1-year warranty is visible and quick good sales service. All requirements from our customers could be answered at first time during working time. Most importantly, 7 x 16 service could be provided to clients. Whatever it is sale offers advice or after-sales technical support. This is impossible for other companies here. 3. Strictly testing and checking by our QC department before packaging and shipping. 4. More than 10 years experience focusing on wood chipping machinery and 8 years exporting experience. 5. Doing OEM for many famous brands. 6. Quick delivery time When you place an order, production will be arranged soon. Order production will be finished within 20 - 30 workdays. This means you will receive the goods soon and prepare to sell and make more profit than your competitors in the market.
How to order?	[Step 1] Send a detailed inquiry by email. [Step 2] We offer you quotes. [Step 3] Confirm delivery time/freight operation. [Step 4] Arrange order production after deposit received [Step 5] Confirm consignee and notify party information. [Step 6] Book ship arrange shipping, after loading vessel, balance payment receipt of B/L copy. [Step 7] Commercial invoice, packing list and B/L sent to you after receipt of balance payment. [Step 8] All products received and services.
What are your trade terms?	FOB, CIF, CFR, CNF, DDU, DDP.
What are your payment terms?	(T/T) Telegraphic Transfer or Telex Transfer(Bank Transfer) 30% deposit, and balance the rest after receiving the Bill of Lading copy.
How should we visit you and your factory?	First of all, welcome you or any appointed agent to visit and inspect our factory. You can fly to Qingdao or Beijing airport, then come from Qingdao railway station or Beijingnan railway station to Weifang city. (55 minutes -3h30minutes) We can pick up you at the Weifang railway station. Please kindly let us know your schedule in detail, so we can arrange everything for you.
How long is your lead time or delivery date?	Usually, the lead time is about 20 days for smaller orders. And 30 days for big orders. The delivery date will be confirmed with Shipping Forwarder before order production is finished.
Can your company accept OEM or ODM production?	Yes. Now some famous companies from Europe and America are working with us by OEM and ODM means.
Can I order samples to test the quality?	Yes, of course. Quality could be evaluated with sample scale or trial order before placing batch orders.
