• Model NO.：E3
• Energy Saving：Energy Saving
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Configuration：3.5kw Air-Cooling Spindle
• Transport Package：Wrapped in Layers of Wrapping Film and Ponchos
• Specification：3400*2280*1180mm
• Trademark：Mars
• Origin：China
• HS Code：8465990000
• Production Capacity：3000 Sets,Year

Basic Info.

Model NO. E3 Energy Saving Energy Saving Warranty 1 Year Customized Customized Condition New Configuration 3.5kw Air-Cooling Spindle Transport Package Wrapped in Layers of Wrapping Film and Ponchos Specification 3400*2280*1180mm Trademark Mars Origin China HS Code 8465990000 Production Capacity 3000 Sets/Year

Product Description

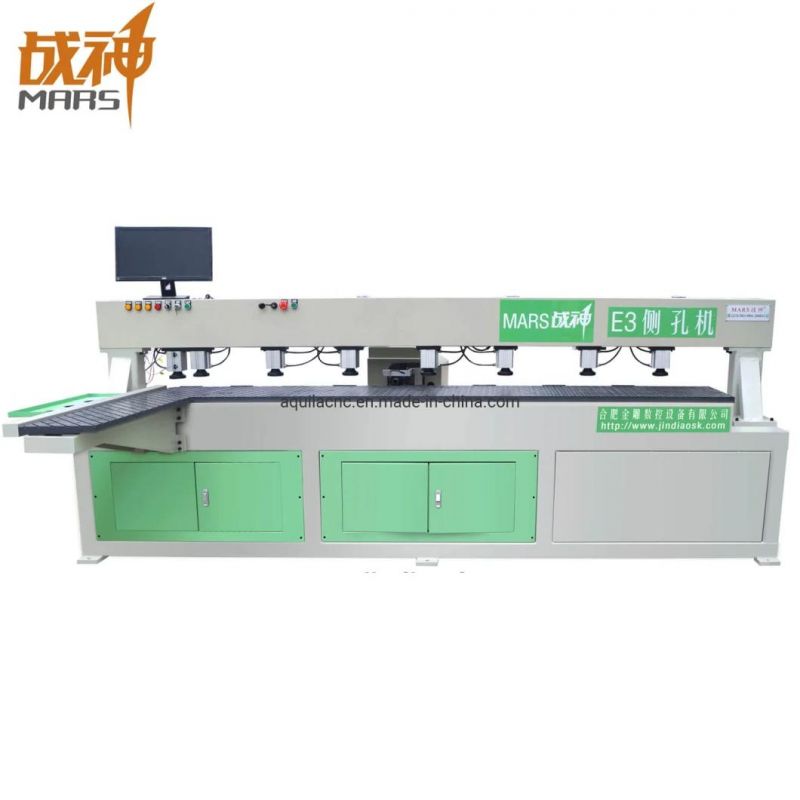

Furniture E3 Side Horizontal Hole Drilling Machine CNC Router Machine
Keywords:15 years experience of production
                         ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                         Three Brand: Mars, Golden Eagle,Borio

Description:
It is one special machine of horizontal drilling for customized panel furniture.It can completely substitute the traditional row driller,and discard the dependence of traditional punching mode on the technical workers.Combining with the professional production design software,it achieves really intelligent production.

Functions:
The functions of this machine include horizontal drilling and grooving.

Applicable Materials:
MDF, block board, solid wood board, particleboard, polymer door plates, plywood etc.


Application Scope:
It is one special machine of horizontal drilling for customized panel furniture.


Parameters:

Model	Furniture E3 Side Horizontal Hole Drilling Machine CNC Router Machine
Working Table Size	3400*2280*1180mm
Working Stroke	Length: 50mm~2800mm, Thickness: ≤30mm
Gantry Height	30mm
Body Structure	Heavy-duty thicken steel structure with tempering
Working Accuracy	±0.02mm
Re-positioning Accuracy	±0.05mm
Resolution	±0.025mm
Spindle Power	HQD 3.5KW air-cooling spindle
Spindle Speed	6000~18000 rpm/min
Max Travelling Speed	30m/min
Max Processing Speed	20m/min
Working Voltage	AC380/ 3PH/ 50HZ
Dictate Format	G code/ HPGL
Software	Professional cutting optimization software
Control System	SYNTEC/OSAI/ NC Studio
Drive System	Yaskawa/ Delta servo motor
Lubrication System	Automatic
Transmission	XY axis rack and pinion, Z axis ball screw
Guide Rail	Taiwan Hiwin linear rail
Net Weight	2000KG
Machine Size	3400*1600*1300mm

Accessories:


Performance Features:

1	Equipped with all the leading international brand components, such as Japan Yaskawa/Delta servo motor and driver
2	It is one special machine of horizontal drilling for customized panel furniture. It can completely substitute the traditional row driller, and discard the dependence of traditional punching mode on the technical workers.
3	Combining with the infrared positioning and professional production design software, it achieves really intelligent production.
4	Vacuum table, high adsorption capacity, able to adsorb materials of different sizes
5	Taiwan-made guide rail and German ball screw, high precision, long service life, good stability
6	Option: with our new design of infrared positioning, it can help you accurately position the hole, fulfill the drilling work even not be interfaced with the panel furniture software.
7	Taiwan planetary reducer, with small volume, large torque, high transmission efficiency, wide range of deceleration
8	Intelligent protection work table can prevent table damages caused by misuse or software errors. Intelligent processing cross-border protection can prevent mechanical collisions while design layout exceeds processing area

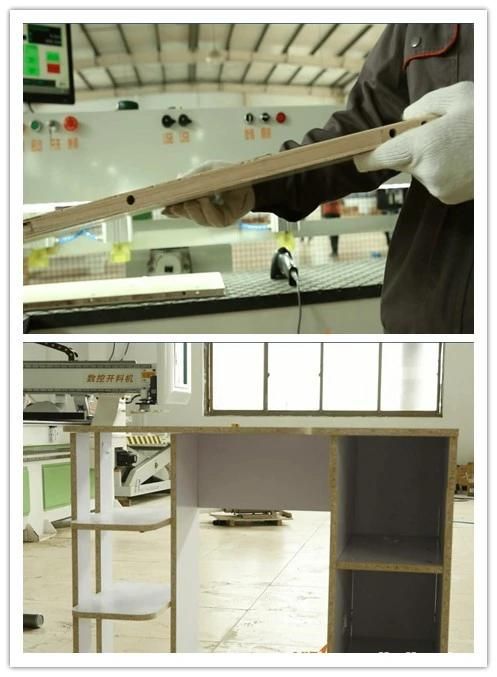

Samples:

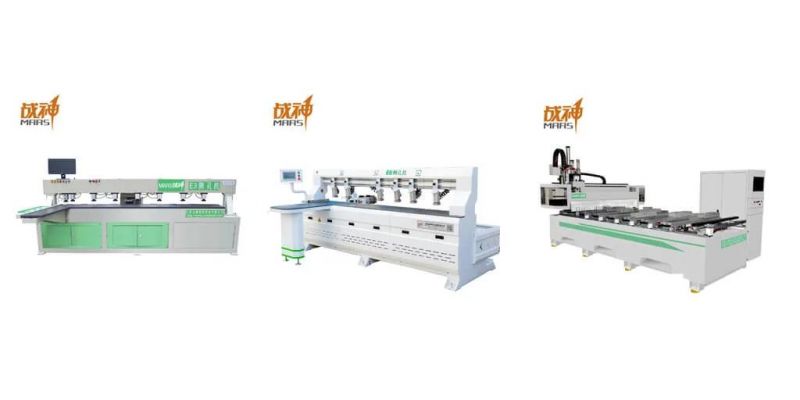

Similar Products:
