• Model NO.：WZLH508
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Multi Color
• After-sales Service：Online Support
• Capacity(T/H)：2-4
• Main Power(Kw)：90,110
• Pellet Size(Mm)：6-8
• Transport Package：Iron Pallet and Soft Guard
• Specification：CE, ISO9001, SGS
• Trademark：FDSP
• Origin：Jiangsu, China (Mainland)
• HS Code：8479300000
• Production Capacity：2-4t,H

Basic Info.

Model NO. WZLH508 Warranty 1 Year Customized Customized Condition New Color Multi Color After-sales Service Online Support Capacity(T/H) 2-4 Main Power(Kw) 90/110 Pellet Size(Mm) 6-8 Transport Package Iron Pallet and Soft Guard Specification CE, ISO9001, SGS Trademark FDSP Origin Jiangsu, China (Mainland) HS Code 8479300000 Production Capacity 2-4t/H

Product Description

Hot Selling Ring Die Wood Pellet Mill for Making Wood Pellet
Wood pellet mill, also called as wood pellet making machine, wood pellet perss. It is a type of equipment used to create pellets from powdered material. The wood pellets is mainly made of any wood waste and biomass particles, such as wood sawdust, wood shavings, wood chips, wood logs, straw, rice husk, coffee husk etc.

Advantages of product:
1.Gear directly-connecting driving is adopted for high efficiency;
2.The bearing and oil seal in the main drive are imported;
3.Feeder, conditioner and chute are made of stainless steel with long service life;
4.It is with magnet and over load protection system, which can protect machine well during production;
5.Feeder is variable speed controlled to meet different outputs requirements;
6.There is enforced feeder in view of light materials; Feed cone's structure is advanced to increase output;
7.Liquid inlet on conditioner can be added various liquids.

Raw materials for wood pellet mill

Woodiness materials(wood logs/chips/branches/sawdust/shavings), agriculture biomass waste(rice straw, wheat straw, cotton straw, rice husk, corn stalk, sunflower stalk,etc),
peanut shell, leaves, bamboo sawdust, sugar cane, waste paper, napier grass, etc.

Performance Parameter

Model	WZLH420	WZLH520	WZLH680	WZLH780
Capacity(T/H)	0.8-1.2	1.5-1.8	2-2.5	2.5-3.5
Main motor power(kw)	75/90	110/132	160/185	200/220
Feeder power(kw)	2.2	3	4	4
Ring die dia(mm)	420	520	680	780
Pellets dia(mm)	6-8	6-8	6-8	6-8

On basis of absorbed advanced technology for biomass pelleting from abroad, we are leading company to develop independently turn-key equipment for biomass pelleting for agricultural crops in China. Meanwhile it can be pelleted for waste of forestry, too. We can customize and design turn-key project for all kinds of materials for customers according to their various request, materials, and site.

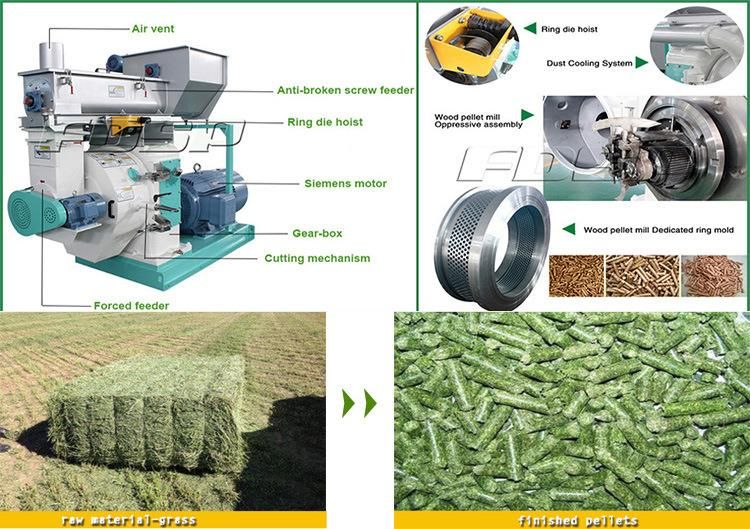

Main parts of WZLH520 wood pellet mill

1. Screw feeder

    ( to feed the raw material evenly and break the arch)

2. Forced feeder

    ( especially designed for those materials with low density and low fluidity)

3. Pelleting chamber

    ( Ring die and rollers)

4. Cutting mechanism

    ( to control the length of pellet)

5. Gear-box

    (transmission system, with efficiency above 97% and gear-box body is made by

     HT250 material)

6. Siemens motor

    ( famous brand, to ensure long service time)

FAQ

1.Q:Are you a factory or trading company?

A:We are a factory .

2.Q:Where is your factory located? How can I visit there?

A:Our factory is located in Liyang City, Jiangsu Province, China, near Shanghai.You can fly to Shanghaiairport directly.All our clients, from home or abroad, are warmly welcome to visit us!

Customers visist our plant:

Packing and delivery:
