• Pressing Layer：Multi Layer
• Work Mode：Period
• Controlling Mode：Artificial
• Automatic Grade：Automatic
• Certification：CE, ISO, FDA, CE, ISO
• After-sales Service：One Year
• Type：Hot Press Machine
• Automatic：Automatic
• Voltage：380V
• Dimension(L*W*H)：3550*1370*4200 mm
• Total Pressure：500t
• Number of Layers：10
• Interlamellar Space：70
• Cylinder：360 X 1050mm X 2PCS
• Hot Platen：2700 X 1370X 42mm
• Stroke of Cylinder：1050mm
• Power：18.5kw
• Weight：30 Tons
• Condition：New
• Place of Origin：Shandong, China
• Brand Name：Jianzhong
• Transport Package：Container
• Specification：steel
• Trademark：JZ
• Origin：China
• HS Code：8465990000
• Production Capacity：1000 Sets,Year

Basic Info.

Pressing Layer Multi Layer Work Mode Period Controlling Mode Artificial Automatic Grade Automatic Certification CE, ISO, FDA, CE, ISO After-sales Service One Year Type Hot Press Machine Automatic Automatic Voltage 380V Dimension(L*W*H) 3550*1370*4200 mm Total Pressure 500t Number of Layers 10 Interlamellar Space 70 Cylinder 360 X 1050mm X 2PCS Hot Platen 2700 X 1370X 42mm Stroke of Cylinder 1050mm Power 18.5kw Weight 30 Tons Condition New Place of Origin Shandong, China Brand Name Jianzhong Transport Package Container Specification steel Trademark JZ Origin China HS Code 8465990000 Production Capacity 1000 Sets/Year

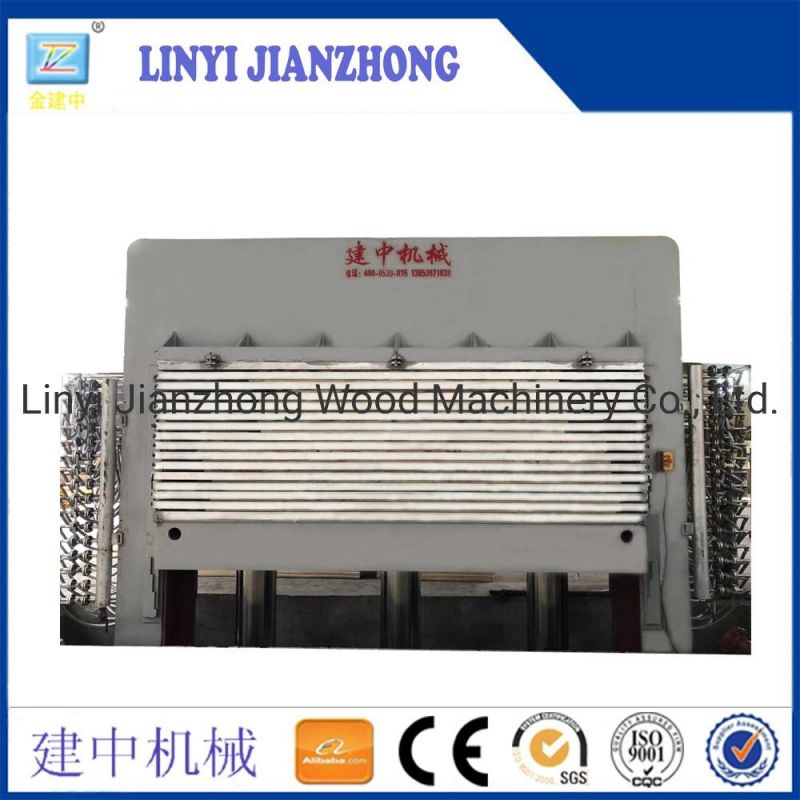

Product Description

 Product Brief Description:

1.The main frame is welded by good quality NO1 standard steel plate.

2. good design of frame and stucture, strong rigidity,and ensure high pressure.

3.Hot pressing system,heat conduction system.Microcomputer control,high degree of automation, high reliability,easy adjustment,long service life.

4.The hydraulic control system is fast, accurate and efficient with imported hydraulic components.

5.Reasonable, high precision maching parts,process parameters to adjust a wide range of control process is reasonable ,to meet a variety of veneer production process requirement.

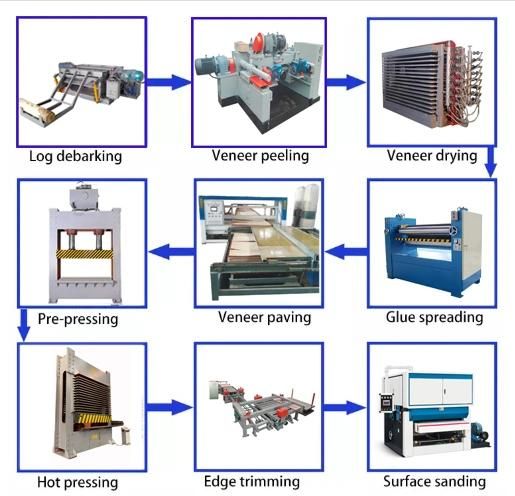

Plywood making line:





Advantages:

1.The self-developed PLC systen can set the number and time of exhaust wet gas according to the humidity of core veneer.

2.small installed power, fast closing speed.

3. Main components of hydraulic device installed on the top of mainframe, less occupied area, the outlet oil pipe is already assembled before leaving factory.

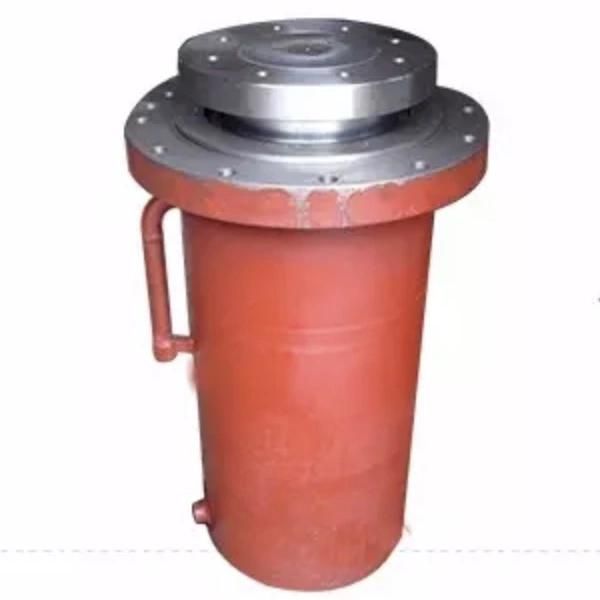

4.Oil cylinder is easy to maintain, and also its failure rate is low. Besides, it adopts a upper cylinder mode.

Production Parameters:


Pressure range	500T
Cylinder	360mm*2pcs
Upper beam	900mm
Middle beam	400mm
Bottom beam	900mm
Power	18.5KW
Frame	combination
Close time	20 seconds
Number of layers	10 layers
Hot platen	2700*1370*42mm
Steel thickness	35mm/40mm
Weight	33T
Overall dimension	3550*1370*4200mm
Thickness of the frame	35mm Q235

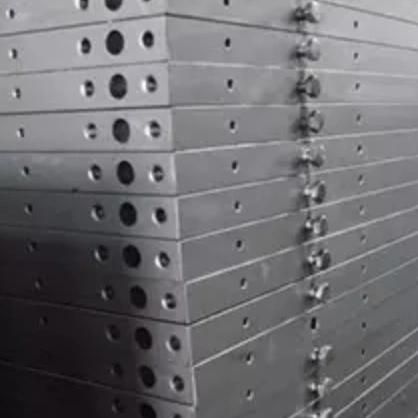

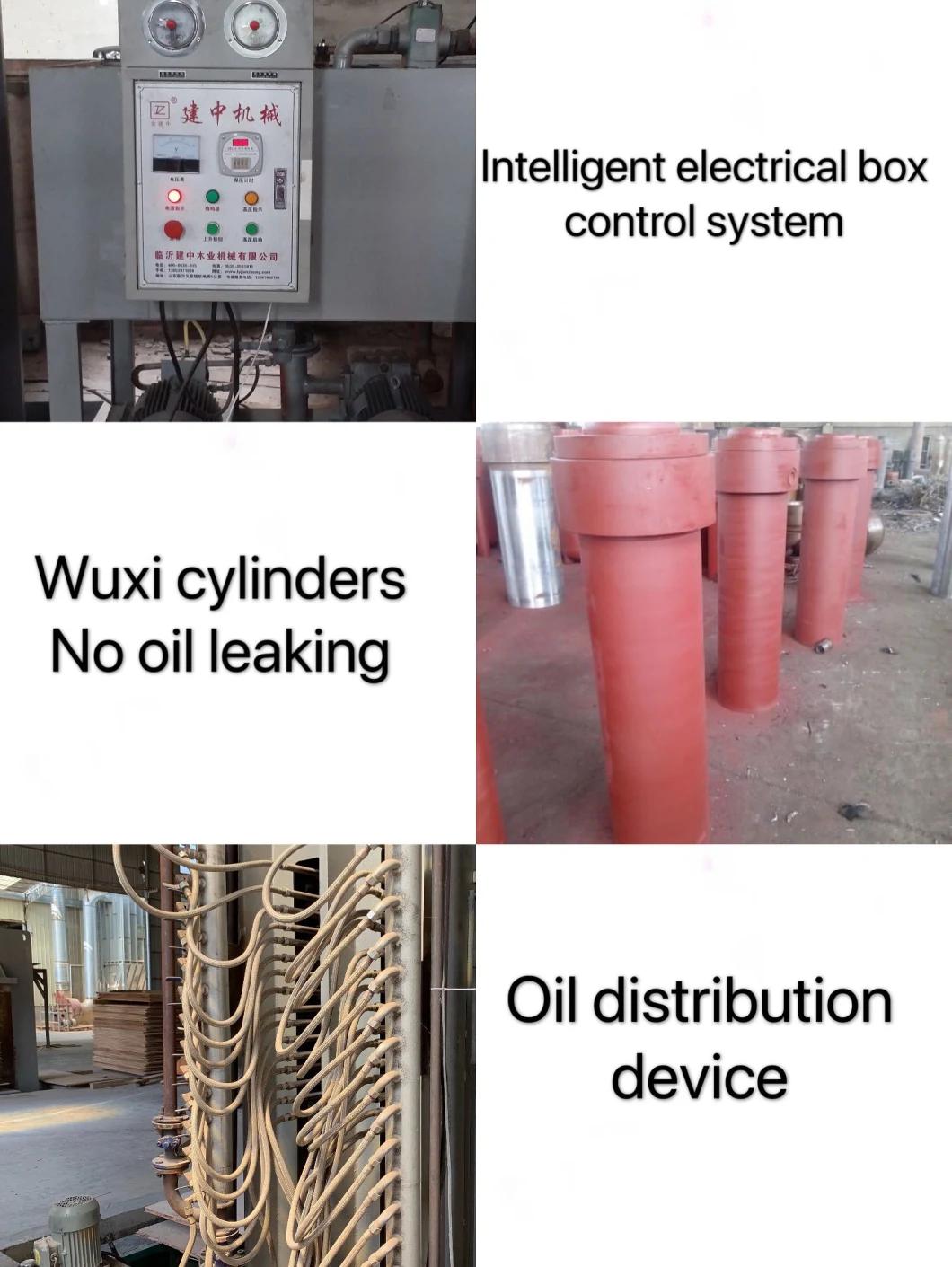

Detail images:

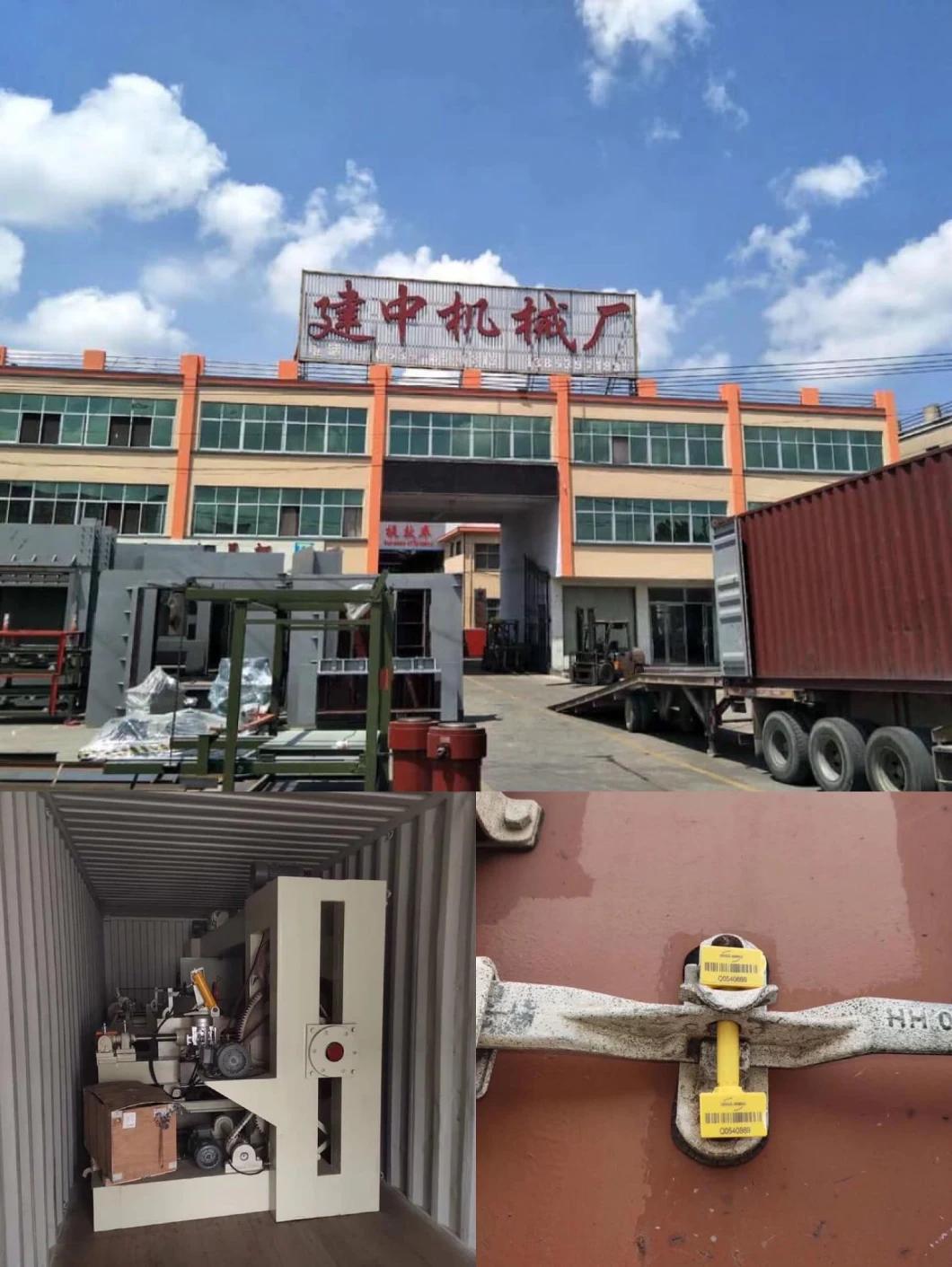

Packing&Shipping:





Certification:




Serivice:

There are complete Pre-sale services, After-sales service, Technical service and communication, Delivery. Our staff of sales and technical support is available to help you in selecting the right equipment for your application; Also according to the actual requirements provide solutions with clients.

1. All kinds of mold can be made by customer's requirements.

2. All price are based on FOB, QINGDAO, China.

3. Payment: by T/T 30% down payment, 70% upon mchinery completion.

4. Delivery: After finishing all the payment .

5. All the parameters above just for reference, for they are updating all the time.

6. Package: Standard packing.

7. Warranty: All the machine enjoys one year's warranty, in this period.

Any problems of machine, please feel free to contact us. We will try our best to make it.

8.Engineers available to service machinery overseas;

For the installation, seller will send the drawing for fabrication on site. Seller shall send
engineers to guide installation. Buyer shall supply all the necessary help during
installation. Air tickets and accommodation will be borned by buyer, our engineers should be paid 100USD per day.

By the way,our product can be customized according to customer requirements,I am very happy to rechieve your consultation.

About us:

Our factory was founded in 1998, has 20 years of experience in production and research and development, the existing staff of 500 people. Industry and trade integration enterprise, specializing in the production and sales of aluminum-plastic plate, steel structure, plywood, construction template and other building materials. JIANZHONG group sincerely look forward to cooperating with you!

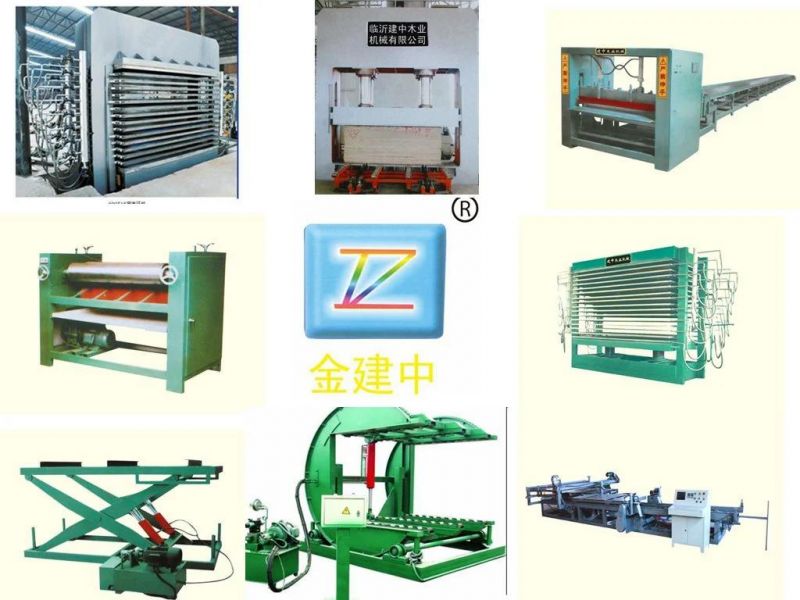

We have a team rich in the spirit of innovation, professionaldesign team, excellent customer service personnel. Currently, commitment to the development of automationcontrol technology research, to supply more efficient andintelligent products to metropolitan areas. And can becustomized products according to your request. Productsare widely used in plywood each working procedure, is themost outstanding in the automation industry.
