400t/500t/600t Plywood Core Veneer Hot Press Machine
Linyi Sin San Lin Smart Machinery Co., Ltd.- Work Forms：Hydraulic Pressure
- Processing Technics：Hot Press
- Structure：Frame Type
- Pressing Shape：Flat Press
- Platen Surface Pressure：High Pressure
- Pressing Layer：Multi Layer
Base Info
- Model NO.：BY214X8,4-15ZIID
- Work Mode：Continuous
- Controlling Mode：CNC
- Automatic Grade：Automatic
- Certification：CE, ISO, FDA
- Nominal Gross Pressure：400-800ton
- Direction of Feeding Plate：Horizontal
- Distance Between Hot Platens：60-150mm, 80-120mm
- Diameter of Cylinder：220-360mm
- Control Method：Automatic Pump Station
- Transport Package：Wrapping Film
- Specification：31000KGS
- Trademark：Metro
- Origin：Shandong, China
- HS Code：8479300000
- Production Capacity：50set,Month
Description
PLYWOOD HOT PRESS MACHINEmodel BY214X8/4-15ZIID nominal gross pressure 400-800TON direction of feeding plate HORIZONTAL distance between hot platens 60-150mm / 80-120mm numbers of hot platens 5-15 layers / 10-20 layers dimension of hot platens 2700*1370*52mm
2700*1370*42mm numbers of cylinder 2-8pcs diameter of cylinder Φ220-360mm stroke of cylinder 200mm pressurization ≤25Mpa the position of cylinder up closing time 13s / 15-30s / 30-60s max temperature <210 total weight 31000kgs stroke of cylinder 200mm high pressure pump flowing about89L/min allowed pressure ≤25Mpa power 18.5kw control method automatic pump station
Contact Information:
Stacy Chen
Your Success Is Our Business!
2700*1370*42mm
Hot platen:
1. it is drilled from excellent carbon solid steel and it is high precision, high strength and durable.
2. it is manufactured on special workable., so as to keep the hot platen easy to operate.
Heating system
1. It can be heated by steam boiler, oil heater or electric oil heater.
2. We recommend oil type boiler as the temp can be more stable.
Cylinder:
1. it is made in excellent carbon solid steel and it is high strength and durable.
2. It uses high quality oil envelop so as to avoid of oil leaking.
Control system
1. PLC control
2. It can lift the hot platen, close the seperation, add the pressure, keep the presssure, keep time, descend the hot platen and so on.

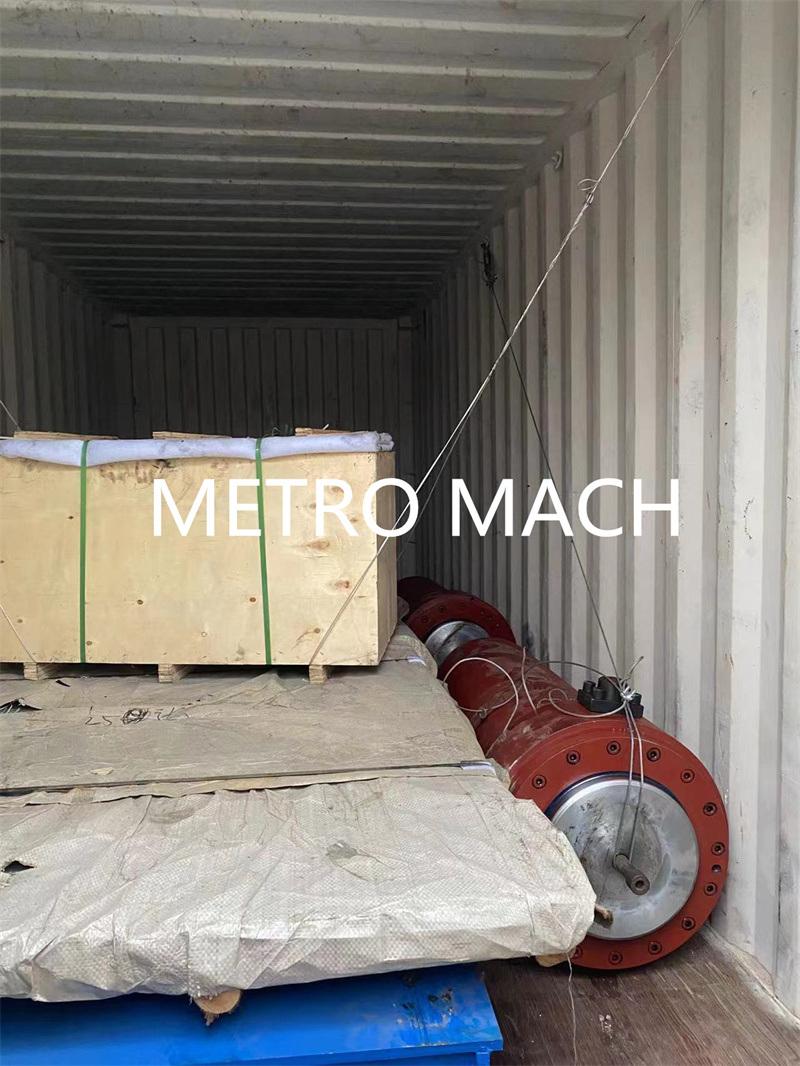

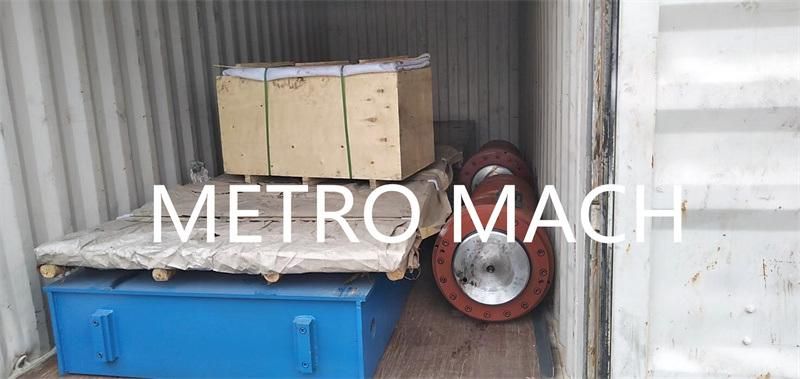

Loading pictures:
