QMB433H-D Woodworking Machinery Heavy-duty Surface Planer

Hangzhou Smart Panther Tech Ltd
  • Warranty:3 years
  • Type:Four-Side Planer
  • Working Depth:>200mm
  • Working Width:200-400mm
  • Drivetrain:Feed Drivetrain
  • Enter Method:Mechanical

Base Info

  • Model NO.:QMB433H-D
  • Motor Power:>10Kw
  • Cutter Shaft:4
  • Spindle Speed:>5000rpm
  • Process Type:Heavy Processing
  • Certification:CE, ISO
  • After-sales Service:3 years
  • Certificate:Ce & ISO
  • Product Name:Surface Planer
  • Transport Package:Plywood Carton
  • Specification:4430x2260x2100
  • Trademark:Qingcheng
  • Origin:China
  • HS Code:84659200
  • Production Capacity:5000sets,Y

Description

Basic Info.

Model NO. QMB433H-D Motor Power >10Kw Cutter Shaft 4 Spindle Speed >5000rpm Process Type Heavy Processing Certification CE, ISO After-sales Service 3 years Certificate Ce & ISO Product Name Surface Planer Transport Package Plywood Carton Specification 4430x2260x2100 Trademark Qingcheng Origin China HS Code 84659200 Production Capacity 5000sets/Y

Product Description

4-side Planer/Four-Side Moulder/Woodworking planer/Moulder Machinery For Wooden Furniture/Solid wood
QMB433H-D Surface PlanerQMB433H-D Woodworking Machinery Heavy-duty Surface Planer
SpecificationsUnitQMB433H-D
Working widthmm50-330
Working thicknessmm20-250
Min.working length(intermittent/continuous)mm700/300
Dia of spindlemmΦ50
Dia of feeding rollermmΦ180
Feeding speedm/min6-36
Rotation speed of spindler/min6000
Cutter dia of first bottom cuttermmΦ140
Left/Right vertical cuttermmΦ118-Φ230
The first upper cuttermmΦ140-Φ230
The Second upper cuttermm/
Back bottom cuttermm/
Universal spindlemm/
Total powerkW/HP53.4/71
The first bottom cutterkW/HP 11/15
Left vertical cutterkW/HP 11/15
Right vertical cutterkW/HP 11/15
The First upper cutterkW/HP 11/15
The second upper cutterkW/HP/
The second bottom cutterkW/HP/
Universal spindlekW/HP/
Feeding motorkW/HP7.5/10
Beam lifting motorkW/HP0.75/1
upper cutter lifting motorkW/HP0.75/1
Radial adjustment of the vertical spindlekW/HP0.37/0.5
Rear pressing plate elevationkW/HP/
Side feeding motorkW/HP/
Belt conveyorkW/HP/
Disc conveyorkW/HP/
Suction hood diamm4*Φ180
Air supply pressure Mpa0.6
Overall dimensionsmm4430x2260x2100
Weightkg8000

QMB433H-D Woodworking Machinery Heavy-duty Surface Planer

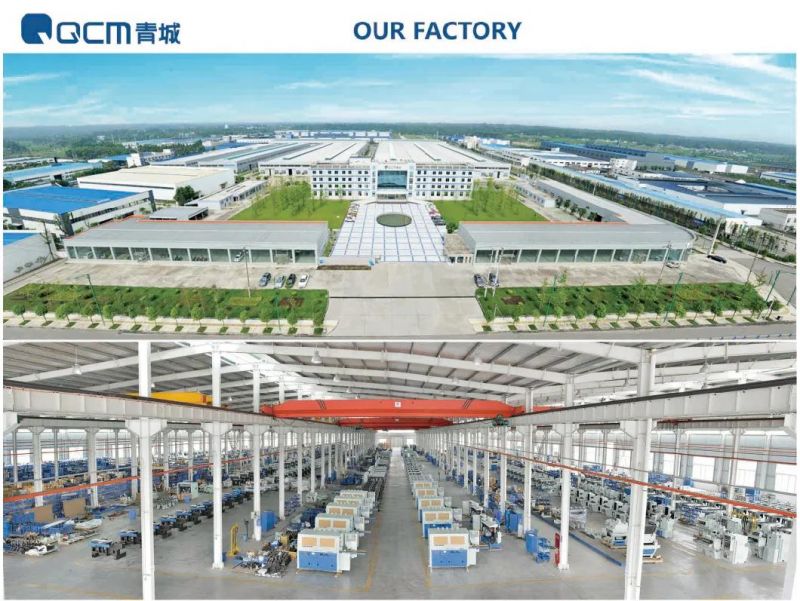

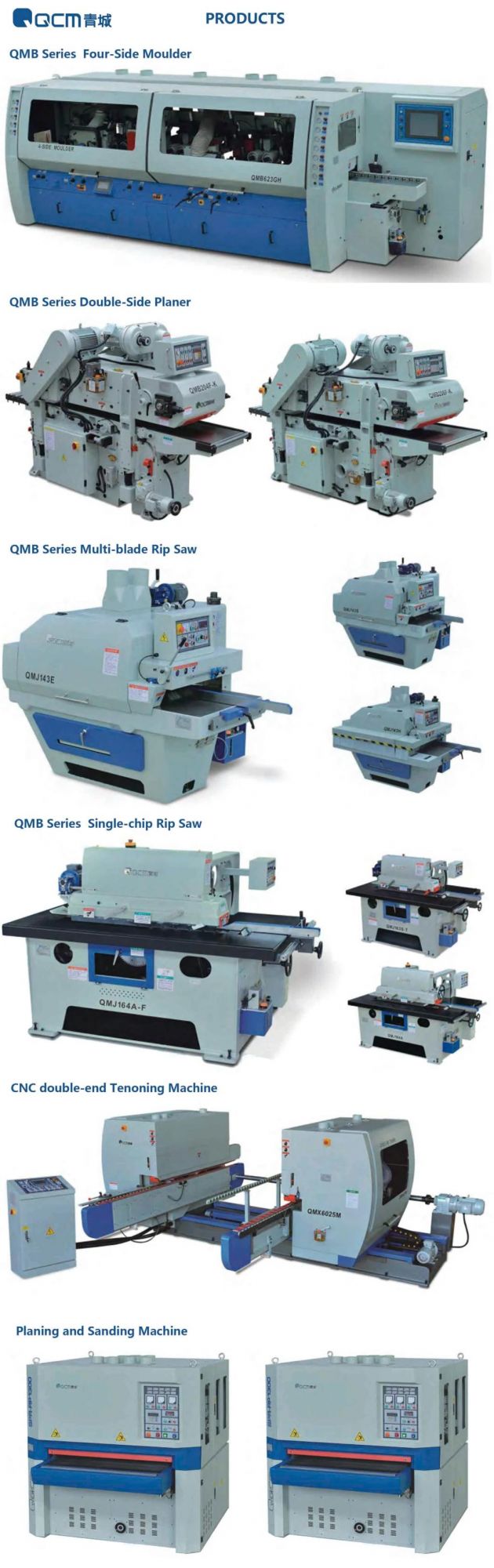

Qingcheng Machinery Co.,LTD established in 1970 which are speclializing in producing all kinds of woodworking machines, like Four Side Moulder, Double Side Planer, Automatic Muti-blade Rip Saw, Automatic Single-side Rip Saw and Double-end Tenoning Machine, Wood Planer etc.

It's been 50 years since we have devoted our-self to the development and manufacturing of woodworking machinery.

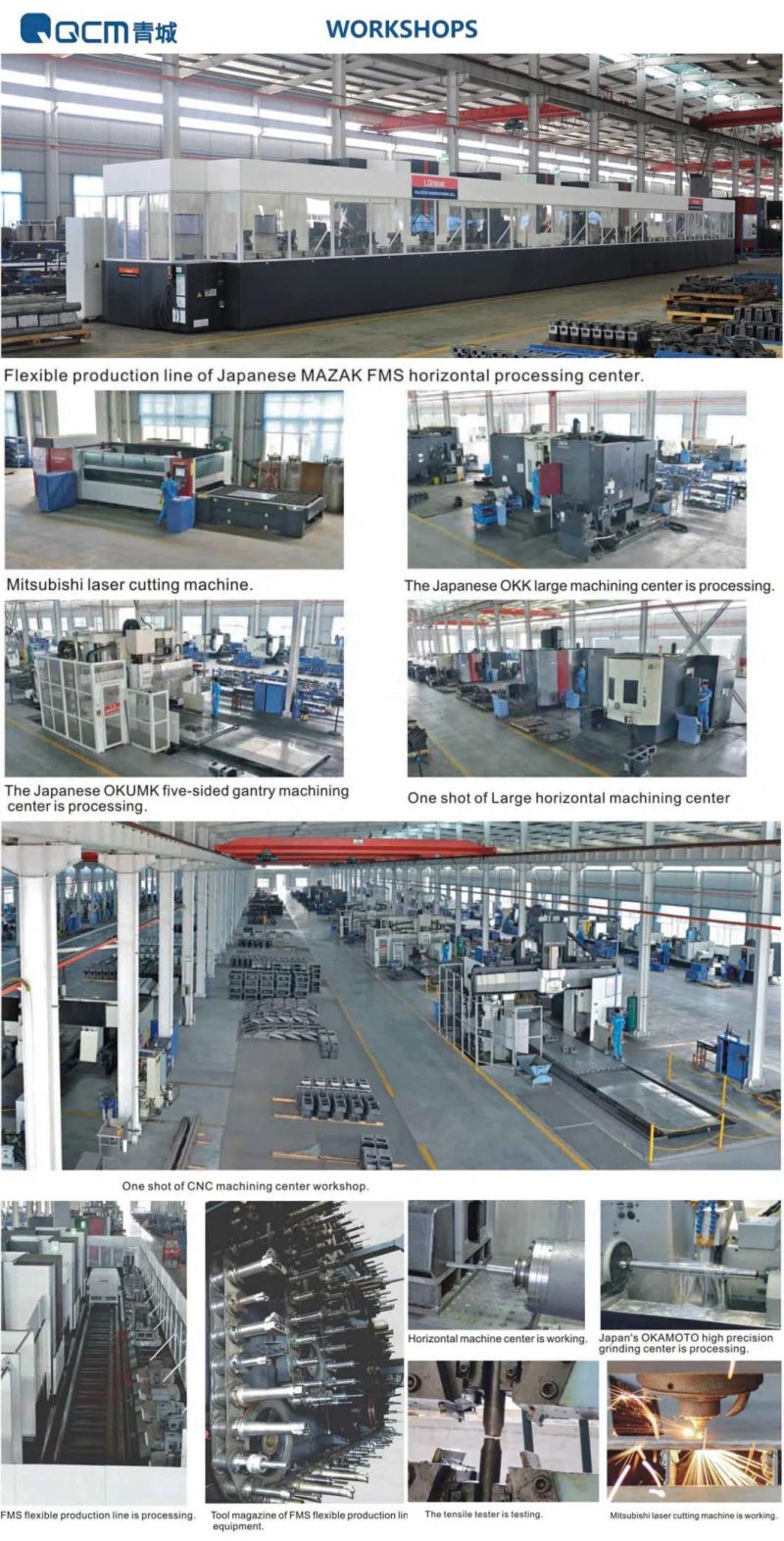

As a top manufacturer in wood machinery, we insist on investment on research and develop and equipment. We have purchased vertical machining centers, muti-function CNC lathes produced by Japan Mazak, horizontal machining centers of Japan MAKINO, Japanese gantry machining centers of OKUMA, and laser cutting machines from Mitsubishi.


Those advanced equipment insure you precision, performance and durability, with mass production in big quantity. So that we can insure our customers fast delivery time, high quality and perfect performance.

QMB433H-D Woodworking Machinery Heavy-duty Surface Planer
QMB433H-D Woodworking Machinery Heavy-duty Surface Planer



FAQ

Below FAQ for your reference, if you have any further questions, we are always here for you.

1, Manufacturer or Trading company?
Yes, we are professional woodworking machinery producer since 1970.During the last 50 years, we devoted our-self to the development and manufacturing of woodworking machinery with passion and innovation. You will be always welcomed to visit our factory.


2, What's your payment term?
30% deposit and 70% balance should be paid before delivery.


3, How about your after-sale service?
Our engineers are available to service overseas to provide professional technical support.


4, Warranty of four-sided Surface Planer?
Its warranty is 12 months.


5, What's your leading time?
Within 2 days for regular stocked machine after receiving deposit.
2 months for OEM machines.


7, What's your delivery term?
---FOB shanghai/Ningbo
