Zsf-70dl Automatic Edge Banding Machine CNC Router for Wood
Hefei Aquila CNC Equipment Co., Ltd.- Function：Pre Milling, Gluing, Edge Banding, End Trimming, Rough Trimming, Fine Trimming, Contour Tracking, Scraping, Buffing, Slotting
- Type：Linear Edge Banding Machine
- Edging thickness：0.4-3mm
- Automatic Grade：Automatic
- Panel Feeding Speed：20m,min
- Certification：CE, ISO, BV
Base Info
- Model NO.：ZSF-70DL
- Panel Thinkness：10-60mm
- Min.length panel：150mm
- Min.width panel：60mm
- Manufacturing Principles：Glue Tank Underneath
- Customized：Customized
- Machine Item：Automatic Wood Edge Banding Machine
- Machine Painting Color：Be Made According to Your Need
- Price：Lowest Reasonable Offers with Best Machine
- Air Pressure：380V,50Hz 3phase Can Be Customized
- Total Power：14 .5kw
- Brand：Mars
- Transport Package：Standard Package, Be Made According Cutomer Need
- Specification：5570*910*1540mm
- Trademark：Mars
- Origin：Hefei City, Anhui Province
- HS Code：8465990000
- Production Capacity：3000 Sets, Year
Description
Applicable ScopeProcessing Be suitable for processing complicated products, with wide rage of functions, including plane Gluing, End Cutting, Rough Trimming, Fine Trimming, Corner Trimming, Scraping, Buffing and etc. Material Acrylic, PVC, MDF(density board), artificial stone, organic glass, and other soft-metal sheets made of aluminum or copper Application Be widely used for panel processing, panel furniture, computer desk, office furniture, wooden speaker, wooden kitchen ware, customized wardrobe, modern cabinets, and so on
StrengthEasy operation, competitive price and functional processing for furniture production The machine control interface is designed to be user-friendly, fool-like operation, and the operator can be employed through simple training without the need for skilled workers Overall dimensions(L*w*H mm) 6460*910*1540mm Motor power 15.8kw Total power Feed speed 17-25m/min Edge thickness 0.4-3mm Panel thickness 10-60mm Panel Length >=150 Panel Width >=60 Working press 0.6-0.8Mpa Mini Panel Size 300(L)*60(W) mm & 150(L)*150(W)mm Total weight 2450KGS
Accessories:

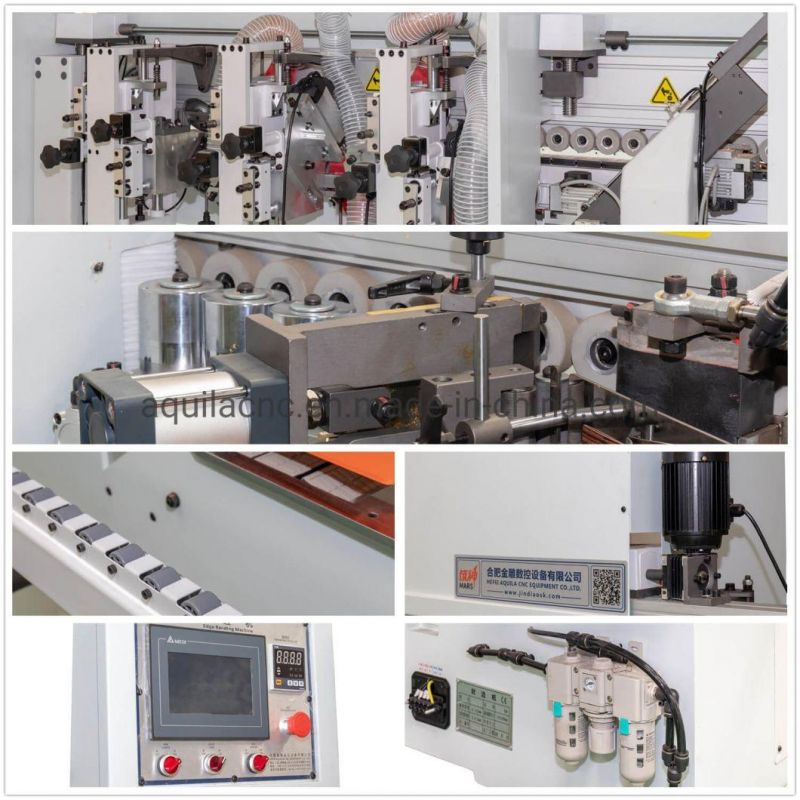

Performance Features:Performance Feature1 This edge bander is ideal for building an automatic production line. Stability and controlled ability are the most important factors for an equipment to be part of production line 2 Pre-milling equipment with double trim-blades works on the waved effect that is caused by precise saw 3 The glue mechanism adopts a special structure to gelatinize the plates and coating materials uniformly, ensure a more solid conglutination 4 End-trimming mechanism through a precise guide track movement, adopt automatic tracking and high-frequency motor fast cutting structure to ensure the cutting surface smoothly 5 Rough &Fine Trimming unit, with two individual high frequency motors, trim the exceeding edge on the top and bottom side of the panel, ensure the top and bottom side of the edge smooth and even 6 Scraping unit for a perfect finishing of the applied edge 7 The buffing device adopt the board processed by cotton polishing wheel, by end-polishing to make a more smooth surface 8 Grooving is a optional function for edge banding machine. It's used to slot out one groove on panel to install glass, back panel etc
Strength
Parameters:
Accessories:
Performance Features:Performance Feature

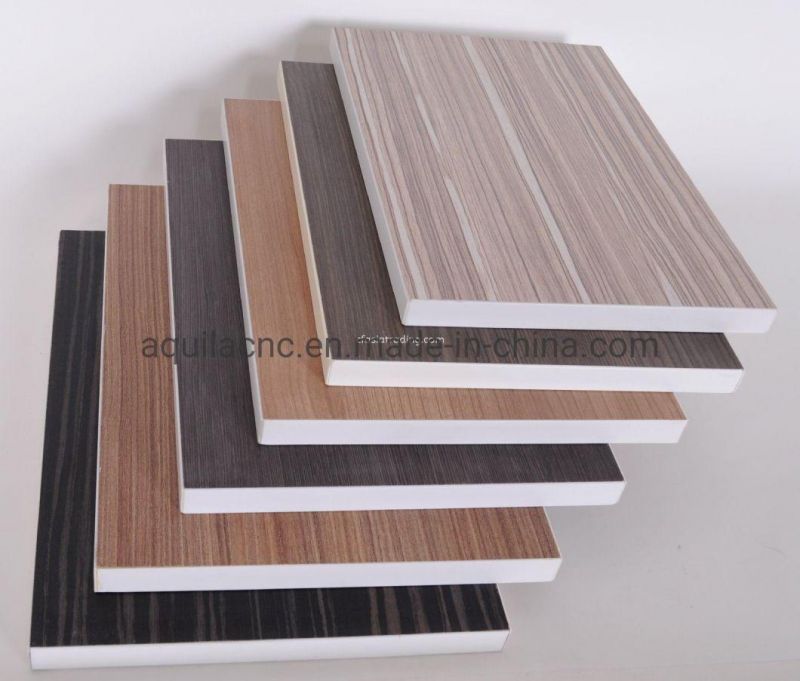

Samples:
