• Model NO.：MF50F
• Panel Thinkness：10-40mm
• Min.length panel：120mm
• Min.width panel：50mm
• Manufacturing Principles：Glue Tank Overhead
• Customized：Customized
• Panel Width：≥80mm
• Panel Thickness：10-60mm
• Edge Thickness：0.4-3mm
• Feeding Speed：12-20m,min
• Working pressure：0.6MPa
• Motor Power：16.5kw
• Machine size：6600X1000X1600mm
• Net weight：2450kg
• Transport Package：Film Package
• Specification：6600x1000x1600mm
• Trademark：Zicar
• Origin：China
• HS Code：8465990000
• Production Capacity：500

Basic Info.

Model NO. MF50F Panel Thinkness 10-40mm Min.length panel 120mm Min.width panel 50mm Manufacturing Principles Glue Tank Overhead Customized Customized Panel Width ≥80mm Panel Thickness 10-60mm Edge Thickness 0.4-3mm Feeding Speed 12-20m/min Working pressure 0.6MPa Motor Power 16.5kw Machine size 6600X1000X1600mm Net weight 2450kg Transport Package Film Package Specification 6600x1000x1600mm Trademark Zicar Origin China HS Code 8465990000 Production Capacity 500

Product Description

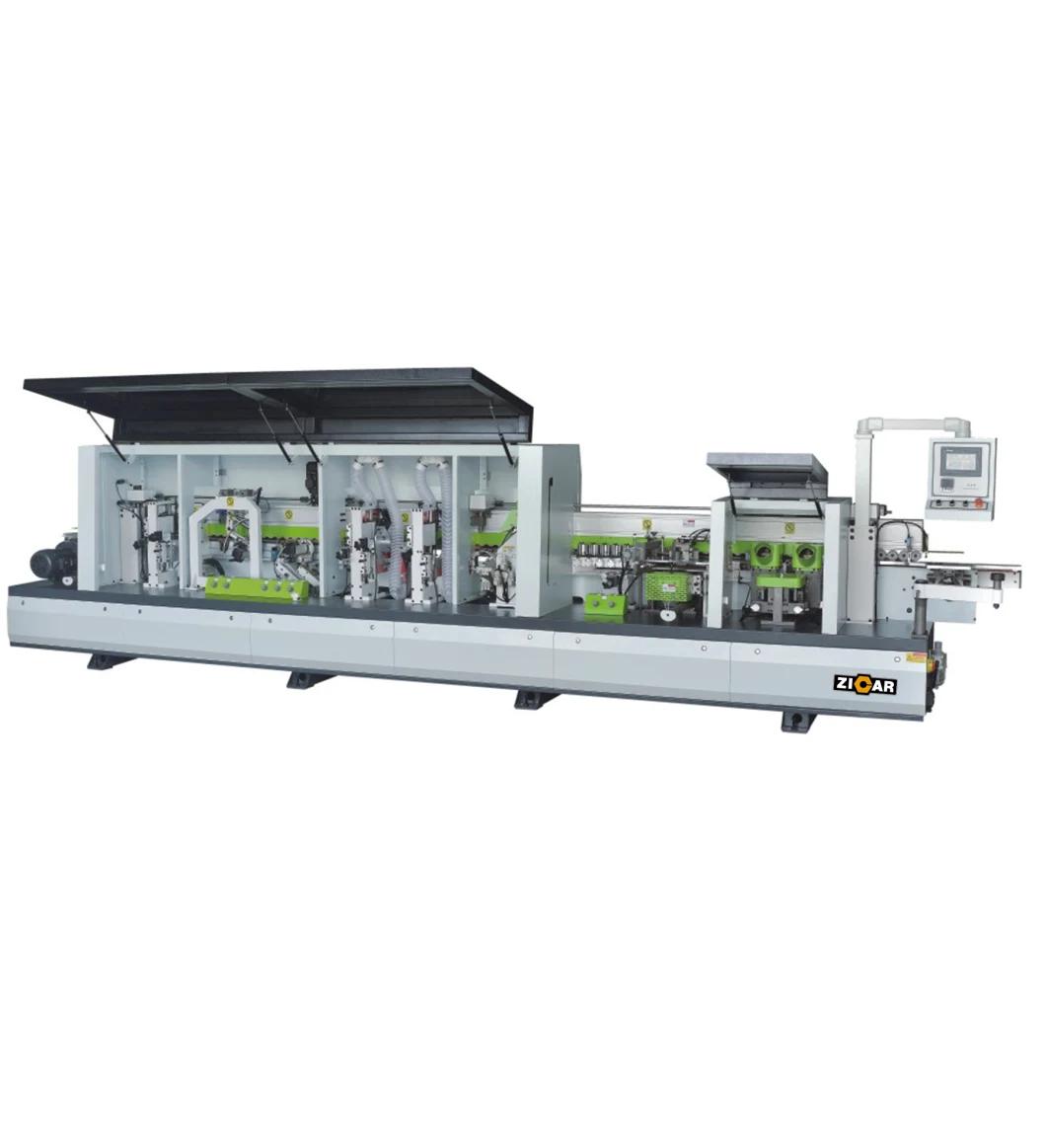

Edge Banding Machine MF50F
Features:

1.Edge banding machine is a kind of woodworking machinery. It belongs to the category of plate machinery. Which is used for edge banding as the name suggests. The traditional manual operation process is completed with highly automated machinery. Including conveying - gluing - end cutting - Fine trimming - scraping -buffing. and many other processes.
2.Divided into manual edge banding machine and fully automatic edge banding machine, MF50G/MF50GM belongs to automatic edge banding machine, with Pre-milling - gluing - end cutting- dine trimming - buffing functions, can be working with linear workpieces

3.Edge band material: melamine (impregnated) paper, veneer, plastic (PVC or ABS), etc.

Specifications:


Panel Width:	≥80mm
Panel Thickness:	10-60mm
Edge Thickness:	0.4-3mm
Feeding Speed:	12-20m/min
Working pressure:	0.6Mpa
Motor Power:	16.5kw
Machine size:	6600x1000x1600mm
Net weight:	2450kg

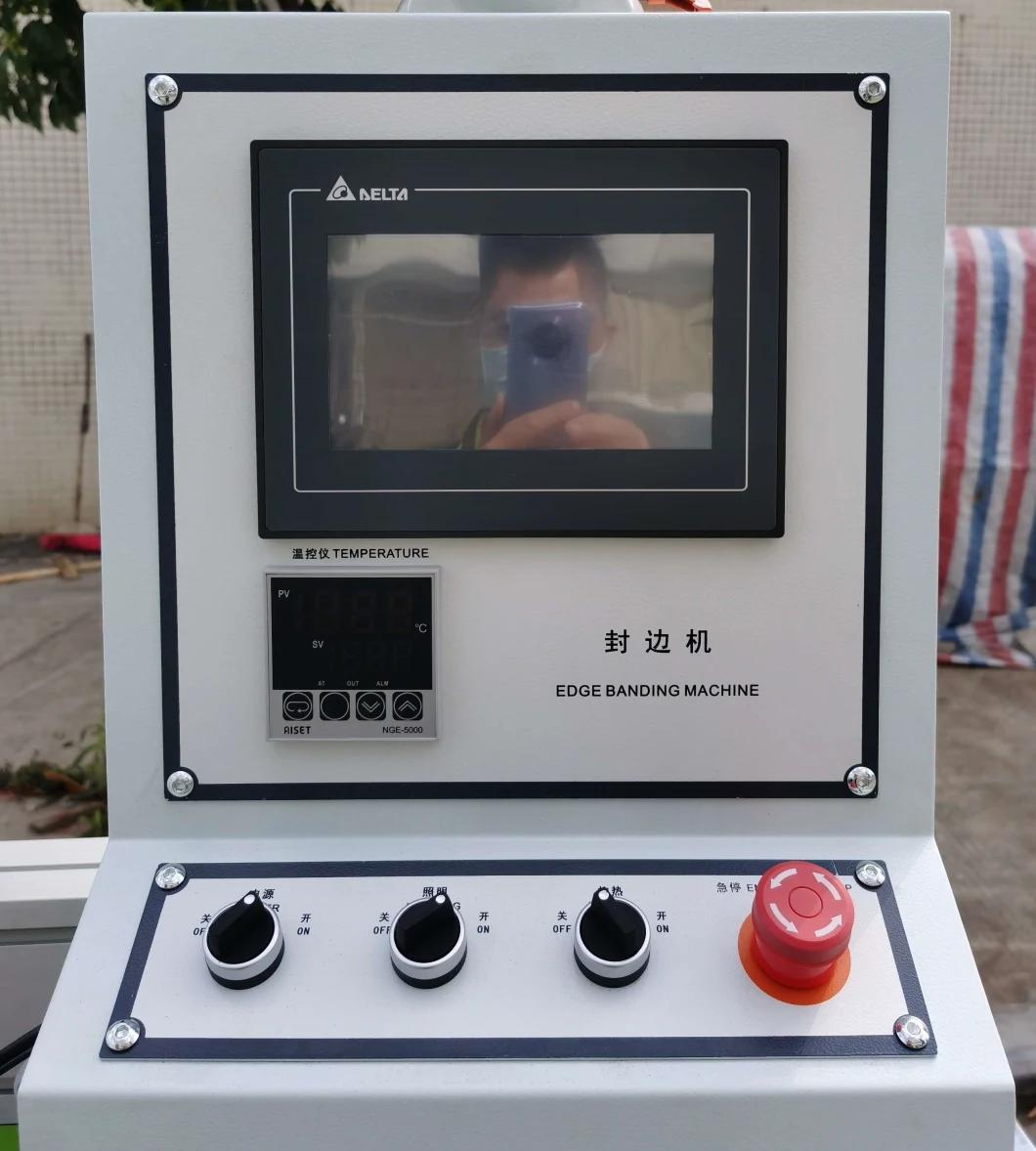

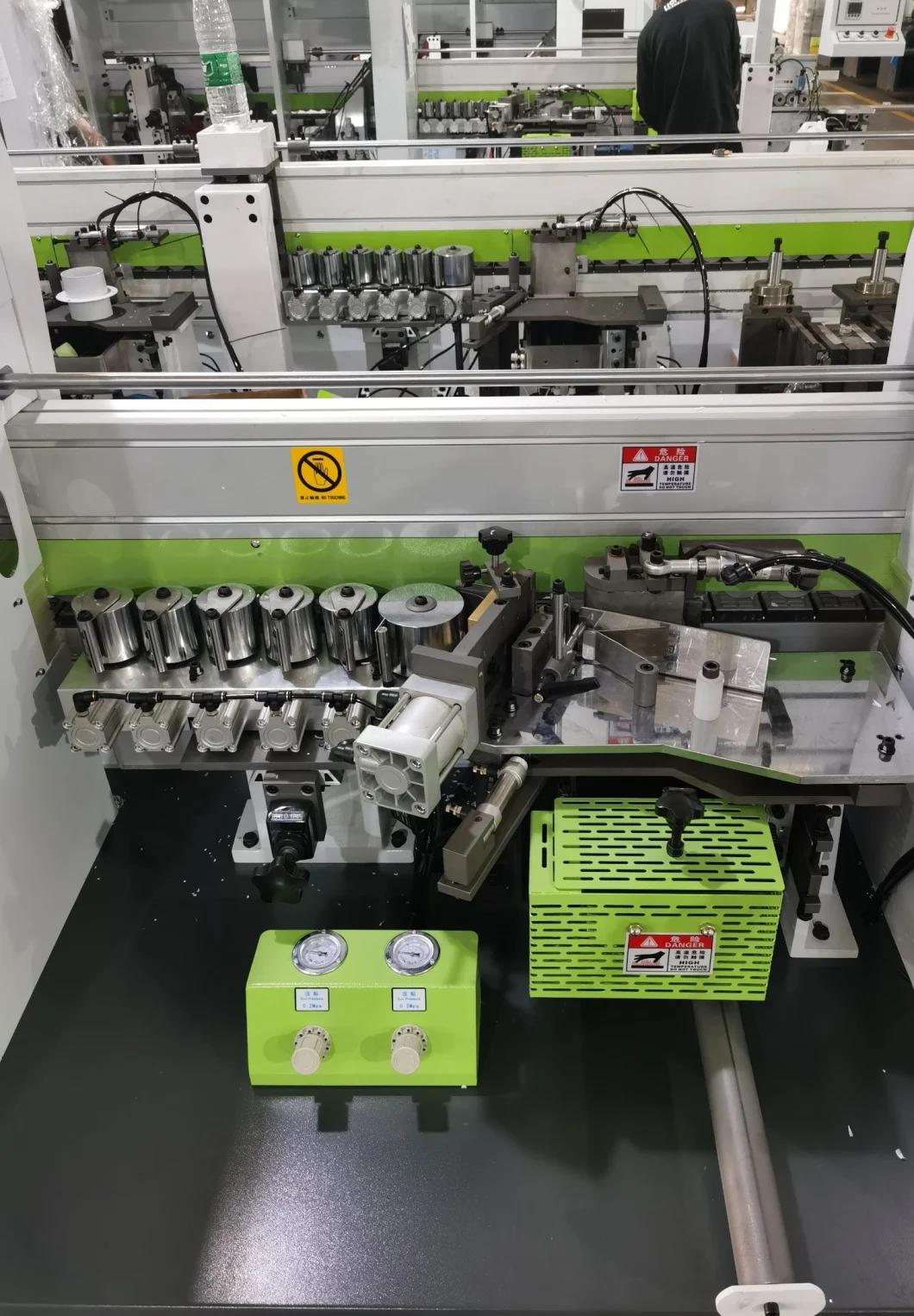

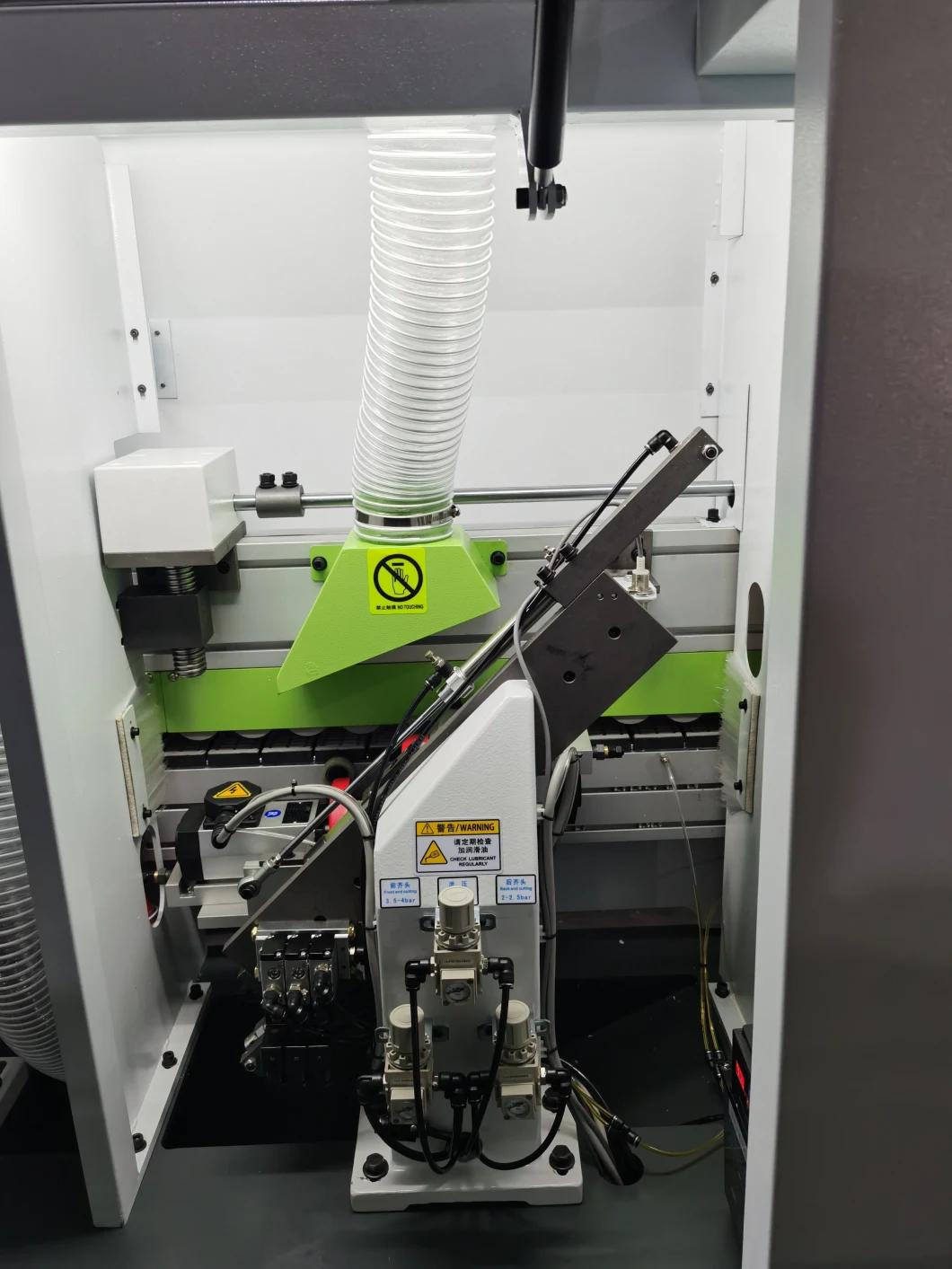

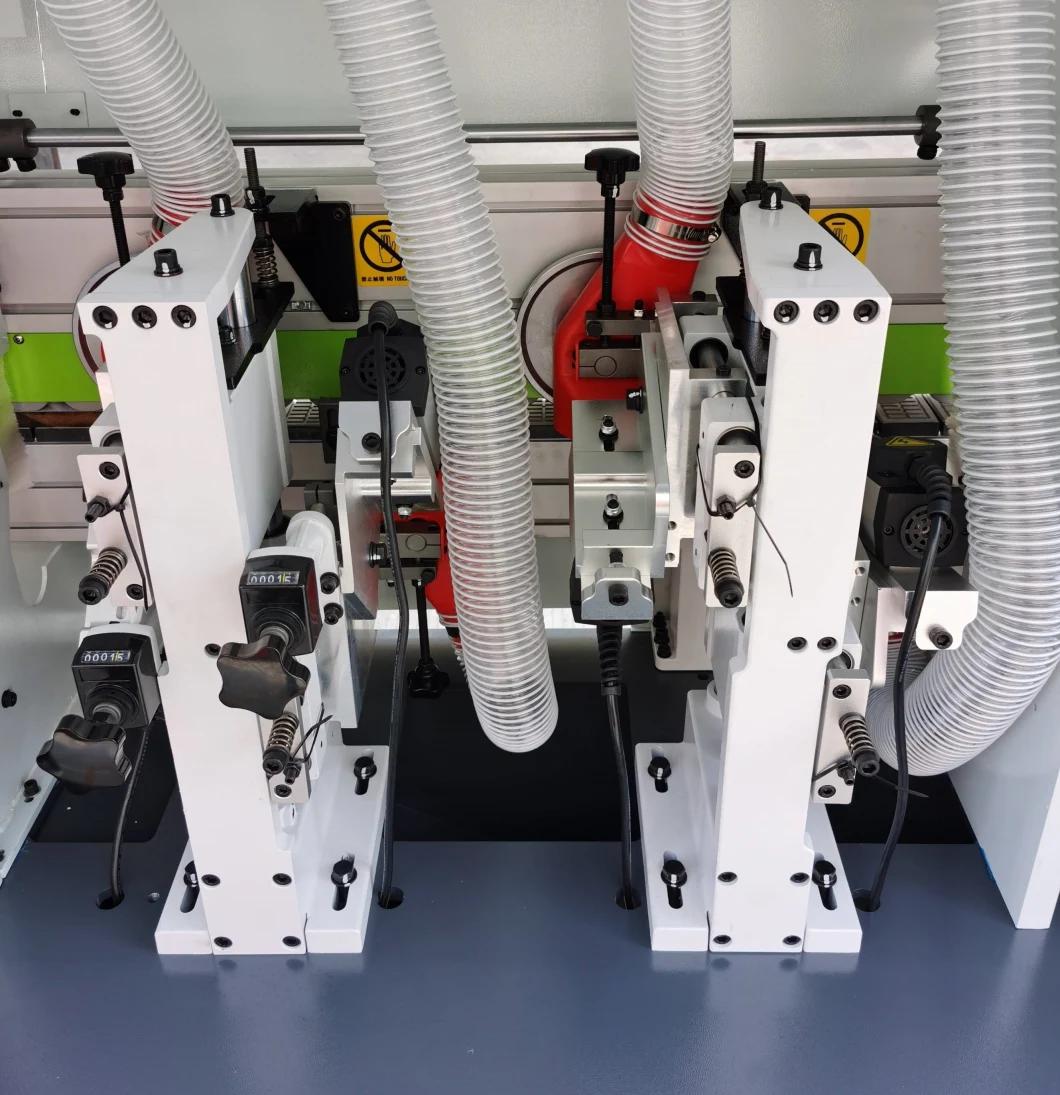

Detail Photos:

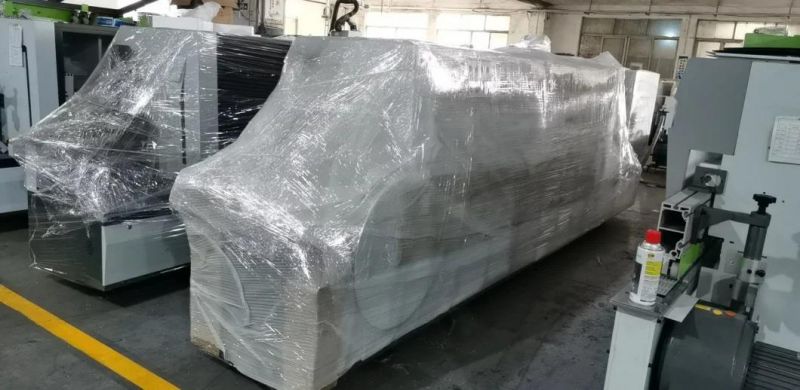

Packing pictures:



Company Information:
