QCM QMJ164A Woodworking Machinery Automatic Wood Saw Table Saw for woodworking
Hangzhou Smart Panther Tech Ltd- Warranty:3 years
- Type:Rip Saw
- Power Type:Electric
- Layout:Horizontal
- Controlling Mode:CNC
- Automatic Grade:Automatic
Base Info
- Model NO.:QMJ164A
- Precision:Precision
- Certification:CE, ISO
- Customized:Customized
- Condition:New
- Color:Iron Grey
- After-sales Service:3 years
- Weight:1750kg
- Total motor power:18HP
- Feeding speed:5-24 meters
- Max. sawing thickness:120mm
- Min. sawing length:120mm (for trimming,250mm)
- Sawing shaft speed:3000 r,min
- Transport Package:Wooden Carton or Film Packing for Export
- Specification:1960*1180*1600 (MM)
- Trademark:QCM
- Origin:China
- HS Code:8465910000
- Production Capacity:20000,Sets
Description
Basic Info.
Model NO. QMJ164A Precision Precision Certification CE, ISO Customized Customized Condition New Color Iron Grey After-sales Service 3 years Weight 1750kg Total motor power 18HP Feeding speed 5-24 meters Max. sawing thickness 120mm Min. sawing length 120mm (for trimming,250mm) Sawing shaft speed 3000 r/min Transport Package Wooden Carton or Film Packing for Export Specification 1960*1180*1600 (MM) Trademark QCM Origin China HS Code 8465910000 Production Capacity 20000/SetsProduct Description

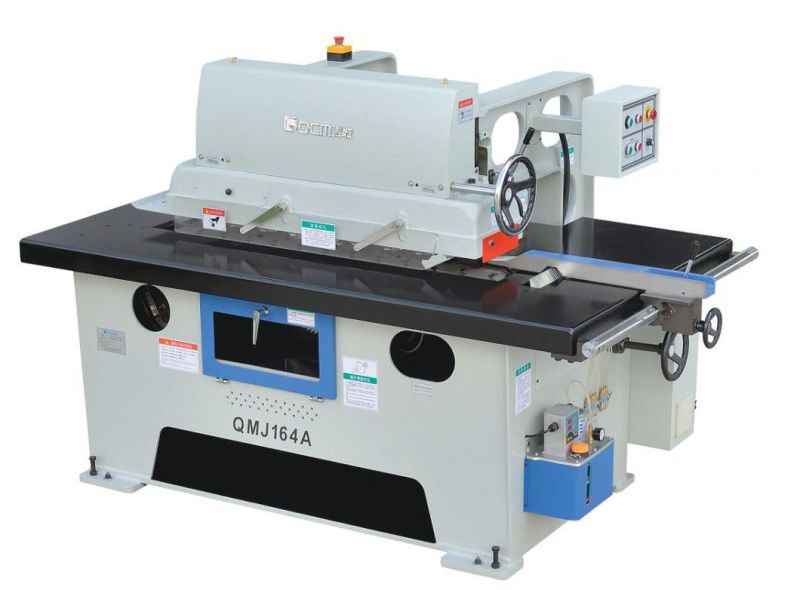

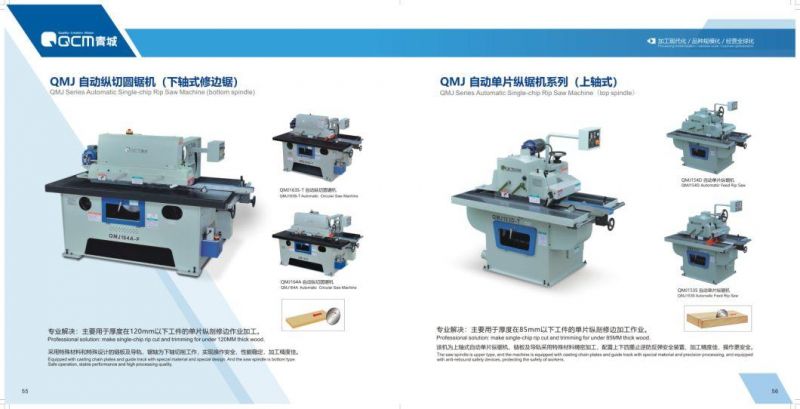

QMJ164A Woodworking Machinery Automatic Wood Saw Table Saw for woodworkingIt is mainly used for single-piece longitudinal cutting and trimming of workpiece with thickness below 120mm.
Excellent features: Adopt special materials and specially designed chain plate and guide rail, the saw axis is the lower axis cutting work, to achieve safe operation, stable performance and good machining precision.
1.The machine body adopts high quality steel plate with special welding process, special treatment, precision processing, stable performance and good precision.
2. The spindle is made of special materials, precision processing, dynamic balance treatment and precision assembly, stable operation and good precision.
3.Specially designed bilateral yardstick, which is convenient for users to exchange and use, and prevent the long-term single-sided use of the chain rail to influence the machining accuracy of the machine.
Configure the microcomputer automatic oil pump, the guide rail for regular, fixed-point, quantitative lubrication, to ensure the normal use and life of machine tools.
5. QMJ164A optional table with built-in rollers, convenient for machining and back to the material.
6. T type is optional, the pressure roller box adopts electric lift control, convenient and quick operation.

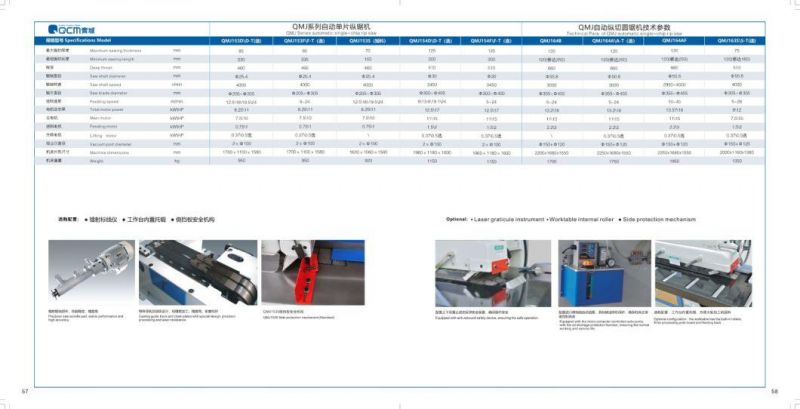

1. Technical parameters
Max.sawing thickness | 120 | mm |
Min.sawing length | 120(for trimming 250) | mm |
Deep throat | 660 | mm |
Saw shaft Dia. | Φ50.8 | mm |
Saw shaft speed | 3000 | r/min |
Saw blade dia. | Φ355-Φ455 | mm |
Feeding speed | 5-24 | mmin |
Total motor power | 13.218 | kWHP |
Main motor | 1115 | kWHP |
Feeding motor | 2.23 | kWHP |
Lifting motor | 0.370.5 (optional) | kWHP |
Suction hood dia. | Φ150+Φ120 | mm |
Overall dimension | 2250*1680*1550 | mm |
Weight | 1750 | KG |
2. About Qingcheng Woodworking Machinery:
Qingcheng Woodwokring Machinery Co., Ltd is a professional manufacturer of woodworking machinery since 1970. With more than 50 years experience, we have developed to the top and most powerful manufacturer of woodworking machinery in China.
We mainly engaged in six series of woodworking machinery:
Four Side Moulder, Double Side Planer, Automatic Muti-blade Rip Saw, Automatic Single-side Rip Saw and Double-end Tenoner , and Sanding Machine
To make machinery with high precision and stability, we have introduced the world's advanced modern processing and testing equipment, including OKUMA five-surface gantry machining-center, FMS flexible machining production line, MAKINO horizontal machining center, MORI SEIKI(nine-axis linkage) lathe-mill cutting center, LGMazak vertical machining center, Mitsubishi laser cutting machine, OKK large machining center, Okamoto CNC grinding center, and Mitutoyo three coordinate measuring machine.

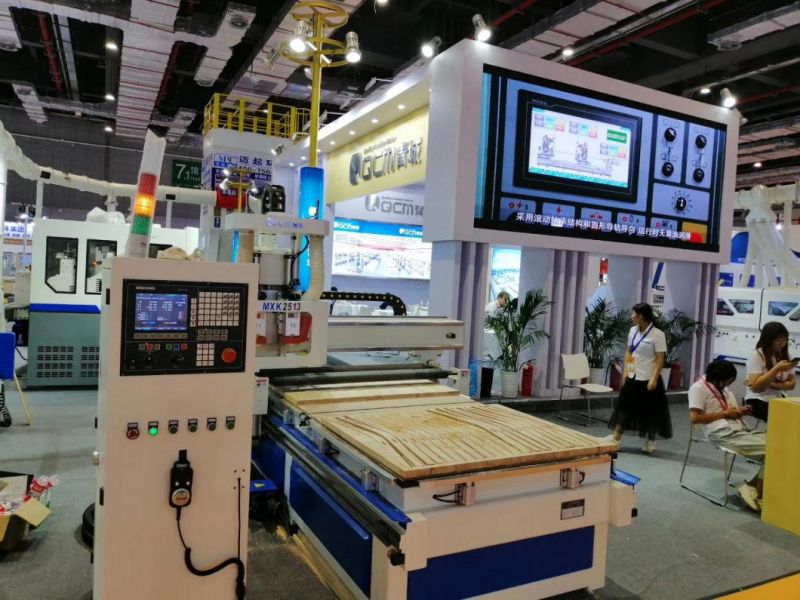

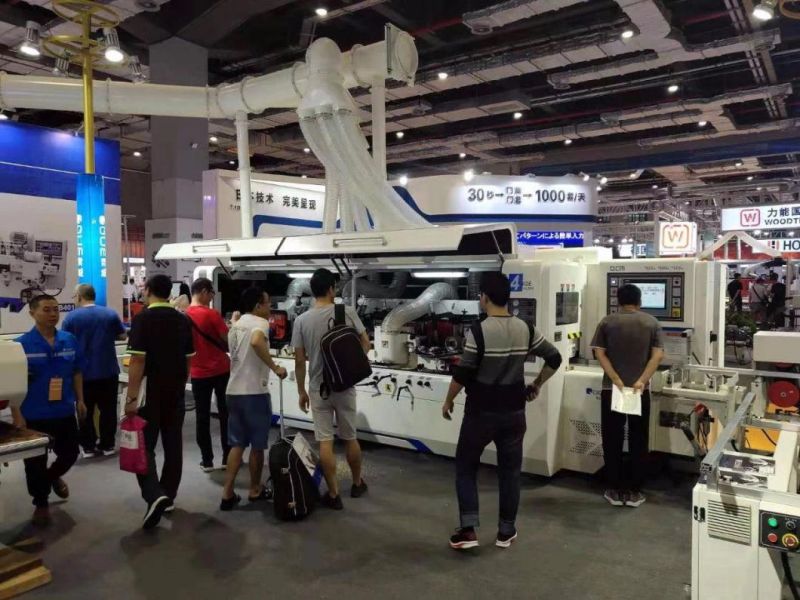

QCM Trade Show received lots of good comments :
