• Model NO.：MJ1435F
• Precision：Precision
• Certification：CE, ISO
• Customized：Customized
• Condition：New
• Color：Iron Grey
• After-sales Service：3 years
• Weight：1780kg
• woodworking machinery：woodworking machinery
• name：multi blade wood saw machine
• usage：multi blade saw
• application：can process wet wood
• saw spindle speed：4500 r,min
• Transport Package：Plywood Carton or Bulk Packing
• Specification：2400*1310*1550 (MM)
• Trademark：Qingcheng
• Origin：China
• HS Code：8465910000
• Production Capacity：20000,Sets

Basic Info.

Model NO. MJ1435F Precision Precision Certification CE, ISO Customized Customized Condition New Color Iron Grey After-sales Service 3 years Weight 1780kg woodworking machinery woodworking machinery name multi blade wood saw machine usage multi blade saw application can process wet wood saw spindle speed 4500 r/min Transport Package Plywood Carton or Bulk Packing Specification 2400*1310*1550 (MM) Trademark Qingcheng Origin China HS Code 8465910000 Production Capacity 20000/Sets

Product Description

MJ1435F Woodworking Machinery Automatic Multi-blade Wood Saw with Bottom Spindle

1. The machine body and workbench are made of high-quality castings, which are specially cast and precision-machined, with stable performance and good precision.
2,The spindle is made of special material, 50mm diameter and long wheelbase design, and is precision processed, dynamically balanced and precision assembled, which makes it stable, durable and accurate.
3,The worktable adopts 450mm wide worktable, which is convenient for the user to process the rough board and large board.
4,Feeding system is configured with 4 groups and 2 groups of 6 active feeding rollers to ensure smooth feeding of keel bars.
5,Electric lifting mechanism is used to lift the saw shaft parts, which is convenient and quick to operate.
6,Feeding adopts variable frequency speed and universal joint drive, the feeding speed can reach 6-35m/min.
7,The front of the machine feed is equipped with a triple backstop and rebound safety device to ensure safer operation.
8,Configure the air and water spraying mechanism under the base to cool the saw blade to improve the service life and durability of the saw blade.
9,Optional configuration: 2 laser marking machines are installed above the feeder to facilitate the user's alignment and processing of the wide edge plate.
10,Optional configuration: users can choose the main saw for 30kw motor according to the needs of processing pieces.


1. Technical parameters : MJ1435F Multi-blades Rip Saw





Max.working width	300	mm
Working thickness	10-100	mm
Min. working length	300 continuous	mm
Min. working length (single / continuous)		mm
Saw spindle Dia.	Φ50	mm
Reducing sleeve Dia.	Φ70	mm
Saw spindle speed	4500	r/min
Blad dia.	Φ255-Φ355	mm
Feeding speed	6-35	mmin
Total power	26.335	kWHP
Feeding motor	34	kWHP
Spindle motor	2230	kWHP
Lifting motor	0.751	kWHP
Beem lifting motor		kWHP
Saw spindle lifting motor	0.550.75	kWHP
Air supply pressure	0.3-0.6	MPa
Suction hood dia.	4*Φ150	mm
Overall dimension	2400*1310*1550	mm
Weight	1780	KG

2. About Qingcheng Woodworking Machinery:

Qingcheng Woodwokring Machinery Co., Ltd is a professional manufacturer of woodworking machinery since 1970. With more than 40 years experience, we have developed to the top and most powerful manufacturer of woodworking machinery in China.

We mainly engaged in six series of woodworking machinery:
Four Side Moulder, Double Side Planer, Automatic Muti-blade Rip Saw, Automatic Single-side Rip Saw and Double-end Tenoner , and Sanding Machine

To make machinery with high precision and stability, we have introduced the world's advanced modern processing and testing equipment, including OKUMA five-surface gantry machining-center, FMS flexible machining production line, MAKINO horizontal machining center, MORI SEIKI(nine-axis linkage) lathe-mill cutting center, LGMazak vertical machining center, Mitsubishi laser cutting machine, OKK large machining center, Okamoto CNC grinding center, and Mitutoyo three coordinate measuring machine.







3. Our Products:

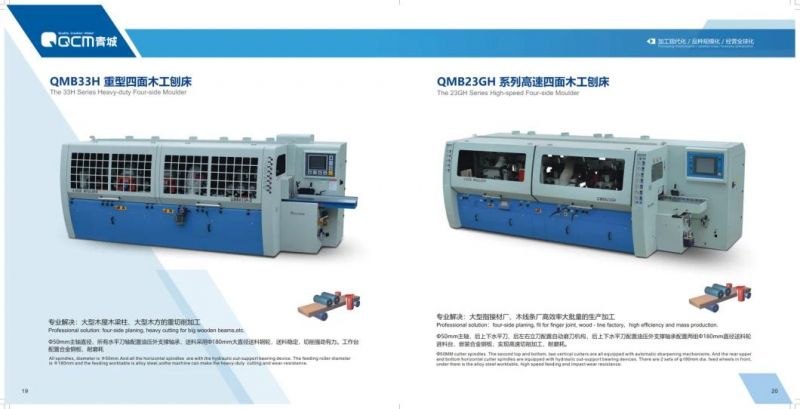

A: Four Side Moulder



B: Double Side Planer



C: Rip Saw



D: Planing and Sawing Machine




E:Double-end Tenoining Machine




F: Sanding Machine
