PVC Edge Banding Machine for Cabinet Door

QINGDAO SOSN MACHINERY CO., LTD.
  • Warranty:12months
  • Function:Pre Milling, Gluing, Edge Banding, End Trimming, Rough Trimming, Fine Trimming, Contour Tracking, Scraping, Buffing
  • Type:Linear Edge Banding Machine
  • Edging thickness:0.4-3mm
  • Automatic Grade:Automatic
  • Panel Feeding Speed:15-20m,Min

Base Info

  • Model NO.:FZ-450DJ
  • Certification:CE, ISO
  • Panel Thinkness:10-60mm
  • Min.length panel:120mm
  • Min.width panel:80mm
  • Manufacturing Principles:Glue Tank Overhead
  • Customized:Customized
  • After-sales Service:24 Hours on The Line
  • Motor Power:14kw
  • Overall Dimension:7300*1100*1600mm
  • Weight:2800kgs
  • Use:PVC Edge Banding Machine
  • Transport Package:Standard Wooden Package
  • Specification:FZ-450DJ
  • Trademark:SOSN
  • Origin:Qingdao China
  • HS Code:846410100
  • Production Capacity:400 Sets Per Month

Description

Basic Info.

Model NO. FZ-450DJ Certification CE, ISO Panel Thinkness 10-60mm Min.length panel 120mm Min.width panel 80mm Manufacturing Principles Glue Tank Overhead Customized Customized After-sales Service 24 Hours on The Line Motor Power 14kw Overall Dimension 7300*1100*1600mm Weight 2800kgs Use PVC Edge Banding Machine Transport Package Standard Wooden Package Specification FZ-450DJ Trademark SOSN Origin Qingdao China HS Code 846410100 Production Capacity 400 Sets Per Month

Product Description

Melamine PVC Escuadradora Enchapadora 3mm R3 Automatic Edge Banding Machine
Adopt to the linear sealing of PVC, wood plank and veneer etc.  1.using imported quality engines and electric components  2.Serialized products, a wide range of selection by customers
  3.High precision and efficiency

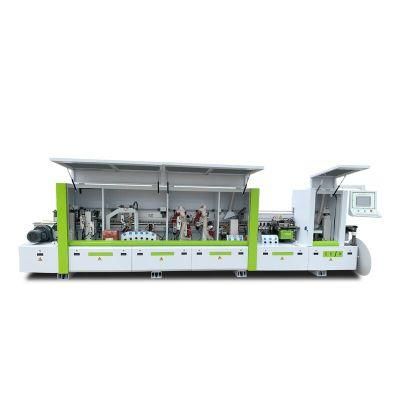

PVC Edge Banding Machine for Cabinet Door
Main function:

Premilling---Gluing---End trimming---rough trimming---fine trimming---scrapping---Buffing---cleaning
Feature
  • Heavy duty machine body and most mechanical machine parts are proceed by advanced CNC machines for higher stability and longer service life without deforming ;
  • Pre-heating before gluing warms the work piece edge, the glue could well melt during gluing, especially suitable for wet or cold zones.
  • Corner trimming unit is designed to trim 4 corners to achieve R circular arc radius.
  • Automatic standby, one-button wake-up device and energy saving;
  • Most electric components are in world famous brand.
Main technical parameter:
Total Power15KW
Overall size 6502x1100x1705mm
Feed speed15-20m/min
Panel thickness10-60mm
Edge banding tape thickness0.4-3mm
Panel width ≥ 60mm
Working air pressure 0.8Mpa
Weight 2800kg

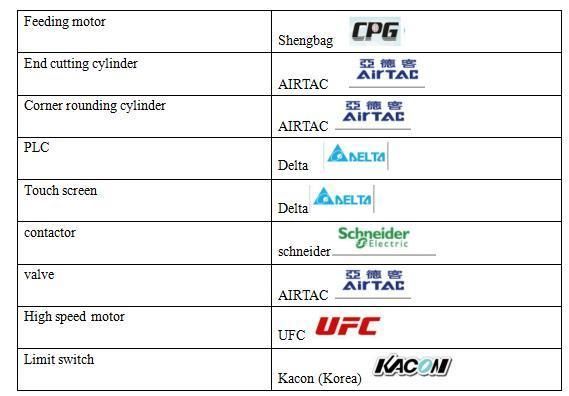

Following is components of  full automatic Edge banding machine:

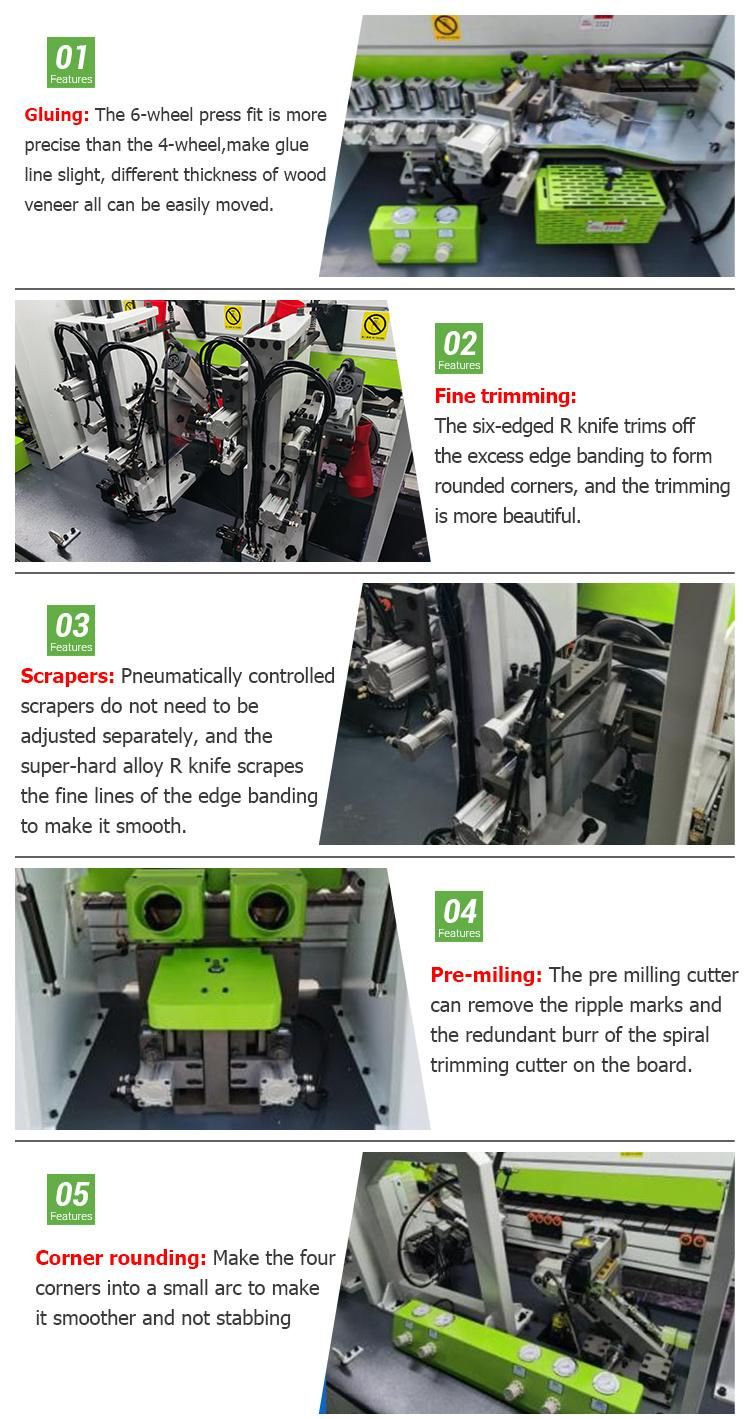

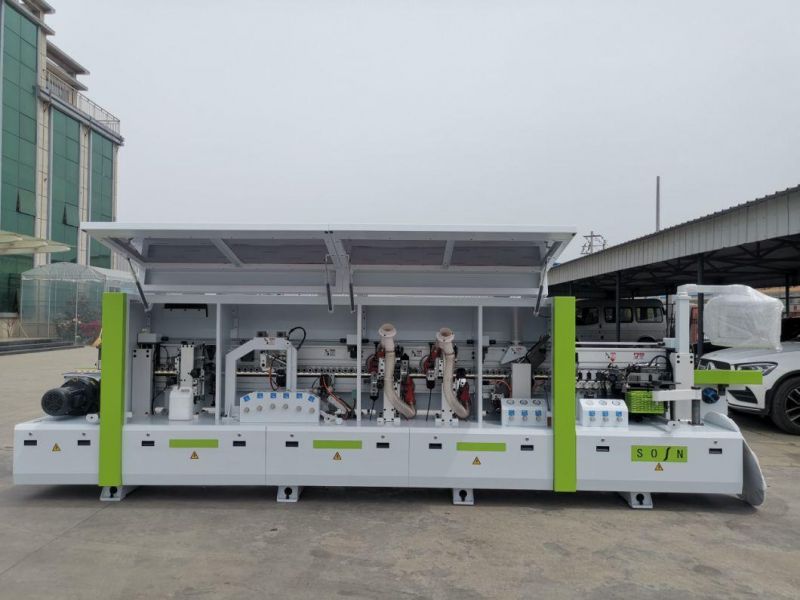

PVC Edge Banding Machine for Cabinet DoorMachine details :
PVC Edge Banding Machine for Cabinet Door

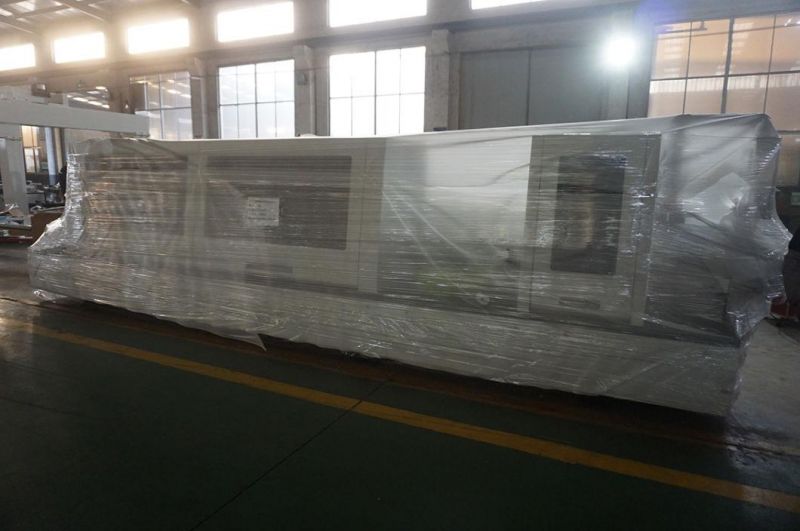

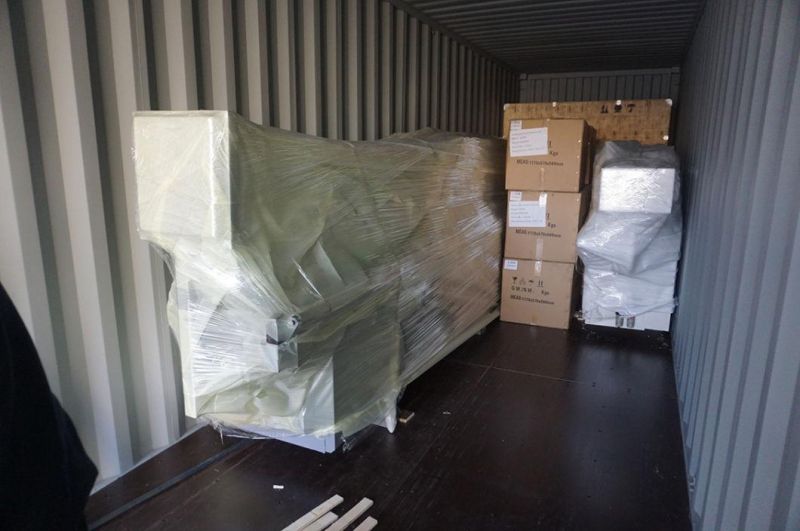

Delivery and Package
PVC Edge Banding Machine for Cabinet DoorPVC Edge Banding Machine for Cabinet Door

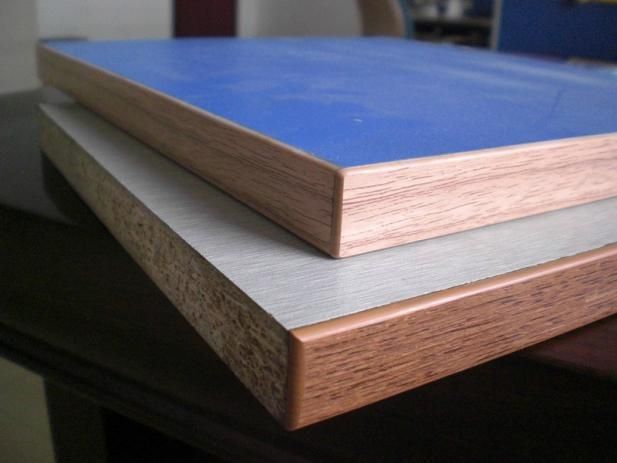

Application

PVC Edge Banding Machine for Cabinet DoorPVC Edge Banding Machine for Cabinet DoorPVC Edge Banding Machine for Cabinet DoorPVC Edge Banding Machine for Cabinet DoorContact us today and you'll find we set a new benchmark in woodworking machine affordability, supply levels and customer satisfaction.
That's how SOSN gives you the cutting edge!


NOTE:
1. We can arrange shipment for you if you need.
2. We guarantee the machine body for one year, three months for easy-broken parts.
3. Package: standard export wooden case package.
4. Delivery time:20 days after getting the deposit (depends on the quantity)

Reasons to choose SOSN:
1: professional team--as much as possible to meet your needs
2: quick delivery--timely and effective
3: excellent after-sale services--no worries anymore
4: friend partner relationship--a win-win cooperation


If any question,feel free to contact us.
