Mini High-Precision Wood Carving Lathe
Qingdao G & G Machinery Co., Ltd.- Type：Mini Wood Lathe Machine
- Voltage：370V
- Tool Holder：Single-tool Holder CNC Lathe
- Automatic Grade：Manual
- Precision：Precision
- Setting Mode：Table
Base Info
- Model NO.：MC1018
- Controlling Mode：Artificial
- Power Source：Electric
- Processing Accessory：Chuck CNC Lathe
- Certification：CE, ISO
- Descripton：10"X18" Mini Wood Lathe
- Motor(W)：370
- No of Speed：4
- Spinde Sped (Rpm)：500-3150
- Swing Over Bed：254
- Transport Package：Carton
- Specification：CE ISO
- Trademark：G&G
- Origin：China
- HS Code：84659600
- Production Capacity：1000 Sets,Month
Description
Basic Info.
Model NO. MC1018 Controlling Mode Artificial Power Source Electric Processing Accessory Chuck CNC Lathe Certification CE, ISO Descripton 10"X18" Mini Wood Lathe Motor(W) 370 No of Speed 4 Spinde Sped (Rpm) 500-3150 Swing Over Bed 254 Transport Package Carton Specification CE ISO Trademark G&G Origin China HS Code 84659600 Production Capacity 1000 Sets/MonthProduct Description

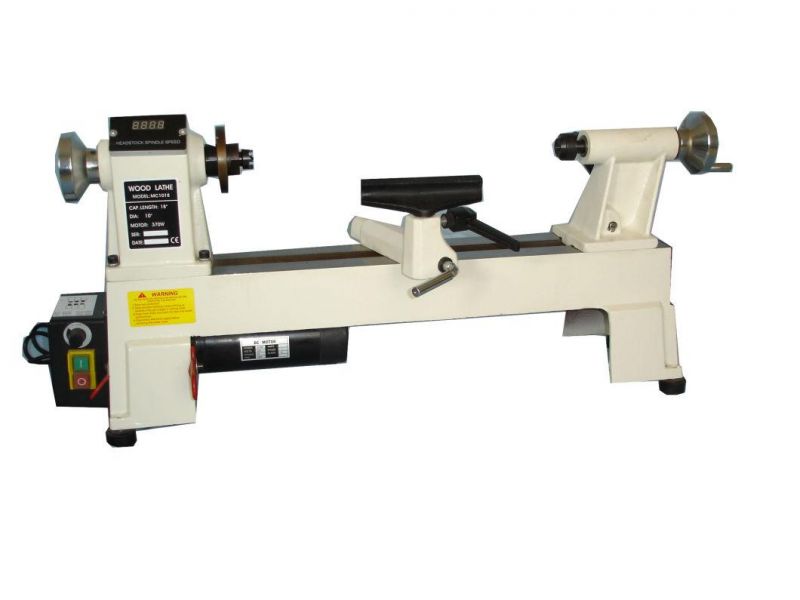

Mini wood lathe carving machine MC1018
| Model | MC1018 | MC1018-1 |
| Descripton | 10"x18" mini wood lathe | 10"x18" mini wood lathe |
| Motor(w) | 370 | 370 |
| No of speed | 4 | Vairable |
| Spinde sped (rpm) | 500-3150 | 500-3150 |
| Swing over bed | 254 | 254 |
| Dstance between centers | 457 | 457 |
| Drive spirxile | 1"8RH thread othger | 1"8RH thread othger |
| Head and lailstock taper | #2 Morse or other | #2 Morse or other |
| Face plate | 3" | 3" |
| Tool plate | 6" | 6" |
| N.G. Weigt (kgs) | 38/41 | 38/41 |
| Packing size (mm) | 820x300x430 | 820x300x430 |
| Units/20' container | 245 | 245 |
MAIN CHARACTERS
1)Easy speed changge.
2)Soild headtock and lathe bed construction.
3)6" cast iron offsel tool rest.
4)3" lace plate, spur and ball bearing live center included
5)Powerful totally enclosed fan cooled motor.
6)Extra 550mm bed extension optional
which enable total working lenght to 1000mm.
7)Extension bed packing size:580x200x200mm
8)G/N weight:9.5/9kgs
Main Features:
1. It is one of the most commonly used small machines in woodworking production.
2. The woodworking lathe performs rough and fine turning on the end face, section and cone of wood.
3. The woodworking lathe can use the forming tool to process quickly and accurately.
4. It has an easy to operate motor control system.
5. It has two belt transmission ratios with high torque when turning large diameter.
6. It can change the construction hoist quickly.
7. The lathe adopts cast iron structure, high stability and vibration free operation.
8. Matching cast iron bracket is available.
9. It can be combined with the extended operation platform to meet the requirements of large workpieces.
