• Model NO.：ET-360A
• Edging thickness：0.15-3mm
• Automatic Grade：Automatic
• Panel Feeding Speed：10.5,16m,min
• Certification：CE, ISO, FDA
• Panel Thinkness：10-60mm
• Min.length panel：160mm
• Min.width panel：60mm
• Manufacturing Principles：Glue Tank Overhead
• Customized：Customized
• After-sales Service：24 Online Service
• Color：Customized
• PLC Control：Yes
• Condition：Nwe
• Electrical Lift：Yes
• Transport Package：in Bulk or Container
• Specification：Customized
• Trademark：ET
• Origin：Shandong Province
• HS Code：846594000
• Production Capacity：100-200 Per Month
• Package size per unit product：37.00cm * 9.30cm * 16.00cm
• Gross weight per unit product：1200.000kg

Basic Info.

Model NO. ET-360A Edging thickness 0.15-3mm Automatic Grade Automatic Panel Feeding Speed 10.5/16m/min Certification CE, ISO, FDA Panel Thinkness 10-60mm Min.length panel 160mm Min.width panel 60mm Manufacturing Principles Glue Tank Overhead Customized Customized After-sales Service 24 Online Service Color Customized PLC Control Yes Condition Nwe Electrical Lift Yes Transport Package in Bulk or Container Specification Customized Trademark ET Origin Shandong Province HS Code 846594000 Production Capacity 100-200 Per Month

Packaging & Delivery

Package size per unit product 37.00cm * 9.30cm * 16.00cm Gross weight per unit product 1200.000kg

Product Description

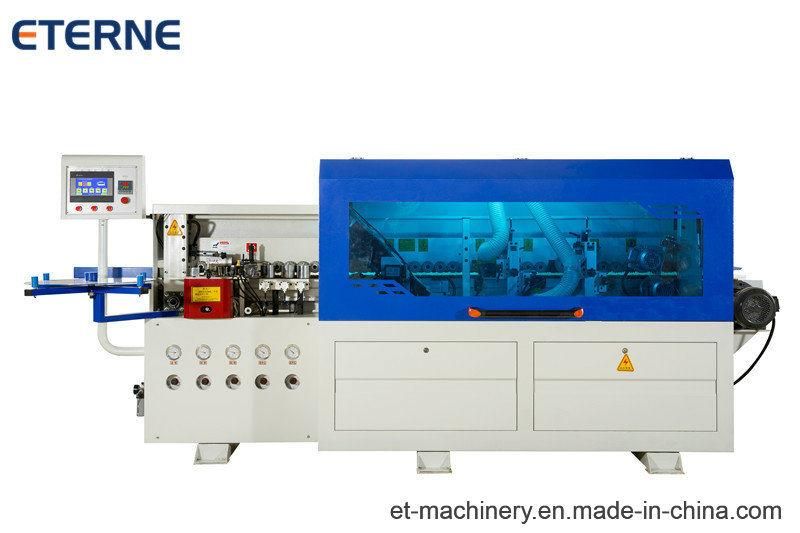

    Industrial Woodworking Automatic Edge Bander (ET-360A)

1.Product Description

1) Application:

Edge banding machine is used to cover the exposed sides of materials such as plywood, particle board or MDF, giving the appearance of a solid (or more valuable) material. Can also be used instead of features such as face frames or molding.
 2)Technical Parameter:

Model	ET360A
Edge Thickness	0.4-3 mm
Edge Width	12-55 mm
Panel Length	Min.120 mm
Panel Width	Min.60 mm
Panel Thickness	10-50 mm
Feeding Speed	12 m/min
Transport Motor	1.5 kw
Glue Post Motor	0.37kw
End-trimming Motor Power	0.37 kw*2
Fine-trimming Motor Power	0.75 kw*2
Polishing Motor	0.18 kw*2
Glue Box Heater	1.5 kw
Total Power	7.0 kw
Scraping Blade Model	R2*2 or R3*2
Dimension	3700/930/1600 mm
Weight	1200 kg

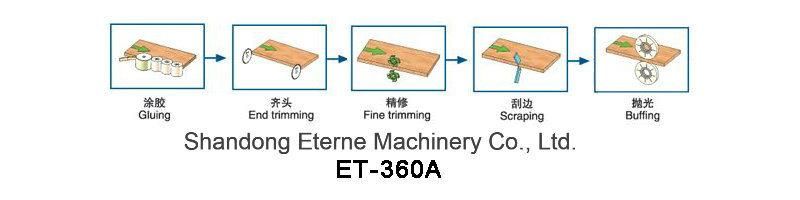

2. Working process :



3.Advantage:

1. Adopt imported motor and high quality electrical component.
2. Product serialization and diversification is easy for the customer to choose.
3. High precision and work efficiency.
4. Automatic and precise gluing procedure as well as integrated double finish.
5. High strength frame structure, durable
6. Glue evenly, conveying stability
7. The machine is equipped with hand lubricator to reduce wear

4.Package:

We will take care of your machinery packages well like picture show.
Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.




5.Guarantee:

The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem ,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.

6.Technical support:

Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.

7. After sales services:

Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine.
If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.

8. Company Introduction:

Shandong Eterne Machinery Co. Ltd. is a professional manufacturer. "ET Series" products include :

1. Manual edge banding machine
2. Semi-auto edge banding machine
3. Automatic edge banding machine
4. Multi- boring machine
5. Sliding panel saw
6. CNC Router

We devote ourselves to produce and provide high quality products and their spare parts.
