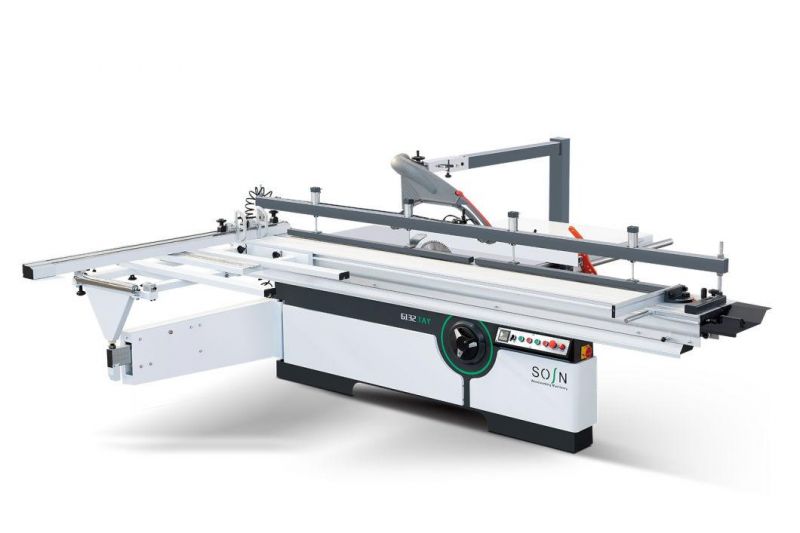

Woodworking 3200 mm Precision Panel Saw with Sliding Table

QINGDAO SOSN MACHINERY CO., LTD.
  • Warranty：1 Year Warranty
  • Type：Table Panel Saw
  • Power Type：Electric
  • Layout：Horizontal
  • Controlling Mode：Artificial
  • Automatic Grade：Manual

Base Info

  • Model NO.：MJ61-32TAZ
  • Precision：High Precision
  • Certification：CE, ISO
  • Customized：Customized
  • Condition：New
  • Color：Iron Grey
  • After-sales Service：1 Year Warranty
  • Name：Sliding Table Panel Saw
  • Dimension of Sliding Table：3200*410mm
  • Motor Power：5.5+1.1kw
  • Tilting：0-45 Degree
  • Spindle Diameter：30+20mm
  • Saw Blade Diameter：300+120mm
  • Height of Cut：90mm
  • Speed of Main Saw Spindle：4500-6000rpm
  • Speed of Scoring Saw Blade：7000-8000rpm
  • Gross Weight：850kg
  • Transport Package：Plywood Package
  • Specification：3350*3150*900mm
  • Trademark：sosn
  • Origin：China
  • HS Code：84659100
  • Production Capacity：500 Sets ,Month

Description

Basic Info.

Model NO. MJ61-32TAZ Precision High Precision Certification CE, ISO Customized Customized Condition New Color Iron Grey After-sales Service 1 Year Warranty Name Sliding Table Panel Saw Dimension of Sliding Table 3200*410mm Motor Power 5.5+1.1kw Tilting 0-45 Degree Spindle Diameter 30+20mm Saw Blade Diameter 300+120mm Height of Cut 90mm Speed of Main Saw Spindle 4500-6000rpm Speed of Scoring Saw Blade 7000-8000rpm Gross Weight 850kg Transport Package Plywood Package Specification 3350*3150*900mm Trademark sosn Origin China HS Code 84659100 Production Capacity 500 Sets /Month

Product Description


Woodworking 3200 mm precision Panel Saw with sliding table MJ6132TAZ
Woodworking 3200 mm Precision Panel Saw with Sliding Table
Parameters
Model(Manual control)MJ6132TAZ
Sliding table size3200*410mm
Gross cut capacity3200mm
Width between saw blade&rip fence1250mm
Saw blade diameter300(250-400)mm
Height of cut (300mm)90mm
Main saw spindle Speed4500/6000rpm
Main spindle diameter30mm
Tilting saw blade0-45°
Motor Power5.5kw
Scoring saw blade dia120mm
Scoring saw blade speed7000-8000rpm
Scoring saw diameter20mm
Scoring motor1.1kw
Weight900kg
Machine body Package size2200*1150*1100
Sliding table Pack size (mm)3350*480*320
Features:
1.Steel bar sliding table,with inner lock, more rigidity and strength,smooth movement.
2.For saw spindle, every axis has been tested for perfect balance.
3.Perfect inner structure, to make sure the machine work precision, easy-operation.
4.Static spray paint technology for machine, never paint off,
5.Thick metal sheet,high stiffness of the frame prevents the emergence of vibration during operation in severe cutting conditions.
6.Fine micro adjustment,stable and precision.
7.Auto power off saw blade cover added the working safety
8.5.5kw +1.1kw big power motor, national standard, cooper wire, aluminum shells
9.European quality button
10.Aluminum extruded fence with large stopper

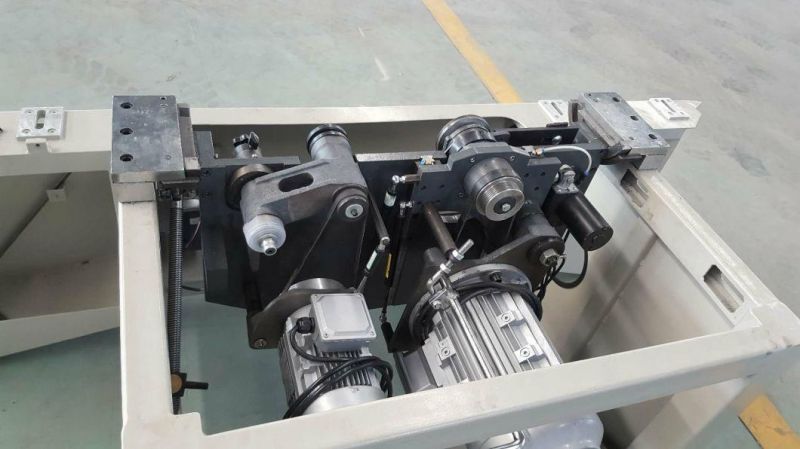

Inner structure : 5.5kw +1.1kw National standard motor
Woodworking 3200 mm Precision Panel Saw with Sliding Table
Woodworking 3200 mm Precision Panel Saw with Sliding Table

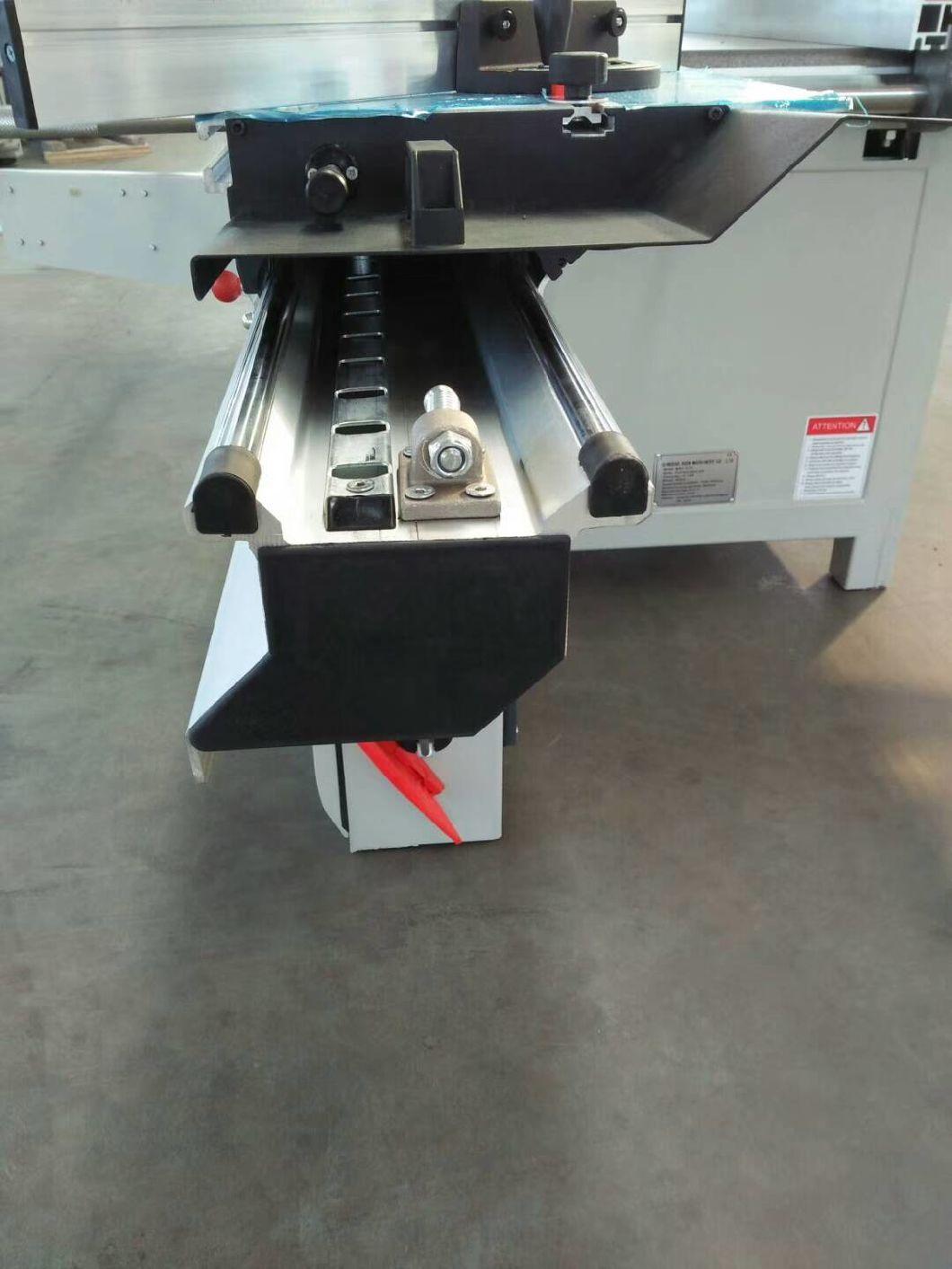

3200*410 mm heavy duty sliding table :
Woodworking 3200 mm Precision Panel Saw with Sliding Table

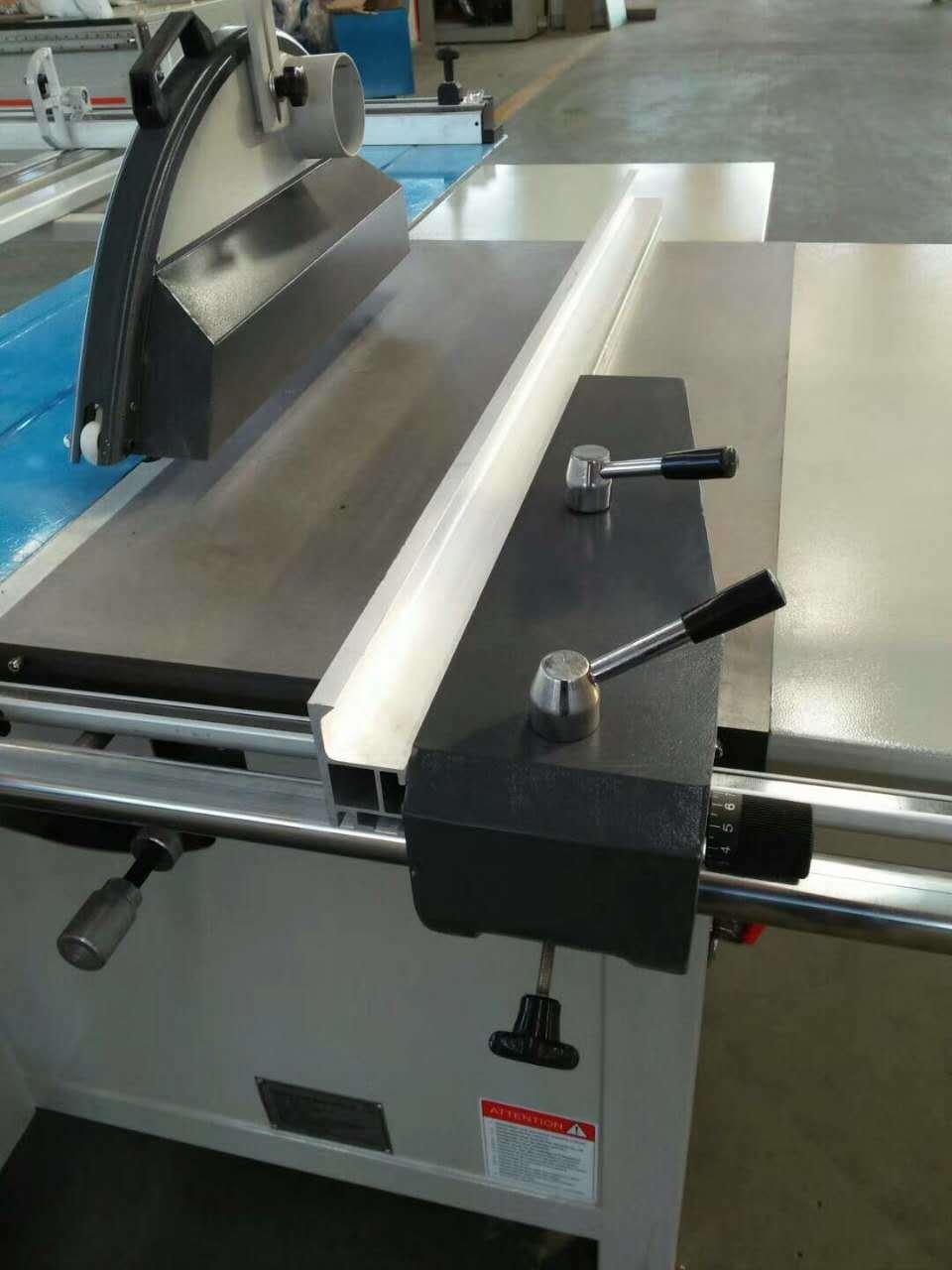

Rip fence and cross cut fence:
Woodworking 3200 mm Precision Panel Saw with Sliding Table
Woodworking 3200 mm Precision Panel Saw with Sliding Table

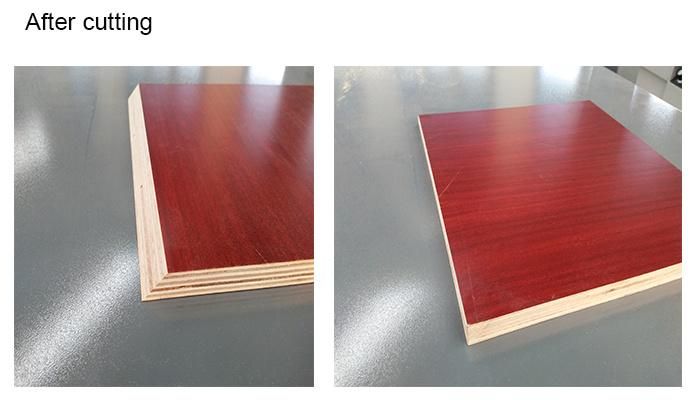

cutting sample:
Woodworking 3200 mm Precision Panel Saw with Sliding Table
Woodworking 3200 mm Precision Panel Saw with Sliding Table
