• Model NO.：1T,H
• Warranty：1 Year
• Customized：Non-Customized
• Condition：New
• Color：Multi Color
• After-sales Service：Life Time
• Capacity：1t,H
• Power：50kw
• Weight：3000kg
• Certificate：CE
• Output Size：6-10mm
• Pellet Shape：Cylinder Shape
• Machine Color：as Requirement
• Die Mould Texture：Alloy Steel or Stainless Steel
• Transport Package：Ply Wooden Case
• Specification：8*3*5m
• Trademark：YEARMEGA
• Origin：Henan-China
• HS Code：84748020
• Production Capacity：500 Sets,Month

Basic Info.

Model NO. 1T/H Warranty 1 Year Customized Non-Customized Condition New Color Multi Color After-sales Service Life Time Capacity 1t/H Power 50kw Weight 3000kg Certificate CE Output Size 6-10mm Pellet Shape Cylinder Shape Machine Color as Requirement Die Mould Texture Alloy Steel or Stainless Steel Transport Package Ply Wooden Case Specification 8*3*5m Trademark YEARMEGA Origin Henan-China HS Code 84748020 Production Capacity 500 Sets/Month

Product Description

Automatic Industrial Use Biomass Pellet Proudction line from China
Raw Materials can be Pelletized
Nearly all forestry and agro-waste material can be made into wood pellets by our wood pelletmill, such as: Wood Chips,Shaving,Sawdust, Groundnutshell, Sugarcane, Caster Shells/Stalk, Coffee Husk, Paddy Straw, Sunflower Stalk, Cotton Stalks, Tobacco Waste, Mustard Stalk, Jute Waste, Bamboo Dust, Tea Waste, Wheat Straw, Palm husk, Soybeans Husk, Straws, Rice Husks etc.

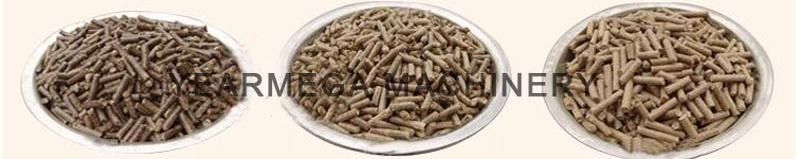

Application of wood pellet
As a matter of fact, sawdust wood pellet made from waste wood is a good kind of fuel to replace traditional fossil fuels like coal, gas, petrol, etc.

1. Burning in a stove to cook at home;
2.Heat the house, school, hotel, or greenhouse, farm;
3.Used in thermal power plants to replace coal.
4.Used as cat litter to replace clay;
5.Used as horse bedding, or beddings for cow, chicken, dogs, and other animals.

Main parameters of the biomass wood pellet machine, which is the most important machine in the Complete Wood Pellet Machine Line


Model	Power(KW)	Capacity(T/H)	Size(mm)	Weight(KG)
FD 450	55KW	0.8-1.2T	1.4*0.75*1.55	2200
FD 550	90KW	1.5-2T	1.9*0.95*1.8	4000
FD 800	160KW	2-3T	2.5*1.35*2.1	6500
FD1000	200KW	3-4T	2.65*1.45*2.1	8000



Main Machines of Automatic Industrial Use Biomass Pellet Proudction line from China

1. Wood chipper( crush the big wood into small wood chips)
2. Hammer mill( to grind the wood chips, rice husk, etc into smaller size below 6mm)
2. Dryer ( dry the raw material to proper moisture before making pellets)
3. Pellet making( press raw material into pellets)
4. Cooler( cool down pellets and remove some moisture)
5. Sieve(remove dust, and broken pellets)
6. Packing scale (pack pellets into bags of required weight, like 15kg/bag, 50kg/bag)

Wood Pellet Production Line Capacity: 200kg/h, 300kg/h, 500kg/h, 1T/H, 1.5T/H, 2T/H, 3T/H

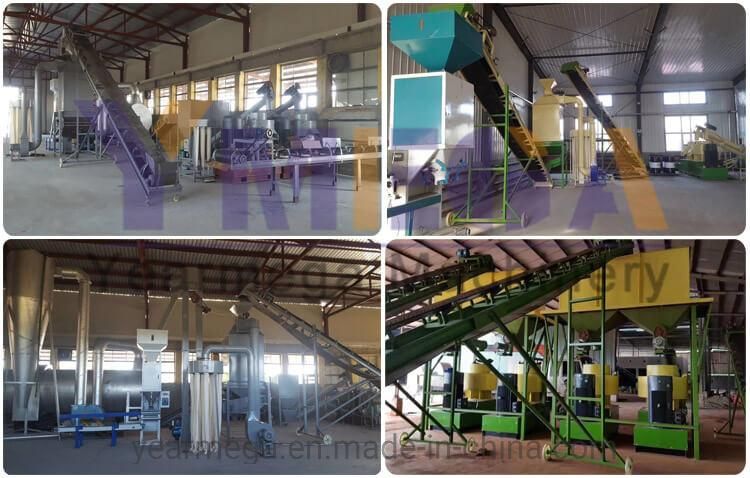

The main process for the wood pellet production line

Wood Drum Chipper

Wood drum chipper machine is the special equipment of producing wood chips,
The wood chipper is widely used in wood shaving plant, straw plant, biomass power plant, wood factory, which is the preferred equipment at the preparation steps.
Here we use the wood chipper in wood pellet production as the first step to process round wood to small chips, and then convey to next step crusher.

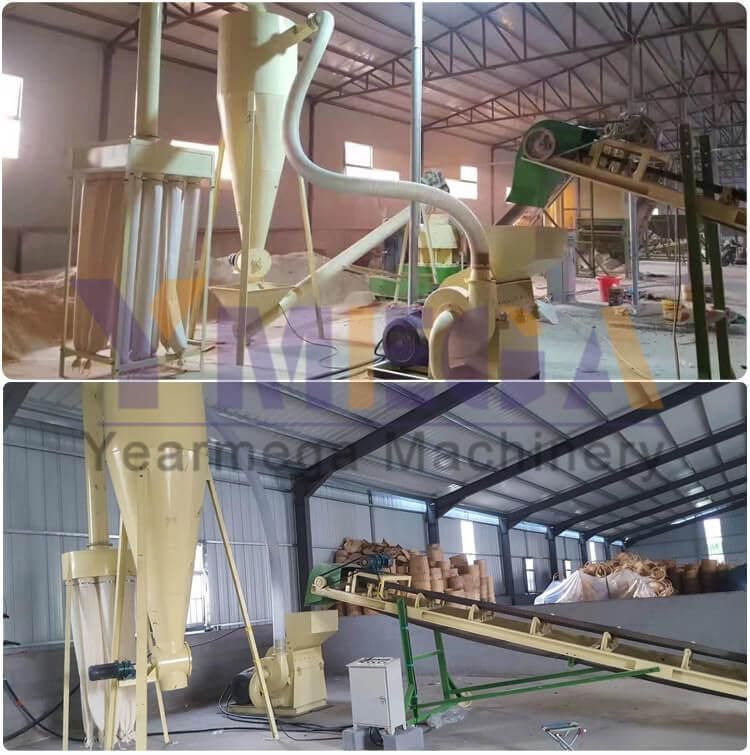

Wood Crusher

Wood Crusher is one of the important equipment in the biomass wood pellet production line. The material can be corn stalk, rice straw, groundnut straw and shell, grass, wood chips, timber, tree branches and many other agricultural wastes,mainly used in wood factory, fodder factory, cultivation factory, organic fertilizer factory, medicine industry,chemical industry, etc.
Here we use the wood crusher here to crush materials to sawdust, and then go to drying or pelletizing process.



Sawdust Sieving Machine

Sometimes the factory has sawdust waste with leaves, branches, or other large objects which is not suitable for pelletizing directly, sawdust sieving machine will be necessary here to remove big objects from sawdust to protect pellet machine from

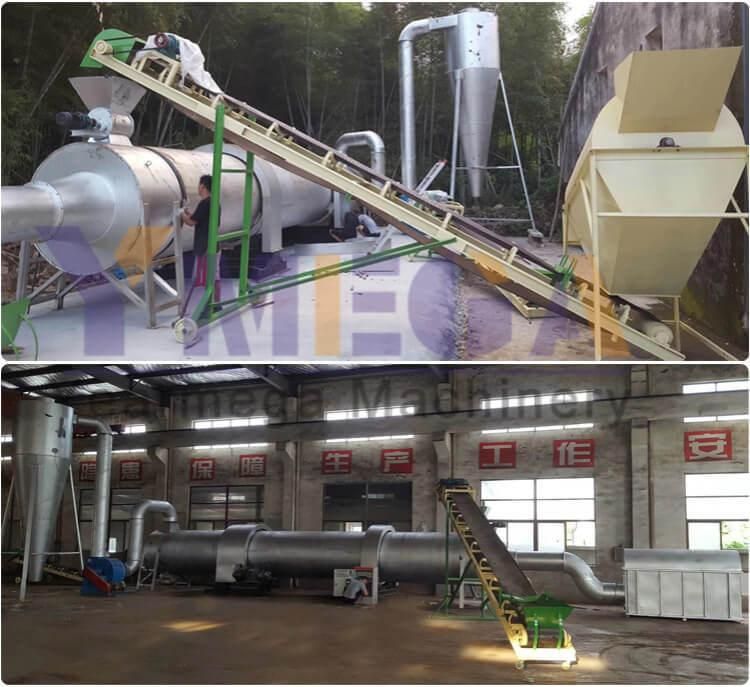

Drying Machine

Drying machine is used to dry the wet raw material. The equipment of this section includes parts of rotary drum for the dryer, screw feeder, hot air stove, blower, discharging cyclone, airlock and belt conveyor. This section is needed when the raw material moisture is higher than 18% . It can process raw material even humidity more than 50% and reduce to less than 15%, with high efficient and high capacity.

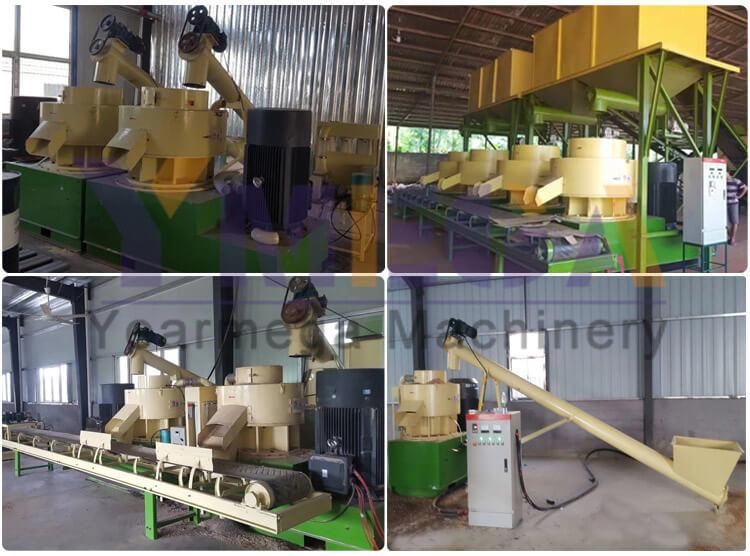

Biomass Pellet Machine

Wood pellet machine is suitable for various kinds of materials with low adhesive and formation rate, which are difficult to pressing molding, such as rice husk, sunflower seed husk , peanut hull, a variety of wood like branch, trunk, bark, various of crop straw, eucalyptus, palm fiber(EFB), coffee shell, sawdust and so on. No need adding binder in the pelletizing process.
Usually in the market people make biomass pellets with diameter 6-12mm.

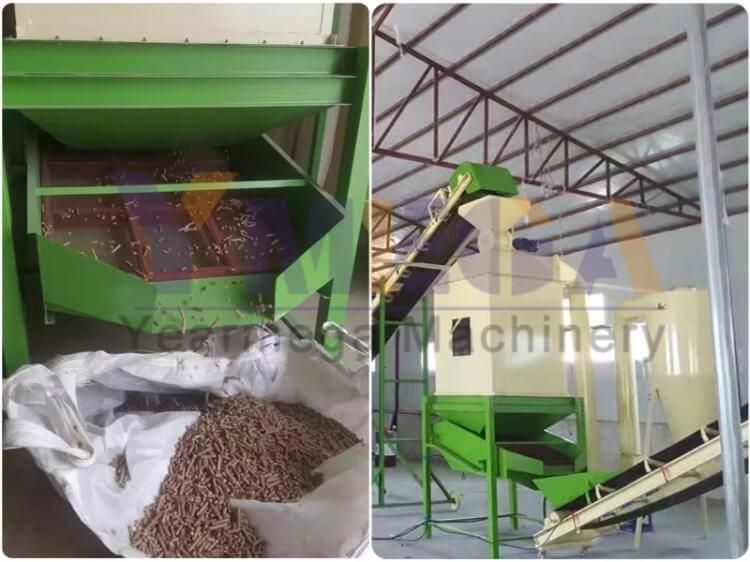

Cooler and Sieving Machine

Cooling Machine is make cooling full, prolonged of material storage. Advanced theory of counter-current cooling. Widely applied in wood pellet cooler, feed pellet cooler.
Generally, the sieving machine will be coming together with cooler, it will sieve and screen the pellets, remove dust from the pellets to get perfect and qualified pellets for bag packaging.

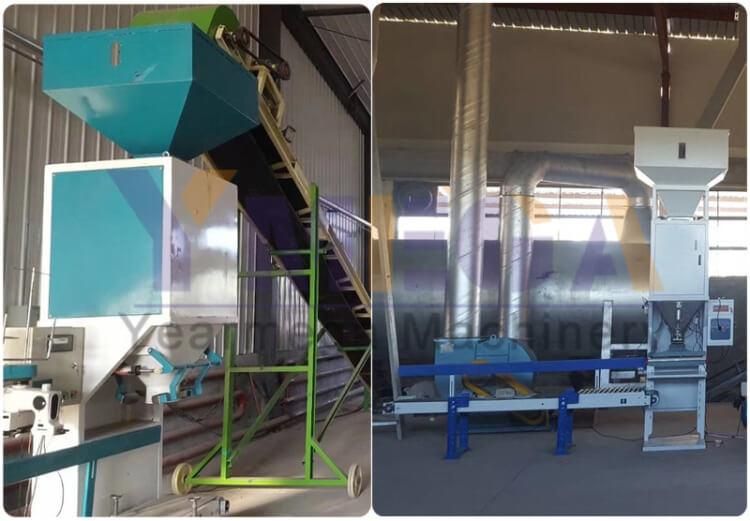

Bag Packing Machine

After cooling and sieving, biomass wood pellet would be packed into bags for storage and selling. Packed pellet would be transferred by truck to the market. Generally people will pack wood pellets into bags 5-50kg/bag, easy to store on pallet and move for transportation in the market.



You can choose some machines of the line according to your situation.
But please let us know your raw material: the size, the water content, we will recommend the most suitable configuration and investment.

Our Services
1. We will give detailed introduction of the automatic biomass wood pellet machine or Full Complete Wood Pellet Machine Line according to the client capacity requirement.
2. Share any information about the machine that the clients need, like detaield pictures, video,etc
3. Design Full Complete Wood Pellet Machine Line for client.
4. Give detailed instruction manual and video to the customers.



Contact information:
If you have interest in this Automatic Industrial Use Biomass Pellet Proudction line from China, kindly please send us inquiry.
