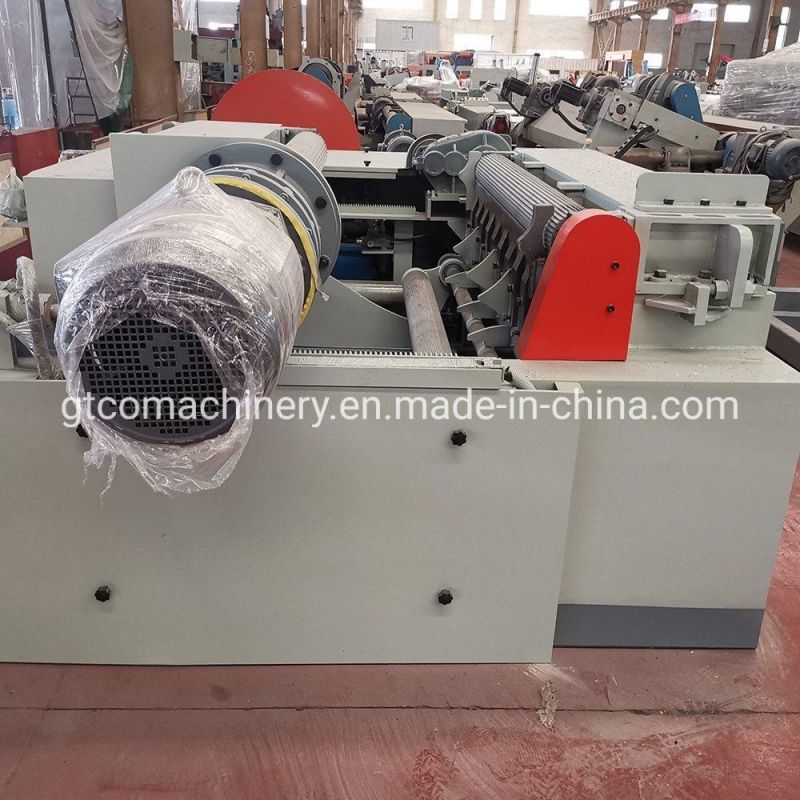

Tree Debarking Wood Peeling Machine Log Debarker for Sale
Shandong Gaotong Machinery Co., Ltd.- After-sales Service：1 Year
- Automatic Grade：Semi-Automatic
- Warranty：1 Year
- Name：Log Debarker
- Condition：New
- Machinery Test Report：Provided
Base Info
- Model NO.：GTLD290
- Core Components：PLC, Engineer , Bearings , Gearbox,Motor, etc
- Voltage：260V ,380V,415,Customized
- Application：Remove Wood Surface
- Total Power：29.5kw,44.5kw
- Project Solution Capacity：Cross Categories Consolidation
- After Sale Service：Field Installation , Commissioning and Training
- Video Outgoing Inspection：Provided
- Warranty of Core Components：2 Years
- Brand Name：Gtco
- Application Industries：Manufacturing Plant, Plywood Machinery
- Transportation：by Container
- Certification：CE
- Transport Package：by Container
- Specification：1300mm 2600mm 2900mm
- Trademark：GTCO
- Origin：China
- HS Code：8465
- Production Capacity：50,Month

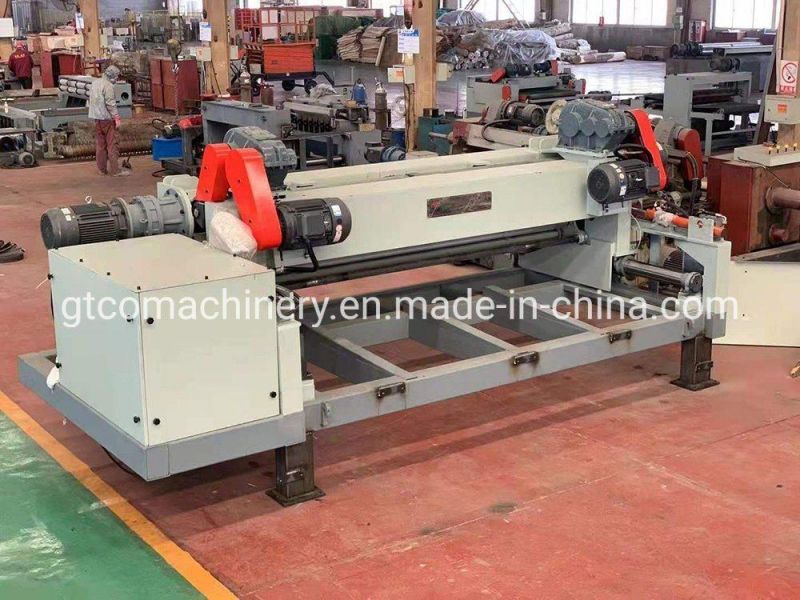

Description
Product name: DEBARKER Design: GTLD260 Max Length of log 2600mm Max Diameter of log 550mm Minimum left-over log 80mm Blade Size 2700*140*12.7mm Speed 45m/min Total Power

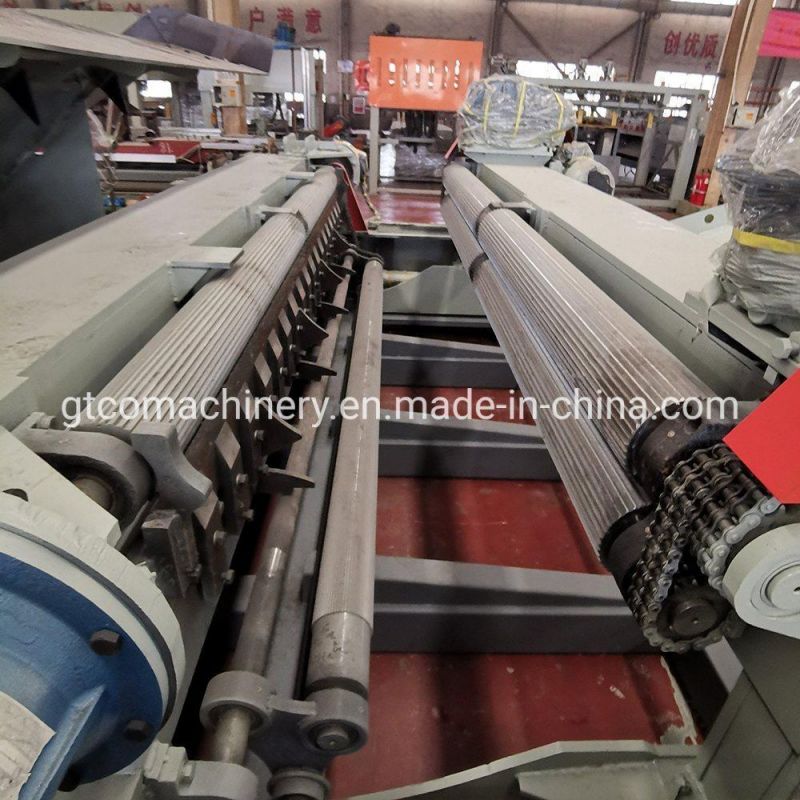

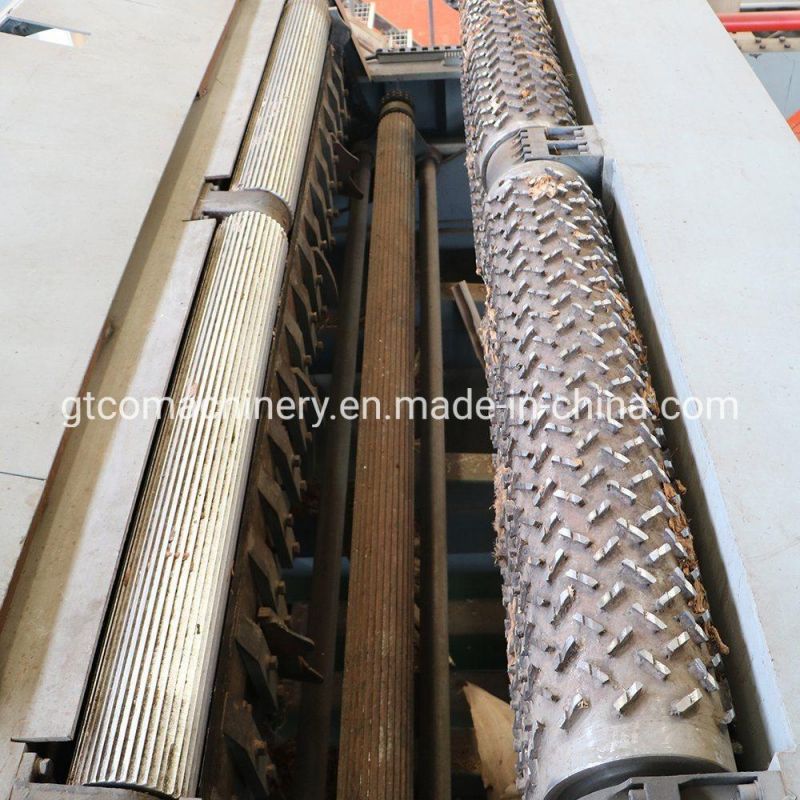

( 27.5KW ) Double Roller: Φ150mm 11KW
Single Roller: Φ150mm 11KW
Hydraulic Motor 5.5KW Overall size 5200*2250*1600mm Weight About 5000KGS
Main Features of wood debarking machine
1.After the bark peeling could protect peeling knife in veneer peeling step, improve veneer grade
2.Adopts rotary cutting principle of non-chuck rotary lathe
3.Hydraulic pressure drive into the constructions, can quickly and effectively remove bark and complete log the round work
4.One debarker machine can supply with two rotary lathe, save about five or six people
5.Hydraulic feeding, can debarking and roundup small size raw log
6.Competitive price and quality

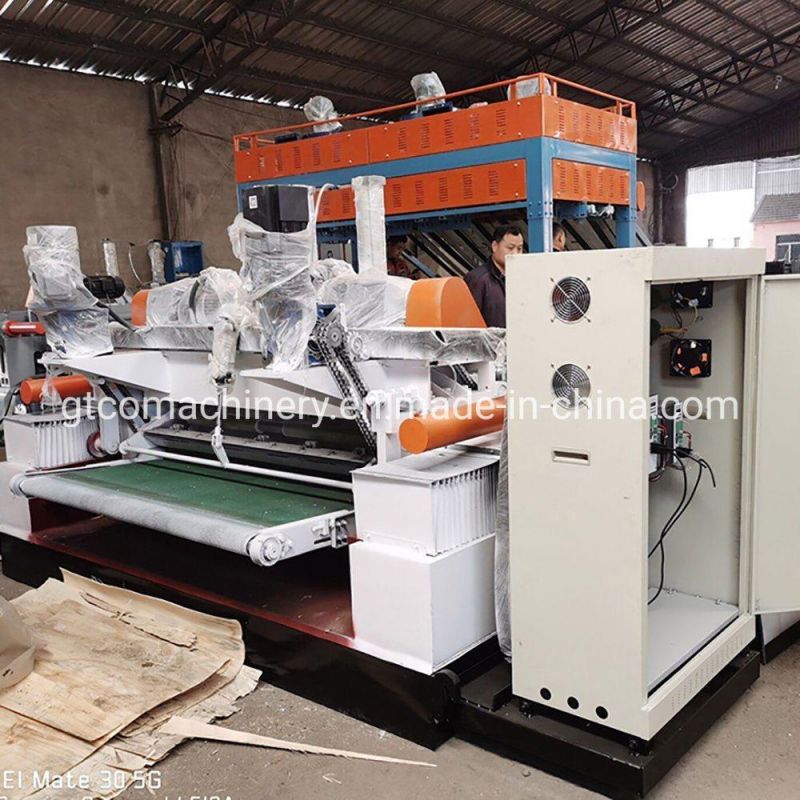

SPECIFICATIONS FOR 4FT and 8FT VENEER PEELING MACHINESize 4FT 8FT Max log diameter 500mm/700mm 500mm/700mm Max log length 1300 mm 2600 mm Peeling knife size 1500x180x16mm 2750x180x16mm Veneer thickness 0.3~3mm 0.3~3mm Motor quantity 7 sets 7 sets Feeding motor 7.5kw~11kw (servo motor) 11kw-15kw (servo motor) Total power 40kw 54kw~61kw Speed 48-80m/min 48-80m/min Size 4500x2200x1650mm 6200x2300x1700mm Weight 7200 kg 12000 kg
Related products

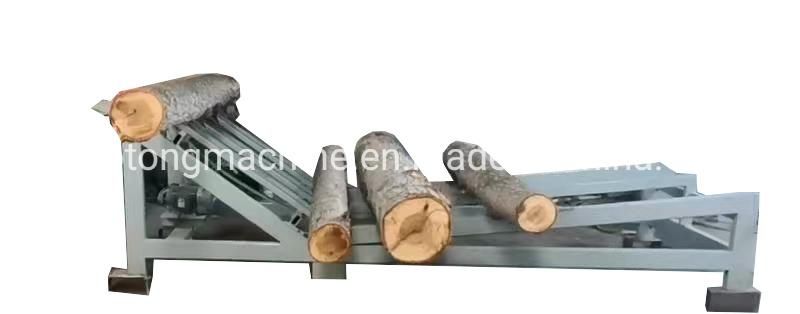

2600mm Auto FeederMax Diameter of conveying 600mm Speed 10meter /min Total Motor power 5.5 kw Overall Size 3500*1500*900mm Weight 800 KGS

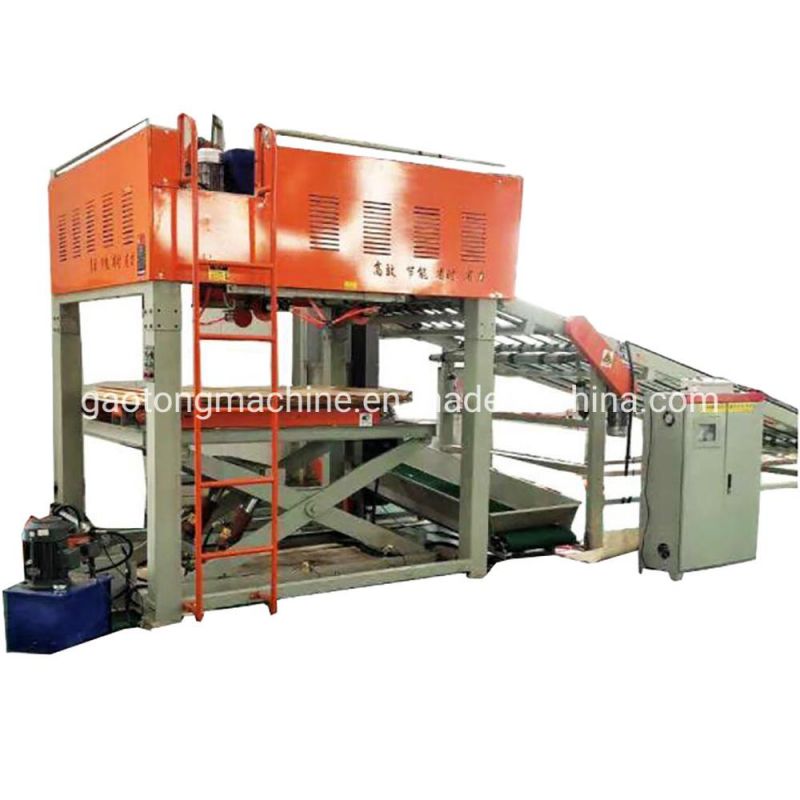

2600mm Auto Vacuum veneer Stacker with Chain Veneer Width ≤ 1850mm Veneer Length < 2600mm Veneer thickness(mm) 1mm to 3mm Veneeer Stacker height(mm) <1200mm Peeling speed (m / min) 30-80m/min Minimum Hole opening detection 50mm Sorting level One stack per grade Motor and power 30KW Fan Specification 5.5KW *4 sets Overall Size(L*W*H) mm 3200*2500*2450mm

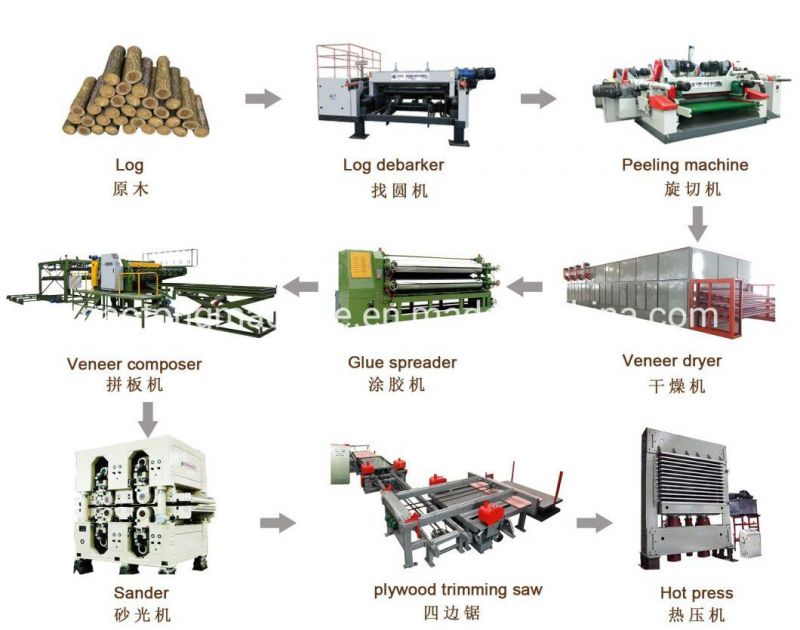

The full production line of plywood production are available

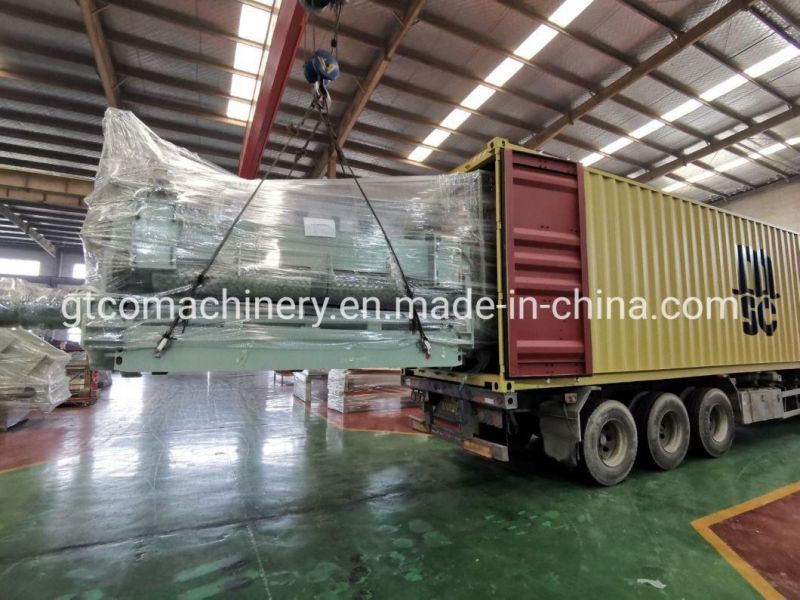

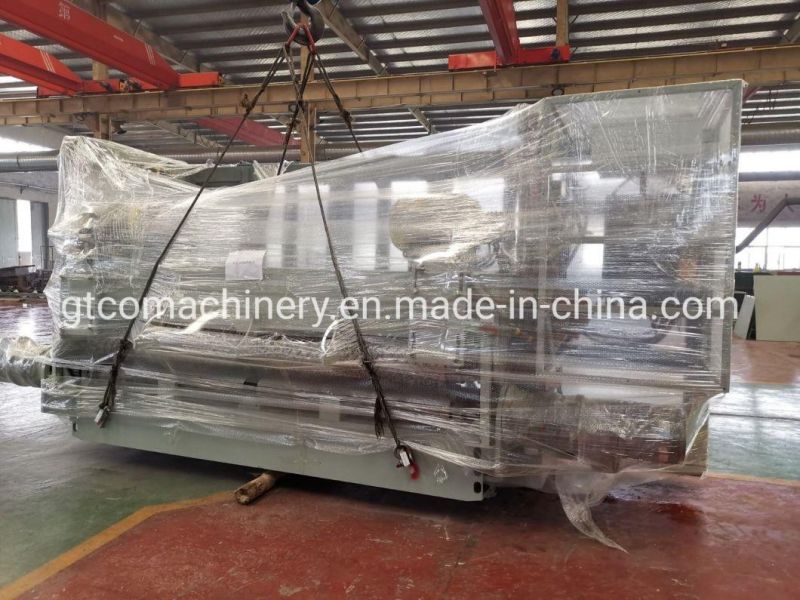

Packing & Loading
2) Provide the standard device and the flow chart
3) According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment .
4)Welcome to visit our factory
2) Oversea install and debug the equipment
3) Train the first-line operator
2) Provide the VIDEO with install and debug the equipment
3) Provide technical exchanging
( 27.5KW )
Single Roller: Φ150mm 11KW
Hydraulic Motor 5.5KW
Main Features of wood debarking machine
1.After the bark peeling could protect peeling knife in veneer peeling step, improve veneer grade
2.Adopts rotary cutting principle of non-chuck rotary lathe
3.Hydraulic pressure drive into the constructions, can quickly and effectively remove bark and complete log the round work
4.One debarker machine can supply with two rotary lathe, save about five or six people
5.Hydraulic feeding, can debarking and roundup small size raw log
6.Competitive price and quality

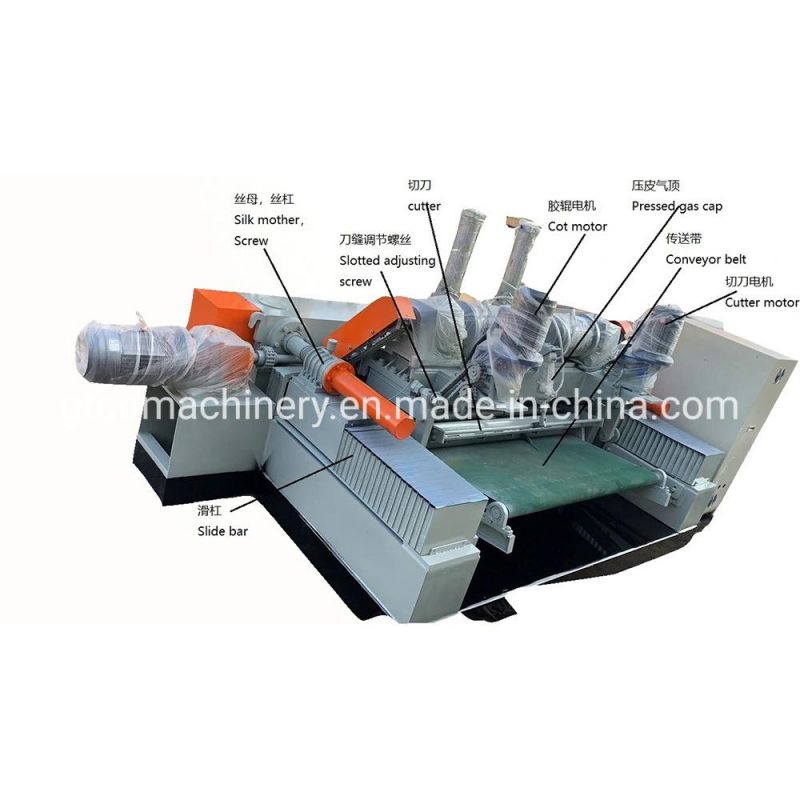

SPECIFICATIONS FOR 4FT and 8FT VENEER PEELING MACHINE
Related products
2600mm Auto Feeder
2600mm Auto Vacuum veneer Stacker with Chain The full production line of plywood production are available
Packing & Loading
Pre-sale service
1) Provide the free consultation of equipment2) Provide the standard device and the flow chart
3) According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment .
4)Welcome to visit our factory
Service during the sales
1) Inspect the machine before leaving the factory2) Oversea install and debug the equipment
3) Train the first-line operator
After sales service
1) 24 hours online service2) Provide the VIDEO with install and debug the equipment
3) Provide technical exchanging
