Shd Factory Price Diesel Engine Wood Chipper with Good Quality
Jinan Shanghangda Machinery Co., Ltd.- After-sales Service：Provide
- Type：Drum Wood Chip Machine
- Automatic Grade：Full-Automatic
- Warranty：1 Year
- Conveyor Belt Length：10m
- Capacity：4-50t,H
Base Info
- Model NO.：SHD216, 218, 1250-500, 1400-600, 1600-800
- Motor：90-450kw
- Knife Quantity：3-9PCS
- Feeding：Intelligent Feeding
- Chip Size：20-35mm
- Style：Drum and Disc
- Customized：Customized
- Color：Customized
- User Manual：Included
- Use：Chipping Wood
- Condition：New
- Rotor Diameter：500-1300mm
- Rotor Speed：500-800r,Min
- Maximum Timber Diameter：160-480mm
- Transport Package：40-Foot Cabinet
- Specification：45 cubic metres
- Trademark：SHD
- Origin：Shandong
- HS Code：8465960000
- Production Capacity：1000set,Year
Description
1. This product optimizes the rotor structure and blade material, so that the output is larger and the rotor maintenance is convenient
2. The bearings are optimized in the form of labyrinth, so that dust is not easy to enter. The bearings are equipped with automatic lubrication device, which does not need manual lubricating oil filling.
3. Optimize the electrical system, adopt automatic control and remote control operation, if the upper rotating part of the machine encounters resistance, it will automatically reverse rotation, so as to protect the main motor from high load operation.
4. The frame of the whole machine is made of square tube manganese steel, which is widened and lengthened to ensure the stable operation of the machine.
5. Screen mesh size is customized for different requirements on size of end product.

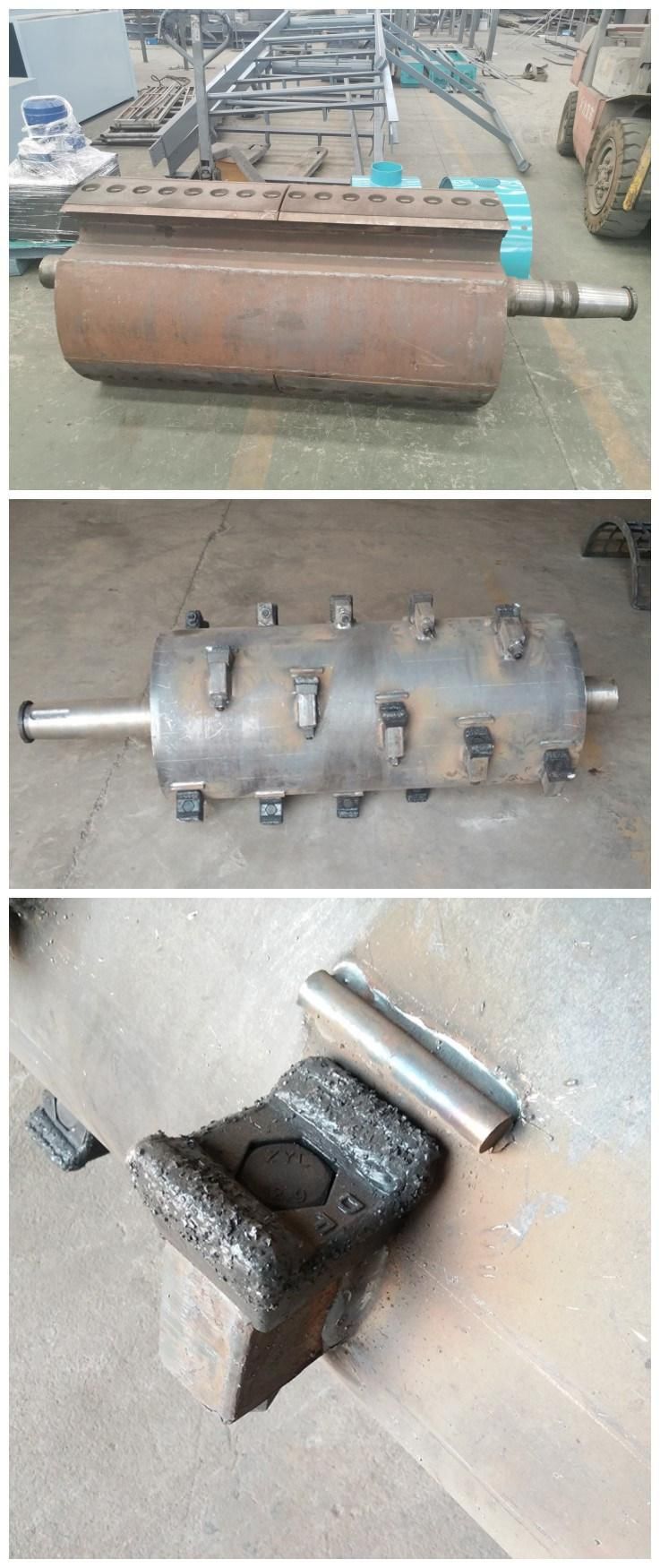

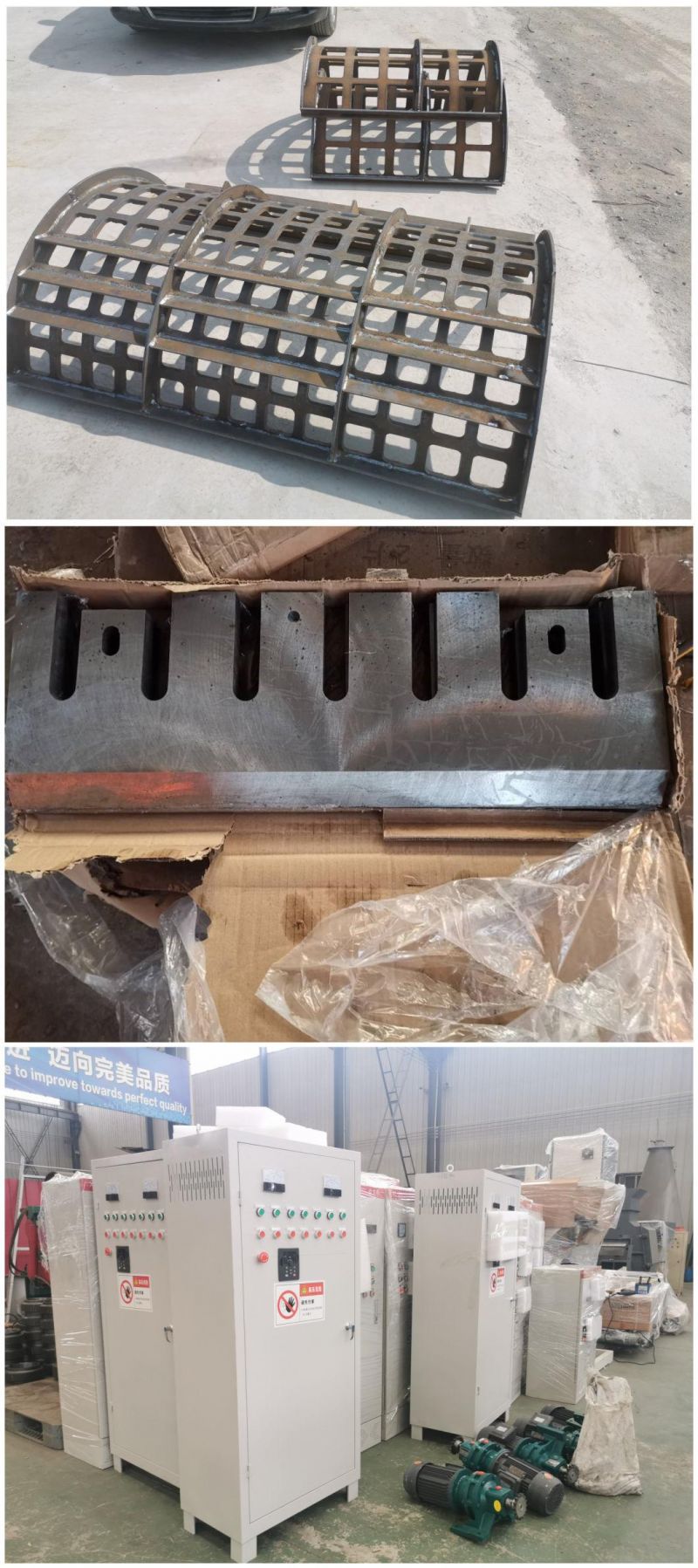

Part show:

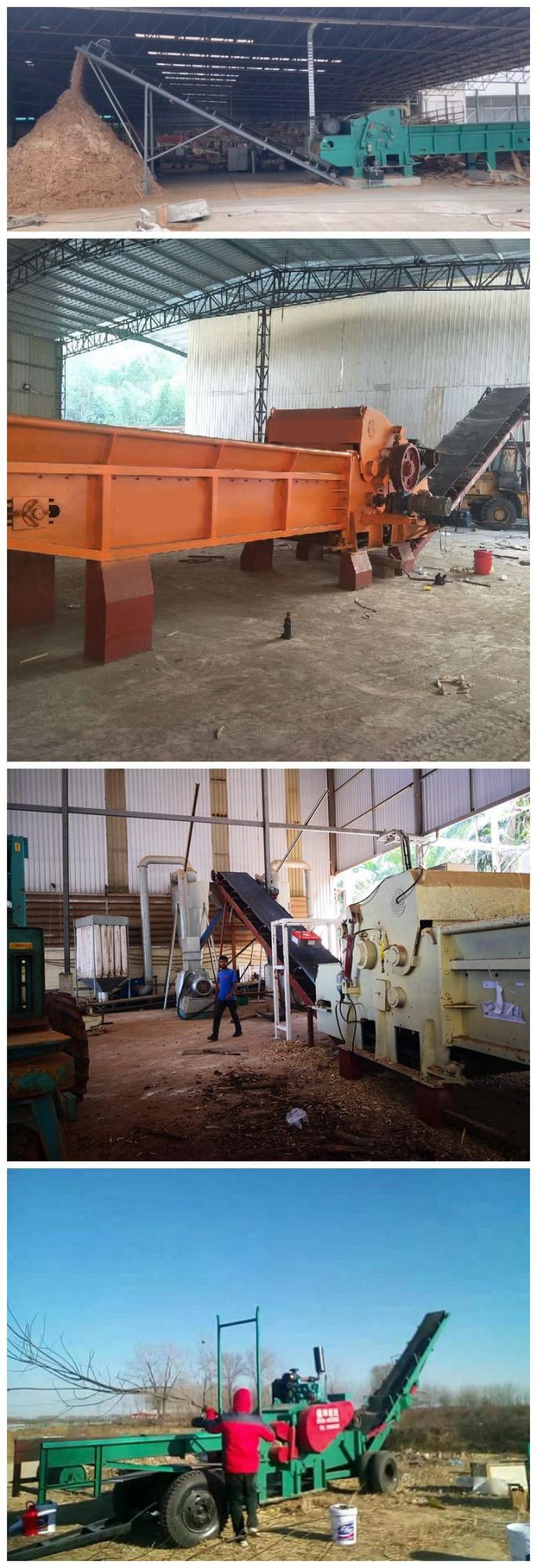

Customer cases:
Notice:All models can be customized according to customer needs.
