• Model NO.：MJ163A
• Certification：CE, ISO
• Customized：Non-Customized
• Condition：New
• Color：white
• Marketing Type：New Product 2020
• Core Selling Point：Easy to Operate
• Core Components：Motor
• Applications：Woodworking
• Transport Package：Film Package or Plywood Case
• Specification：2060*1500*1350mm
• Trademark：ZICAR
• Origin：China
• HS Code：8465100000
• Production Capacity：100pieces,Month

Basic Info.

Model NO. MJ163A Certification CE, ISO Customized Non-Customized Condition New Color white Marketing Type New Product 2020 Core Selling Point Easy to Operate Core Components Motor Applications Woodworking Transport Package Film Package or Plywood Case Specification 2060*1500*1350mm Trademark ZICAR Origin China HS Code 8465100000 Production Capacity 100pieces/Month

Product Description

Products Descriptio

Features
1. This adopts step-less material feeding, material feeding speed ranges from 5 to 24 m/min.
2. Each main shaft is driven by independent electric motor, cutting fore is poweful;
3. Main shaft is adjusted to focus on the front, operation is convenient;
4. Multi-group drive rollers improve feeding efficiency;
    International brands electrical parts are applied for good stability;
5. Spare parts are thick and solid to maintain high precision, high stability and high reliability;
6. Pneumatic compressed feeding roller is applied, the pressing force can be adjusted by stages;
7. Which is favorable for smooth feeding of timbers with different thickness;
8. Completely sealed safety shield can avoid flying of saw dust and isolate noise efficiently and protect operators.
Product Paramenters

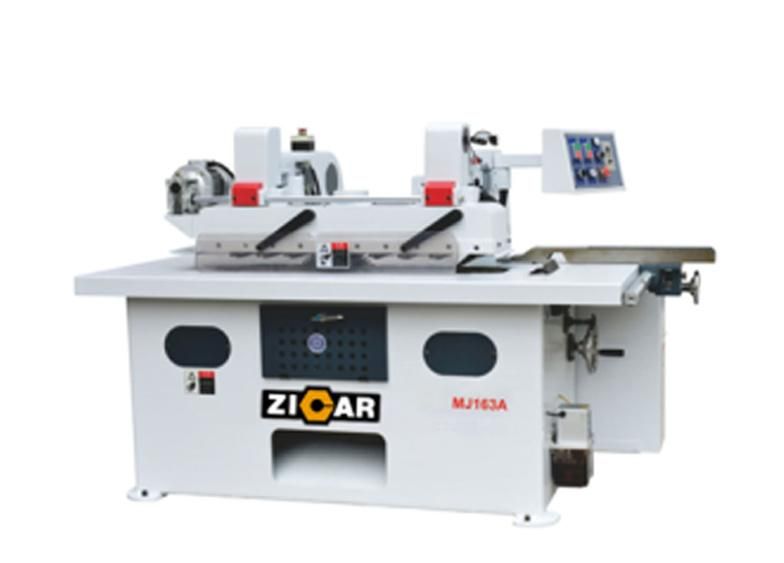

SPECIFICATION AND MODEL	MJ163A
Saw balde diameter	max 355 mm(14") min 305 mm(12")
Max.working thickness	90 mm
Max.cutting width	500 mm
Spindle diameter	50.8mm
Spindle speed	3000r/min
Feeding speed	10~30m/min
Main motor power	7.5 kw
Feeding motor power	1.5kw
Upper beam lifting motor power	0.37 kw
Total power	9.37KW
Working table	1800×985mm
Overall dimension	2060×1500×1350 mm
Net weight	1450kg

Details Images

Double arms are heavy, and can ensure machine working more stable.

New control panel design is more intuitive and more beautiful.
Frequency conversion feeding makes it much more convenient.

Electrical up&down of feeding box, which makes the operation much easier.

Anti-rebound protector ensure safety

Direct-coupled spindle motor, transmission power is sufficient
