• Model NO.：stone router with 2 head
• Structure：8mm Steel Tube Welded
• Control System：DSP Nk200 Control System
• Table：Professional T-Slot Thick PVC Table
• Motor：Leadshine Easy Servo Motor
• Driver：Leadshine Easy Servo Driver
• Inverter：Best or Fulling Inverter
• Oil：Automatic Lubrication
• Spindle：4.5kw Mould Water Cooling Spindle
• Water Tank：Yes, Include
• Control Box：Independent
• Precision：0.03mm
• Square Rail：Xy Axis Is Oblique Gear Rack, Z Axis Ballscrew
• Weight：1800kgs
• Transport Package：Standard Export Plywood Case Packing
• Specification：1300*2500*400mm
• Trademark：STARMACNC
• Origin：Jinan, China
• HS Code：8465990000
• Production Capacity：80 Sets Per Month

NoDescriptionParameter1X,Y,Z Working Area1300x2500x200mm woodworking cnc router2X,Y,Z Traveling Positioning Accuracy±0.03mm3X,Y,Z repositioning Accuracy ±0.02mm4Table SurfaceProfessional Stone working thick PVC with T-slot table5FrameHeavy duty Square pipe Welded Structure 8mm6X, Y axis transmissionPrecision oblique gear rack7Z axis transmissionTaiwan TBI 2505 ballscrew8Max. Travalling speed 40000mm/min9Max. Working Speed20000mm/min10Spindle Power Motor4.5kw mould water cooling11Spindle speed0~18000rpm/min12Drive MotorsLeadshine easy servo13Working VoltageAC 220V Single Phase,50Hz(380V can option)14InverterBEST or Fulling (Delta can option)15Command LanguageG code16Operating SystemDSP NK20017InterfaceUSB18Flash Memory128M( U Disk)19X,Y Resolution<0.01mm20Software CompatibilityArtcam,type3,Ucancam,etc21Running EnvironmentTemperature: 0ºC~45ºC
Relative humidity: 30%~75%

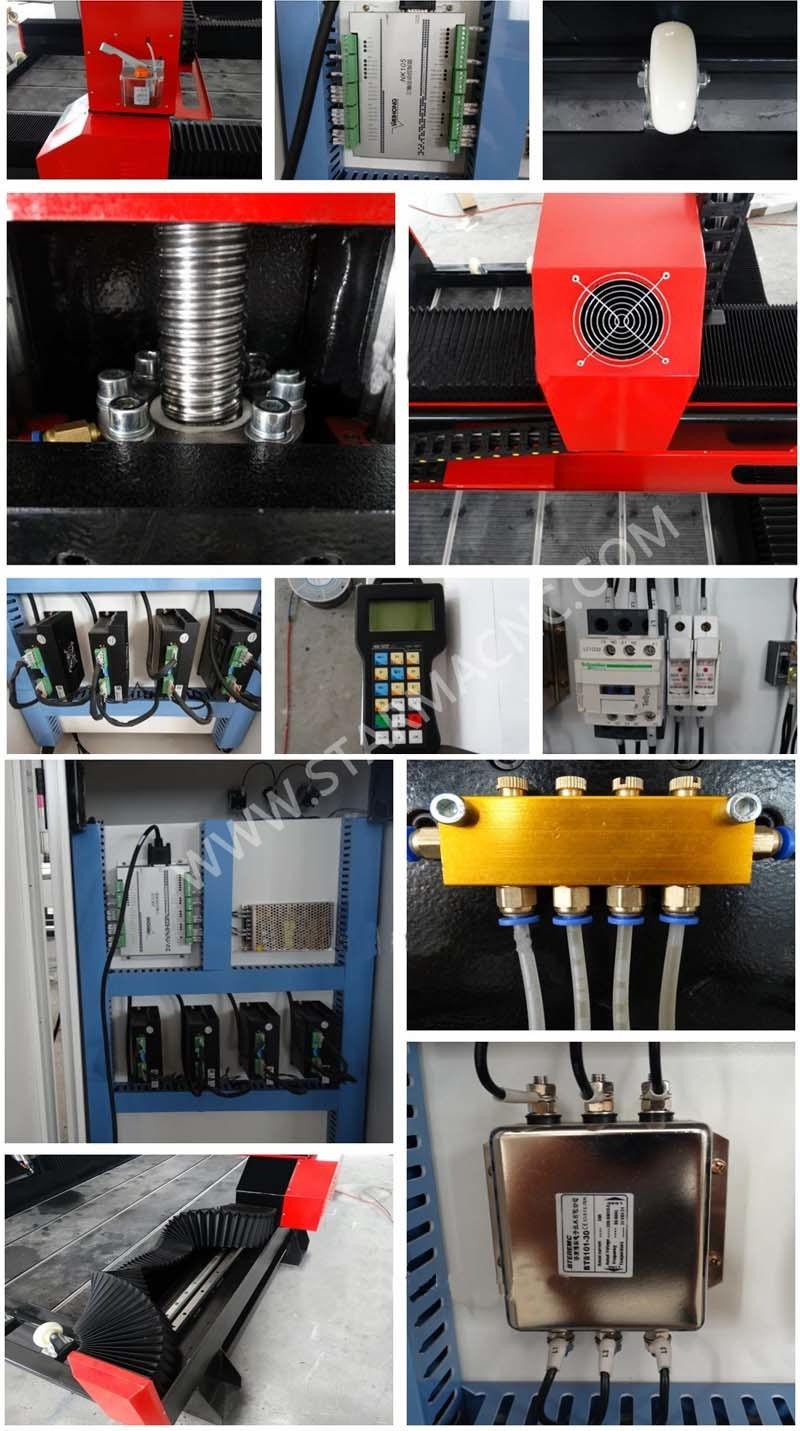

-------Machine Details-------

-------Application-------

1. Wood furniture industry

Doors; Cabinets; Tables; Chairs.

Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry

Signage; Logo; Badges; Display board; Meeting sign board; Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

4. Artwork and Decoration

wood crafts; gift box; jewelry box

5.Stone
Artificial stone, Marble,Granite, Ceramic Tile,Milestone,Terrazzo,Limestone,Sandstone,Travertine, Quartzite, Slate, Grindstone, Jade, Crystal, Glass, Plexiglass,Wood, Plastic,Eps foam, Aluminum composite panel, Aluminum block, Copper and so on.

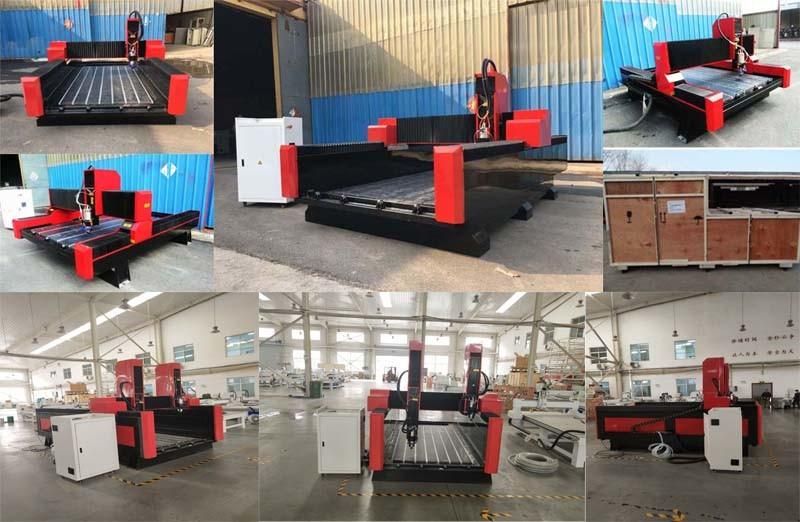

Jinan 4X8FT Stone CNC Router With DSP NK200 Control
Sample disply

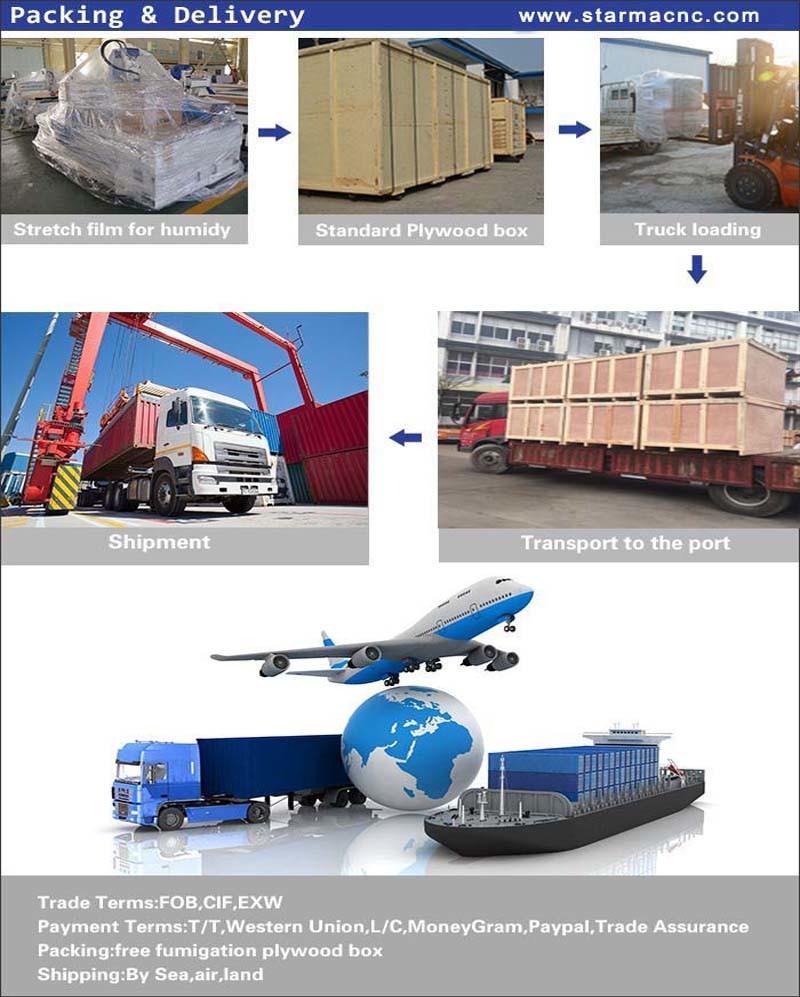

Packing & shipment :

Save space as much as possible for container loading.

• Inside:Water-proof Plastic Film Package With Foam Protection
• Outside:Solid Seaworthy Wood Box Package
• Below: Steel Tube. 4x8 feet cnc machine

Our service:
Before sale:
We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs,after everything is ready,we would tell you everything goes well here; 4x8 feet cnc machine
After sale:
We would provide English Version working manual.
If you have any questions during using and maintaining,our engineers who could speak very good english would answer you online or by calls.
Machine warranty is one year.So if your machine has any unintentional damages,we would provide parts for free.
If your machine has big problems if by any chance,our engineers would arrive there to debug and fix.
our professional after sale service team which are selected by very strict examinations,would pay their 100% time and energy to solve your problems!

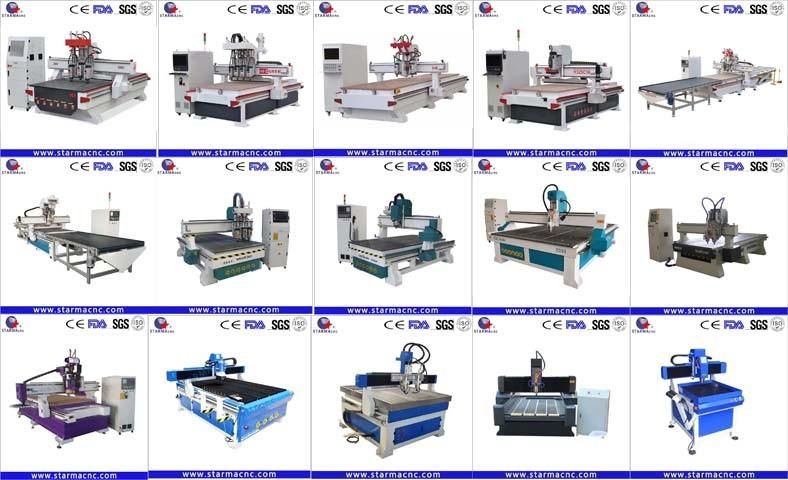

Our Other type cnc router machines:



-------Our certificate & feedback from client-------



Jinan 4X8FT Stone CNC Router With DSP NK200 Control
Our Company
Jinan Starma Machinery Equipment Co.,Ltd. producing cnc router is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router,wood cnc router, stone cnc router, laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE certificate.The aim of Jinan STARMA CNC Router is to continuously upgrade the technique, to help our customers produce the best quality and high precision cnc routers and cnc machines.


FAQ:

1.How long about the machine's guarantee?

2 years

2.How about your after-sales service ?

Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.

3.How can we install the machine?

English version manual and operation video CD disk.

4.How about the payment terms?

30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal

5.Do you Arrange Shipment For The Machines?

Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.

For EXW price, clients need to arrange shipment by themselves or their agents.
