3D Sculpture Automatic Tool Changer with Servo Motor CNC Wood Carving/Engraving/Cutting Woodworking Machine
Hangzhou Kahan Laser Technology Co., Ltd.- Condition：New
- Certification：CE
- CNC or Not：CNC
- Voltage：380V
- Machine Structure：Welded Steel
- Drive Motors：1.2kw Servo Motor
Base Info
- Model NO.：KH1325
- Operating System：Lnc, Weihong, Cypcut
- Max. Working Speed：30000mm,Min
- Repositioning Accuracy：0.03mm
- Working Accuracy：<0.05,300mm
- Transport Package：Plywood Case
- Specification：3500x2000x1600mm
- Trademark：Kahan
- Origin：Zhejiang
- HS Code：8465990000
- Production Capacity：500PCS,Years
Description
<0.05/300mmRepositioning Accuracy ±0.03mm Table Surface T-slot worktable Vacuum table+7.5kw vacuum pump X, Y Structure Rack and Pinion Drive, Linear guide rail Z Structure Taiwan Rail Linear Bearings and Ball Screw Guide Taiwan TRV Max. Rapid Travel Rate 70000mm/min Max. Working Speed 30000mm/min Spindle Power Motor 9KW Air Cooling Spindle Speed 0-24000RPM Drive Motors 1.2KW Servo Motor Working Voltage AC380V/50/60Hz,3PH (Option: 220V) Command Language G code Operating System LNC, Weihong, Cypcut Computer Interface USB Dustproof and lubricated Guide and gear rack all-round dustproof structure, electric timing lubrication system Running Environment Temperature 0°C~45°C Relative humidity 30%~75% Reducer Shimpo Vacuum Cleaner 5.5KW
Features of wood CNC router:
1. China air-cooling Spindle
Top brand of the world. Spindle speed: 0-24000RPM.
2. Inverter from Taiwan
It can output 150% of rated torque at zero speed, and it can have "point to point" and relative
distance control functions for position control.
3. Motor and Drive
Servo Motor, big power.
Smaller noise, lower heating, smoother movement and having better performance at higher speed.
4. Control system
LNC 4 AXIS System
High performance control system, separated keyboard control, color LCD display.
5. Transmission system
Rack drive can achieve a long life with high speed, highly accurate and smooth linear motion.
6. Working table T-slot and Vacuum Table
Rigid vacuum table with grids and T-slots maximizes the vacuum hold-down and also enables you
to clamp the workpiece in place.

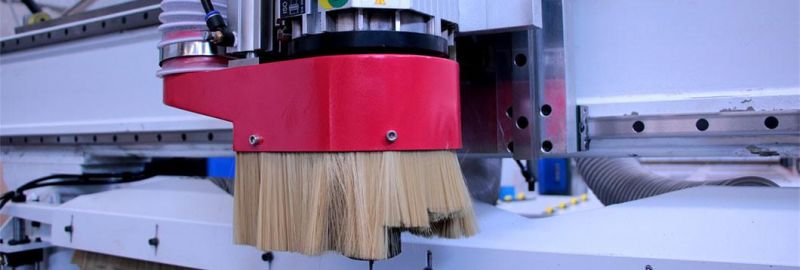

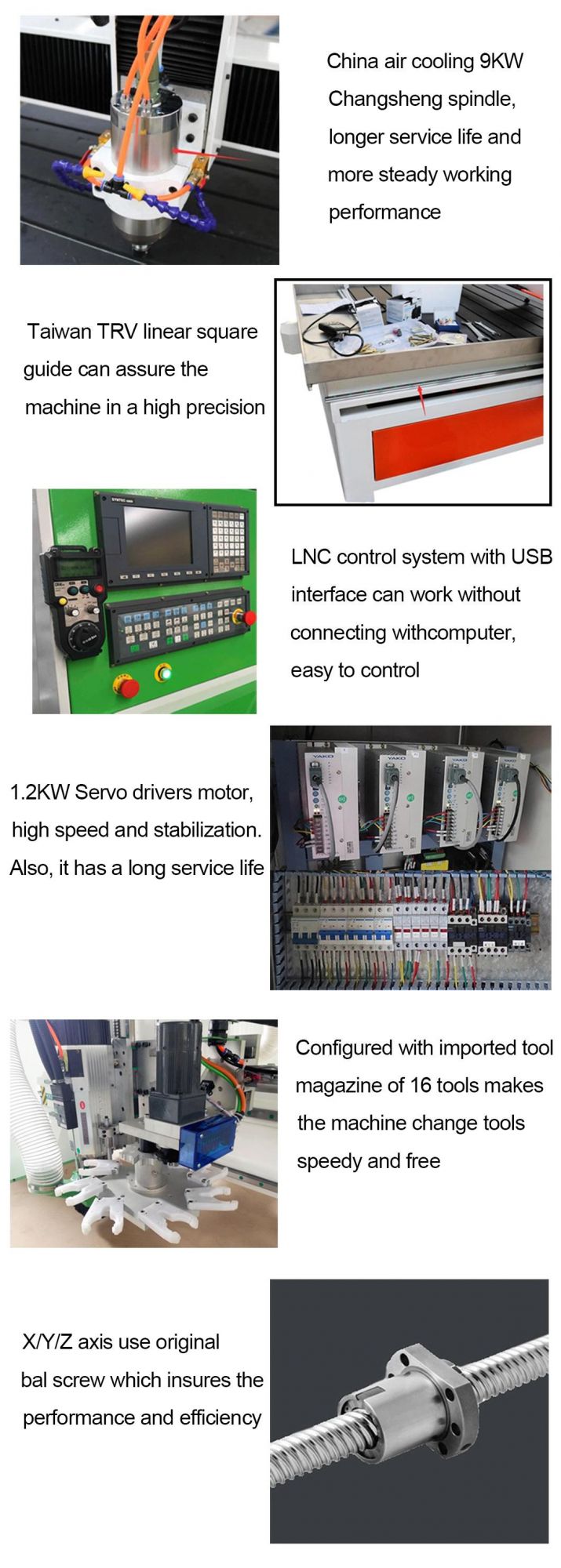

Details of woodworking cnc router
Applications of Woodworking CNC Router
Outdoor advertising: materials cutting and engraving, display rack, light boxes, 3D letters, reliefs, sign boards, plates, logos, emblems.
Woodworking: carving patterns or designs on woodwork, decoration, wood carving, cutting chipboard, furniture making, etc.
Metal industry: nonferrous metal cutting, milling, drilling, engraving, marking, grinding.
Furniture: wooden doors,cabinets,plate,office and wood furniture,tables,chair,doors and windows.
The wood products:voice box,game cabinets,computer tables,sewing Machine table,instruments.
Plate processing:Insulation part,plastic chemical components,PBC,inner body of car,bowling tracks,stairs,anti-Bateboard,epoxy resin,ABS,PP,PE and other carbon mixed compounds.
Decoration industry:Acrylic,PVC,MDF,artificial stone,organic glass,plastic and soft metals such as copper multiple function.

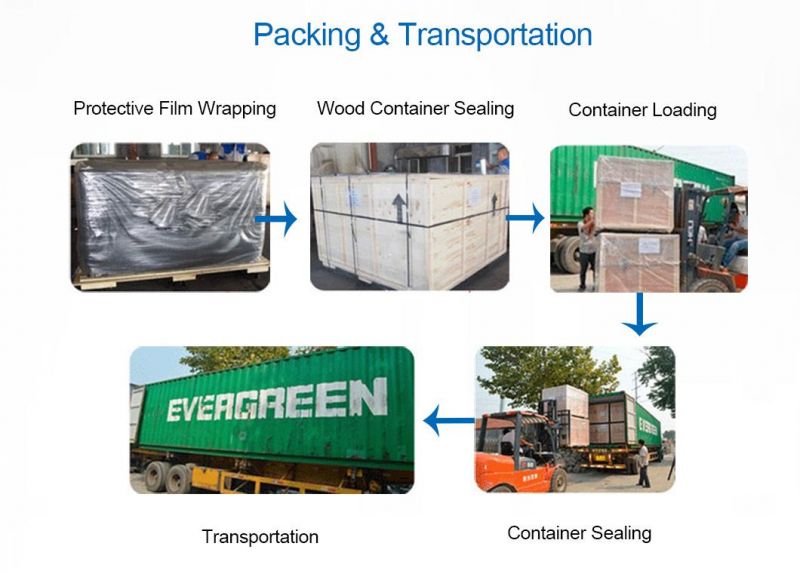

Packaging & Shipping
1. Kahan CNC machine and accessories are covered by plastic sheet first.
2. Then the whole machine is packed by plywood case used for export.
3. Kahan CNC machine can be delivered by sea, by train, or by plane depending on customers.
Delivery Detail:
Shipped in 15-30 working days after payment.
Guarantee:
1 year warranty for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. After 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
Technical support:
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video CD disk.
3. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine. Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/WhatsApp/tel etc.
FAQ
Q: There are so many machine types, which one should I choose?
A: Kahan Laser provides machine parameters in each product demo page, please kindly check technical data column. It is important to compare all data before choose the best prototype. Also, our sales team provides online services to resolve your confusion, feel free to contact us.
Q:This is my first time buying your machine; I have no ideas about Kahan's machines quality?
A: Each machine is strictly produced based on the standard of ISO9000-2000, ISO14001-2004, GMC global manufacturer and CE certifications. Our products have CE certifications verified by TÜV SÜD, Bureau Veritas and etc. As china high-power laser cutting machine provider, more than 10,000 machines have been sold in the past ten years. Customer is our first priority. We are confident to tell customers that there is no need to worry about our quality.
Q: When I got this machine, but I don't know how to use it. What should I do?
A:There are videos and English manual with the machine. If you still have some doubts, we can talk by telephone or email.
Q: If some problems happen to this machine during warranty period, what should I do?
A: We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. If you have any question,just contact us freely.
