Machine/Woodworking Machine/Wood Sander a Machine for Making Plywood
Shandong Hummingbird machinery Co., Ltd.- Warranty：2 Year
- Type：Sanding Plywood Machine
Base Info
- Automatic：Automatic
- Certification：CE, ISO
- Condition：New
- Power(W)：63.7kw
- Overall Dimension (L*W*H)：2600*2100*2150mm
- Speed of Dust Collecting：25-30m,S
- Feed Speed：20m,S 18m,S
- Conveyor Motor：2.2kw
- Speed：40m-80m,Minute(Adjustable)
- Working Width：40-1300mm
- Volume of Dust Collecting：12000m3,H
- Working Thickness：2-100mm
- Transport Package：in Nude or Plywood Box
- Specification：2000*2200*2150mm
- Trademark：Hummingbird
- Origin：China
- Production Capacity：30sets,1 Month
Description

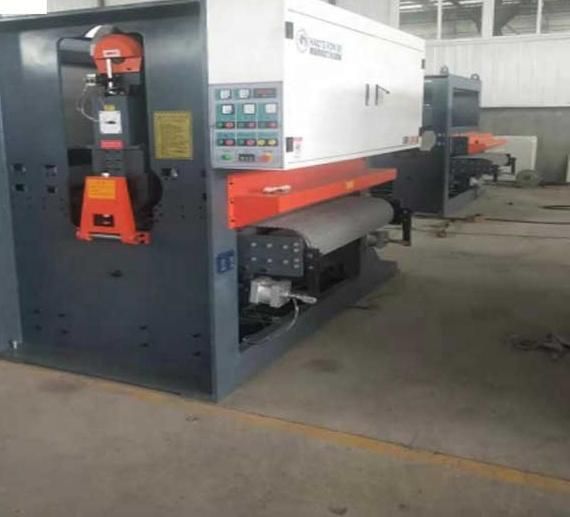

Type 1 --- One side calibrating wide belt sander Working width :≤ 1300mm
Working thickness : 3 - 100 mm
Working length: ≤ 750 mm
Working presision: ± 0.1mm
Size of sand belt :1300 * 2615 mm
Sand belt speed : 20 m/s
Auto-feeding system : frequency 10 - 70 m/min
Motor power for sand belt :75 kW + 55 kW
Speed of dust collecting : 25 -30 m/s
Overall dimension: 2700 * 2340 *2440 mm
Weight:7500 kgs

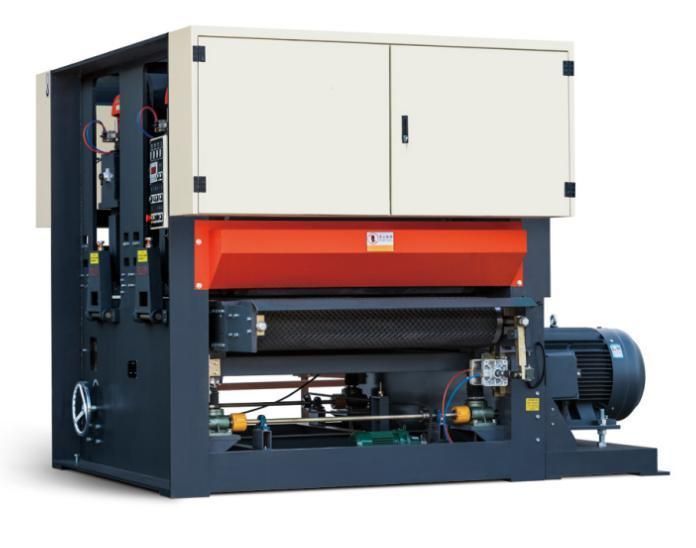

Type 2 --- Double side sanding machine Working width :≤ 1300mm
Working thickness :3 - 100 mm
Working length : ≥ 500mm
Working presision : +0.08mm or -0.08mm
Size of abrasive belt : 1330 * 2880 mm
Speed of abrasive belt : 28 m/s
Total power : 145 kW
Volume of dust - collecting : 28000 m/s
Overall dimension: 1850 * 3400 * 3000 mm
Weight : 15000 kgs

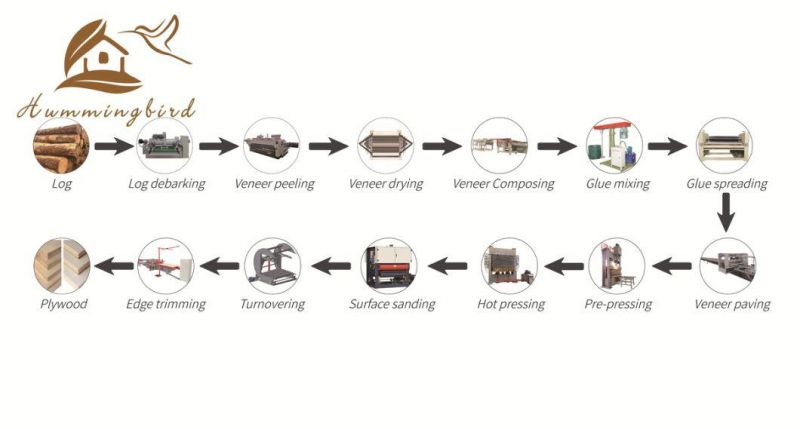

Processes of plywood machinery production line

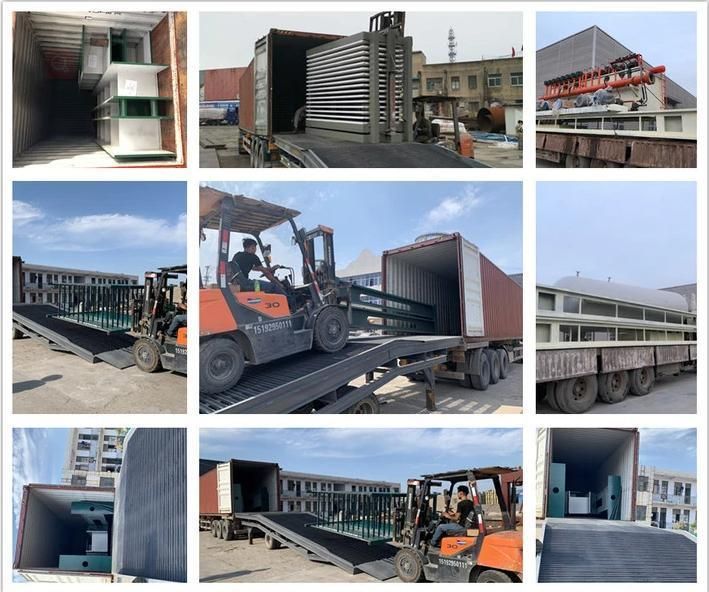

Packaging & Shipping
Company Profile
Shandong Hummingbird Machinery Co., Ltd., formerly known as Linyi Xinkun Machinery Co., Ltd., is located in the plywood base of Linyi City, Shandong Province, specializing in the production and research and development of woodworking machinery for more than 10 years. We are a manufacturer of wood working machinery with well-equipped testing facilities and strong technical force. We offer you qualified products and service with a complete equipment solutions. We also welcome OEM and ODM orders.We can offer you not only a complete equipment solutions to your plan but also good technology service. Engineers available to service machinery overseas and after-sales service provided in our company.
Was established. Based on the principle of integrity and quality, we bring the concept of good mechanical products and prefabricated houses to the world. In line with the concept of service first, we sincerely look forward to cooperating with you, hoping to help you further in your career!
FAQ
1. Q:A FACTORY OR A DEALERS?
A:We are a factory who have been producing wood based panel machinery for 20years.
2. Q:QUALITY CONTROL?
A: Each machine will be tested three times before delivery.
3. Q:DELIVERY TIME?
A: 30-90 days upon receiving deposit.
4. Q:Factory Layout Design?
A:We have engineer team to make layout drawing for customers for free.
5. Q: After-sales Service?
A: We have technician team to help customers on installation.
6. Q:WARRANTY?
A: One-year warranty,and we supply parts and service all the time.
7. Q:PAYMENT TERMS?
A: T/T, L/C are accepted.
8. Q:MOQ?
A: The MOQ is 1 set.
Shandong hummingbird machinery Co., Ltd. is looking forward to cooperating with you, we will serve you attentively, please rest assured that we will provide you with the best quality mechanical products, price concessions, welcome your consultation ~
