CNC Wood Carving Machine CNC Wood Lathe
Jinan Guanjiahong CNC Machinery Co., Ltd.- Type:Single-Axis Automatic Lathe
- Voltage:380V
- Tool Holder:Double-tool Holder CNC Lathe
- Automatic Grade:Automatic
- Precision:High Precision
- Setting Mode:Table
Base Info
- Model NO.:GJH3015
- Controlling Mode:CNC
- Power Source:Electric
- Processing Accessory:Chuck CNC Lathe
- Certification:CE, SGS
- Guide Rail:Hiwin 20 (Imported)
- Screw:PMI (Imported)
- Running Mode:Stepper
- Control System:Guangxingkai
- Rotary:Dia: 300mm, Length: 1500mm
- Transport Package:Plywood Case
- Specification:3015
- Trademark:GJH
- Origin:Shandong China
- HS Code:84659900
- Production Capacity:100 Sets Per Month
Description
Basic Info.
Model NO. GJH3015 Controlling Mode CNC Power Source Electric Processing Accessory Chuck CNC Lathe Certification CE, SGS Guide Rail Hiwin 20 (Imported) Screw PMI (Imported) Running Mode Stepper Control System Guangxingkai Rotary Dia: 300mm, Length: 1500mm Transport Package Plywood Case Specification 3015 Trademark GJH Origin Shandong China HS Code 84659900 Production Capacity 100 Sets Per MonthProduct Description
High quality and High precisionCNC Wood Turning Lathe
from professional cnc woodworking machine manufacturer.
CNC wood turning lathe carving machine with spindle for staircase ,Rome column,baseball bat,chair legs.
Wood turning and cutting with fast speed.

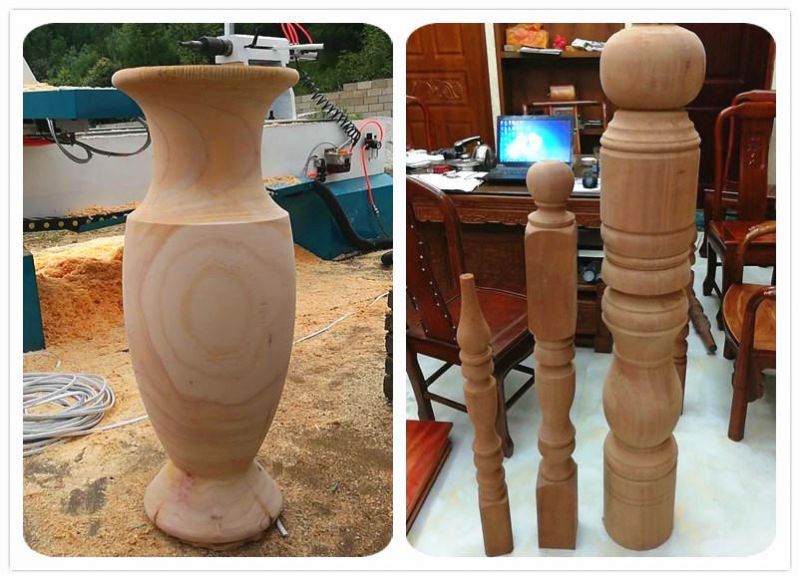

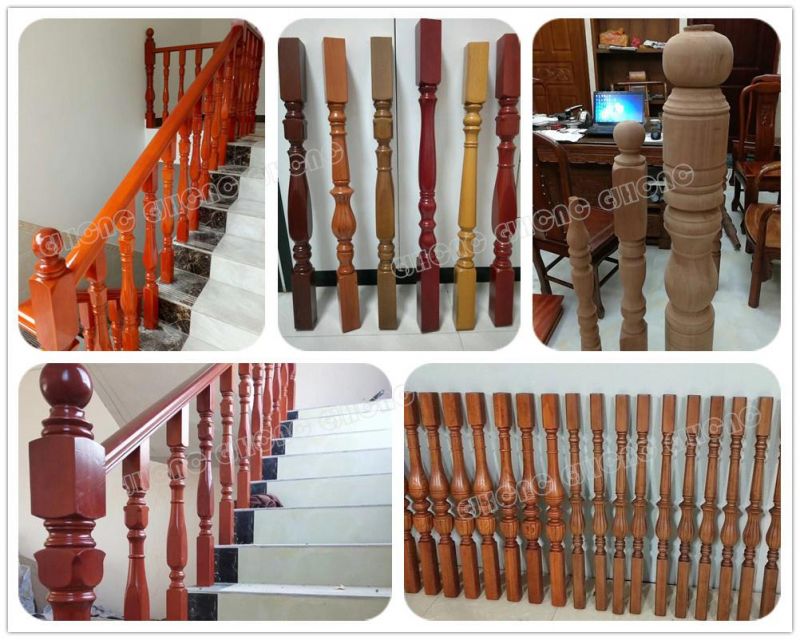

CNC Wood Turning Lathe can do various cylindrical work piece, bowl sharp, tubular sharp and vehicle wood crafts, such as various staircase column, Roman column, general column, tables or chairs legs, washstand, wooden vase, wooden table, baseball bat, car wooden furniture, children' s bed column, etc.
If you have specific requirement for it, customized is available.

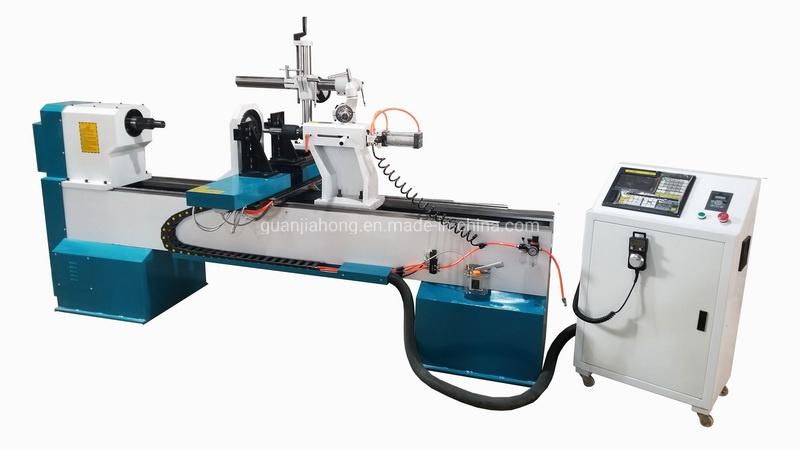

Real Images for our whole machine, that is our reliable quality products.

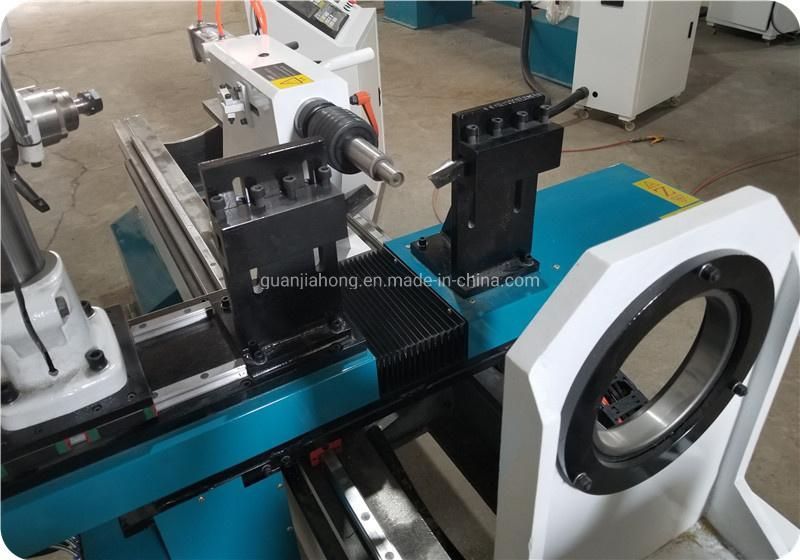

Good Quality double blades, Dust proof for Z axis, Humanized design fully takes into account the safety of operators:
Perfect ENGRAVING and CUTTING works, will bring you HIGH EFFICENCY.
Model: | GJH 3015RF |
Processing Material: | Rotary Wood |
Max Working Length: | 1500 MM |
Max Working Diameter: | 300MM |
Flat engraving size: | 1200x300MM |
Control System: | Guangxingkai Control System |
Frequency Converter: | Middle Drive |
Bed structure: | Heavy integral casting |
Driving mode: | High precision TBI ball screw |
Guideway Drive: | 25 Linear Guide rail 25 Flange Slider |
Power Spindle: | 4 Kw pure copper three-phase asynchronous motor |
Power Spindle speed: | 0-2800 Rpm |
Engraving Spindle: | 2.2Kw, Air-cooling, |
Engraving Spindle speed: | 0-24000 Rpm |
Operating Voltage: | 3-phase 380V Voltage |
Main Functions: | Car Modeling |
Processing Range: | Stair Column, Table and Chair Back, Bedside Column, Slab Tile, Cylindrical, Conical, Arc, Spherical, Cylindrical Engraving and Flat Carving |
N.W. | 1300 Kgs |
G.W. | 1450 Kgs |
Packing size: | 2990x1280x1470mm |
Sincerely waiting for your any inquiry, and trust that we can provide you professional suggestions.
Guarantee & After-sale service1.One year warranty under normal use and we supply lifelong maintenance.2.24 hours technical support by Phone, Email, Skype, Msn, or romote.3.Free training to make sure you master the operation of the cnc router.OEM Service Available1.Usually, we will manufacturer the machine as our regular design.2.X Y Z Working Area could be custmer-oriented designing.3.Special configuration could be customer-oriented designing.
