• Model NO.：GD-1325
• Voltage：380V
• Warranty：12 Months
• Power (Kw)：4.5kw
• Range of Spindle Speed：1000 - 24000
• Positioning Accuracy：0.05mm
• No. of Spindles：Single
• Travel (Y Axis)(mm)：2500mm
• Travel (X Axis)(mm)：1300mm
• Key Selling Points：Multifunctional
• Spindle Motor Power：3.2kw
• Relative Humidity：30%-75%
• Running Temperature：0-45ºC
• Control System：Nc Studio , DSP(Optional)
• Packing Size：3.2*2*1.7m
• Packing：Wooden Box
• Weight：1000kg
• Transport Package：Plywood Packing

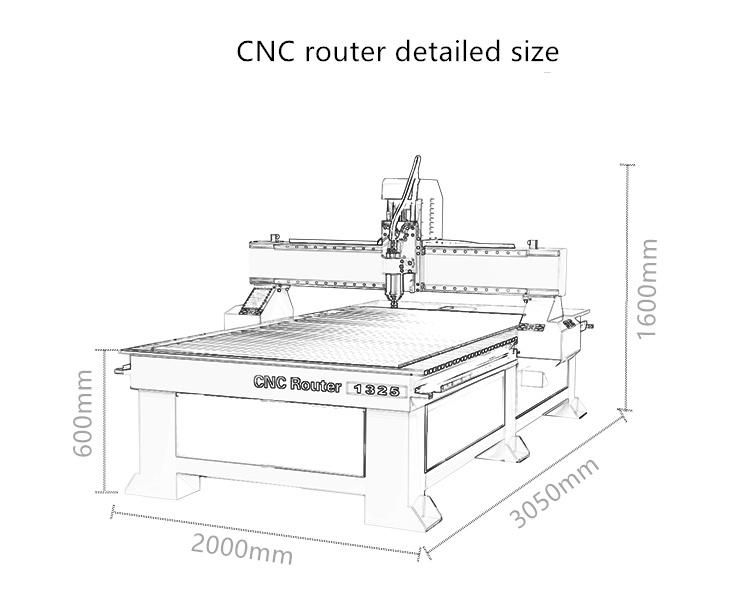

• Specification：3200*2400*1850mm
• Trademark：Guandiao
• Origin：Jinan
• HS Code：8465990000
• Production Capacity：10000

Basic Info.

Model NO. GD-1325 Voltage 380V Warranty 12 Months Power (Kw) 4.5kw Range of Spindle Speed 1000 - 24000 Positioning Accuracy 0.05mm No. of Spindles Single Travel (Y Axis)(mm) 2500mm Travel (X Axis)(mm) 1300mm Key Selling Points Multifunctional Spindle Motor Power 3.2kw Relative Humidity 30%-75% Running Temperature 0-45ºC Control System Nc Studio / DSP(Optional) Packing Size 3.2*2*1.7m Packing Wooden Box Weight 1000kg Transport Package Plywood Packing Specification 3200*2400*1850mm Trademark Guandiao Origin Jinan HS Code 8465990000 Production Capacity 10000

Product Description

Mchine


Wood CNC Router technical parameters

Model	GD-1325
Working Area	1300*2500*200 mm
Spindle	3.2 kw,/4.5kw 24000 rpm, Air cooling(Optional)
Table	Vacuum Suction

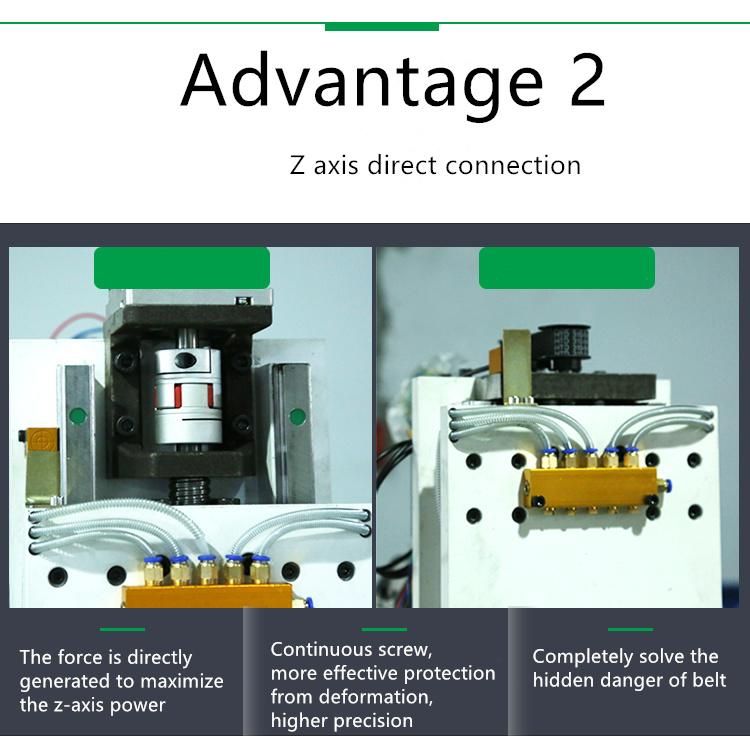

Transmission	Rack and pinion for x.y, ball screw for z
Guideway	HIWIN square linear guideway
Resolution	0.01 mm
Traveling speed	35m/min
Working Speed	30 m/min
Driver	China stepping motors and leadshin driver
Code	G Code, HPGL Code
Power Supply	AC380V/50Hz
Control System	NC Studio / DSP(optional)
Software	JD/TYPE3/Artcam/Castmate/UG/CAD/CAM,etc
Software Environment	Windows98/2000/XP
Relative humidity	30%-75%
Running Environment Temperature	0-45ºC
Packing	Wooden Box
Weight	Net weight:800 kg        Gross Weight:1000 kg
Packing size	3.2*2*1.7m

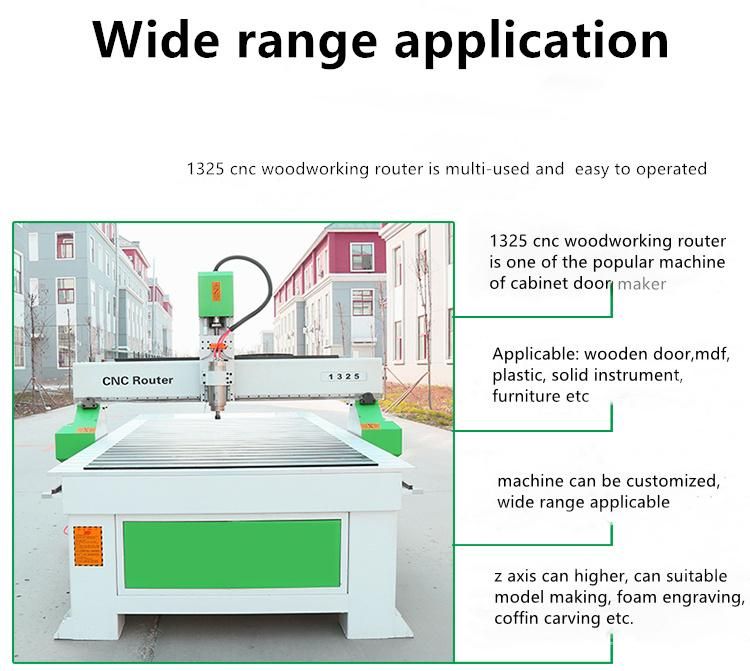

Applicable Materials	wood, PVC, acrylic, MDF, Plexiglass, and aluminum, copper,  aluminum composite panel, etc.
Stand accsssories	5.5Kw air pump, USB line,  Tool box(Spanner,brush, etc). cutting tools.  Dust collector.  Manual

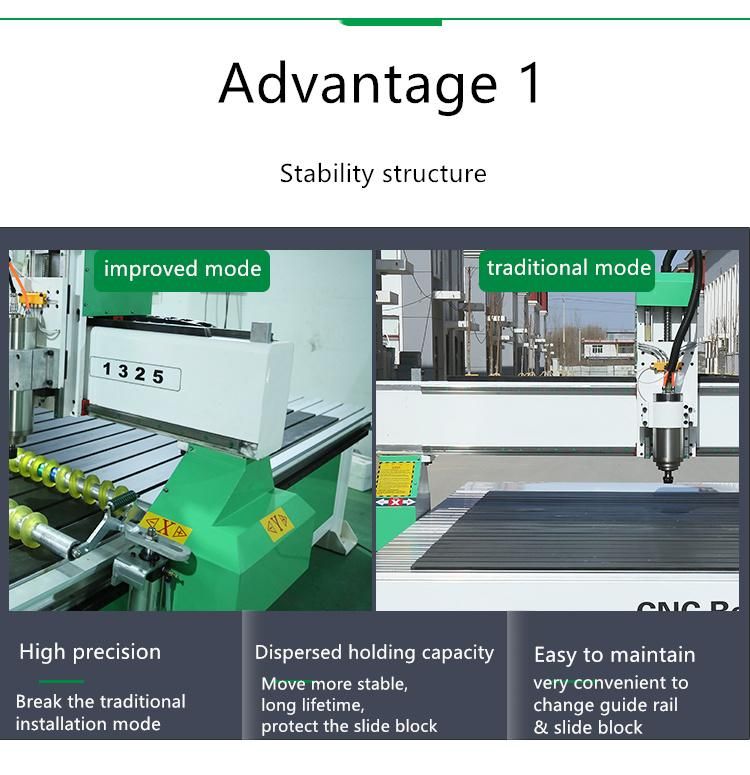

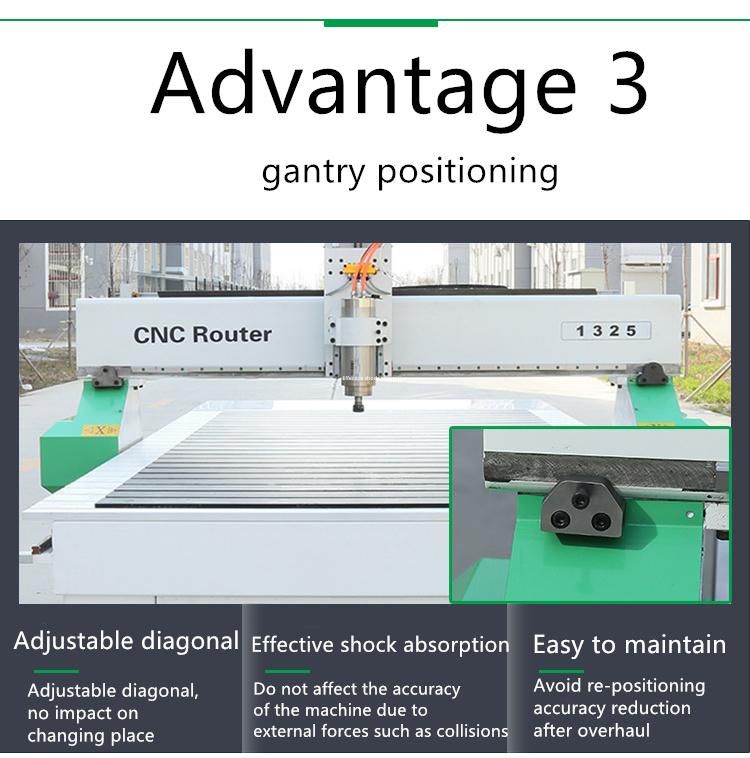

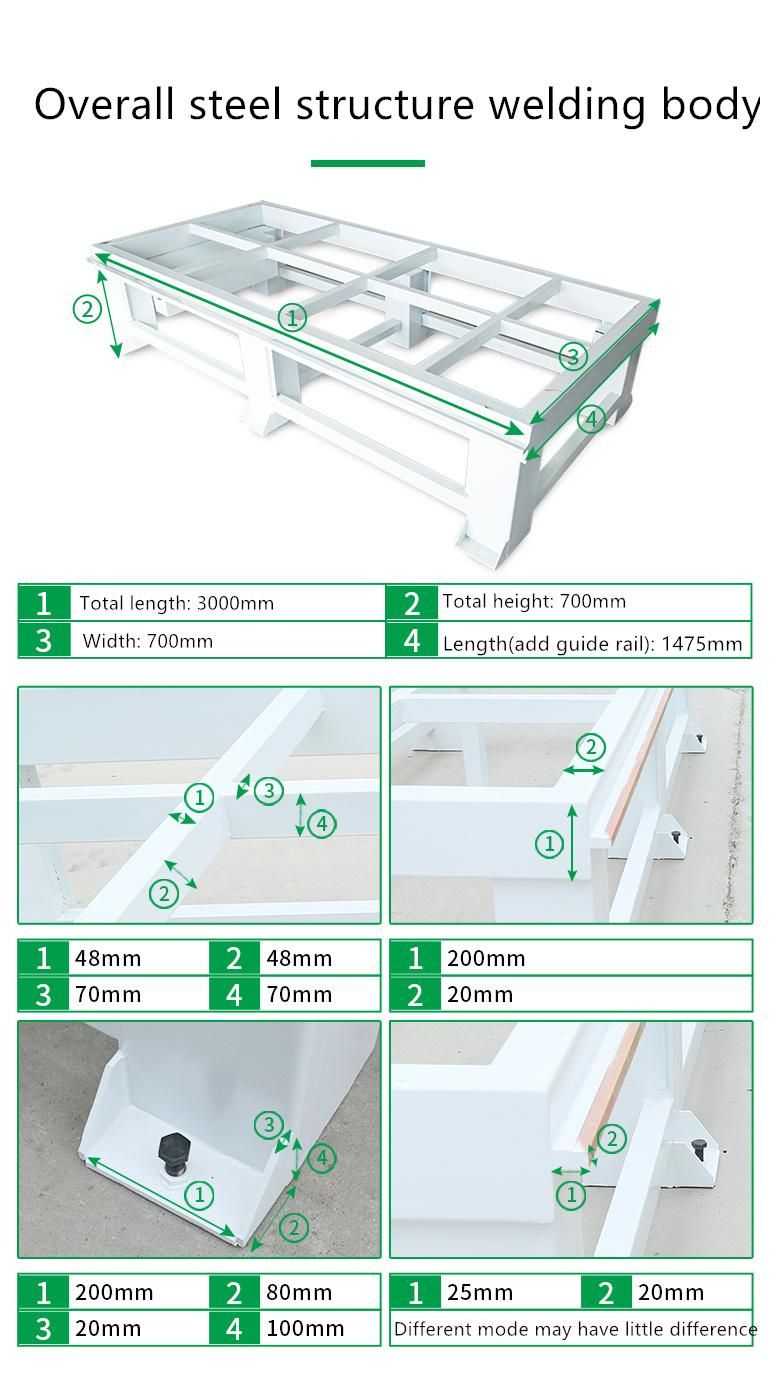

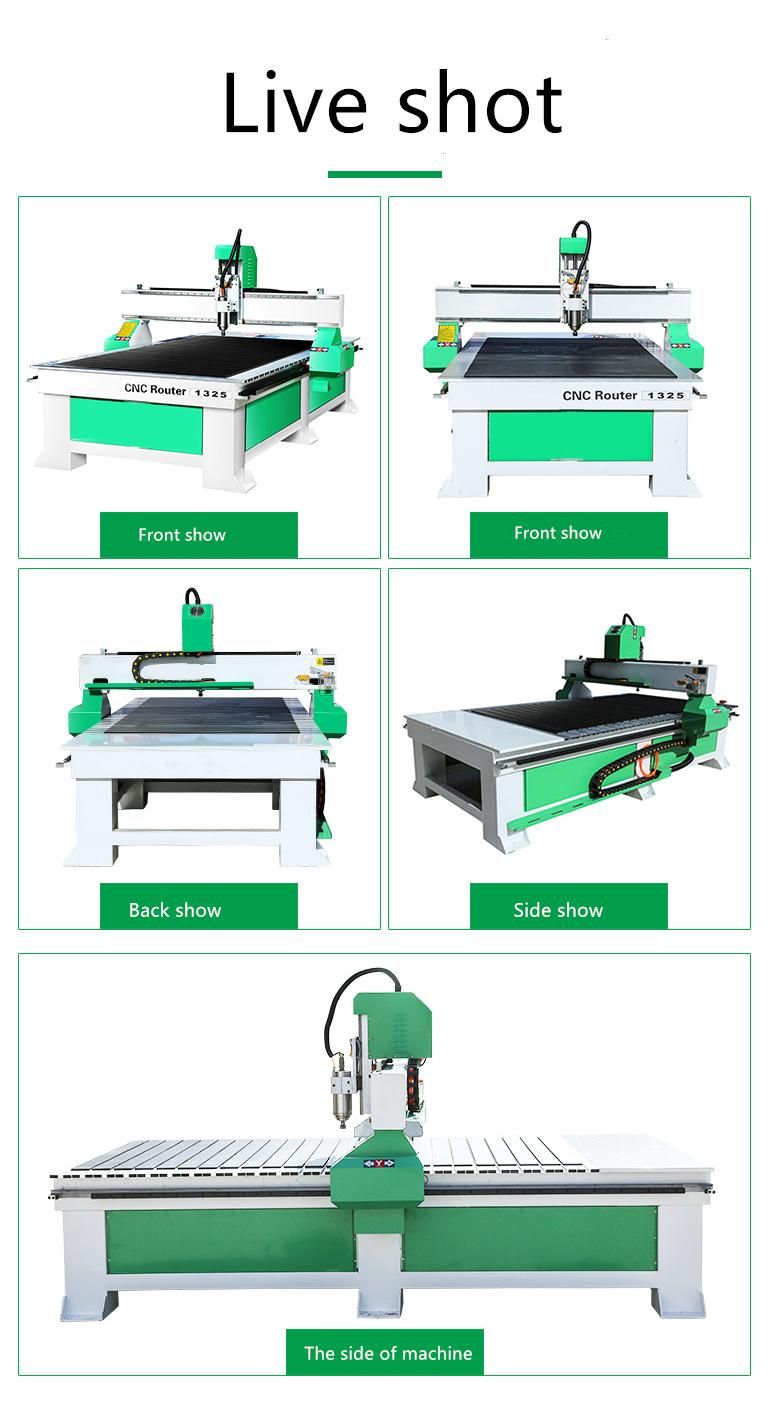

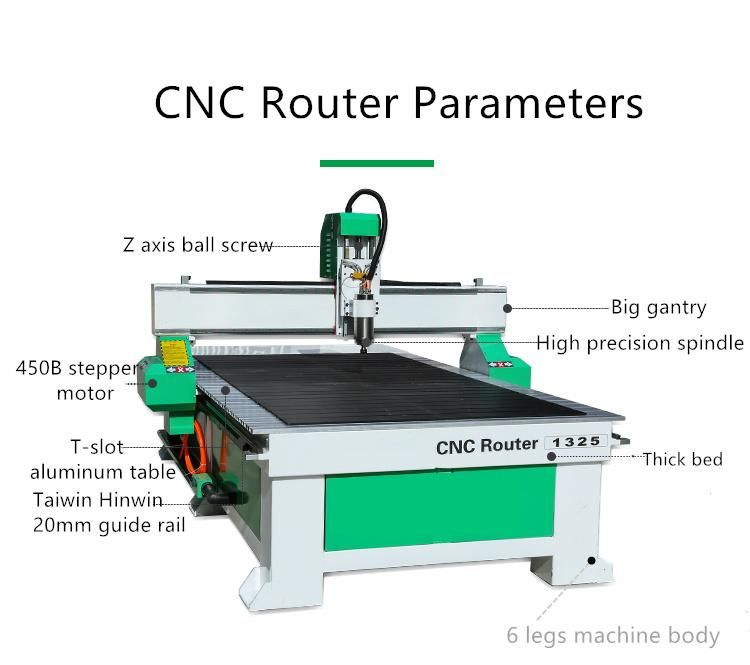

CNC Router Machine details



Our Services

1. Delivery and Lead time
Machine will be proper packed and loaded in container, as multiple loaded to save space or wooden carton sealed for better transportation.
Machine will be tidy and clean , with anti rusty oil brushed on mechanical parts to prevent rusty on sea transportation.
A series pictures and videos will provided as machine finished for help customer understand the performance of the machine.
2.Warranty:
Machine warranty is 12 months.  Machine as normal using and maintenance condition, if get any problem, will provide spare parts for free.  Out of warranty, will collect the accessories cost. Technical support for maintenance or fix on time and all the time.
3. Technical support:
Manual and video illustration of the machine will be provided
24 hours online by Ali Trademanager, Skype, Email, QQ, or telephone
Technical support by email, whatsapp, wechat,imo and skype available on time.4.After sale service:Normally the machine will sent on whole except the machine is over size to load container.  so the machine arrange in production immediately after get electricity (air and water some model needed).
The video for operation will provide.
Training at our workshop or on site is available.After sale-service5.We accept the ODM,OEM
  If you have other needs, please let me know
