• Model NO.：FZ-360D
• Certification：CE, ISO
• Panel Thinkness：10-60mm
• Min.length panel：120mm
• Min.width panel：80mm
• Manufacturing Principles：Glue Tank Underneath
• Customized：Customized
• After-sales Service：2 Year Warranty
• Name：Edge Banding Machine
• Weight：2300 Kg
• The Power：10.48 Kw
• Working Air Pressure：0.8 MPa
• The Function：Seal PVC,Veneer on The Edge of Furniture
• Transport Package：Plywood Package
• Specification：4600*1100*1600 mm
• Trademark：SOSN
• Origin：China
• Production Capacity：200 Sets ,Month

Basic Info.

Model NO. FZ-360D Certification CE, ISO Panel Thinkness 10-60mm Min.length panel 120mm Min.width panel 80mm Manufacturing Principles Glue Tank Underneath Customized Customized After-sales Service 2 Year Warranty Name Edge Banding Machine Weight 2300 Kg The Power 10.48 Kw Working Air Pressure 0.8 MPa The Function Seal PVC/Veneer on The Edge of Furniture Transport Package Plywood Package Specification 4600*1100*1600 mm Trademark SOSN Origin China Production Capacity 200 Sets /Month

Product Description

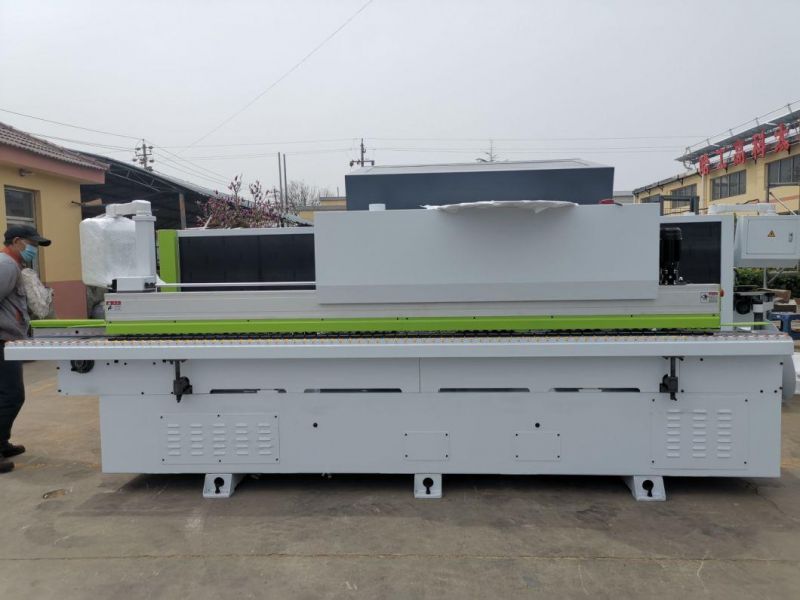

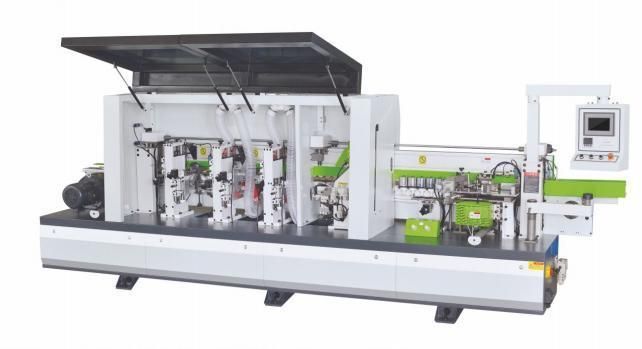

Woodworking Machinery Automatic pvc Edge Banding Machine FZ-360D


Main function:

Adopt to the linear sealing of PVC, wood plank and veneer etc.

1. using imported quality engines and electric components
2. Serialized products, a wide range of selection by customers
3. High precision and efficiency

Main technical parameter:

Motor power	10.48 kw
Overall size	4600x1100x1600mm
Feed speed	12-20m/min
Panel thickness	10-60mm
Edge banding tape thickness	0.4-3mm
Panel width	≥ 80mm
Working air pressure	0.8Mpa
Weight	2300kg



Features of edge banding machine

a,Edge Banding Material:PVC, Melamine,ABS,Veneer,Solid Wood Strip,etc

b,Workpiece:Plywood, Fire board, MDF board,Solid Wood,Particle board,etc.

c,imported quanlity engines and electric components.

d.serialized products,a wide range of selection for customers.

e.high precision&efficiency.

Introductions

1. This machine is mainly used for the Linear sealing side of the plywood, fibreboard, Particle board, and so on.
2. Its structure is compact and have a reasonable disposition. It works steadily and operates safely.3. It is adjustable; The machine adopts the devices of sound insulation, controlling of dust, preventing the overloading, Auxiliary frame electrical adjusted; It has the function of glue spreading, Trimming before and after, Rough up and down the sides.

4.Blow up and down the side, Surface polishing up and down and so on.

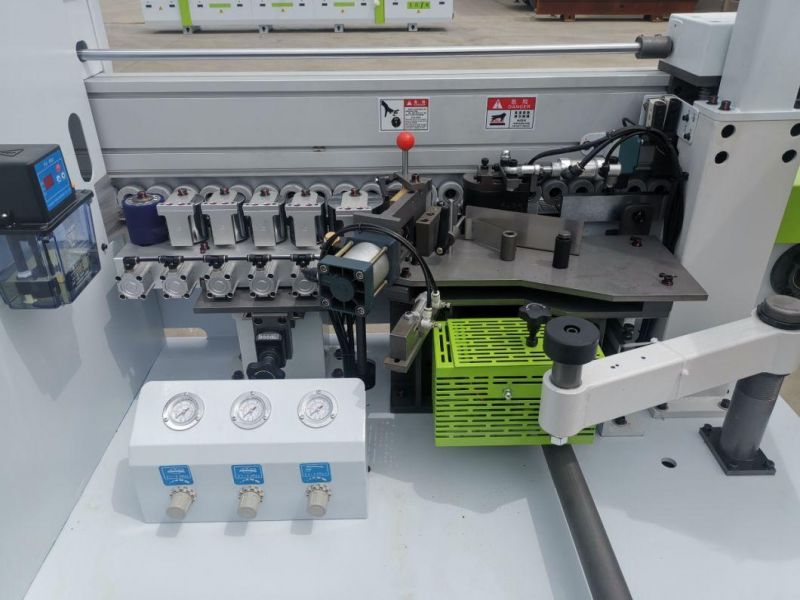

Gluing function:
Pre heating function:

End cutting, rough trimming & fine trimming:


Have any need, pls feel free to contact us
We will supply you 24-hour service
