• Model NO.：1325
• Customized：Customized
• Condition：New
• Color：Customized
• Working Area：2500*1500*200mm
• Spindle：Water Cooling Spindle(Optional Air Cooling)
• Spindle Speed：0-24000rpm
• Table：Aluminum T-Slot Table
• Transmission：Helical Rack
• Motors：Stepper Motor or Servo Motor
• Control System：Ncstudio Control System
• Inverter：Sunfar Inverter
• Delivery Time：15 Working Days
• Warranty：1 Year
• Transport Package：Exporting Plywood Package
• Specification：CE
• Trademark：ZHONGKE
• Origin：China
• HS Code：8465990000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. 1325 Customized Customized Condition New Color Customized Working Area 2500*1500*200mm Spindle Water Cooling Spindle(Optional Air Cooling) Spindle Speed 0-24000rpm Table Aluminum T-Slot Table Transmission Helical Rack Motors Stepper Motor or Servo Motor Control System Ncstudio Control System Inverter Sunfar Inverter Delivery Time 15 Working Days Warranty 1 Year Transport Package Exporting Plywood Package Specification CE Trademark ZHONGKE Origin China HS Code 8465990000 Production Capacity 100 Sets/Month

Product Description

Machine features:

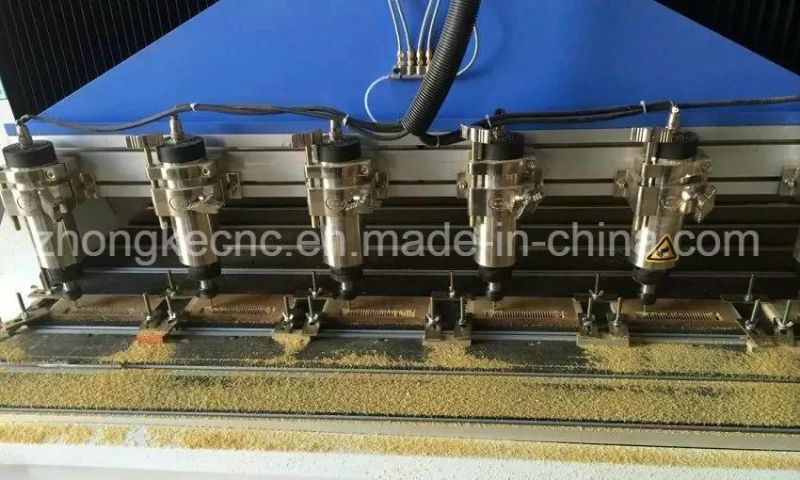

1.multi Spindle machine can work simultaneously, high efficiency
2. Advanced numerical control system and intelligent antitransgress protection system : this function could prevent machine crashes when the design area is beyond the process area , which could increase the efficiency, prolong the cutter life and increase the rate of finished products
3. The CNC router adopts the mode of saving the intermittence. Memory to ensure the processing point when the blade broken or point-broken. Specific saving mode of different points.
4. Gantry mode movement is more durable and will not distortion after long time use and the position precision is much better
5. High strength steel tube jointing machine body
6. Large compatibility: It can be compatible of Type3, Artcam, Ucancam, castmate, proe, coredraw software. This type machine equipped with international apical fitting.
7. Ncstudio control card system ( optional DSP control system)



Applicable industries and materials:

       Applies to large area of flat panel carving, wood carving furniture, insulation materials,solid wood door processing , three-dimensional surface instruments, plexiglass, wood and electric paint-free door processing, aluminum board, PVC board, etc. carving materials, cutting and other manufacturing process. Suitable wood industry, the advertising industry, cutting hard materials, sculpture and other materials.


Technical parameter:

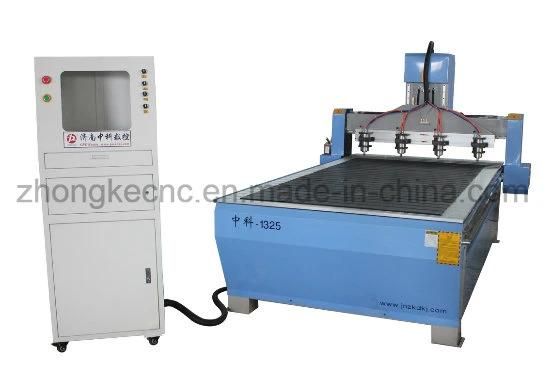

Model	ZK 1325
Machine body	Weld steel
X,Y-axis working area	(300×4)×2500mm
Z-axis working area	160mm
Max. Feeding height	200mm
X-Y-Z transmission	X,Y gear rack Z ball screw
Guide Rail	Taiwan HIWIN square guide rails
Max speed	15m-20m/min
Mas working speed	8m-10m/min
Reposition accuracy	0.005mm
Working accuracy	0.01mm
Spindle power	800w
Spindle quantity	2-12 optional
Spindle rotating speed	0-24000rpm/min
Cooling way	Water cooling
Control system	Ncstudio
Working voltage	220V/50Hz (optional 380V/3 phase)
Command	G code,HPGL, U00,mmg,plt
Surrounding for software	Windows 98/2000
Working table	Aluminum table
Driver motor	Stepper
Software	Type3,Artcam.Ucancam
Tools	φ3.175-φ6
Package	plywood box

 If you are interested in our machine, welcome to contact with us
This machine, the spindles number can be customized, from 1-12, all can be customized by your requirement
