Camel CNC 2022 Two Spindles Four Blades 1516 CNC Wood Lathes
Jinan Camel CNC Machinery Co., Ltd.- Type：Horizontal Lathe
- Voltage：220V
Base Info
- Model NO.：CA-1512,1516,1530
- Tool Holder：3 Axis 6 Blades
- Automatic Grade：Automatic
- Precision：High Precision
- Controlling Mode：CNC
- Power Source：Mechanical Drive
- Processing Accessory：Centre CNC Lathe
- Certification：CE, ISO, FDA
- After-sales Service：Support
- Max Process Length：1500mm(Can Custom 2000,2500,3000mm)
- Max Turning Diameter：160mm
- Air Pressure：0.6-0.8MPa
- Power Supply：AC 380V 3 Phase 50Hz,60Hz
- Min Setting Unit：0.01cm
- Transmission Type：Ball Screw for Y Axis
- Guider：Taiwan Hiwin Orbit
- Main Shaft Rotating Speed：0-3000r,Min
- Motor Power：4kw
- Cutter Material：Hard Alloy Blade
- Control System：LCD Control System
- Hand Controller Recognise File：*.Dxf
- Drawing Software：Autocad
- Command Language：G Code
- Working Size：Max 160mm Diameter, Max 1500mm Length
- Transport Package：Plywood Case
- Specification：max 160mm diameter, max 1500mm length
- Trademark：CAMEL CNC
- Origin：China
- HS Code：84659200
- Production Capacity：500 Sets,Month
- Package size per unit product：3100.00cm * 1280.00cm * 1680.00cm
- Gross weight per unit product：1650.000kg
Description
Overview
Product Description
Product Parameters Application

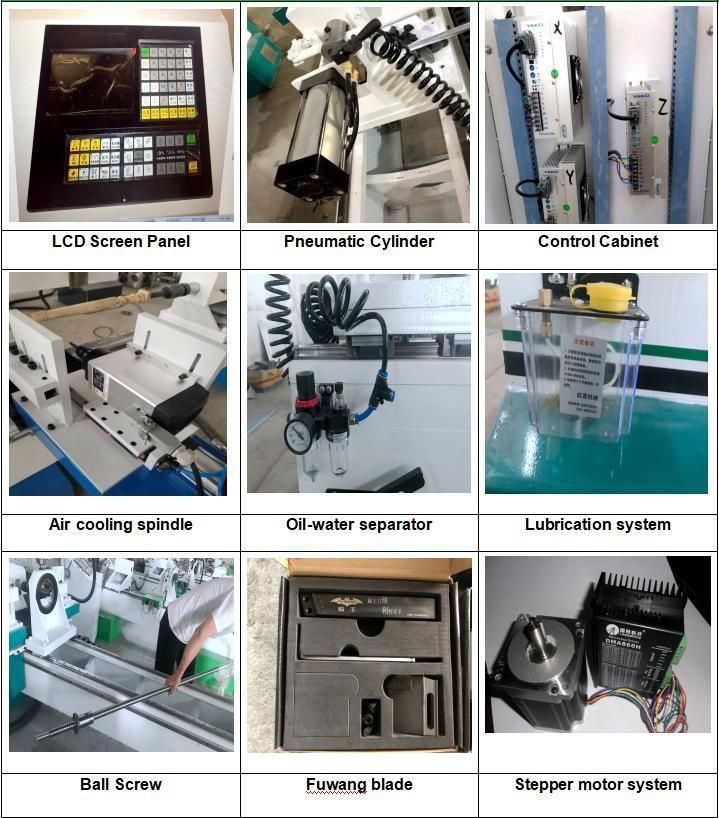

Product acessories
Product Parameters Packaging & Shipping
