• Model NO.：QMB633H-D
• Motor Power：84kW
• Cutter Shaft：6
• Spindle Speed：6000 r,min
• Process Type：Heavy Processing
• Certification：CE, ISO
• After-sales Service：3 years
• Weight：9600kg
• Total motor power：84kw
• Feeding speed：8-36 meters
• Max. sawing thickness：330mm
• Min. sawing length：700mm (intermittent) 300mm(continuous)
• Dia. of spindle：50mm
• Transport Package：Plywood Carton or Bulk Packing
• Specification：6000*2280*2090 (MM)
• Trademark：Qingcheng
• Origin：China
• HS Code：8465910000
• Production Capacity：20000,Sets

Basic Info.

Model NO. QMB633H-D Motor Power 84kW Cutter Shaft 6 Spindle Speed 6000 r/min Process Type Heavy Processing Certification CE, ISO After-sales Service 3 years Weight 9600kg Total motor power 84kw Feeding speed 8-36 meters Max. sawing thickness 330mm Min. sawing length 700mm (intermittent) 300mm(continuous) Dia. of spindle 50mm Transport Package Plywood Carton or Bulk Packing Specification 6000*2280*2090 (MM) Trademark Qingcheng Origin China HS Code 8465910000 Production Capacity 20000/Sets

Product Description

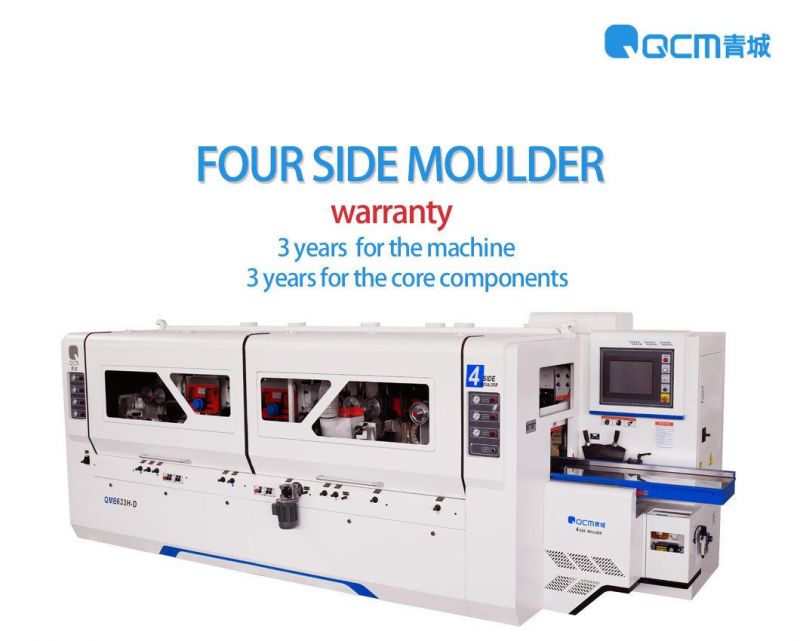

QMB633H-D Woodworking Machinery Wood Planer Four-side Moulder




1. Technical parameters


Specifications	Unit	QMB633H-D
Working width	mm	50-330
Working thickness	mm	20-250
Min.working length(intermittent/continuous)	mm	700/300
Dia of spindle	mm	Φ50
Dia of feeding roller	mm	Φ180
Feeding speed	m/min	8-36
Rotation speed of spindle	r/min	6000
Cutter dia of first bottom cutter	mm	Φ140
Left/Right vertical cutter	mm	Φ140-Φ230
The first upper cutter	mm	Φ140-Φ230
The Second upper cutter	mm	Φ140-Φ230
Back bottom cutter	mm	Φ140-Φ230
Universal spindle	mm	/
Total power	kW/HP	84/112
The first bottom cutter	kW/HP	11/15
Left vertical cutter	kW/HP	11/15
Right vertical cutter	kW/HP	11/15
The First upper cutter	kW/HP	15/20
The second upper cutter	kW/HP	11/15
The second bottom cutter	kW/HP	11/15
Universal spindle	kW/HP	/
Feeding motor	kW/HP	11/15
Beam lifting motor	kW/HP	1.5/2
upper cutter lifting motor	kW/HP	0.75/1
Radial adjustment of the vertical spindle	kW/HP	0.37/0.5
Rear pressing plate elevation	kW/HP	0.37/0.5
Side feeding motor	kW/HP	/
Belt conveyor	kW/HP	/
Disc conveyor	kW/HP	/
Suction hood dia	mm	6*Φ180
Air supply pressure	Mpa	0.6
Overall dimensions	mm	6000x2280x2090
Weight	kg	9600

2. About Qingcheng Woodworking Machinery:

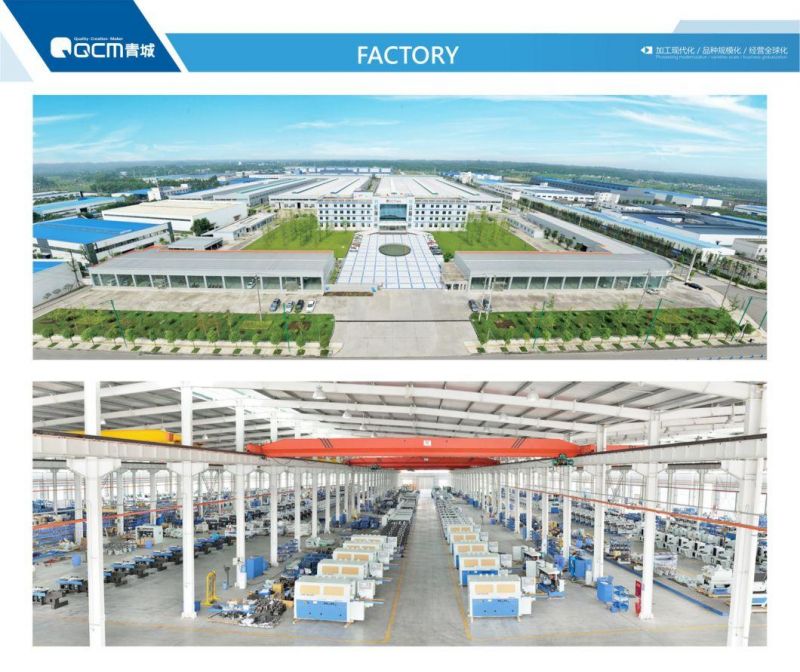

Qingcheng Woodwokring Machinery Co., Ltd is a professional manufacturer of woodworking machinery since 1970. With more than 40 years experience, we have developed to the top and most powerful manufacturer of woodworking machinery in China.

We mainly engaged in six series of woodworking machinery:
Four Side Moulder, Double Side Planer, Automatic Muti-blade Rip Saw, Automatic Single-side Rip Saw and Double-end Tenoner , and Sanding Machine

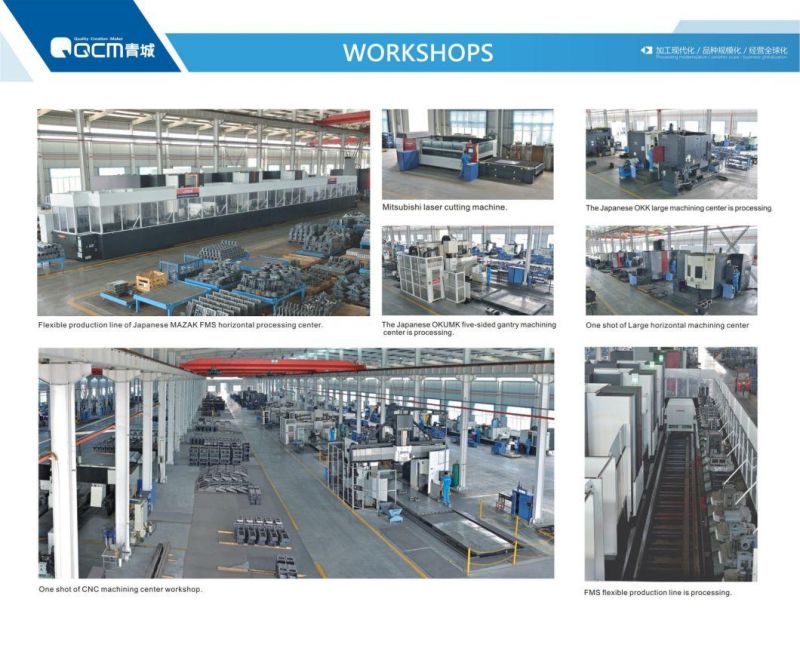

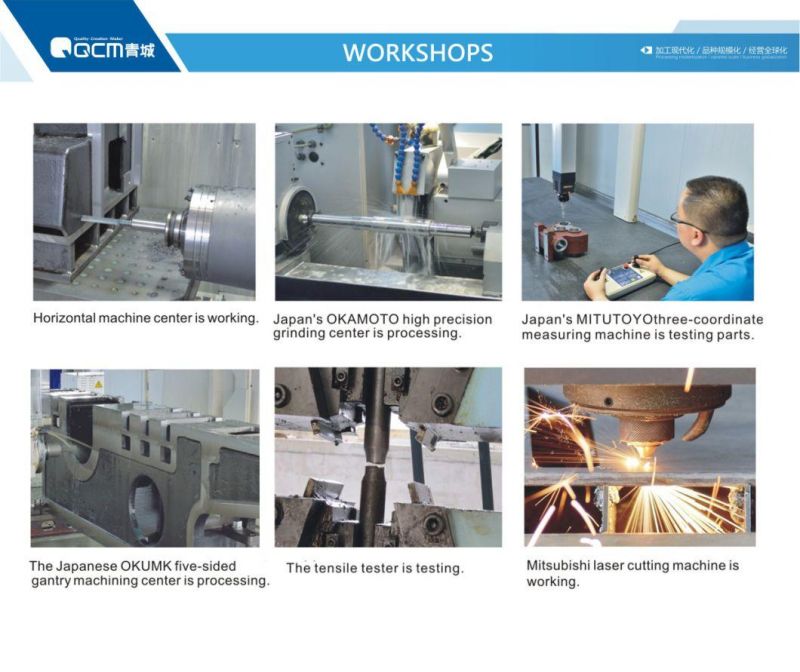

To make machinery with high precision and stability, we have introduced the world's advanced modern processing and testing equipment, including OKUMA five-surface gantry machining-center, FMS flexible machining production line, MAKINO horizontal machining center, MORI SEIKI(nine-axis linkage) lathe-mill cutting center, LGMazak vertical machining center, Mitsubishi laser cutting machine, OKK large machining center, Okamoto CNC grinding center, and Mitutoyo three coordinate measuring machine.










3. Our Products:

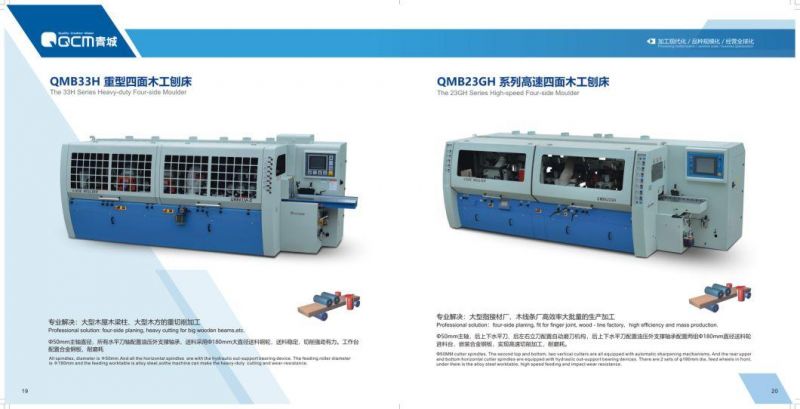

A: Four Side Moulder

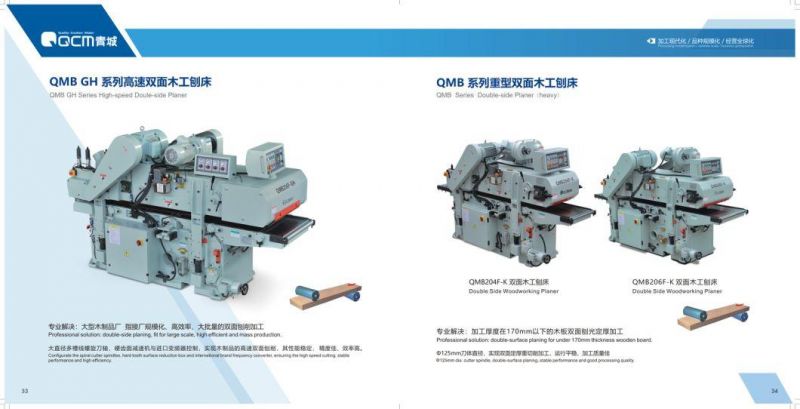

B: Double Side Planer

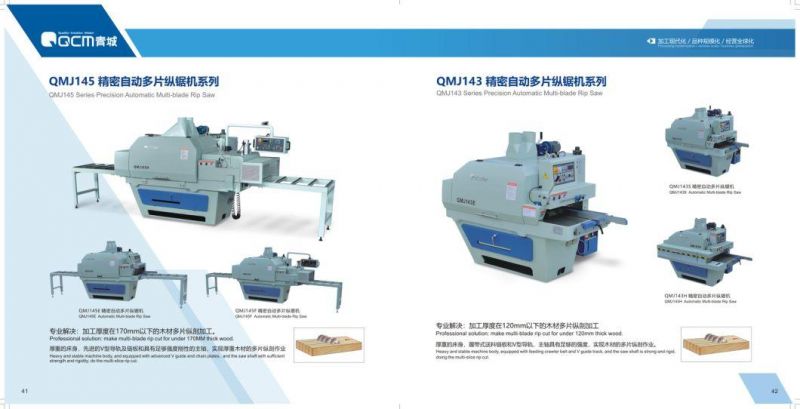

C: Rip Saw

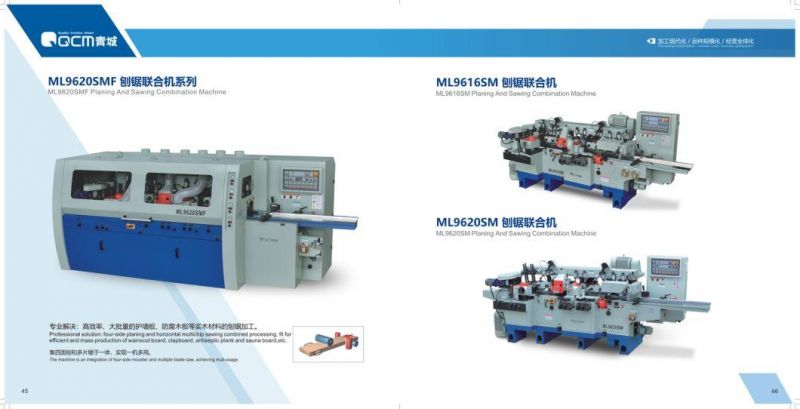

D: Planing and Sawing Combination Machine

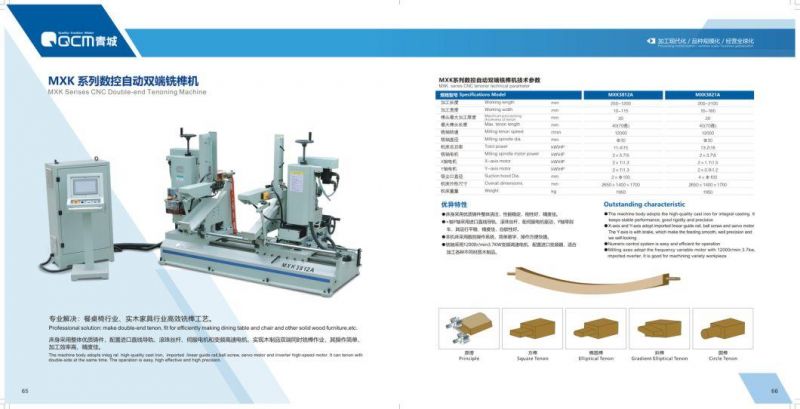

E:Double-end Tenoining Machine

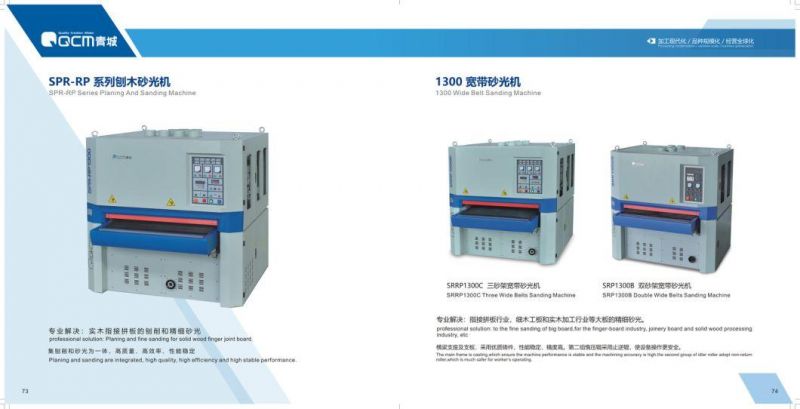

F: Sanding Machine
