• Model NO.：BB1335
• Cutter Shaft：1
• Spindle Speed：Max 80PCS
• Process Type：Vertical Veneer Slicer
• Certification：CE, ISO
• Max Allowed Wood Size：3300X600X600mm
• Size of The Planer Tool：3500X200X19mm
• Slicing Thickness：0.2-3mm
• Slicing Speed：Max.80PCS,Min
• Wood Clamping Method：Hydraulic Control
• Power Source：55.5kw
• Main Motor：45kw
• Motor of Oil Pump：3.7kw
• Size of Body：6800X5000X3700mm
• Net Weight：23t
• Transport Package：Plastic Film
• Specification：380V
• Trademark：HZH
• Origin：Qingdao China
• Production Capacity：1,Month

Basic Info.

Model NO. BB1335 Cutter Shaft 1 Spindle Speed Max 80PCS Process Type Vertical Veneer Slicer Certification CE, ISO Max Allowed Wood Size 3300X600X600mm Size of The Planer Tool 3500X200X19mm Slicing Thickness 0.2-3mm Slicing Speed Max.80PCS/Min Wood Clamping Method Hydraulic Control Power Source 55.5kw Main Motor 45kw Motor of Oil Pump 3.7kw Size of Body 6800X5000X3700mm Net Weight 23t Transport Package Plastic Film Specification 380V Trademark HZH Origin Qingdao China Production Capacity 1/Month

Product Description

We supply high quality BB1335 Woodworking vertical veneer slicer machine

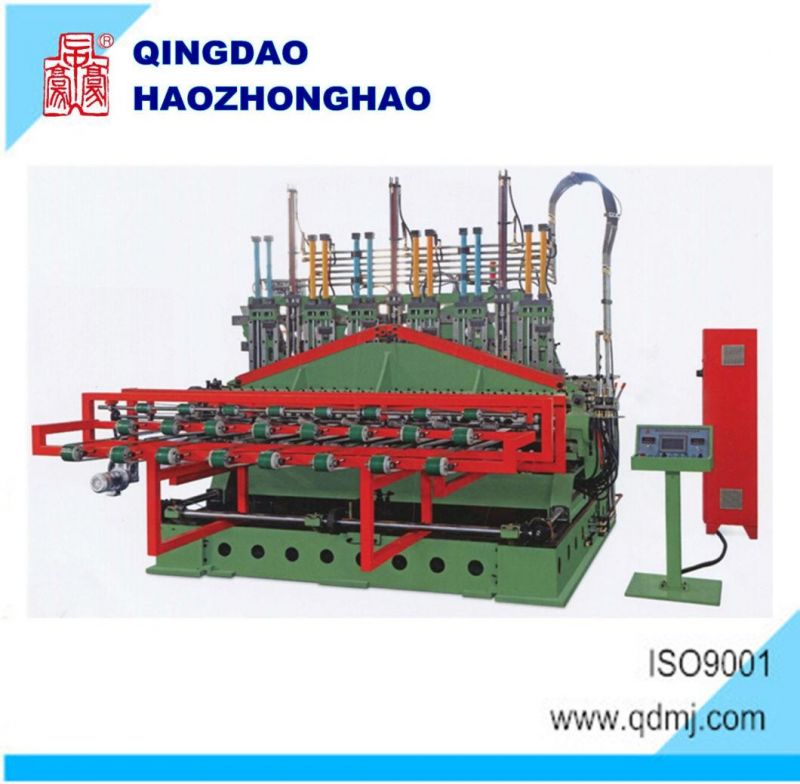

1.Product show


2.Product Description

Model	BB1335
max allowed wood size	3300x600x600mm
size of the planer tool	3500x200x19mm
slicing thickness	0.2-3mm
slicing speed	max.80pcs/min
wood clamping method	hydraulic control
Total power	55.5Kw
main motor	45kw(DC)
Hydraulic motor	3.7kw
knife-holder feeding motor	5.5Kw*2
circulating heat water motor	0.75kw
veneer transport motor	0.55kw
size of body(LxWxH)	6800x5000x3700mm
net weight	23T

3. Function and Characteristics

It is mainly for slicing solid wood, engineer wood and other composite board, working efficiency is high, and veneer thickness is uniform. It is widely adopt in decorative veneer of plywood, furniture, flooring, construction industry and so on.

Characteristic
1Main motor adopts frequency motor, with famous brand inverter. Energy can be feed back by the special design, and cutting speed improved to be 80pcs/min
2 To guarantee precise veneer thickness, we use ball screw with servo motor. To avoid veneer scratch we used auto blade back system
3 Use hydraulic system, log clamping become more convenient for operator and improves efficiency
4 Control cabinet is combined with electric and hydraulic system, make it easy for single operator
5 Automatic hydraulic blade holding system, and log holder auto turn back system are fitted there, grinding and replacing the blade become so easy and quickly
6 Heating system in blade holder and press bar, avoids stain in the veneer to improve veneer quality
7 Pneumatic brake systems can stop the machine at any required position, and restart promptly. It is convenient for the operator to adjust the log, and safety also guaranteed
8 Self lubricating center can automatically apply lubricant regularly to every moving mechanism; guarantee movement normally smoothly and precisely.
9 Error: ±5%

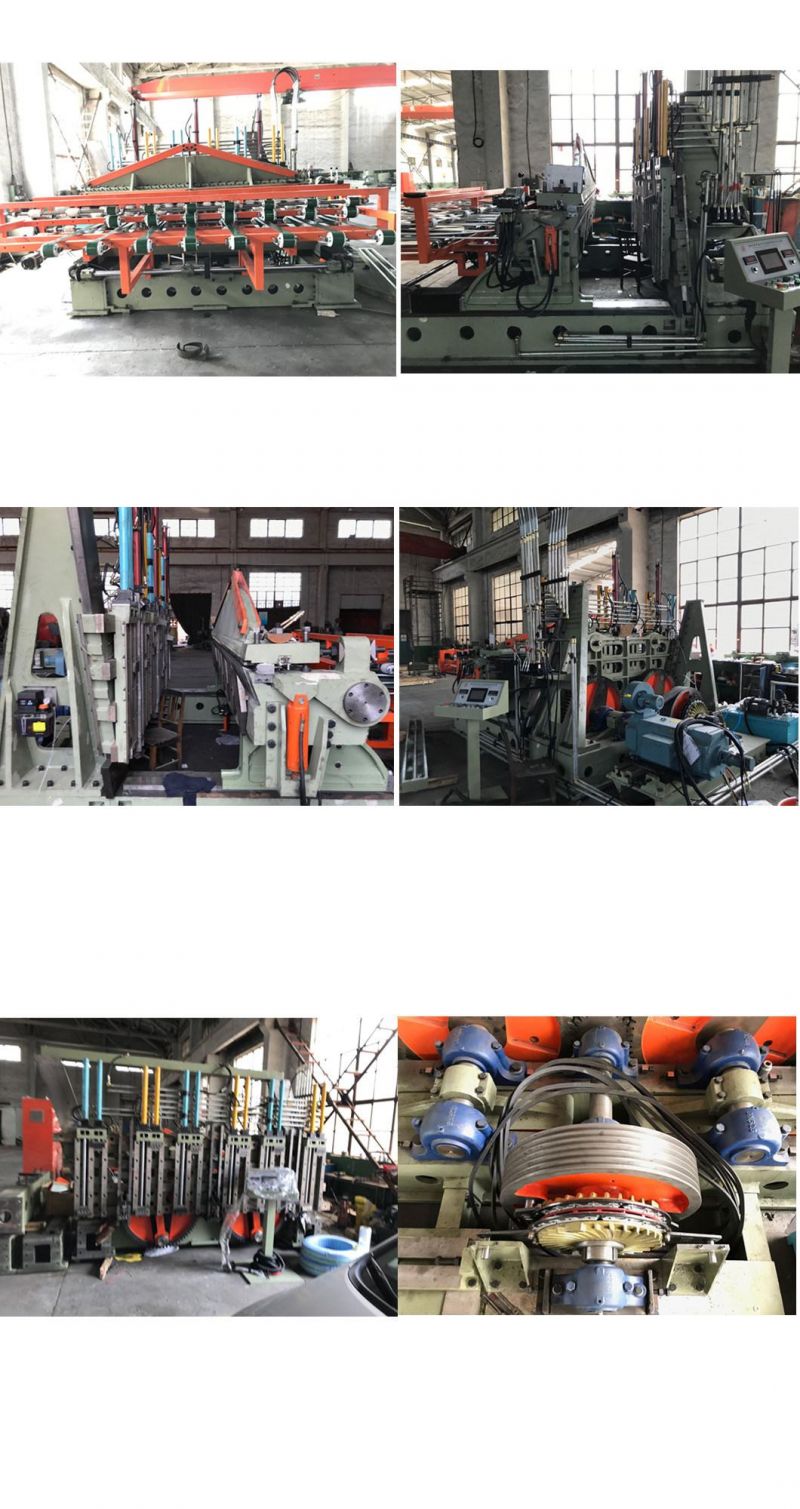

4.Machine details

5.Company Information

Qingdao Haozhonghao Woodworking Machinery Co., Ltd. previously was Qingdao Woodworking Machinery Manufacturing Company, and was established in 1958.

With more than 50 year experience in making woodworking machines, our main products are Sanding Machine, Panel Saw, Guillotine, Veneer Slicer and Grinder. We firstly put BB1342 vertical slicer into the market in China. We developed BB1135B Horizontal Veneer slicer by integrating the internal and international technologies, the max slicing width reaches 1300mm. We are the first company which was certified by ISO9001 in the industry, and also a hi-tech enterprise in Qingdao.

We have more than ten years experiences in exporting high quality woodworking machinery, especially Sanding Machine, Veneer Slicer and Grinder.

Our website is sandingmachine.en.made-in-china.com; you could get more information about our company and our products.
