• Model NO.：QMJ145F
• Precision：Precision
• Certification：CE, ISO
• Customized：Customized
• Condition：New
• Color：Iron Grey
• After-sales Service：3 years
• machine type：wood saw
• multi-blade or single chip：multi rip wood saw
• max. working width of wood saw：350 mm
• working thickness of wood saw：10-170 mm
• min. working length of wood saw：740 mm
• saw spindle speed of wood saw：2600 r,min
• feeding speed of wood saw：3-24 m,min
• wood saw weight：3600 kg
• Transport Package：Wooden Carton for Wood Saw or Bulk Packing
• Specification：4800*1780*1880 (MM)
• Trademark：Qingcheng
• Origin：China
• HS Code：8465910000
• Production Capacity：20000,Sets

Basic Info.

Model NO. QMJ145F Precision Precision Certification CE, ISO Customized Customized Condition New Color Iron Grey After-sales Service 3 years machine type wood saw multi-blade or single chip multi rip wood saw max. working width of wood saw 350 mm working thickness of wood saw 10-170 mm min. working length of wood saw 740 mm saw spindle speed of wood saw 2600 r/min feeding speed of wood saw 3-24 m/min wood saw weight 3600 kg Transport Package Wooden Carton for Wood Saw or Bulk Packing Specification 4800*1780*1880 (MM) Trademark Qingcheng Origin China HS Code 8465910000 Production Capacity 20000/Sets

Product Description

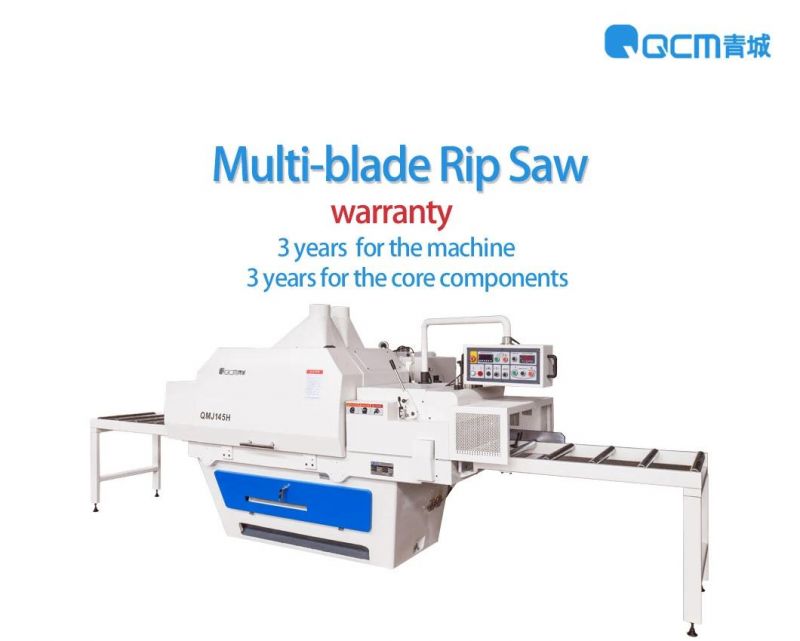

QMJ145F Woodworking Machinery Sawing Machine Multi Rip Wood Saw

Professional solution: make multi-blade rip cut under 170mm thick wood.

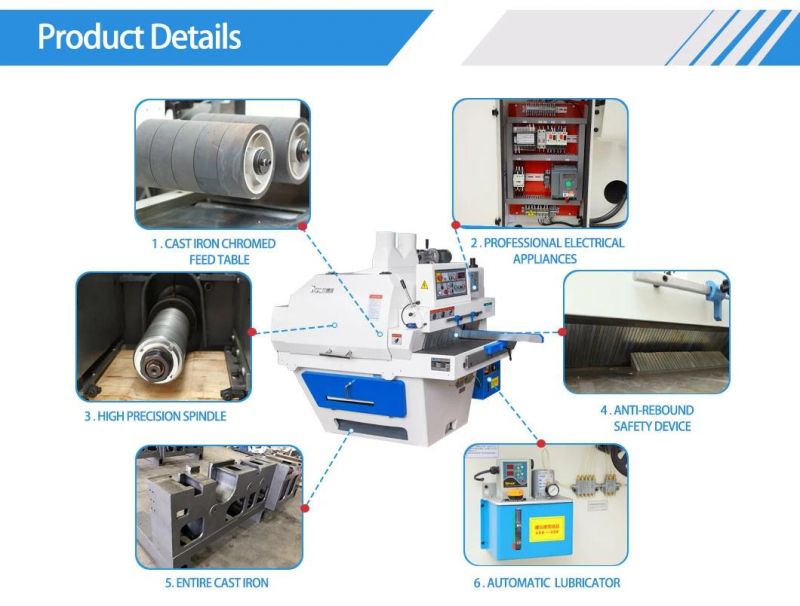

1. All the machine's body is cast in one-piece which has advantages of high precision, high stability, and good wearlessness.
2. The worktable is made of special wear-resistant materials and precision processed by hard chrome plating, with high precision and good wear resistance
3. Siemens and Schneider electrical accessories with well-organized circuit.
4. Equipped with imported frequency converter, stable performance and convenient adjustment
5. Equipped with veriable frequency  high-speed motorized spindle, ensuring stable running and High-quality processing.
6. Modular production through advanced CAD/CAE/CAM software. All accessories are produced in standard and applicable to various models,which is convenient to replace when needed.


1. Technical parameters :


Max.working width	350	mm
Working thickness	10-170	mm
Min. working length	740	mm
Min. working length (single / continuous)		mm
Saw spindle Dia.	Φ60	mm
Reducing sleeve Dia.	Φ80	mm
Saw spindle speed	2600	r/min
Blad dia.	Φ355-Φ505	mm
Feeding speed	3-24	mmin
Total power	59.7580	kWHP
Feeding motor	45.5	kWHP
Spindle motor	5574	kWHP
Lifting motor	0.751	kWHP
Beem lifting motor		kWHP
Saw spindle lifting motor		kWHP
Air supply pressure	0.3-0.6	MPa
Suction hood dia.	2*Φ150	mm
Overall dimension	4800*1780*1880	mm
Weight	3600	KG

2. About Qingcheng Woodworking Machinery:

Qingcheng Woodwokring Machinery Co., Ltd is a professional manufacturer of woodworking machinery since 1970. With more than 40 years experience, we have developed to the top and most powerful manufacturer of woodworking machinery in China.

We mainly engaged in woodworking machinery as following:
Four Side Wood Moulder, Double Side Wood Planer and Single-side Planer or Thicknesser, Automatic Multi-blade Rip Wood Saw, Automatic Single-side Rip Wood Saw, CNC Automatic Double-end Tenoner, CNC Automatic Mortiser , Sanding Machine/Sander.

To make machinery with high precision and stability, we have introduced the world's advanced modern processing and testing equipment, including OKUMA five-surface gantry machining-center, FMS flexible machining production line, MAKINO horizontal machining center, MORI SEIKI(nine-axis linkage) lathe-mill cutting center, LGMazak vertical machining center, Mitsubishi laser cutting machine, OKK large machining center, Okamoto CNC grinding center, and Mitutoyo three coordinate measuring machine.






3. Our Products:

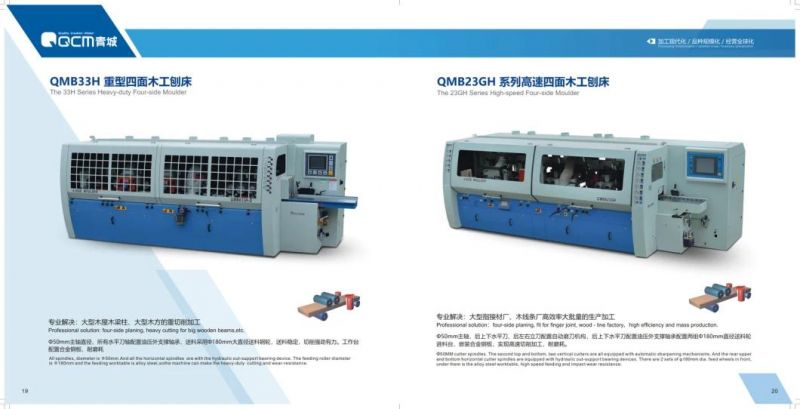

A: Four Side Moulder



B: Double Side Planer



C: Rip Saw



D: Planing and Sawing Machine




E:Double-end Tenoining Machine




F: Sanding Machine


RFQ:

1.What is your price term and payment term of Multi Rip Wood Saw ?
We offer FOB, CIF, CNF and EXW price.
TT or LC are both acceptable.
If we have available stock: 100% payment before delivery.
If no available stock: 30% deposit, balance payment paid before delivery.
Customized machines need 50% deposit.

2.Do you have stock for wood saw? How long for delivery time of Multi Rip Wood Saw ?
Regular machines always have ready stock.
If no ready stock or customized machine, it takes around 60days for production.

3. How long is the warranty of your Multi Rip Wood Saw ?
Technical warranty responsibility can be guaranteed within 12 months from the date of the machine's arrival at the Buyer's factory or erection site.
 4. How about installation Multi Rip Wood Saw ?For complex machines, we will send our engineers to install and train.
If remote support is not workable, our engineer is available to visit at your expenses of accommodation and return flight tickets.
Some area may be served by our local agent. For commercial machines, we will do our best to offer installation guiding video.
 5. Can we always buy the machine spare parts of Multi Rip Wood Saw ?For the convenience of our customers, we keep all of our machine parts standard and all the same forever. You can always buy the parts at any time.
6. How do you insure the safety during transportation of Multi Rip Wood Saw ?We have mature experience for sea transport packing, for some irregular shape machine, we will do special fix and tight on container to avoid any risk of any broken.
7. Why us? As a top manufacturer in woodworking machinery filed since 1970, how we can be your partner in success?

• Strong R&D team with 50 professional persons
• Our own casting factory ensure our high quality and stable machine body.
• More than 300 sets of advanced processing and testing equipment from Japan.
• Rich product line with more than 200 types of woodworking machinery.
