• Model NO.：SYPG1000
• Capacity：2~6t,H
• Feeder Type：Belt Machine Feeding
• Power：1.1(Belt Feeder Scale)+1.5kw
• Transport Package：Iron Pallet and Soft Guard
• Specification：ISO9001, CE, SGS
• Trademark：FDSP
• Origin：China
• HS Code：8479300000
• Production Capacity：5 Sets,Month

Basic Info.

Model NO. SYPG1000 Capacity 2~6t/H Feeder Type Belt Machine Feeding Power 1.1(Belt Feeder Scale)+1.5kw Transport Package Iron Pallet and Soft Guard Specification ISO9001, CE, SGS Trademark FDSP Origin China HS Code 8479300000 Production Capacity 5 Sets/Month

Product Description

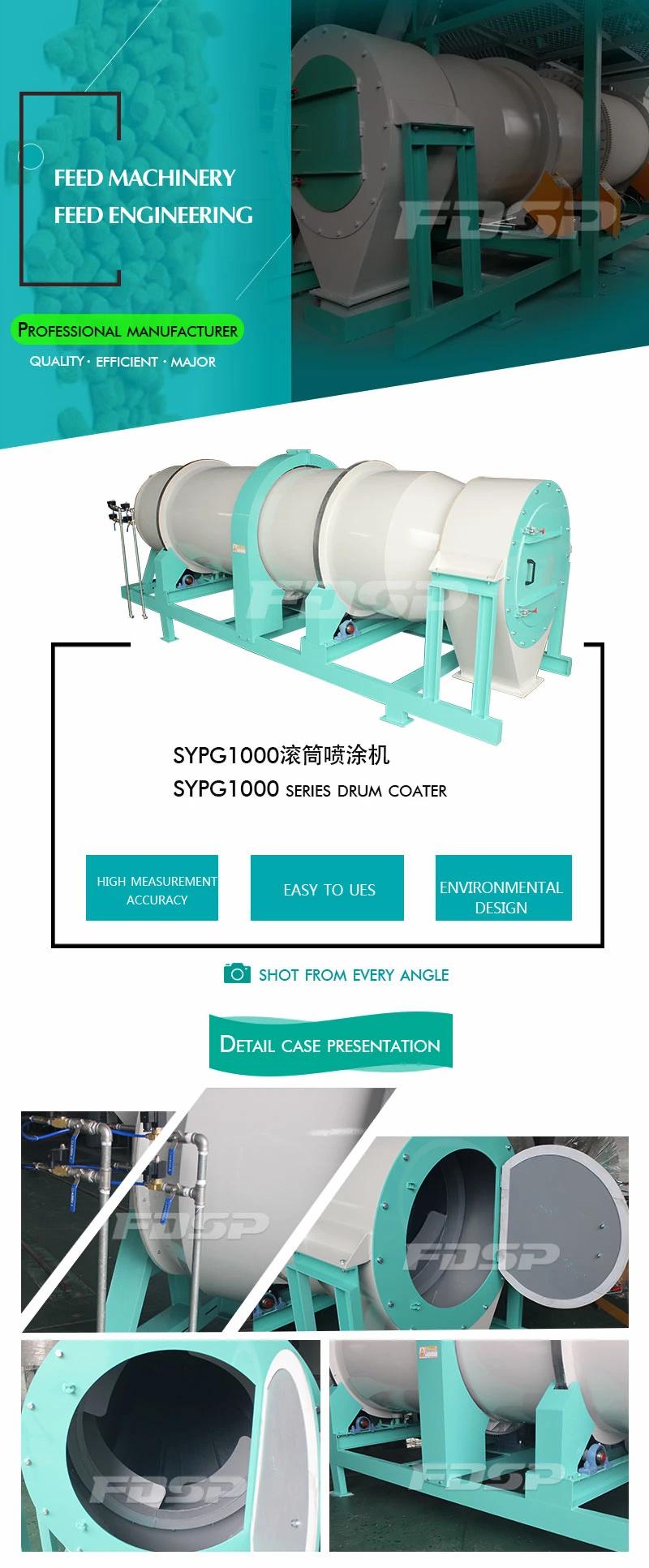

Roller Type Liquid Coater oil coating machine for floating fish feed

This machine is mainly used for oil spraying after compound feed shaped, kinds of oil and nutrient can be added.
Features
1.the addition is controlled by computer. The liquid addition is 1% to 8%.
2.gear driving makes drum does not slip
3.fully sealed design with no leakage;
4.equipped with dynamic measuring belt scale, weight measurement is significantly better than volume measurement
5.according to the amount of adding to achieve automatic combination of spraying.
6.this machine make the material keep moving by drum, the high-pressure nozzle to spray the mist liquid which can fully contact the feed surface, to ensure the even spraying.
Parameters

model	SYPG1000	SYPG1200
output(t/h)	5-6	8-12
Motor power KW	2.2	2.2
Drum diameter mm	1000	1200
Inclined angle	3°	3°
Rotation speed r/min	33	33

Equipment configuration
drum body: -6/Q235A
driving type:Gear ring direct drive
reducing motor:FDSP customize



Why choose FDSP?

Because we have passed the SGS,ISO9001:2008,CEcertifications.

Moreover,we own several patents,such as "utility model patents certificate"and "high-tech products certificate",etc.

We have a professional technical team, with two departments for developing single machine and customizing complete pellet line solution.

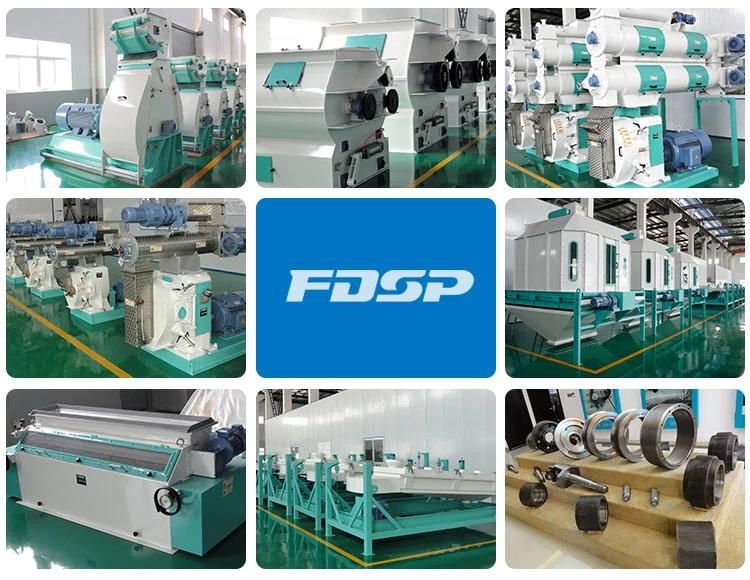

FDSP other Animal Feed Pellet Mill Machine

FDSP can not only provide professional feed mixer but whole animal feed production line contains
hammer mill, mixer, pellet mill, cooler, crumbler, screener, packing machine, auxiliary equipment like conveyors, cleaners, pulse filters
and electric control etc.

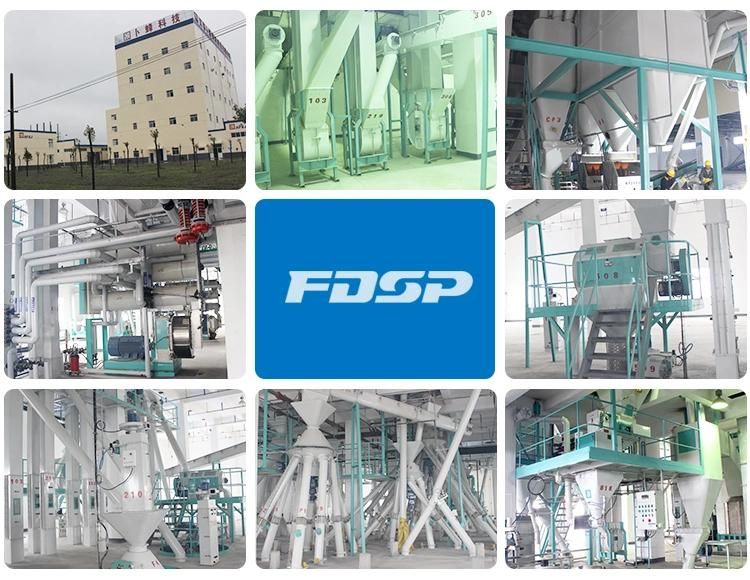

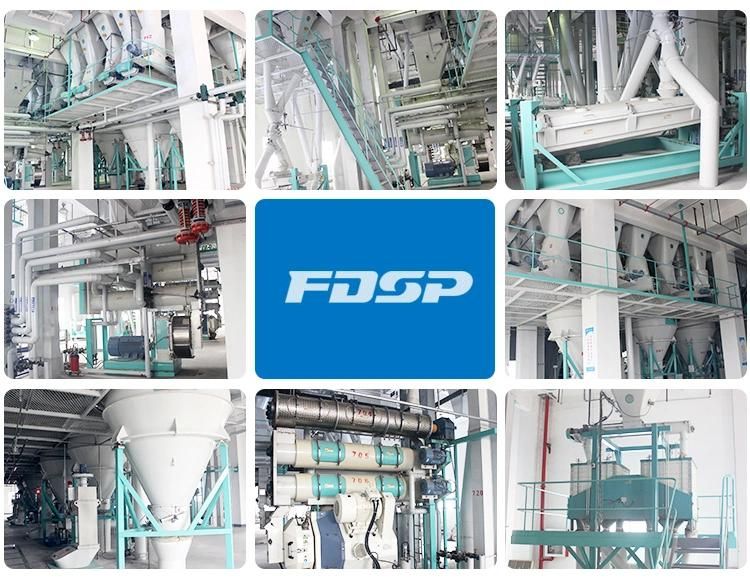

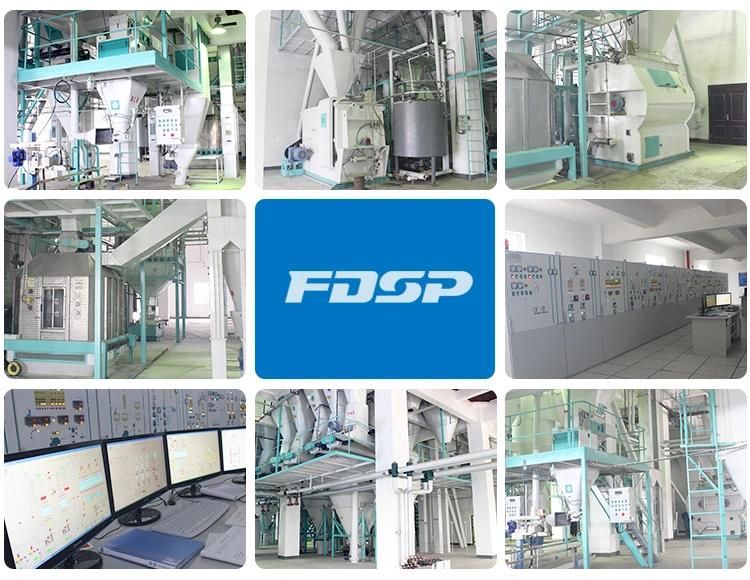

Typical Project



FDSP has sold Feed machinery and fertilizer machinery throughout China and exported to Korea, South Africa, Russia, Thailand, Taiwan, Philippines, Malaysia, Australia, Egypt, Syria, Nigeria, Ethiopia, India, Bangladesh, Pakistan,  etc. A complete set of fertilizer production line with capacity of 10tph was exported to South Korea in 2008; a complete set of pulverized coal pellet production line with capacity of 30t/h was exported to South Africa in 2009. Three complete sets of feed production lines were exported to Egypt with capacity of 10tph, 15tph and 20tph respectively from 2010 to 2012. A large model of pellet mill with capacity of 25tph was exported to Thailand in 2013.

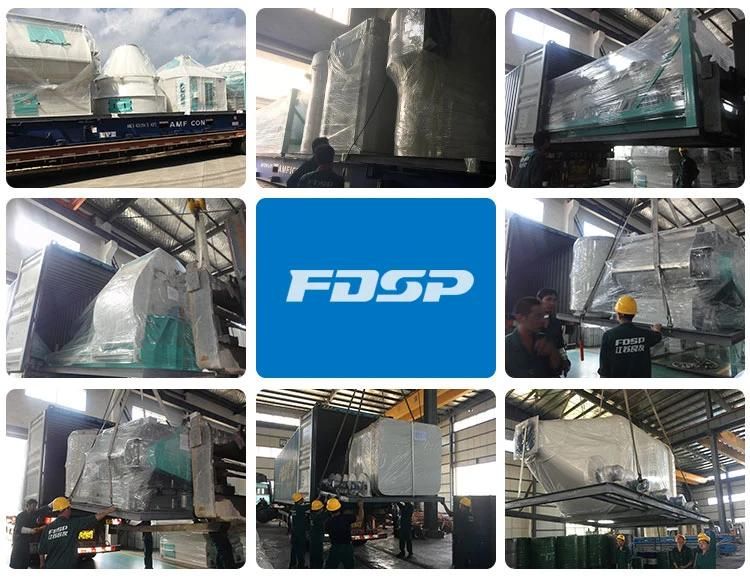

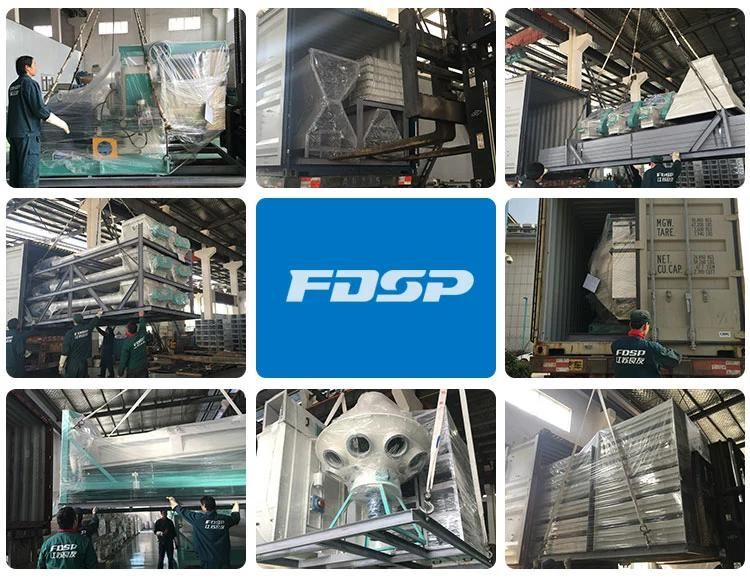

Delivery packing



We warmly welcome your inquiry!
