Woodworking Machinery

Home > Product > Woodworking Engraving Machine

Fours Axis Rotary Wood CNC Router

Hefei Aquila CNC Equipment Co., Ltd.
  • Condition：New
  • Certification：ISO, CE
  • CNC or Not：CNC
  • Voltage：380V
  • Drive Motor：Alpha Servo Motor
  • Guide Rail：Taiwan Hiwin Linear Rail

Base Info

  • Model NO.：ZS2512R
  • Working Voltage：AC380, 3pH, 50Hz
  • Machine Size：2700*2000*2100mm
  • Transport Package：Plywood Case Package
  • Specification：3000KG
  • Trademark：Mars
  • Origin：China
  • HS Code：8458110090
  • Production Capacity：300,Month

Description

Basic Info.

Model NO. ZS2512R Working Voltage AC380/ 3pH/ 50Hz Machine Size 2700*2000*2100mm Transport Package Plywood Case Package Specification 3000KG Trademark Mars Origin China HS Code 8458110090 Production Capacity 300/Month

Product Description

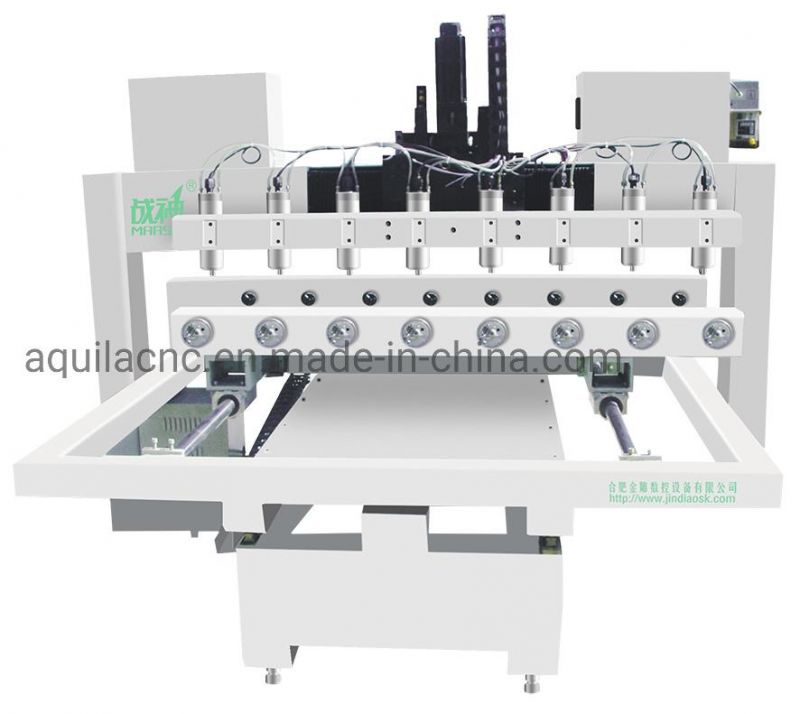

ZS2512R Fours Axis Rotary Wood CNC Router
Keywords:15 years experience of production
                   ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                   Three Brand: Mars, Boiro, Golden Eagle
                   Technicist who go abroad to offer after-sale service
Fours Axis Rotary Wood CNC Router

 Products Parameter
ModelZS-2512R Four Axis Rotary Wood CNC Router
Working StokeØ250X1200mm
Feeding Height160mm-250mm
Table StructureT-slot
Body StructureThick steel tube welded, w/ tempering
Spindle Power800W ~ 3.7KW frequency water-cooling spindle
(Air-cooling motor, or Italy imported HSD motor is optional)
Spindle Speed0 ~ 24000 rpm/min
Control SystemNC Studio/ DSP
Drive SystemAlpha servo motor
Lubrication SystemAutomatic
TransmissionXY axis rack and pinion, Z axis ball screw
Guide RailTaiwan Hiwin linear rail
Max Travelling Speed20m/min
Max Processing Speed10m/min
Dictate FormatG code/ HPGL
Engraving Tool¢3.175/ 4/ 6/ 12.7mm
Working Accuracy±0.02mm
Re-positioning Accuracy±0.05mm
Working VoltageAC380/ 3PH/ 50HZ
Net Weight2500KG
Machine Size2700*2000*2100mm


Main Useage
Fours Axis Rotary Wood CNC Router Fours Axis Rotary Wood CNC Router

Application Scop:

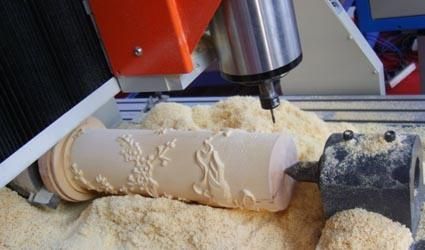

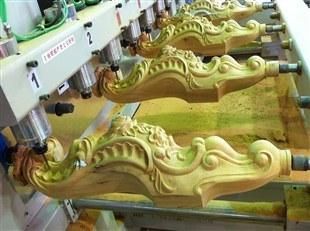

Can be widely used for the 3D processing of body sculpture,statues,artware,furniture,stone columns,ect..

Certificate

Fours Axis Rotary Wood CNC Router

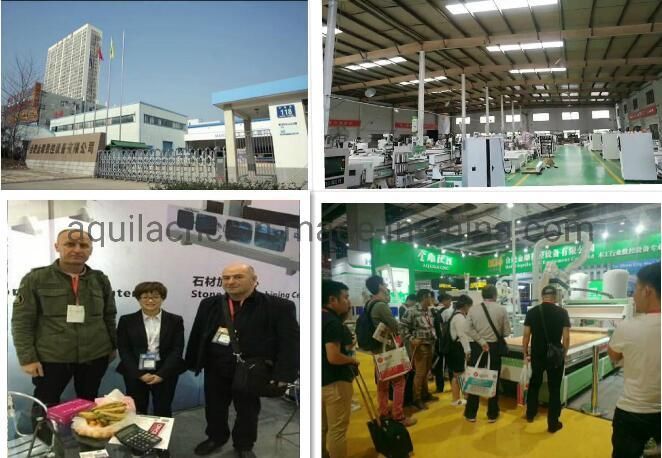

Our Company ( With 15 years experience of production)
Hefei Aquila CNC Equipment Co., Ltd located in the beautiful hometown of Lord Bao- Hefei, Anhui Province. Covering an area of 20,000 square meters, we specialize in the innovation, manufacturing and trading of Panel Furniture Production Line Equipment, Nesting CNC Machining Center, ATC CNC Machining Center, Woodworking CNC Router, Stone CNC Router, Jade CNC Router, 4- AXIS Rotary CNC Router, Mold-making CNC Router etc. numerical control technology.  Fours Axis Rotary Wood CNC Router


Contact


If you have any questions, please contact with me as soon as possible.
