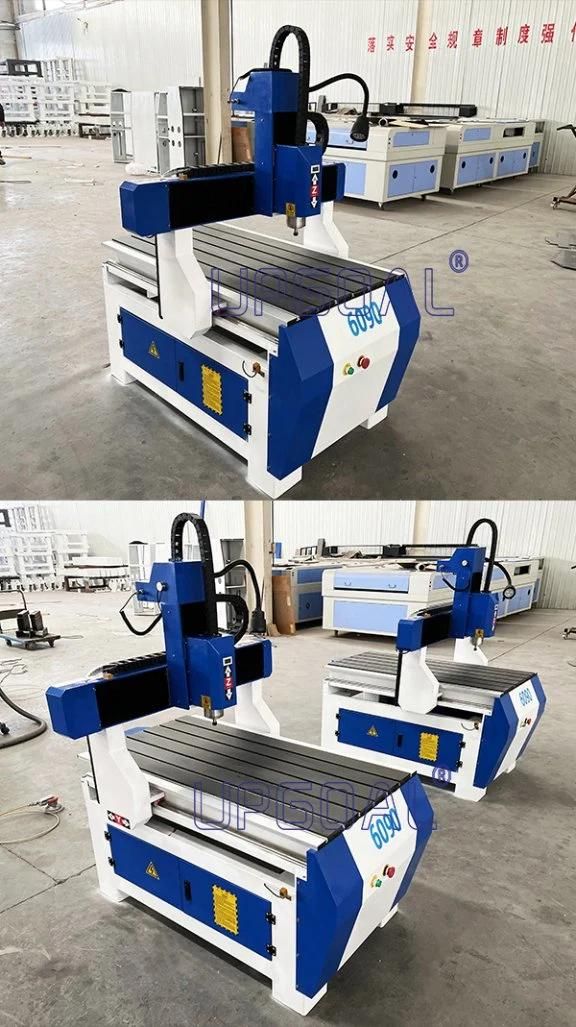

• Model NO.：UG-6090
• Certification：ISO, CE
• CNC or Not：CNC
• Voltage：220V
• Working Area：600*900*150mm
• Working Table：Thick Strong Aluminum T Slot with PVC Layer
• Guide Rail：Linear Square Guide Rail ( Hiwin, Taiwan)
• Transmission：Lead Ball Screw Transmission
• Driving Mode：Stepper Motor and Driver
• Spindle Motor：1.5,2.2,3.2kw Water Cooling
• Spindle Speed：0-24000rpm
• Control System：DSP Offline, Mach3 ,PCI Ncstudio Controller
• Machine Bed：Cast Iron
• Tools Calibration：Auto
• 4th Axis：Optional
• Water Cooling：Optional
• Transport Package：Plywood Case
• Specification：1500*1200*1600mm, 350kgs
• Trademark：UPGOAL
• Origin：Jinan City, Shandong Province, China
• HS Code：84659900
• Production Capacity：200 Sets,Month
• Package size per unit product：158.00cm * 130.00cm * 168.00cm
• Gross weight per unit product：350.000kg

Features

1.Cast iron lathe bed. Stable Running with less Vibration.

2.With Gantry moving type, stable and durable for long time using. Ensure high positioning accuracy.

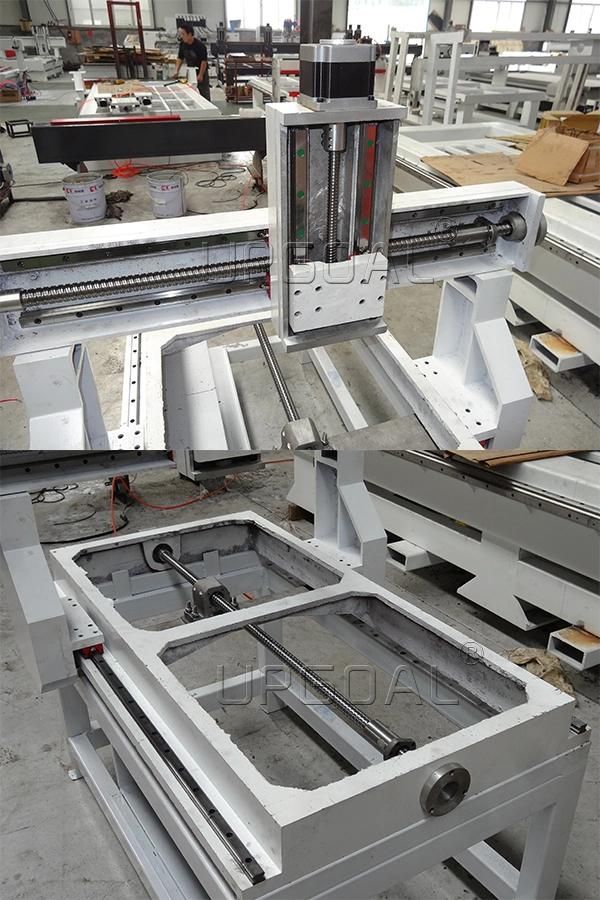

3.XYZ three axis are with linear square guide rail, Hiwin, Taiwan. Ball screws transmission for all axis. Durable running with Higher accuracy.

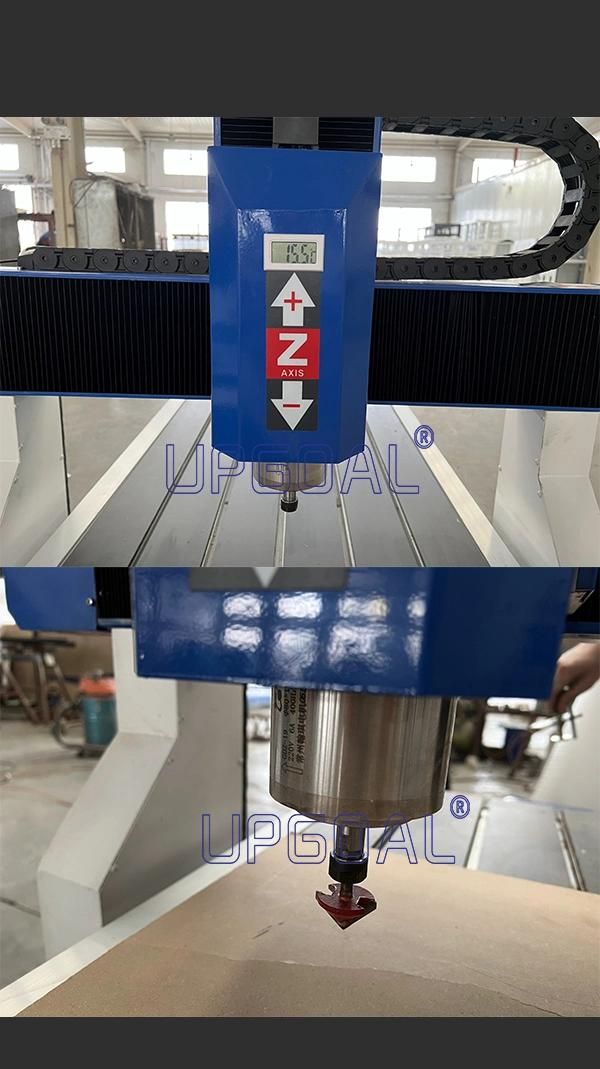

4.Optional 1.5KW/2.2KW/ 3.2kw water cooling spindle which is applicable not only for cooper plate, aluminum plate, iron plate engraving but also for wood working. It can cut 20-30mm thickness acrylic by one time cutting. The fine engraving is more smoothly and clear by large power spindle.Spindle with digital thermometer, convenient for spindle temperature monitoring during working.

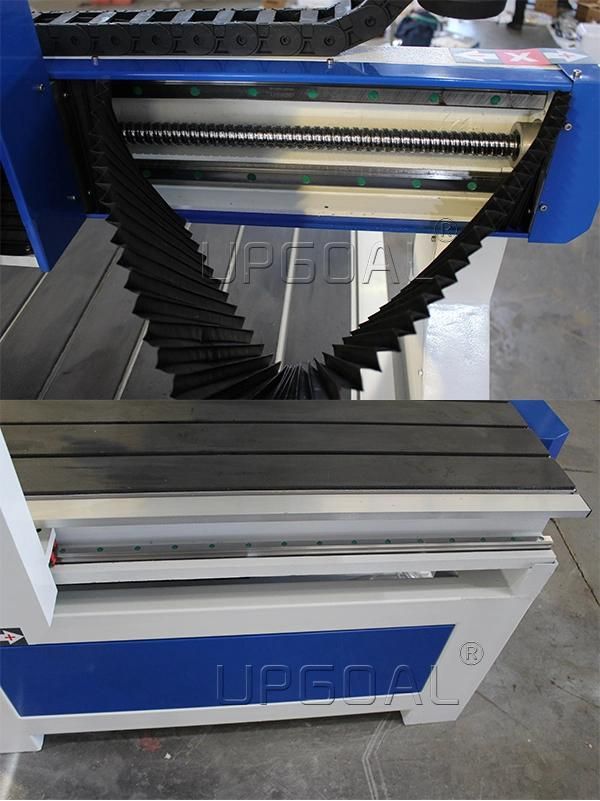

 5.Dust-Proof design for XZ-axis, protect the guide rail and ball screws from the Dust&Dirt, help to ensure machine working performance.

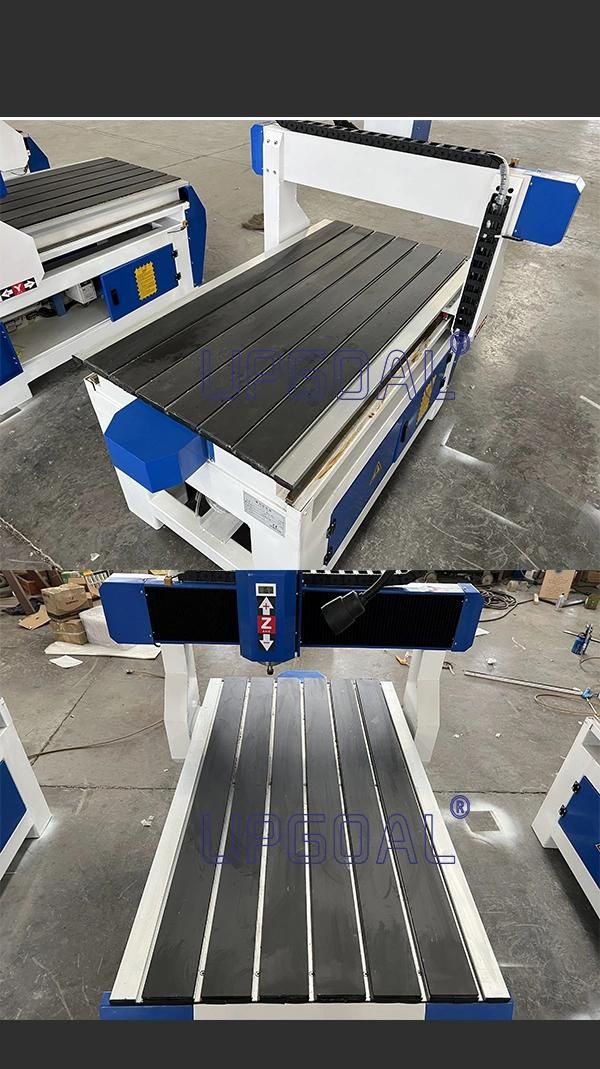

6.Thick strong aluminum alloy T slot working table.

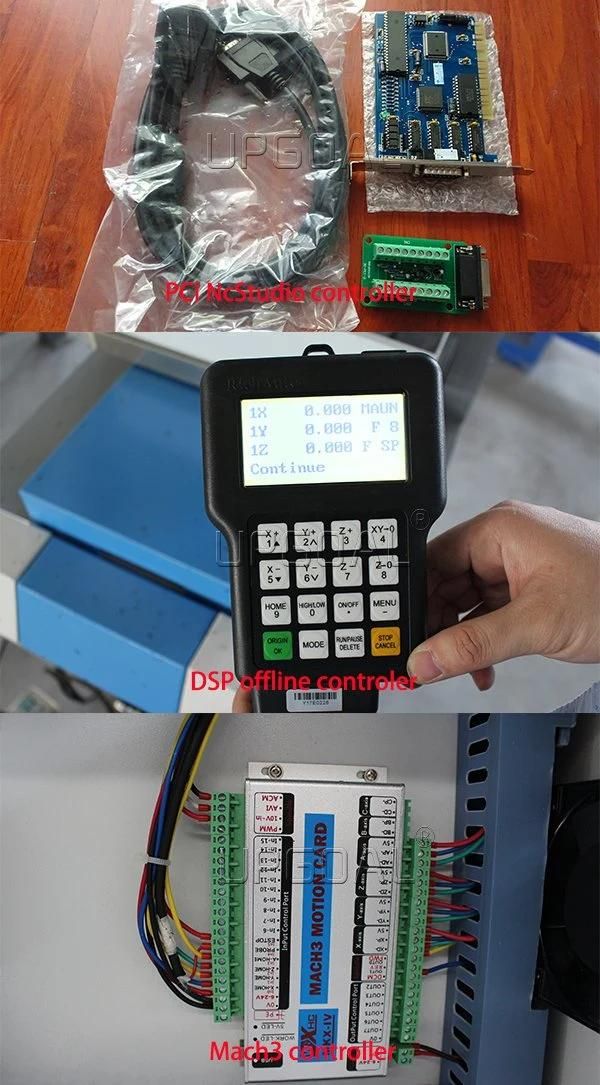

7.Optional DSP offline or Mach3 control system or PCI NcStuido controller

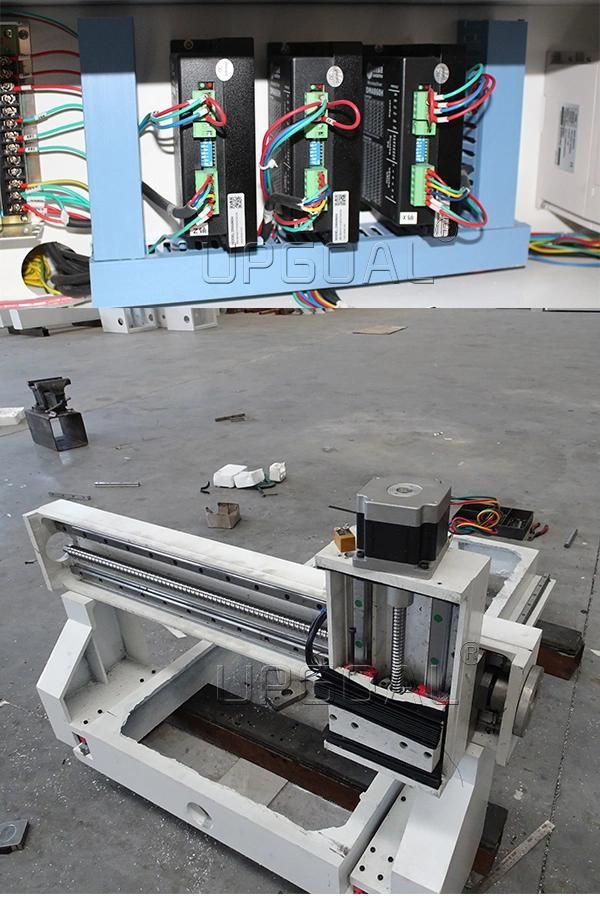

8. China powerful 86BYGH450A stepper motor and Leadshine stepper driver DMA860H for XYZ-axis, faster speed and high precision working, and not easy to loss steps.

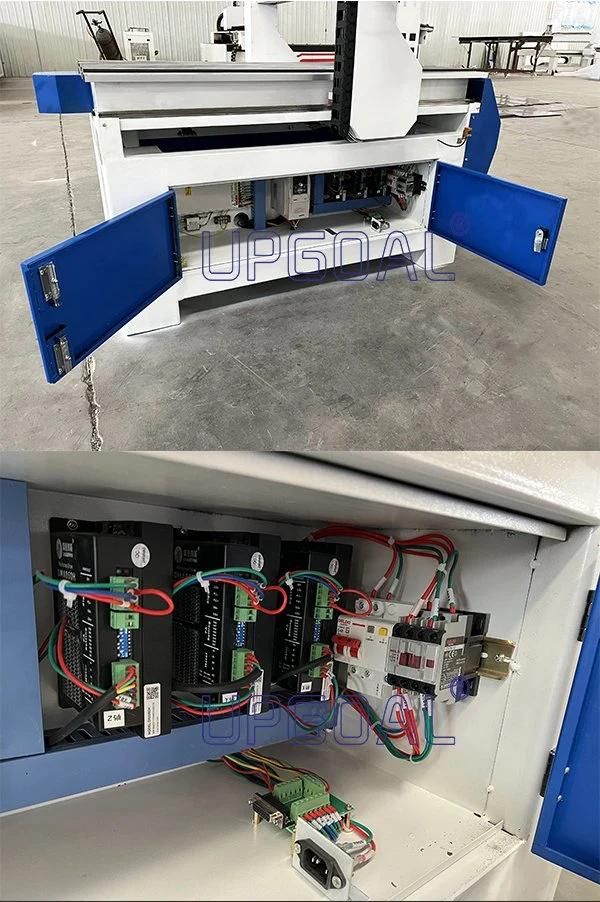

9.Rationalized placement of the electronic parts. Optimized heat dissipation effect. Adopt high quality electronic parts, minimizing fault rate, Adopt high flexible cable and imported electronic parts, electrical design of whole machine is complied with the CE standard.

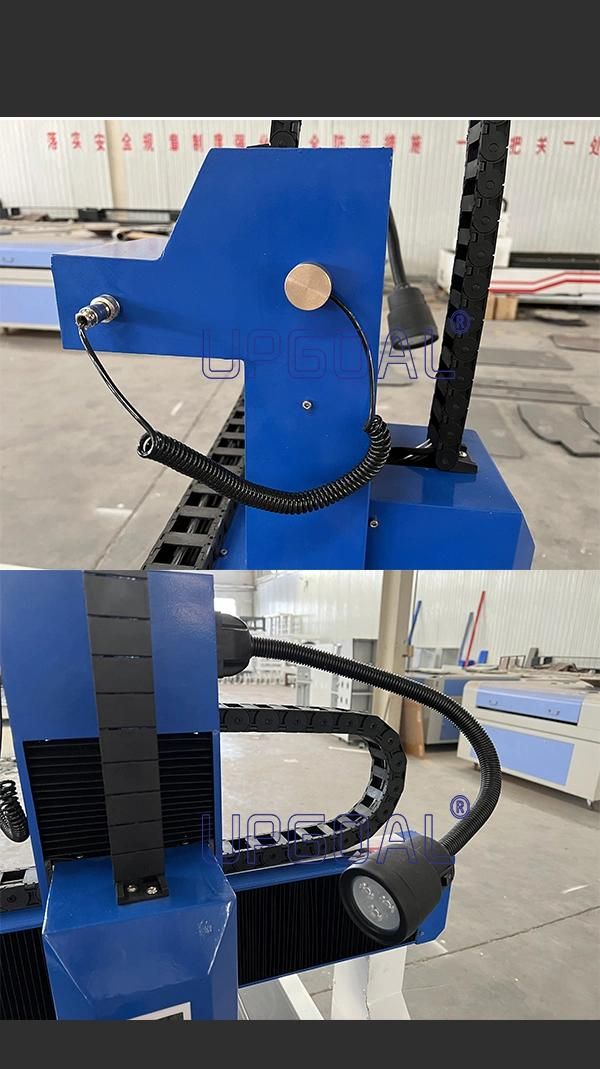

10. Auto tools calibration for Z-axis ,and has Led light for night working, more convenient.

11.With the function of break-point memory,power failure resuming and automatic home/origin correction function.The Working can be resumed after unexpected situations or next day.effectively ensure long time working precision.

12.Working Pause, Speed adjust, Working depth adjust at any time while working. Preview the 2D&3D working result With simulation function. Variable Speed is suitable for various materials and industry.

13. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.


Technical Parameters


Application

Industry application: Wood work, Advertising Sign&Mark, Acrylic Cutting, Advertising plate, Led Lamp.

Applicable material: Wood, Aluminum sheet, aluminum composite panel, dual-color plate, Mdf, Cristal plate, artifical marble and other metal and non-metal materials.

Working Method: 3D embossment engraving, 2D engraing and Cutting, Bottom Milling.

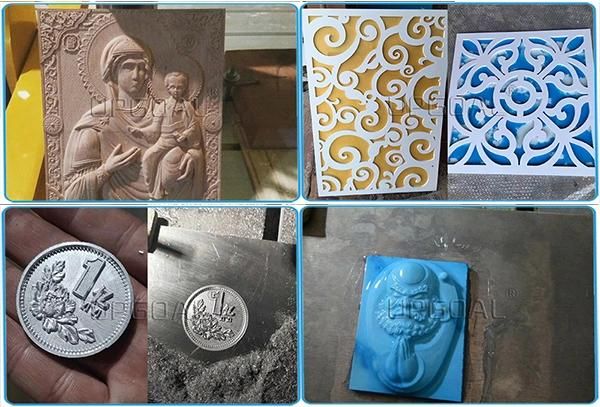

Reference Sample Photos
