Plywood Production Wood Veneer Machine for Plywood
Shandong Minghung Wood Machinery Co., Ltd.- Type：Veneer Peeling Machine
- Automatic：Semi-Automatic
- Certification：CE, ISO
- Product Name：Veneer Peeling Machine
- Max Diameter：600mm
- Thickness：0.5-4.0mm
Base Info
- Model NO.：MH-VPM4A
- Speed：80m,Min
- Max Length：1500mm
- Keyword：Veneer Peeler
- Total Power：41.2kw
- Weight：7t
- Transport Package：Plastic Film
- Specification：4feet veneer peeling machine
- Trademark：MINGHUNG
- Origin：Linyi City, China
- HS Code：846596
- Production Capacity：1000sets,Year
Description
Removing wood bark, and make log round.
The Structure:
Wood debarker machine structure is simple, mainly consist by: machine frame, motors, cylinder, hydraulic station, knife
The Working Principle:
When start machine, put log into it, worker shake handle, machine will work.
The Advantages:
<1> the roller is "wolf roller", it has many small knife, can easily remove wood bark.
<2> machine structure not complex, convenient operate for your worker.
<3> its speed is fast, can offer enough wood witout bark to veneer peeling machine.
Max length: 4feet/8feet
Max diameter: 500mm/550mm/600mm/700mm
Max speed: 70m/min
Total power: 27.5kw
Weight: 4t
Size: 3800*2200*1500mm
Customize machine according to your needs.
Processing log into pieces of wood veneer.
The Structure:
Veneer peeling machine mainly consist by: machine frame, motors, rollers, knife, control box
The Working Principle:
When start machine, adjust wood veneer thickness and width you want by CNC screen, adjust machine diameter and open, put log, then veneer machine will automatically roatry.
The Advantages:
<1> the bottom use one whole solid and thick steel, make sure machine is stable.
<2> total weight is heavy, use good material and spare parts.
<3> total power is big, make sure offer powerful energy to rotary log.
<4> Our factory patent, the outside of screw has shell to protect, long lift span.
Max length: 4feet/8feet
Max diameter: 500mm/550mm/600mm/700mm
Max speed: 50-80m/min
Total power: 41.2kw
Weight: 6.8t
Size: 4500*2300*1500mm
Customize machine according to your needs.
Transport log, one connect with wood debarker, another connect veneer peeling machine.
The Advantages:
This is the upgrade one, powerful to convey log, the chain will be fine.
Power: 4.4kw
Weight: 2t/pcs
Size: 3000*1800*1500mm
Automatic sorting wood veneer, save 2 workers, connect with veneer peeling machine.
The Structure:
Machine frame, lift table, convey belt, fan, electric box
The Advantages:
<1> save labor cost, and higher work efficiency than worker receive
<2> automatic detect veneer quality, if veneer has hole, it will pick it out.
<3> its speed is synchronous with veneer peeling machine.
4feet
Lifting mode: hydraulic lift
Veneer size: 1270*500-1270mm
Thickness: <3.6mm
Power: 18.55kw
Weight: 2.5t
Size: 6500*2000*2750mm
Grinding knife, make it become sharp again.
The Advantages:
Knife is consumable, after using a while, knife edge will become blunt, if you have this grinding machine, will be conveniently and fast make knife become sharp again. Knife is also very important for peeling good quality wood veneer.
4feet magnetic
Knife length: 1500mm
Table size: 1500*160(200)mm
Power: 4kw
Weight: 800kg
Size: 2800*1000*1000mm
Customize machine according to your needs.

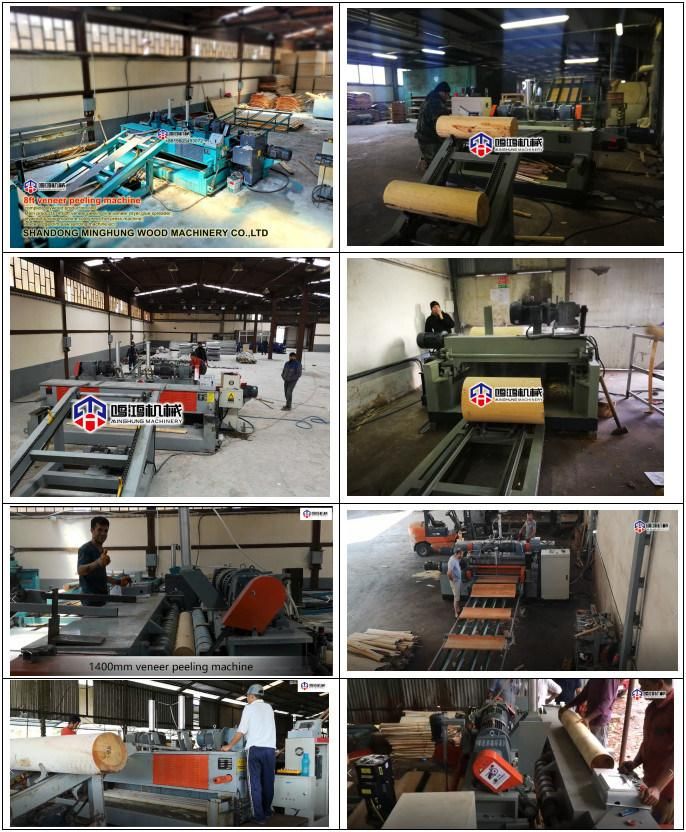

Machine in Clients Factory:
We often talk with our clients about machine working conditions, see if machine is well. If they meet some problems, we will help them solve it in time.
The moment when you choose us, we have been your lifetime partners, anytime you need help, we will be there.
Clients Comment:

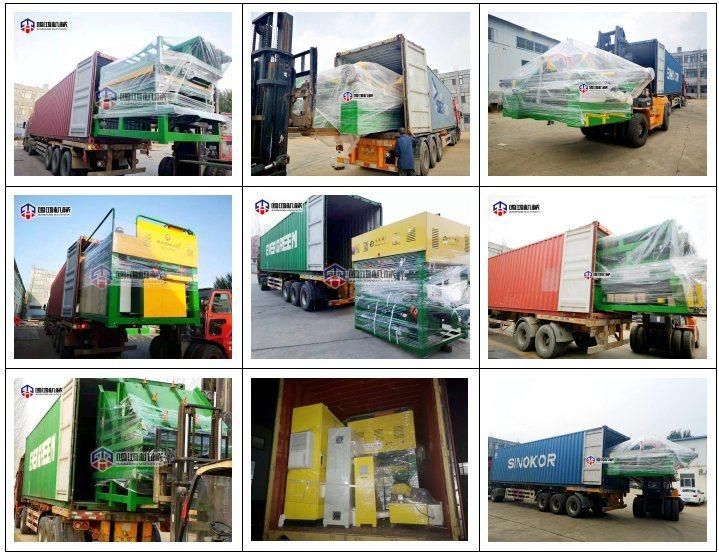

Delivery:
When machine finish production, we will share test video and pictures to you.
When loading, we will send loading pictures to you.
After ship leave, we will offer you container no and ship information, and prepare all documents for your custom clearance.

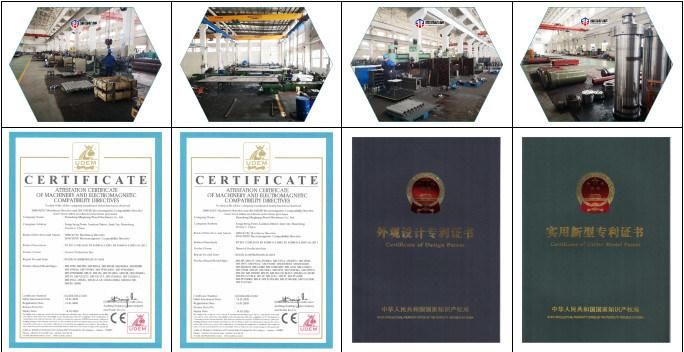

Factory:
Professional manufacturer produce the full sets of veneer machine and plywood machine in Linyi City, Shandong Province, China.
Including Wood debarker, veneer peeling machine, veneer stacker, veneer dryer machine, glue spreader, cold press machine, hot press machine, plywood saw machine, sanding machine.
The value of our factory is: create much more value for clients.
We have our own morality and principle, insist sincerely treat our clients, regard them as our friend, try help their business.

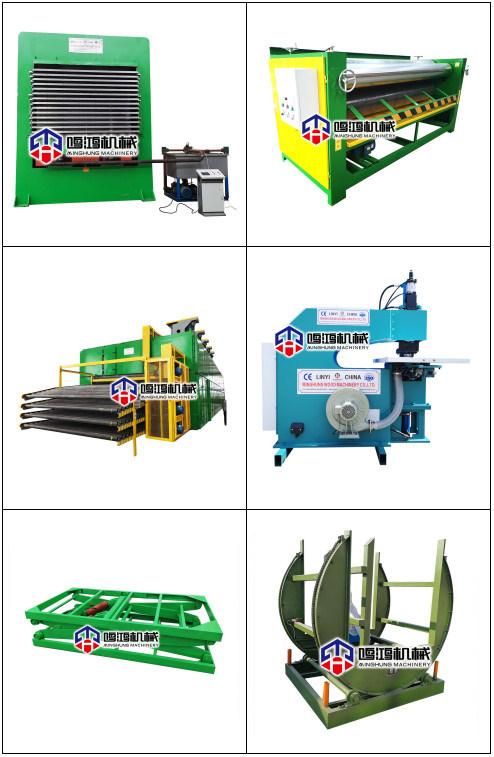

Plywood Machine:
RFQ:
| Production Time: |
| 1 month after receive your deposit. |
| Payment Terms: |
| 30% deposit, 70% before delivery. 100% Letter of Credit. |
| Warranty: |
| 2 years for main parts. |
| MOQ: |
| 1 set |
| Installation: |
| When machine reach your factory, our engineer can go to install |
| After-sales service: |
| Any problem that your worker can not solve, tell us, we will reply you at the first time, |
