Woodworking Machinery

Woodworking Machine Automatic Wood Finger Joint Machine

Qingdao Samac International Trading Co., Ltd.
  • After-sales Service:1 Year
  • Automatic Grade:Semi-Automatic
  • Warranty:1 Year
  • Joint Length:2000-2500mm
  • Joint Width:30-150mm
  • Joint Thickness:18-80mm

Base Info

  • Model NO.:RZJL1525A*600
  • Transport Package:Soft Package
  • Specification:RZJL1525A*600
  • Trademark:SAMACH
  • Origin:China
  • Production Capacity:20 Sets,Month

Description

Basic Info.

Model NO. RZJL1525A*600 Transport Package Soft Package Specification RZJL1525A*600 Trademark SAMACH Origin China Production Capacity 20 Sets/Month

Product Description

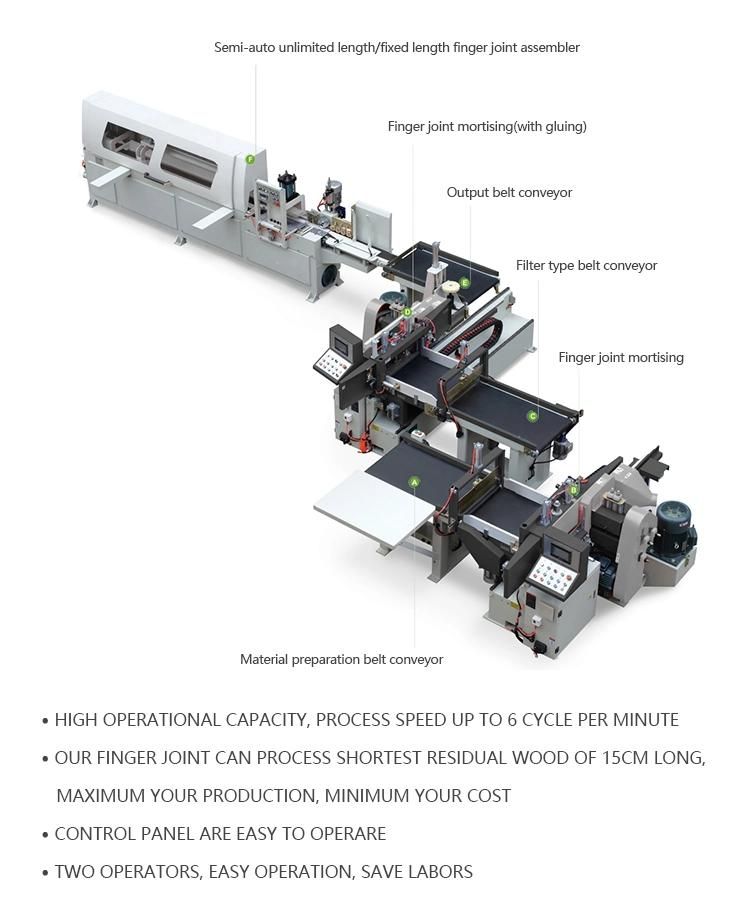

Woodworking Machine Automatic Wood Finger Joint Machine
Woodworking Machine Automatic Wood Finger Joint Machine

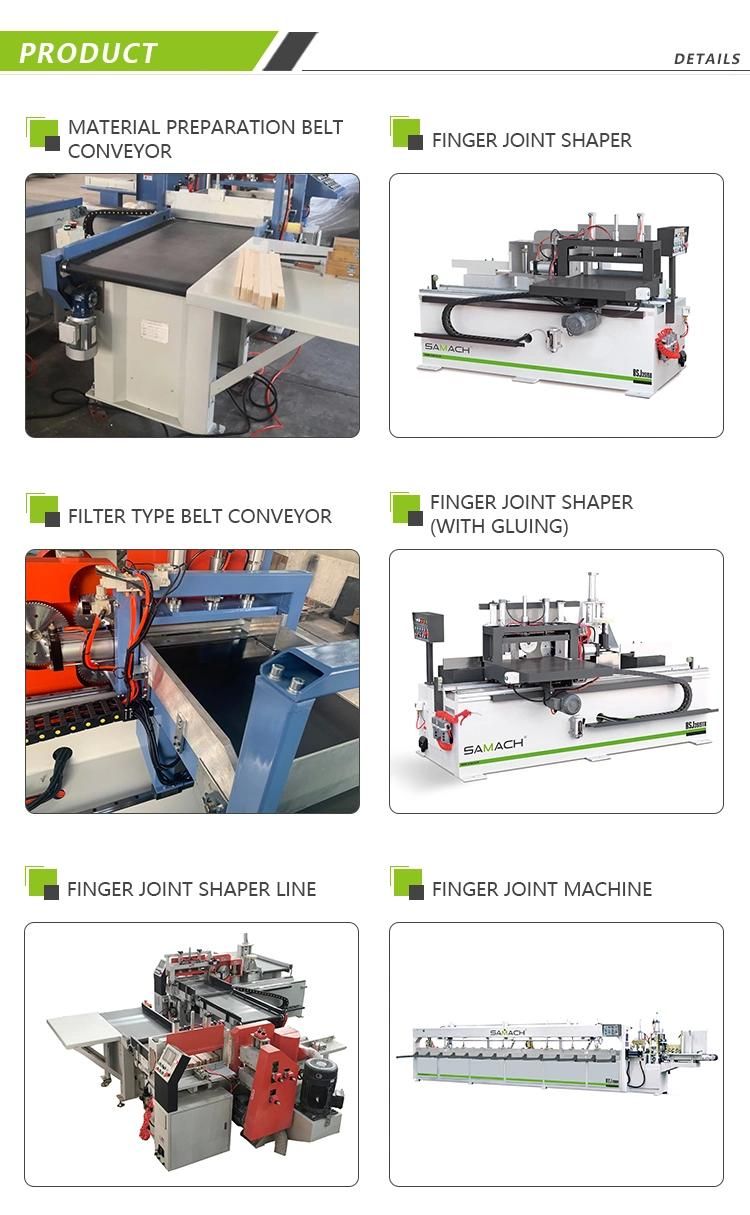

 Finger joint shaperFinger joint shaper(with gluing)
ModelRSJ3515ARSJ3515TA
Worktable size850*600mm850*600mm
Max. working size850*80*150mm850*80*150mm
Min. working size150*20*30mm 200*30*20mm
Shaper spindle diameterΦ70mmΦ70mm
Shaper blade diameterΦ160mmΦ160mm
Main saw blade sizeΦ255mmΦ255mm
Main saw spindle speed2840rpm2840rpm
Shaper spindle speed6000rpm6000rpm
Working air pressure0.5-0.8 Mpa0.5-0.8 Mpa
Total power16.12kw18.74kw

 Finger joint assembler
ModelRZJ1525A
Joint length2000-2500mm
Joint width30-150mm
Joint thickness18-80mm
Main saw blade sizeΦ355mm (14")
Rated power of saw spindle3kw
Rated power of oil pump2.2kw
Max. push power of oil pressure7800kg
Rated power of feeding speed1.5kw*2Pcs
Overall dimension4300*1650*1600mm
Weight1850kg

 Material preparation belt conveyorFilter type belt conveyorOutput belt conveyor
ModelMF756AMF756BMF756C
Length of work table1150mm1150mm1150mm
Width of work table600mm600mm600mm
Rate power of motor0.37kw0.37kw0.37kw
Working pressure0.5-0.5-0.8Mpa0.5-0.5-0.8Mpa0.5-0.5-0.8Mpa
Overall diameter1180*725*920mm1180*725*920mm1180*725*920mm
Woodworking Machine Automatic Wood Finger Joint MachineWoodworking Machine Automatic Wood Finger Joint MachineWoodworking Machine Automatic Wood Finger Joint MachineWoodworking Machine Automatic Wood Finger Joint MachineWoodworking Machine Automatic Wood Finger Joint Machine1. How to make an order?
You can order online by Made in china, Or Email us your details, and we will contact you immediately and help you proceed with the orders.

2. Where is your factory?
Our factory is located in shandong which is a famous city for producing the machine. Welcome to visit our factory any time.

3. Can you offer special discounts to the wholesaler or we make big quantity?
Yes, we will give you best support according to your quantity, and will arrange some promotion products every month.

4. What is your delivery time?
Normally, we can finish one order at about 25-30days, but the exact time depends on different styles and different quantities you order.

5. Can you arrange the shipment by door to door?
We can offer door to door service both by sea and by air, which can save your time and money. Also, we have cooperated forwarder in some countries and can arrange the customs clearance for you.

6. Do I have to assemble all items by myself or by my customer himself?
Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts), and others need to be assembled, But it is so easy to assemble with the user manual or video teaching.

7. What's your warranty?
We normally will provide one years warranties. If the product is caused by factory mistakes, We will give you free replacement for the spare parts. If it was damaged during the shipping or other reasons, we will provide the best solutions for you.

8. What payment do you accept?
Normally we can provide T/T, L/C ect. Any other ideas, please contact us for better support.


Contact us and Enjoy our Happy Coopperation Together.  Thank you for your time ^_^ !
