• Model NO.：WZLH520
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Multi Color
• After-sales Service：Engineer Available
• Capacity(T/H)：1.5-1.8
• Main Power(Kw)：110,132
• Pellet Size(mm)：6-8
• Power of Screw Feeder(Kw)：3
• Power of Force Feeder(Kw)：1.5
• Transport Package：Iron Pallet and Soft Guard
• Specification：CE, ISO9001, SGS
• Trademark：FDSP
• Origin：Jiangsu, China (Mainland)
• HS Code：8479300000
• Production Capacity：5 Sets,Month

Basic Info.

Model NO. WZLH520 Warranty 1 Year Customized Customized Condition New Color Multi Color After-sales Service Engineer Available Capacity(T/H) 1.5-1.8 Main Power(Kw) 110/132 Pellet Size(mm) 6-8 Power of Screw Feeder(Kw) 3 Power of Force Feeder(Kw) 1.5 Transport Package Iron Pallet and Soft Guard Specification CE, ISO9001, SGS Trademark FDSP Origin Jiangsu, China (Mainland) HS Code 8479300000 Production Capacity 5 Sets/Month

Product Description

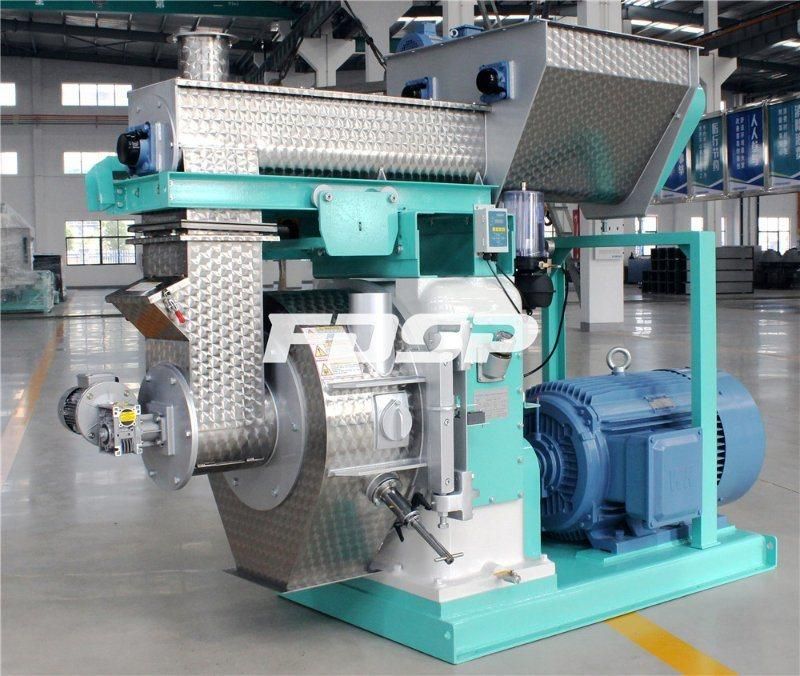

Ring Die Wood Pelletizer Sawdust Pellet Machine Biomass Pellet Machine
Features
1. It is widely used to make pellets from light substance, such as wood chips,
sawdust, straw, pasture, Chrysanthemum, palm leaf and so on;
2. The feeder's especial structure
Makes materials conveyed evenly, it is specially designed for pellet of light substancewith the density of 0.3-0.6g/ cm3;
3. Feeder, conditioner and chute are made ofstainless steel with long service life;
4. It is with magnet and over load protection system, which protects the machine
during production;
5. Feeder
Has a variable speed controller to meet different outputs requirements;
6. It makes gear directly-connecting as the driver, and is with quick-release die fixed by clamps, which will increase the output by 15% when compared
to a machine with a belt conveyer;
7. The bearing and oil seal in the main drive are imported from Japan to ensure highly-efficient, stability and high quality;
8. The alloy steel die is with international advanced equipment and techniques, and
has long service life, and can make slippery pellets of the highest quality.
9. The Lubrication System is made up of the tracing and inspecting system controlled by the microcomputer, auto lubricating system on time and compelled lubricating system by hand.


Ring die wood pellet mill is the most important process in the wood pellet production
line. It is widely used in compacting of wood, straw, other biomass sources into pellet.Capacity ranges from 1T to 10T per hour. Our wood pellet mill adopt imported bearings from Sweden, the main motor is from Siemens,  high quality components make the pellet mill more efficient and durable.

Main Technical Parameter

Model	WZLH420	WZLH520	WZLH680	WZLH780
Capacity(T/H)	0.8-1.2	1.5-1.8	2-2.5	2.5-3.5
Main motor power(kw)	75/90	110/132	160/185	200/220
Feeder power(kw)	2.2	3	4	4
Ring die dia(mm)	420	520	680	780
Pellets dia(mm)	6-8	6-8	6-8	6-8

Usage of Wood Pellets
Fuel for Burning(85-90%)
Hole 6/8/10mm: Household stoves
Hole 8/10mm: Industrial

Item	Wood biomass pellet machine
Pellet Mill Type	- With Standard Feeder - With Anti-broken Feeder
Technical Parameters	- Capacity: 0.8-1.2(T/H) - Size: 2800*1150*2100(mm) - Power: 110KW - Inner diameter of die: 420(mm) - Pellet size: 6ø, 8ø, 10ø(mm) - Net weight: 4000(kg)
Main Features	- CE & ISO & SGS certification - Siemens motor, IMPORTED bearing - High precision gear-driven transmission system - One ring die and two rollers system
Optional Parts	- Screw feeder with anti-broken - Conditioner: To adjust the moisture of raw material.  - Auto cooling system for gear-box(large capacity)
Packing Mode	Iron pallet with stretched film, etc
MOQ	1 set
Payment	L/C, T/T, Western Union, Money Gram...
Warranty	12 months

Heating value: 17.5-19.5MJ/kg.
Density: 1.1-1.5kg/cm3
Moisture: ≤ 8%.
Ash content: <1.5%.

FAQ
1.Q:Are you a factory or trading company?
A:We are a factory .
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Liyang City, Jiangsu Province, China, near Shanghai.You can fly to Shanghaiairport directly.All our clients, from home or abroad, are warmly welcome to visit us!
