Woodworking Machinery Bamboo Planer Machine 4 Spindles Four Side Moulder Price for Sale
QINGDAO SOSN MACHINERY CO., LTD.- Warranty:2 Year
- Type:Four-Side Planer
- Working Depth:10-120mm
- Working Width:10-150
- Drivetrain:Worktable Elevating Drivetrain
- Enter Method:Mechanical
Base Info
- Model NO.:MB4015LK
- Motor Power:14.87kw
- Cutter Shaft:4PCS, Helical Spindle Optional
- Spindle Speed:6000rpm
- Process Type:Heavy Processing
- Certification:CE, ISO
- After-sales Service:2 Year
- Model:MB4015lk
- Total Power:14.87kw
- Processing Width:10-150mm
- Processing Thickness:10-120mm
- Using:Woodworking
- Product:Wood Floor, Door Frame
- Voltage:380V Can Customer Made
- Place of Origin:Qingdao, Shangdong Province
- Transport Package:Wooden Package
- Specification:1500kg
- Trademark:SOSN
- Origin:China
- HS Code:84659200
- Production Capacity:300sets,Month
Description
Basic Info.
Model NO. MB4015LK Motor Power 14.87kw Cutter Shaft 4PCS, Helical Spindle Optional Spindle Speed 6000rpm Process Type Heavy Processing Certification CE, ISO After-sales Service 2 Year Model MB4015lk Total Power 14.87kw Processing Width 10-150mm Processing Thickness 10-120mm Using Woodworking Product Wood Floor, Door Frame Voltage 380V Can Customer Made Place of Origin Qingdao, Shangdong Province Transport Package Wooden Package Specification 1500kg Trademark SOSN Origin China HS Code 84659200 Production Capacity 300sets/MonthProduct Description

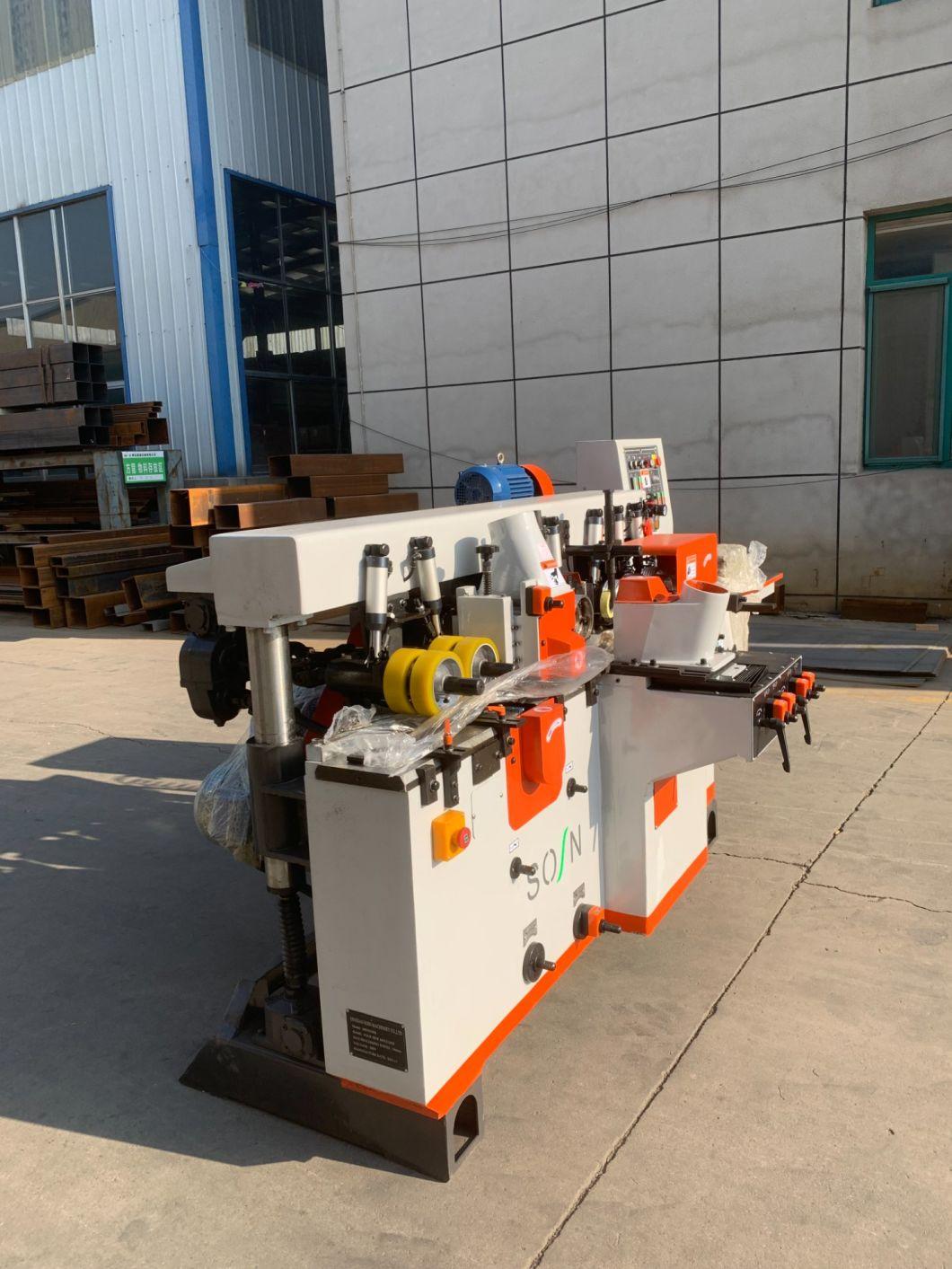

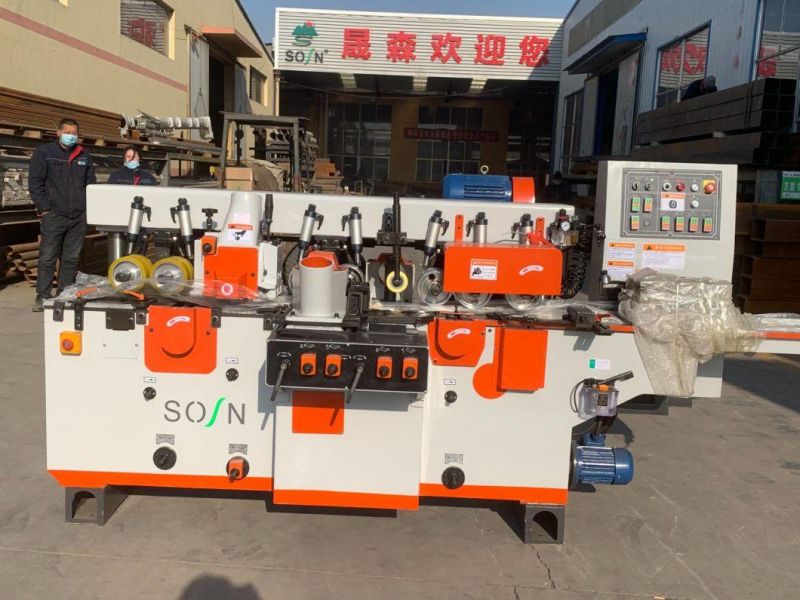

MB4015LK timber four side planer with 4 spindles four side moulderWoodworking Machinery 4 Spindle 4 Sides Planer for Sale MB4015LK
Main technical parameter:
Main technical specifications | MB4015LK |
Processing width | 10-150mm |
Processing thickness | 8-120mm |
Feeding speed | 5-30m/min |
Feeding power | 1.5kw |
Lower horizontal shaft power | 3 kw |
Upper horizontal shaft power | 4 kw |
Right and left side vertical knife arbor power | 3 kw*2 |
Cross bean lifting and lowering power | 0.37kw |
Total power | 14.87 kw |
Knife speed | 6000r/min |
Pressure of air supply source | 0.3-0.4 Mpa |
Features:
1. Stable performance of 30m/min speed from system, and can be 5-20 meters of stepless speed regulation, effectively improves the production efficiency.

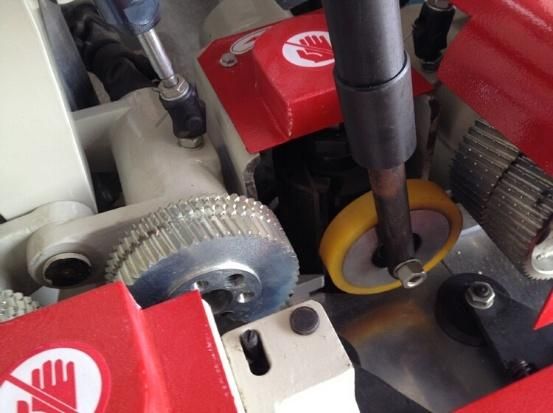

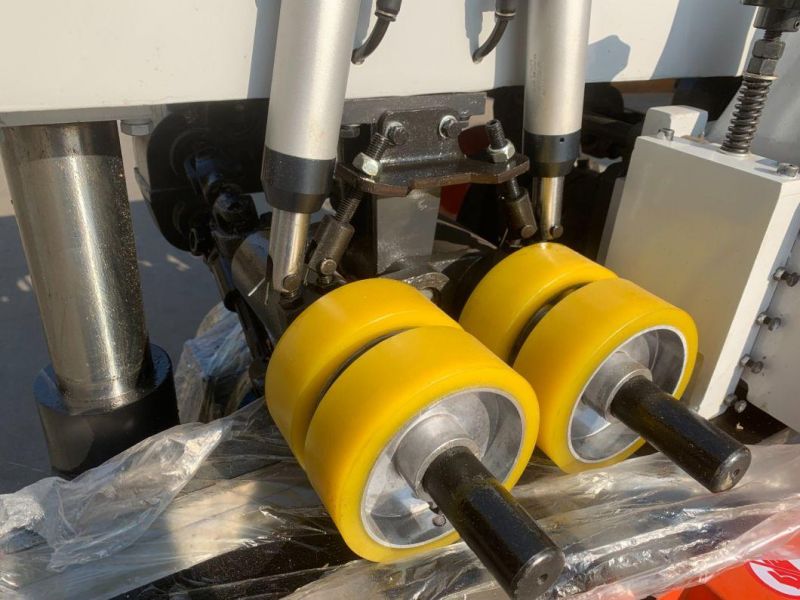

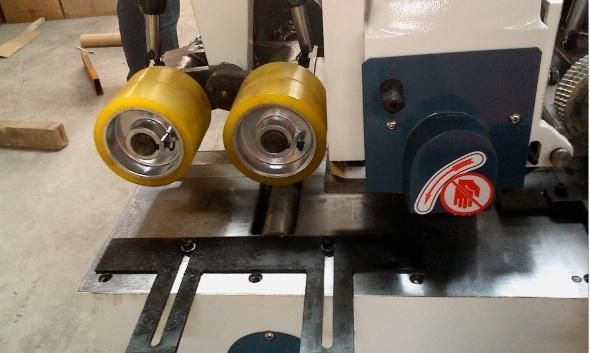

2. Feeding wheel adopts a cylinder pressing type feeding, can be individually adjusted feed wheel pressure, feed more smoothly.
3. With high quality bearing of high speed spindle, more effectively improve the cutting workpiece smooth.
4. Bench with actively feeding system, feeding smooth and powerful.
According to your demand, we can produce it for you.

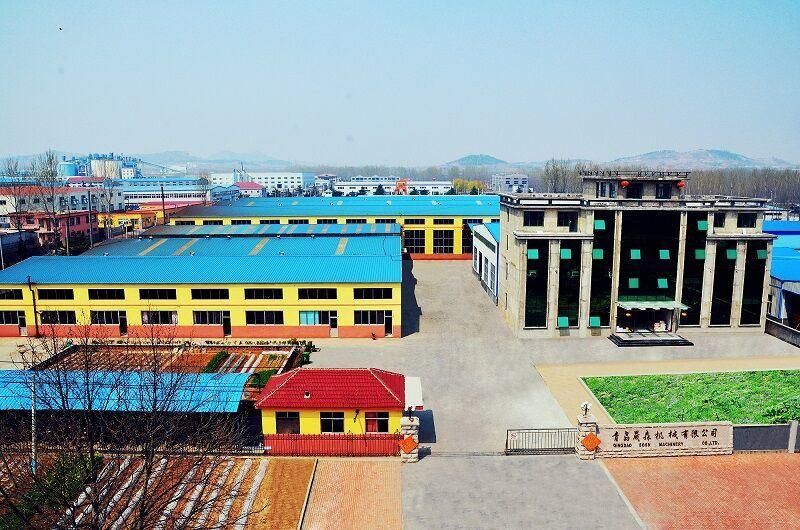

SOSN FACTORY :
SOSN history
SOSN Woodworking Machine is focus on design and manufacture of professional woodworking
machines over 30 years.
The Main products of SOSN Woodworking Machine are precision panel saw, edge banding machine,
drilling machine and CNC router. We have mare than 70 sales agents in China domestic market, and
21 sales agents in 12 foreign countries of oversea market. Our customers and agents are from
Southeast Asia, The Middle East, America, Europe, and so on.
Professional design, Lean manufacturing, 24 hours on line service ensure we supply high quality
product to customer on time.
In 2015, Holzer Company from Iran joined us to be a partner. With the powerful help of our Iran
technical Engineers, we design and manufacture new electronic panel saw and edge banding
machine.
SOSN Woodworking Machine are always researching and manufacturing professional and
economical woodworking machines to our customers.
Note1. This price is based on voltage 380v,50hz,3ph2.Warranty : 2 YEARS.3.Payment terms: 30% deposit by TT , 70% before ship by TT.4.Package : standard wooden case, packaging charge is included in the offer above.5.Delivery time: 15 work days after recive deposit.6.MOQ : 1 set.
Should you have any need of the machine ,please feel free to contact with me
