• Model NO.：QMB204F-K,F-H
• Cutter Shaft：2
• Spindle Speed：＜5000rpm
• Process Type：Heavy Processing
• Certification：CE, ISO
• Weight：2600kg
• Total motor power：15.95kw
• Feeding speed：5.3-20 meters
• Max. sawing thickness：170mm
• Min. sawing length：310mm
• Dia. of spindle：125mm
• Max. working width：445mm
• name：thicknesser planer
• Transport Package：Plywood Carton or Bulk Packing
• Specification：2760*990*1780 (MM)
• Trademark：Qingcheng
• Origin：China
• HS Code：8465920000
• Production Capacity：20000,Sets

Basic Info.

Model NO. QMB204F-K/F-H Cutter Shaft 2 Spindle Speed ＜5000rpm Process Type Heavy Processing Certification CE, ISO Weight 2600kg Total motor power 15.95kw Feeding speed 5.3-20 meters Max. sawing thickness 170mm Min. sawing length 310mm Dia. of spindle 125mm Max. working width 445mm name thicknesser planer Transport Package Plywood Carton or Bulk Packing Specification 2760*990*1780 (MM) Trademark Qingcheng Origin China HS Code 8465920000 Production Capacity 20000/Sets

Product Description

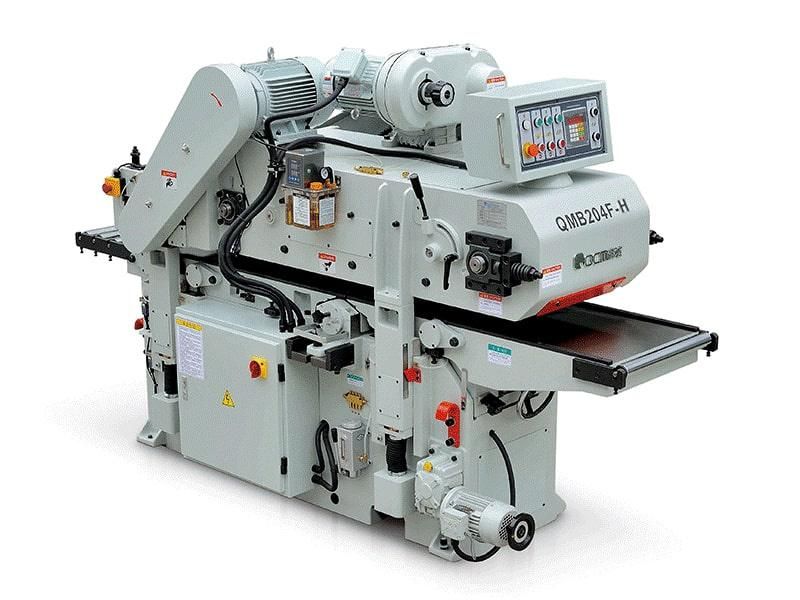

QMB204F-K/F-H Woodworking Machinery Wood Planer Double-side Planer
Application:
Double side planer
Thicknesser planer

Excellent features:

1. The machine adopts whole casting body, aging treatment, stable performance;

2.The working table adopts special wear-resisting material, which has enough rigidity and wear resistance;

3. The cutter shaft is precision machined, dynamically balanced and precision assembled, with smooth running and good precision;

4.Feeding material adopts elastic pressure claw, with adjustable strength, smooth feeding and good quality of processed board surface;

5. The upper and lower drive rollers are adopted in the upper pressure planing system, which makes the material feeding strong and powerful;

6. The feeding system adopts frequency conversion speed control (F series is stepless transmission) to ensure the quality of different wood products;

7. The lifting system adopts digital display, intuitive and convenient operation;
All electrical components and transmission parts are of good brand and components, stable performance;

9.Quick belt tension adjustment and quick planer replacement, convenient operation;

10.630 series is equipped with manual lubrication pump to lubricate the column sliding plate to ensure the flexibility of lifting;

11.K-type products are equipped with numerical control automatic thickness gauge, which is accurate in thickness setting and convenient in operation.

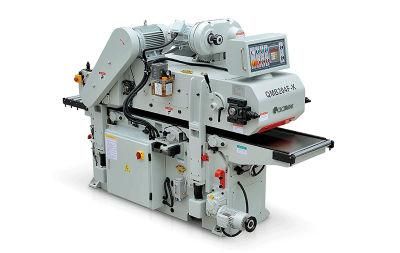

Reference photo:








1. Technical parameters


Specifications	Unit	QMB204F-K/F-H
Working width	mm	445
Working thickness	mm	10-170
Min.working length	mm	310
Max cutting depth(Upper and Bottom)	mm	5/3
Feeding speed	m/min	5.3-20
spindle speed	r/min	4800
spindle cutting dia	mm	Φ125
Total power	kW/HP	15.95/21
Spindle motor	kW/HP	/
Top Spindle motor	kW/HP	7.5/10
Bottom Spindle motor	kW/HP	5.5/7.5
Front blade spidle motor	kW/HP	/
Back blade spidle motor	kW/HP	/
Feeding motor	kW/HP	2.2/3
Lifting motor	kW/HP	0.75/1
Suction hood dia	mm	2*Φ150
Overall dimensions	mm	2760X990X1780
Weight	kg	2600

2. About Qingcheng Woodworking Machinery:

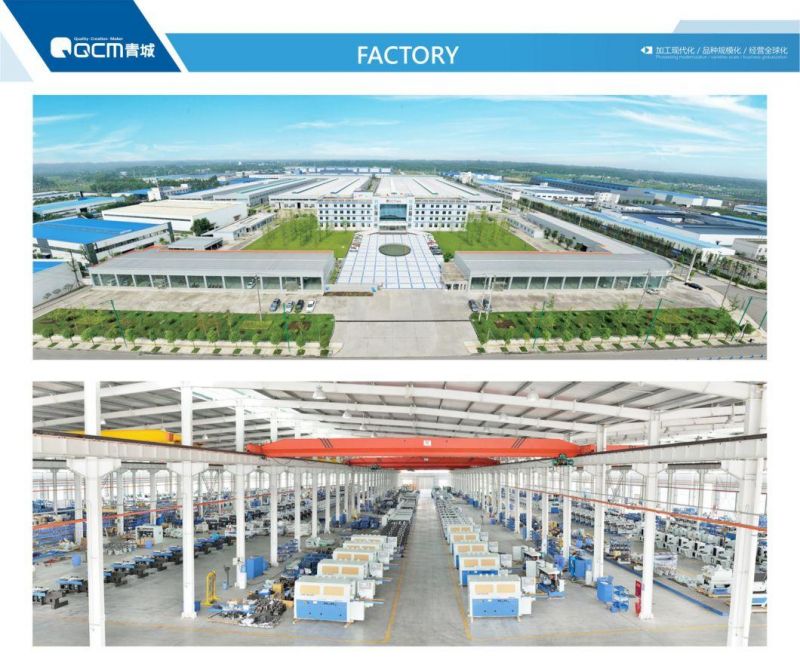

Qingcheng Woodwokring Machinery Co., Ltd is a professional manufacturer of woodworking machinery since 1970. With more than 40 years experience, we have developed to the top and most powerful manufacturer of woodworking machinery in China.

We mainly engaged in six series of woodworking machinery:
Four Side Moulder, Double Side Planer, Automatic Muti-blade Rip Saw, Automatic Single-side Rip Saw and Double-end Tenoner , and Sanding Machine

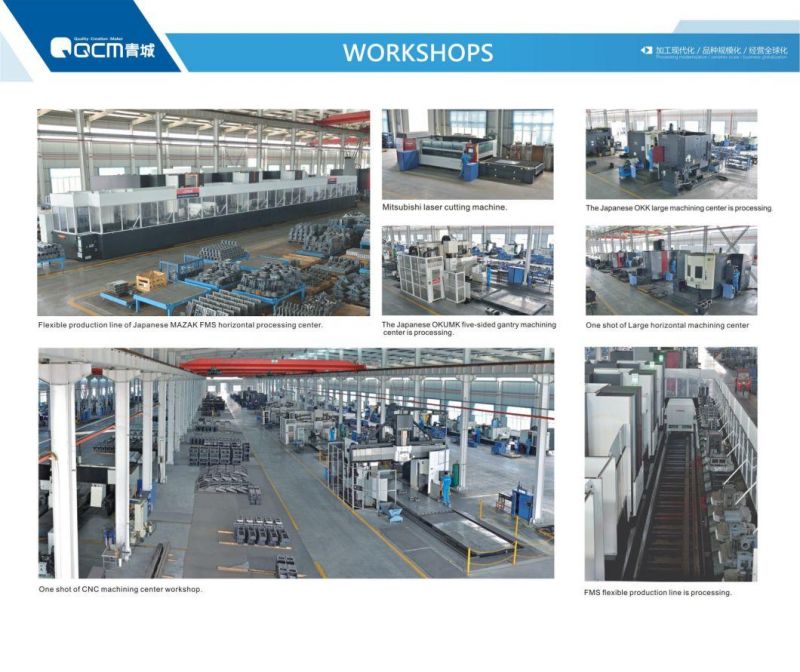

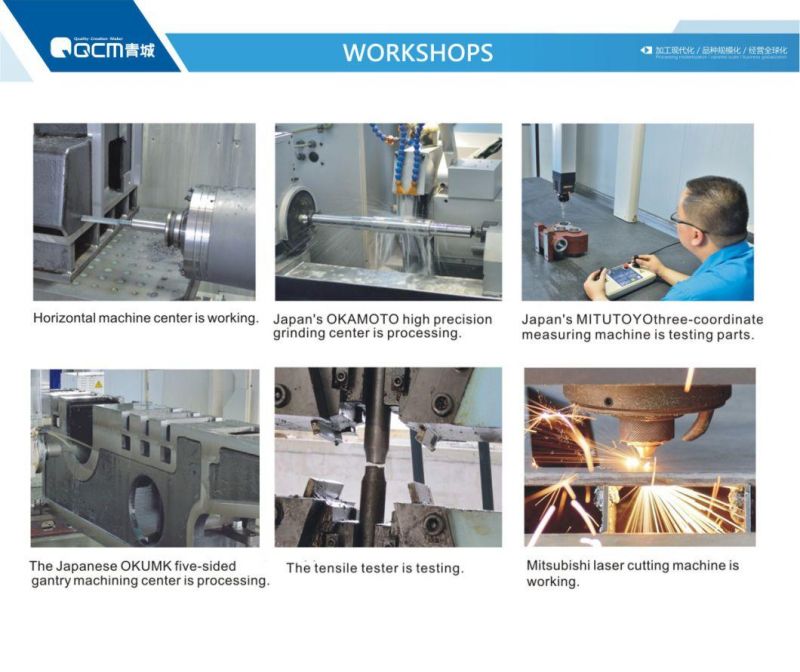

To make machinery with high precision and stability, we have introduced the world's advanced modern processing and testing equipment, including OKUMA five-surface gantry machining-center, FMS flexible machining production line, MAKINO horizontal machining center, MORI SEIKI(nine-axis linkage) lathe-mill cutting center, LGMazak vertical machining center, Mitsubishi laser cutting machine, OKK large machining center, Okamoto CNC grinding center, and Mitutoyo three coordinate measuring machine.








3.Our Exhibitions:
