• Model NO.：GJH 1325
• Customized：Customized
• Condition：New
• Color：Customized
• Guide Rail：Taiwan Tbi
• Screw：Taiwan Tbi
• Running Mode：Servo
• Driver：Japan Yaskawa
• Motor：1.3kw
• Dust Collector：7.5kw
• Spindle：9kw Italy Hsd Atc Air Cooling
• Control System：Taiwan Syntec 6mA
• Application：Woodworking
• Transport Package：Plywood Case
• Specification：GJH 1325
• Trademark：GJH
• Origin：Shandong China
• HS Code：84659900
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. GJH 1325 Customized Customized Condition New Color Customized Guide Rail Taiwan Tbi Screw Taiwan Tbi Running Mode Servo Driver Japan Yaskawa Motor 1.3kw Dust Collector 7.5kw Spindle 9kw Italy Hsd Atc Air Cooling Control System Taiwan Syntec 6mA Application Woodworking Transport Package Plywood Case Specification GJH 1325 Trademark GJH Origin Shandong China HS Code 84659900 Production Capacity 50 Sets Per Month

Product Description

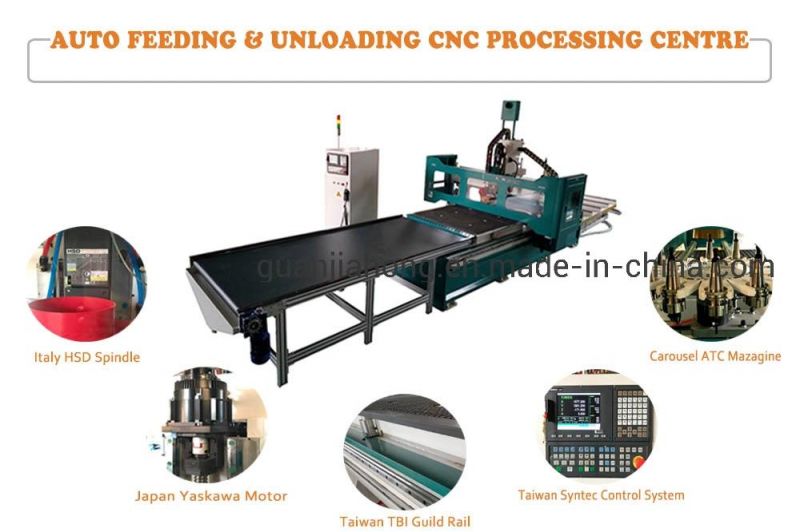

1.All IN ONESTEP-Automatic loading, cutting, drilling, slotting, automatic offloading.

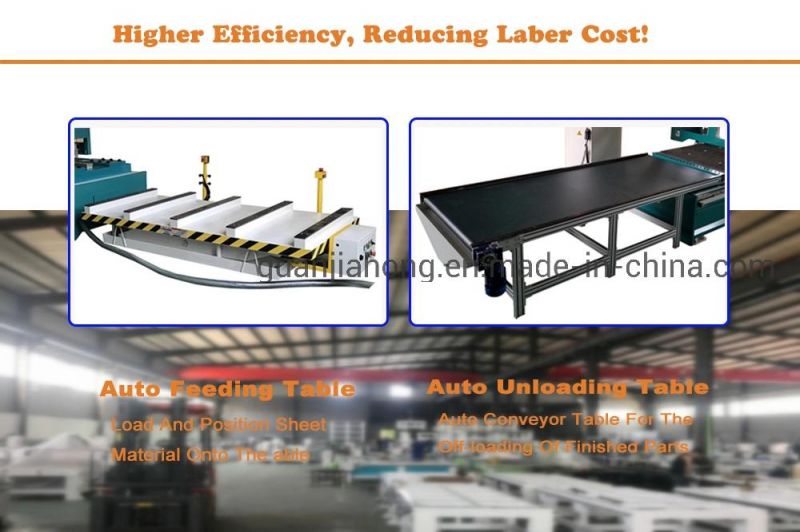

2.Automatic loading and off-loading system

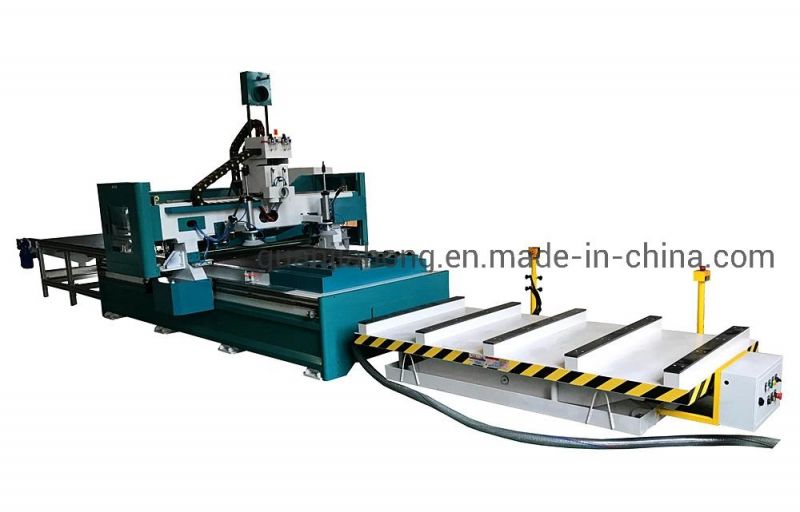

 The Suction Cup Loading Device and Integrated Vacuum Cleaning System is standard on the Full
  Line CNC Router. The Integrated Vacuum Cleaning System ensures that all dust and debris is
  removed from the machine table prior to loading the next sheet. The industrial strength vacuum
  cups will load and position sheet material onto the table top without scratching the surfaces and
  aligns them perfectly against the pop up pins.
3.Humanizing design of the machine control interface,very simple to operate, requiring only minimal
   training of operator, do not need specialized operation technical personnel, high efficiency.







Applicable industry: wood furniture , panel furniture,wooden crafts processing industry, suitable for large panel cutting,large relief carving products and large carpentry engraving.
Applicable material: solid wood panel, artificial board,Acrylics,PVC,MDF,Plexiglass.








NO	Index	Index	Parameter
1	Traveling	X axis	1300mm
		Y axis	2500mm
		Z axis	200mm
2	Working area		1220x2440mm
3	Accuracy	Working accuracy	≥0.1mm/300mm
		Traveling Accuracy	≥±0.2mm/300mm
		Reposition accuracy	≥±0.05mm/300mm
4	Transmission	X axis	Helical Rack
		Y axis	Helical Rack & Double motors
		Z axis	Screw
5	Speed	Max Rapid	50000mm/min
		Max working speed	15000mm/min
6	Spindle	Spindle power	9KW
	(Water-cooling)	Spindle speed	18000r/min
7	Drive mode		Servo
8	Working voltage		AC220/50HZ
9	Command language		G Code
10	Operation system		Syntec 6MB
