• Warranty：2 Years
• Customized：Non-Customized
• Condition：New
• Color：Multi Color
• Main Power：90kw
• Capacity：1-1.2 T,H
• Pellet Size：6mm,8mm
• Pellet Length：Adjustable
• Motor：Siemens Motor
• Bearing：SKF (NSK)
• Conditioner：Stainless Steel
• Keyword 1：Wood Pellet Machine
• Keyword 2：Biomass Pellet Machine
• Keyword 3：Stainless Steel
• Transport Package：Wooden Case, Container
• Specification：3200*1100*1700 mm
• Trademark：AG
• Origin：Zhengzhou, China
• HS Code：8474802000
• Production Capacity：100 Sets,Month

Basic Info.

Warranty 2 Years Customized Non-Customized Condition New Color Multi Color Main Power 90kw Capacity 1-1.2 T/H Pellet Size 6mm,8mm Pellet Length Adjustable Motor Siemens Motor Bearing SKF (NSK) Conditioner Stainless Steel Keyword 1 Wood Pellet Machine Keyword 2 Biomass Pellet Machine Keyword 3 Stainless Steel Transport Package Wooden Case, Container Specification 3200*1100*1700 mm Trademark AG Origin Zhengzhou, China HS Code 8474802000 Production Capacity 100 Sets/Month

Product Description

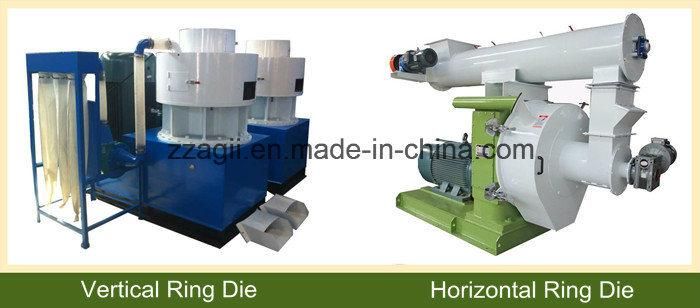

High efficiency Horizontal ring die Biomass Press Machine Wood Pellet Mill Machine



Introduction:

Ring die wood pellet machine is widely used in compacting of wood, straw, other biomass sources into pellet. Capacity ranges from 1T to 10T per hour.
Our Horizontal ring die pellet mill adopts SKF bearings from Sweden and NSK bearings from Japan, Siemens motors, high quality components make the pellet mill more efficient and durable.


Specification:

Model	Main Power (KW)	Capacity (t/h)	Feeding  Power (KW)	Conditioner Power (KW)	Die Diameter (mm)
GH - 350	55	0.5-0.7	1.5	3	350
GH - 420	90	0.8-1.2	2.2	5.5	420
GH - 480	90	1.3-1.8	2.2	5.5	480
GH - 508	132	1.7-2.2	2.2	5.5	508
GH - 558	160	2.0-2.5	2.2	5.5	572

Advantages of ring die wood pelletizer:

Horizontal Ring die biomass pellet machine is designed more advanced and complex than flat die pellet mill. There are also two main advantages of ring die pellet mills. First, ring die wood pellet mill generate less wear and tear when pelletizing. Secondly, it is more energy efficient than the flat die pellet mill. These factors have led to ring die pellet mills being adopted in most large scale pellet production lines. The ring die pellet mill will be much easier to produce high quality pellets and high efficiency output.

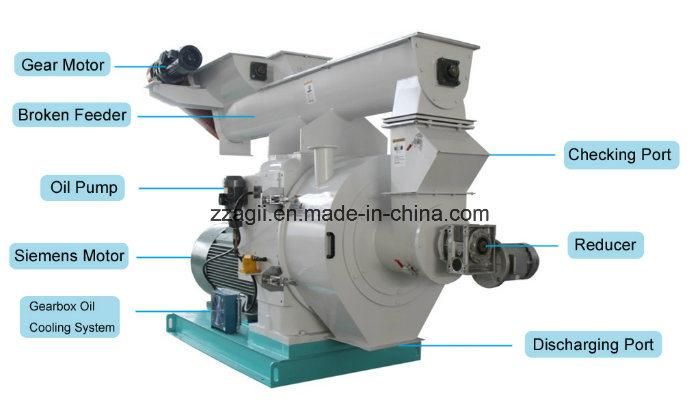

Features of wood granulator:

1)  Adopt high-precision gear drive advanced flexible coupling, for high productive efficiency.
2)  Main driving adopt imported SKF (NSK) bearing, NAK oil seal and Siemens motor
3)  Frequency converter control feeder flow, full stainless steel feeder, cover and chute.
4)  Full stainless steel lengthened conditioner; both paddle and shaft are made of stainless steel.
5)  Frequency converter control feeder flow, full stainless steel feeder, cover and chute.
6)  CE SGS certificate, available for testing before delivery.

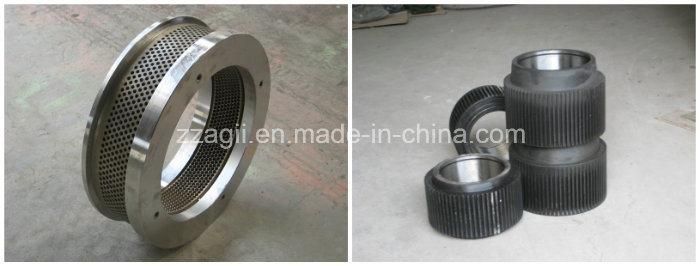

Spare Parts:


Raw materials for biomass fuel:

Sawdust ,wood logs, wood chips, waste wood, bark, straw ,wheat straw ,rice husk, cotton stalk,coconut slag, sunflower stalk, olive slag, grassiness, bamboo, bagasse, paper, cassava, EFB, peanut shell ,corn cob, soybean stalk, weed, wood branches, leaves and so on.



Biomass Wood Pellet Production Line:
