Sx1325A-12 CNC Wood Router Machine Woodworking Center with Automatic Change Tool

QINGDAO SOSN MACHINERY CO., LTD.
  • Warranty：12months
  • Type：CNC Router
  • Spindle Layout：Vertical
  • Spindle Number：Single-Spindle
  • Feed Mode：Mechanical
  • Controlling Mode：CNC

Base Info

  • Model NO.：SX1325A-12
  • Certification：CE, ISO
  • Customized：Customized
  • Condition：New
  • Color：Customized
  • After-sales Service：24 Hours on The Line
  • Control System：Ncstudio Control System
  • Power System：Mhma Panasonic Service Motor
  • Drive System：Wmh Rack and Pinion
  • Z Axis：Taiwan Tbi Ball Screw
  • Main Spindle：Changsheng 6kw Air-Cooled Spindle
  • Transducer：7.5kw Kerun Inverter
  • Guide Rail：X Axis 30 Type Hiwin, Yz Axis 25type Hiwin
  • Gantry Structure：Thickened Heavier Steel Structure
  • Cable：Shanghai Boshi Ultra Flexible Towline Cable
  • Electric Components：Chint Electric
  • Transport Package：Wooden Package
  • Specification：3.5T
  • Trademark：sosn
  • Origin：China
  • HS Code：84649090
  • Production Capacity：100 Sets ,Month

Description

Details Over all size 3600*2600*2000mmWorking size 1220*2440mmWorking area 1220*2440*150mmMax speed 60m/min(MAX)Working speed 15-20m/min(MAX)( depends on materials and thickness )Voltage AC380V/3PH/50HZMain spindle  CC 9KW (24000r/min) depends on delivery time Body frame Annealing and finishing milling a molding process, stable structure, high precision, small deformationDrive system INVT SERVOGear rack Taiwan alloy hard tooth face helical rack + alloy hard tooth face helical gearGuide 30 Control system Taiwan LNC systemLocate mode High precision automatic positioning cylinderTable structure Strong Vacuum worktable Electrics French Inverter FulingVacuum pump7.5 kw water vacuum pumpReducerDongguan ZhuoLanCableshanghai BOSHI flexible towline cable (with shield)Air componentsBLCH Vacuum pump7.5 kw water vacuum pumpWeight 2.4 Ton Feature
CNC Wood Router Optimize cutting, drilling vertical holes, and automatic feeding in one go, without interruption in the process, to maximize the efficiency and output. The machine control interface is designed with humanity and fool-like operation, and the operator can be simply trained. No senior skilled workers are required for the job. The machine moves quickly and with high efficiency, helping you to achieve a leap in productivity.
This machine is a high-efficiency and cost-effective CNC cutting center, which can install more tools than a multi-process cutting machine.
Safety and intelligence, with intelligent processing cross-border protection, to prevent mechanical collisions caused by design layout exceeding the processing width. With functions such as continuous engraving after power failure, power failure recovery, processing time prediction, etc., the truly humanized design and the perfect oil injection lubrication system greatly extend the service life of the machine.
The vacuum suction is strong and powerful, which can perfectly realize special-shaped cutting, small piece cutting, and the smallest cutting board can be 25mm

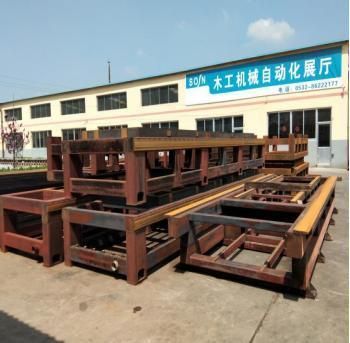

Sx1325A-12 CNC Wood Router Machine Woodworking Center with Automatic Change ToolWoodworking CNC Router body and beam are welded with thick-walled 10mm square tube, thickened backing plate is processed by large-scale gantry milling after aging and tempering. The accuracy of rail and rack surface is within 0.05mm, beam The overall bearing capacity is strong, and the tempering treatment ensures that the whole machine is not deformed after many years using , and further ensures the processing accuracy of the equipment.
Sx1325A-12 CNC Wood Router Machine Woodworking Center with Automatic Change ToolTaiwan LNC  control system: fast data processing speed, stable operation, convenient operation, simple and fast, powerful function, ensuring equipment processing accuracy, running speed and safety visibility, integrated machine control system, with breakpoints and continuous power failure Engraving function, with automatic error correction function back to the origin, effectively ensure the processing accuracy when working all-weather, support U disk operation, avoid computer virus interference, intelligent processing speed control, truly improve processing efficiency, extend tool life, and increase yield. Strong compatibility, suitable for various CNC software: cutting software, door software type3, Artcam various CAD/CAM software.

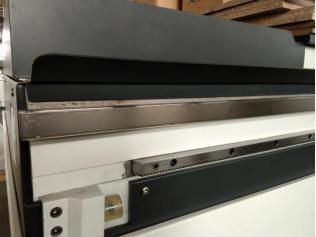

Sx1325A-12 CNC Wood Router Machine Woodworking Center with Automatic Change ToolTaiwan's high-precision square linear guide has high precision, long service life, large contact surface and strong load-bearing capacity. The vertical rail technology can better ensure the stability of operation.
The raw material of the square rail is made of bearing steel. The quality, wear resistance and hardness of the square rail are far greater than most square rails made of No. 45 steel on the market.

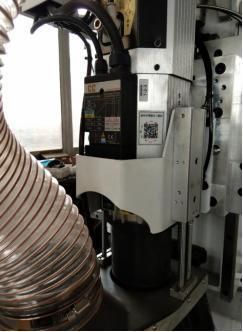

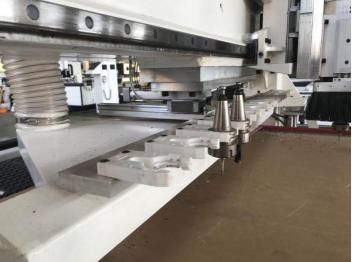

    Sx1325A-12 CNC Wood Router Machine Woodworking Center with Automatic Change Tool9.0KW Air-cooled spindle, automatic tool switching, spindle bearing is high-precision ceramic bearing, cutting force, high precision, fast switching speed, greatly improving the service life of the cutting spindle.

  Sx1325A-12 CNC Wood Router Machine Woodworking Center with Automatic Change Tool


Straight row 12 hand clamp

Sx1325A-12 CNC Wood Router Machine Woodworking Center with Automatic Change Tool

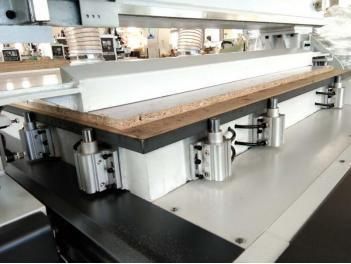

Horizontal and vertical positioning cylinders, self-milling and positioning cylinder holes after the overall accuracy of the equipment is tested and debugged to ensure the secondary positioning accuracy during front and back processing. The cylinder and the table are tightly assembled, with better stability, and repeated manual feeding. The accuracy remains unchanged after being pushed back.

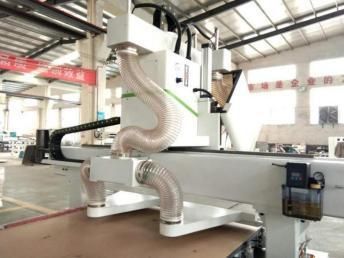

Sx1325A-12 CNC Wood Router Machine Woodworking Center with Automatic Change ToolThis machine is equipped with a material pushing device, which automatically pushes the material after the work of the whole machine is completed. At the same time, the material is pushed and vacuum is turned on and automatically sucks the dust on the table surface, eliminating the trouble of manual cleaning of the table surface! Time-saving and labor-saving, and convenient to take materials after processing.
Sx1325A-12 CNC Wood Router Machine Woodworking Center with Automatic Change Tool
