• Model NO.：QMB620GH
• Motor Power：48.1kw
• Cutter Shaft：6
• Spindle Speed：8000r,min
• Process Type：Heavy Processing
• Certification：CE, ISO
• After-sales Service：3 years
• Weight：4900kg
• Total motor power：48.1kw
• Feeding speed：10-60meters
• Max. sawing thickness：125mm
• Min. sawing length：590mm (intermittent) 150mm(continuous)
• Dia. of spindle：40mm
• Dia. of feeding roller：140mm
• Transport Package：Plywood Carton or Bulk Packing
• Specification：4100*1790*1760 (MM)
• Trademark：Qingcheng
• Origin：China
• HS Code：8465920000
• Production Capacity：20000,Sets

Basic Info.

Model NO. QMB620GH Motor Power 48.1kw Cutter Shaft 6 Spindle Speed 8000r/min Process Type Heavy Processing Certification CE, ISO After-sales Service 3 years Weight 4900kg Total motor power 48.1kw Feeding speed 10-60meters Max. sawing thickness 125mm Min. sawing length 590mm (intermittent) 150mm(continuous) Dia. of spindle 40mm Dia. of feeding roller 140mm Transport Package Plywood Carton or Bulk Packing Specification 4100*1790*1760 (MM) Trademark Qingcheng Origin China HS Code 8465920000 Production Capacity 20000/Sets

Product Description

QMB620GH Woodworking Machinery Wood Planer Four-side Moulder

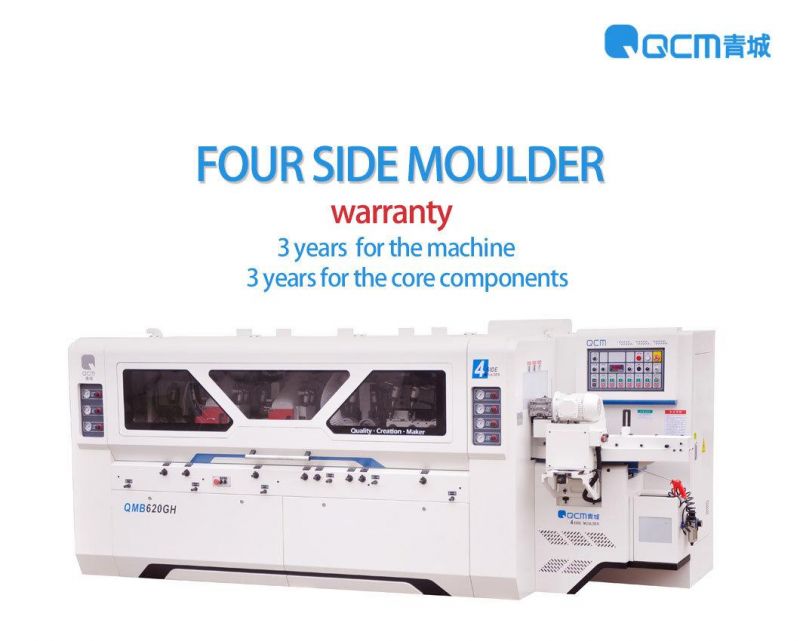

Reference photo:







1. Technical parameters


Specifications	Unit	QMB620GH
Working width	mm	20-200
Working thickness	mm	10-125
Min.working length(intermittent/continuous)	mm	590/150
Dia of spindle	mm	Φ40
Dia of feeding roller	mm	Φ140
Feeding speed	m/min	10-60
Rotation speed of spindle	r/min	8000
Cutter dia of first bottom cutter	mm	Φ125
Left/Right vertical cutter	mm	Φ100-Φ180
The first upper cutter	mm	Φ100-Φ180
The Second upper cutter	mm	Φ100-Φ180
Back bottom cutter	mm	Φ100-Φ180
Universal spindle	mm	/
Total power	kW/HP	48.1/64
The first bottom cutter	kW/HP	5.5/7.5
Left vertical cutter	kW/HP	5.5/7.5
Right vertical cutter	kW/HP	5.5/7.5
The First upper cutter	kW/HP	7.5/10
The second upper cutter	kW/HP	5.5/7.5
The second bottom cutter	kW/HP	5.5/7.5
Universal spindle	kW/HP	/
Feeding motor	kW/HP	7.5/1`0
Beam lifting motor	kW/HP	0.75/1
upper cutter lifting motor	kW/HP	/
Radial adjustment of the vertical spindle	kW/HP	/
Rear pressing plate elevation	kW/HP	/
Side feeding motor	kW/HP	1.1/1.5
Belt conveyor	kW/HP	0.75/1
Disc conveyor	kW/HP	3/4
Suction hood dia	mm	6*Φ120
Air supply pressure	Mpa	0.3-0.6
Overall dimensions	mm	4100x1790x1760
Weight	kg	4900

2. About Qingcheng Woodworking Machinery:

Qingcheng Woodwokring Machinery Co., Ltd is a professional manufacturer of woodworking machinery since 1970. With more than 40 years experience, we have developed to the top and most powerful manufacturer of woodworking machinery in China.

We mainly engaged in six series of woodworking machinery:
Four Side Moulder, Double Side Planer, Automatic Muti-blade Rip Saw, Automatic Single-side Rip Saw and Double-end Tenoner , and Sanding Machine

To make machinery with high precision and stability, we have introduced the world's advanced modern processing and testing equipment, including OKUMA five-surface gantry machining-center, FMS flexible machining production line, MAKINO horizontal machining center, MORI SEIKI(nine-axis linkage) lathe-mill cutting center, LGMazak vertical machining center, Mitsubishi laser cutting machine, OKK large machining center, Okamoto CNC grinding center, and Mitutoyo three coordinate measuring machine.










3. Our Products:

A: Four Side Moulder



B: Double Side Planer



C: Rip Saw



D: Planing and Sawing Combination Machine




E:Double-end Tenoining Machine




F: Sanding Machine
