• Model NO.：QMJ164AF
• Precision：Precision
• Certification：CE, ISO
• Customized：Customized
• Condition：New
• Color：Iron Grey
• Weight：1950kg
• Total motor power：18HP
• Feeding speed：10-40 meters
• Max. sawing thickness：120mm
• Min. sawing length：120mm (for trimming,250mm)
• Sawing shaft speed：2950-4000 r,min
• Transport Package：Plywood Carton or Bulk Packing
• Specification：2250*1680*1550 (MM)
• Trademark：Qingcheng
• Origin：China
• HS Code：8465910000
• Production Capacity：20000,Sets

Basic Info.

Model NO. QMJ164AF Precision Precision Certification CE, ISO Customized Customized Condition New Color Iron Grey Weight 1950kg Total motor power 18HP Feeding speed 10-40 meters Max. sawing thickness 120mm Min. sawing length 120mm (for trimming,250mm) Sawing shaft speed 2950-4000 r/min Transport Package Plywood Carton or Bulk Packing Specification 2250*1680*1550 (MM) Trademark Qingcheng Origin China HS Code 8465910000 Production Capacity 20000/Sets

Product Description

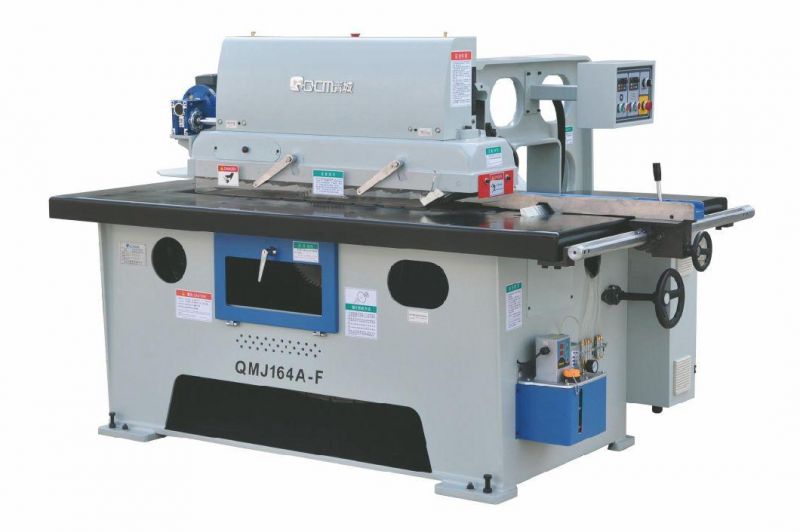

QMJ164AF Woodworking Machinery Automatic Single-chip Rip Saw

1. Technical parameters





Max.sawing thickness	120	mm
Min.sawing length	120(for trimming 250)	mm
Deep throat	660	mm
Saw shaft Dia.	Φ50.8	mm
Saw shaft speed	2950-4000	r/min
Saw blade dia.	Φ355-Φ455	mm
Feeding speed	10-40	mmin
Total motor power	13.7518	kWHP
Main motor	1115	kWHP
Feeding motor	2.23	kWHP
Lifting motor	0.370.5 (optional)	kWHP
Suction hood dia.	Φ150+Φ120	mm
Overall dimension	2250*1680*1550	mm
Weight	1950	KG

2. About Qingcheng Woodworking Machinery:

Qingcheng Woodwokring Machinery Co., Ltd is a professional manufacturer of woodworking machinery since 1970. With more than 40 years experience, we have developed to the top and most powerful manufacturer of woodworking machinery in China.

We mainly engaged in six series of woodworking machinery:
Four Side Moulder, Double Side Planer, Automatic Muti-blade Rip Saw, Automatic Single-side Rip Saw and Double-end Tenoner , and Sanding Machine

To make machinery with high precision and stability, we have introduced the world's advanced modern processing and testing equipment, including OKUMA five-surface gantry machining-center, FMS flexible machining production line, MAKINO horizontal machining center, MORI SEIKI(nine-axis linkage) lathe-mill cutting center, LGMazak vertical machining center, Mitsubishi laser cutting machine, OKK large machining center, Okamoto CNC grinding center, and Mitutoyo three coordinate measuring machine.














3. Our Products:

A: Four Side Moulder



B: Double Side Planer



C: Rip Saw



D: Planing and Sawing Combination Machine




E:Double-end Tenoining Machine




F: Sanding Machine
