Woodworking Machinery

CE Approved Wood Pellet Machine

Jiangsu Liangyou Zhengda Co., Ltd.
  • Type:Wood Pellet Mill
  • Voltage:380V
  • Automatic Grade:Automatic
  • Controlling Mode:Artificial
  • Energy Saving:Energy Saving
  • Certification:CE, ISO

Base Info

  • Model NO.:WZLH420
  • Warranty:1 Year
  • Customized:Customized
  • Condition:New
  • Color:Multi Color
  • After-sales Service:Engineer Available
  • Capacity(T/H):0.8-1.2
  • Main Power(Kw):90
  • Pellet Size(mm):8-10
  • Transport Package:Iron Pallet and Soft Guard
  • Specification:CE, ISO9001, SGS
  • Trademark:FDSP
  • Origin:Jiangsu, China (Mainland)
  • HS Code:8479300000
  • Production Capacity:0.8-1.2t,H

Description

Basic Info.

Model NO. WZLH420 Warranty 1 Year Customized Customized Condition New Color Multi Color After-sales Service Engineer Available Capacity(T/H) 0.8-1.2 Main Power(Kw) 90 Pellet Size(mm) 8-10 Transport Package Iron Pallet and Soft Guard Specification CE, ISO9001, SGS Trademark FDSP Origin Jiangsu, China (Mainland) HS Code 8479300000 Production Capacity 0.8-1.2t/H

Product Description

CE Approved Wood Pellet Machine
What Materials Can Be Pelletized By Biomass Wood Pellet Mill?
Nearly all forestry and agro-waste material can be made into wood pellets by our ring die
wood pellet mill, such as: Wood Chips, Shaving, Sawdust, Groundnut-shell, Sugarcane,
Caster Shells/Stalk, Coffee Husk, Paddy Straw, Sunflower Stalk, Cotton Stalks, Tobacco Waste, Mustard Stalk, Jute Waste, Bamboo Dust, Tea Waste, Wheat Straw, Palm husk, Soybeans Husk, Coir Pitch Barks/Straws, Rice Husks etc. The final pellets can be used
for industrial boilers and large power plants as well as home heating.

CE Approved Wood Pellet Machine



Features:
1. It is widely used for pellet of light substance, such as wood chips, sawdust, straw, pasture, chrysanthemum, palm leaf and so on;
2. The feeder's especial structure makes materials conveyed evenly, it is specially designed for pellet of light substance with the density of 0.3-0.6g/ cm3;
3. Feeder, conditioner and chute are made of stainless steel with long service life;
4. It is with magnet and over load protection system, which can protect machine well during production;
5. Feeder is with a variable speed controlled to meet different outputs requirements;
6. It makes gear directly-connecting as the driver, and is with quick-release die fixed by clamps, which can increase the output 15% more than the same type machine with belt-convey;
7. The bearing and oil seal in the main drive are imported from Japan to ensure highly-efficient, stability, credibility;
8. The alloy steel die is with international advanced equipment and technics, and has long service life, slippery pellet and high quality.


Performance Parameters
ModelWZLH420WZLH520WZLH680WZLH780
Capacity(T/H)0.8-1.21.5-1.82-2.52.5-3.5
Main motor power(kw)75/90110/132160/185200/220
Feeder power(kw)2.2344
Ring die dia(mm)420520680780
Pellets dia(mm)6-86-86-86-8

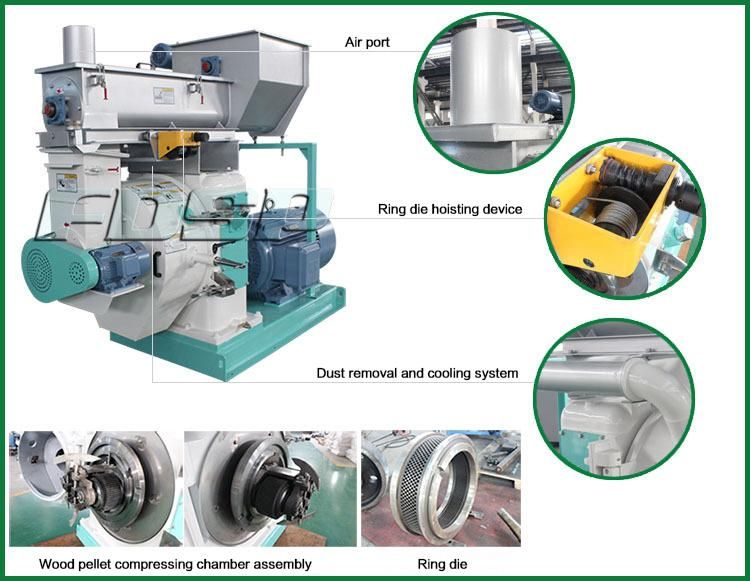

Product display:
CE Approved Wood Pellet Machine
On basis of absorbed advanced technology for biomass pelleting from abroad, we are leading company to develop independently turn-key equipment for biomass pelleting for agricultural crops in China. Meanwhile it can be pelleted for waste of forestry, too. We can customize and design turn-key project for all kinds of materials for customers according to their various request, materials, and site.
 FAQ

1.Q:Are you a factory or trading company?

A:We are a factory .

2.Q:Where is your factory located? How can I visit there?

A:Our factory is located in Liyang City, Jiangsu Province, China, near Shanghai.You can fly to Shanghaiairport directly.All our clients, from home or abroad, are warmly welcome to visit us!


Our company view and certificates:
CE Approved Wood Pellet Machine
