• Model NO.：GN900H
• Energy Saving：Energy Saving
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Control System：Delta Sport 12 Axis Card System
• Spindle：2.2kw Air Cooling Spindle
• Body Structure：Integral De-Stress Aging Treatment of Heavy Duty B
• Gudie Rail：Taiwan PMI Precision Grade
• Servo Motor：Delta 1kw and 0.75kw High Resolution
• Servo Driver：Delta a Series Full Line Mode
• Converter：Delta Converter 2.2kw
• Reducer：Feston, Taiwan
• Power Supply：380V, 50Hz
• Transport Package：Wrapped in Layers of Wrapping Film and Ponchos
• Specification：2450*4800*1900mm
• Trademark：Mars
• Origin：China
• HS Code：8465910000
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. GN900H Energy Saving Energy Saving Warranty 1 Year Customized Customized Condition New Control System Delta Sport 12 Axis Card System Spindle 2.2kw Air Cooling Spindle Body Structure Integral De-Stress Aging Treatment of Heavy Duty B Gudie Rail Taiwan PMI Precision Grade Servo Motor Delta 1kw and 0.75kw High Resolution Servo Driver Delta a Series Full Line Mode Converter Delta Converter 2.2kw Reducer Feston, Taiwan Power Supply 380V, 50Hz Transport Package Wrapped in Layers of Wrapping Film and Ponchos Specification 2450*4800*1900mm Trademark Mars Origin China HS Code 8465910000 Production Capacity 300 Sets/Month

Product Description

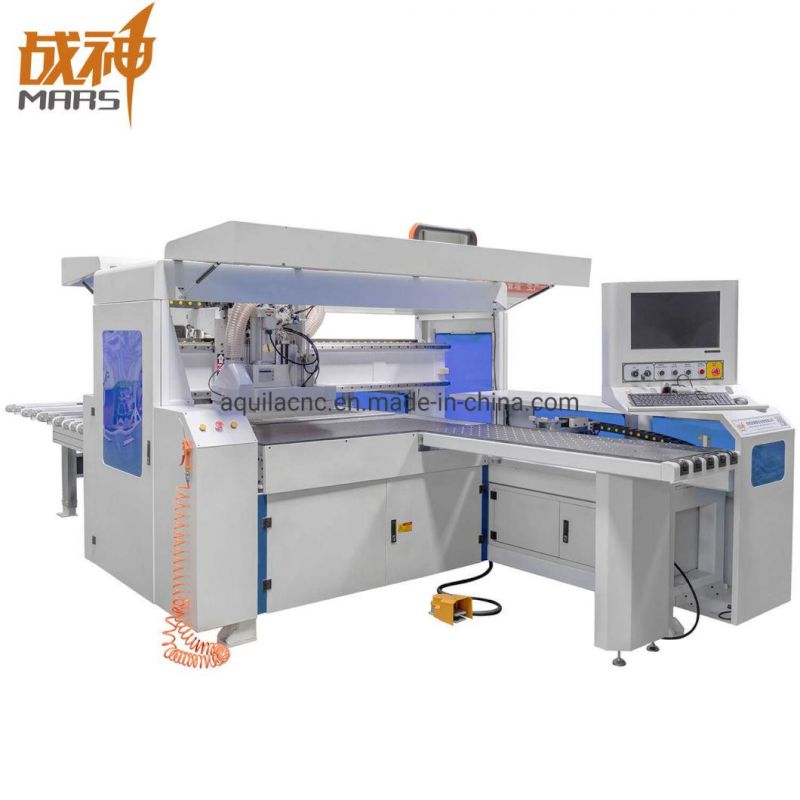

GN900H CNC Six-sided Drilling Machining Center
 Keywords:15 years experience of production                   ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                   Three Brand: Mars, Golden Eagle,Borio



Description:
It's a powerful drilling machine,can accomplish all six-sided holes and slots at one processing.It can completely substitute the traditional panel saw and gang drill,and discards the dependence of traditonal punching mode on the technical workers.Combined with processional production design software,it achieves really intelligent production,with high precision and fast speed.

Functions:
The functions of this machine include six-sided drilling,double-sided grooving,scan processing and double clamp feeding.


Applicable Materials:
MDF, block board, solid wood board, particleboard, polymer door plates, plywood etc.


Application Scope:
Suitable for six-sided punching and double-sided grooving of panel customized furniture.

Parameters:

Max.width of wood panel	900mm
Min,width of wood panel	50mm
Max.length of wood panel	2700mm
Min.length of wood panel	200mm
Max.thickness of wood panel	48mm
Min.thickness of wood panel	12mm
Upper vertical drilling	10
Downward vertical drilling	9
X-direction horizontal drilling	2*2
Y-direction horizontal drilling	2*2
Drilling set motor speed	4000rmp
Milling spindle	2*2.2kw
Rotational speed of milling spindle	18000r/min
Total power	17kw
Working voltage	380V/50Hz
Net weight	3000kg

Accessories:


Performance Features:1.Complete 6 surface processing and groove, milling type. Easy to operate, flexible to use, without manual intervention platform tools.2. Very compact dimensions.3. High-efficiency, powerful ZTCAM5.0 software; IOT technology makes it possible to digitally produce this device with other devices online.4. The long X-axis track (3.5m) can reduce the number of times the workpiece is switched when feeding. Improve processing efficiency.5. Equipped with horizontal hole machining auxiliary pressure roller and all-round auxiliary pressure processing to ensure the accuracy of horizontal hole machining during workpiece machining.6. With vertical pressure roller, it can guarantee the machining accuracy of vertical hole and groove.7. Equipped with upper and lower spindles, no need to turn the groove.8. Full chassis vacuum cleaner to reduce dust leakage.9. Remote fault diagnosis.10. CNC and motion control using full line control.11. Adopt absolute encoder.12. Metering solid oil supply system.

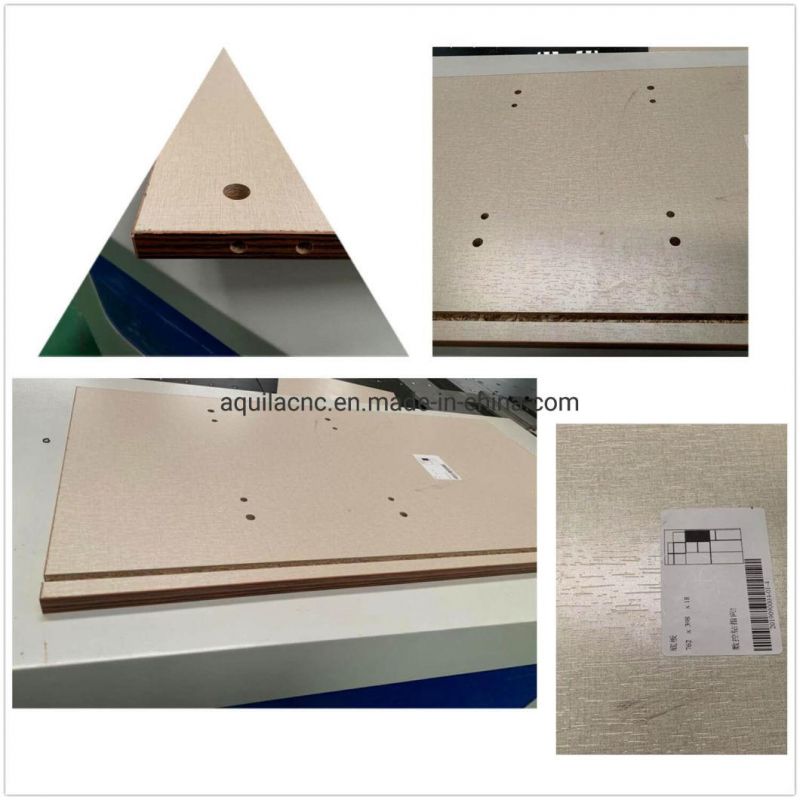

Samples:


Pack and delivery:


Warranty Information:
1.Warranty and Service:
Guarantee:12 months for the whole machine.
Within 12 months under normal use and maintenance, if something is wrong with machine, you will get spare part for free.
Out of 12 months, you will get spare part at cost price.
Technical support: You will also get technical support and service all the lifetime.
(1).Technical support by phone, email or Whatsapp/Skype around the clock.
(2).Friendly manual and operation video online.
(3).Engineer available to service machinery overseas.
2.After sales Services:
(1).Normal machine is properly adjusted before dispatch. You will be able to use the machines immediately.
(2).You will be able to get free training advice towards our machine in our factory.
(3).You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
3.Quality control:
(1).Skilled and Strict Quality Inspection Team is available during the material purchasing and production procedure according to ISO 9001:2015.
(2).All finished machine we shipped out are 100% strictly tested by our QC department and engineering department.

FAQ Before Ordering:
Q 1. I have no idea which machine can meet my need,what should I do?
A: Please tell the what's material you want to working on ?
     What's the MAX size of these material ?( length ? Width ? Thickness ?)
     Then I will recommend the most suitable machine for you.

Q 2. I do not know how to handling CNC Router,what should I do?
A: We will supply you a training video and English handbook to teach you how to operate.Or we will welcome you to arrive China to field-based learning .

Q 3. If my machine has some problems in the warranty period,what should I do?
A: If the machine part broken within warrantry time,we will send new part to you for free.

Q 4.How about your after-sales service ?
A: Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock. And we can arrange technician go to your company to solve problem if neeeded.

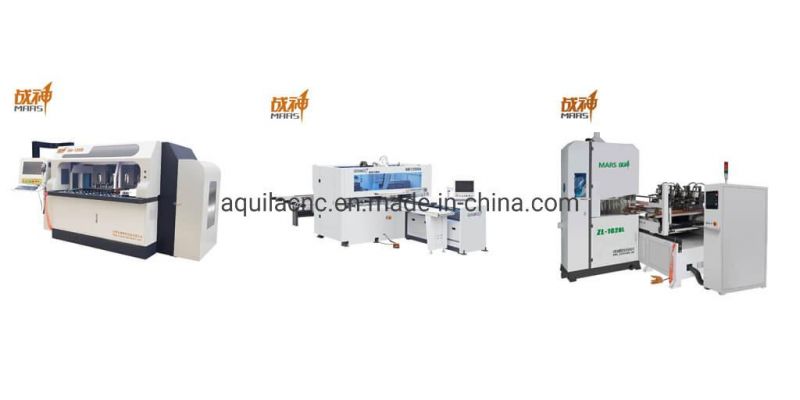

Similar products:


Our company:
Our company is 15 years professional manufacturers of panel furniture production line equipment, CNC cutting machine, five surface drilling, PTP machine, CNC machining center, wood carving machine, stone carving machine, jade carving machine, three-dimensional carving machine, mold machine.


Our certifications:

Why choose Hefei Aquila CNC Equipment Co., Ltd?
1.Our company has 15 years experience of production, and is a set research and development, manufacturing, sales,and has the national certification of  "High-tech enterprises."
2.With over 15 years experience and dozens of national patents, our company has passed the ISO9001:2008 Quality Management System and CE Certificate, and is also entitled as the AAA Level Enterprise which Honors Contract and Keeps Promise.
3.We have the professional R&D team and quality control system, to provide you with the most valuable products and services.
4. Our sales& service network has covered all dometic major cities and overseas markets, such as the USA, European, Southeast Asia, Middle East etc.Let you have the most perfect after-sales service.

Our Services:
1. Convenient: 24th Hours sales/After-sales Service online or on the phone.
2. Quality Assurance: We will discuss with you and supply you the best quality comfortable to your market.
3. Quick delivery: Time is money, we promise we always will deliver the goods quicker than others.
4. According to customers' drawing,customized specifications are welcomed.
5. Low MOQ,small orders can be accepted.

We are searching distributors all over the world. If you have any demands, welcome to contact us and visit our factory.
