Mini Wood-Working Machine Speed Variable/ Six Speed Lathe
Qingdao G & G Machinery Co., Ltd.- Type:Mini Wood Lathe Machine
- Voltage:370V
- Tool Holder:Single-tool Holder CNC Lathe
- Automatic Grade:Manual
- Precision:Precision
- Setting Mode:Table
Base Info
- Model NO.:MC1218 VDB,B
- Controlling Mode:Artificial
- Power Source:Electric
- Processing Accessory:Chuck CNC Lathe
- Certification:CE, ISO
- Descripton:12"X18" Mini Wood Lathe
- Motor(W):550
- Spinde Sped (Rpm):370-3800
- Drive Spindle:1"8rh Thread or Other
- Transport Package:Carton
- Specification:CE ISO
- Trademark:G&G
- Origin:China
- HS Code:84659600
- Production Capacity:1000 Sets,Month
Description
Basic Info.
Model NO. MC1218 VDB/B Controlling Mode Artificial Power Source Electric Processing Accessory Chuck CNC Lathe Certification CE, ISO Descripton 12"X18" Mini Wood Lathe Motor(W) 550 Spinde Sped (Rpm) 370-3800 Drive Spindle 1"8rh Thread or Other Transport Package Carton Specification CE ISO Trademark G&G Origin China HS Code 84659600 Production Capacity 1000 Sets/MonthProduct Description

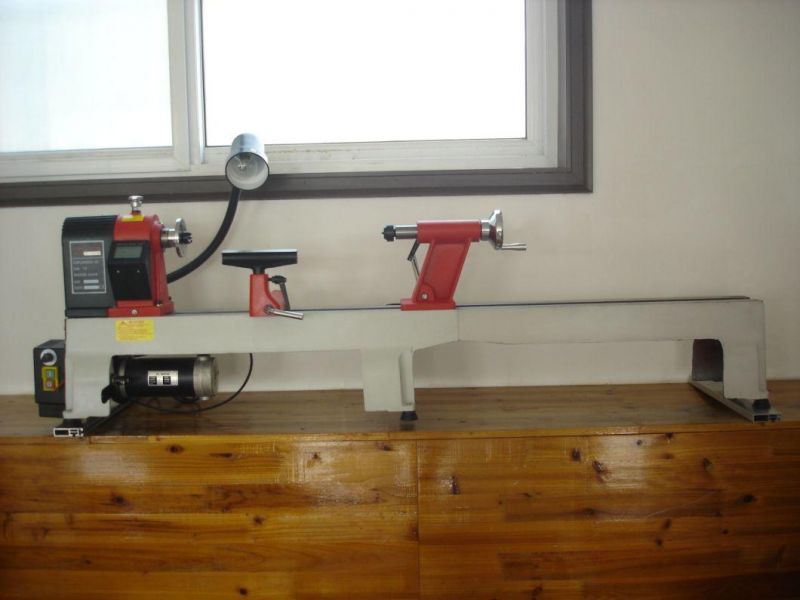

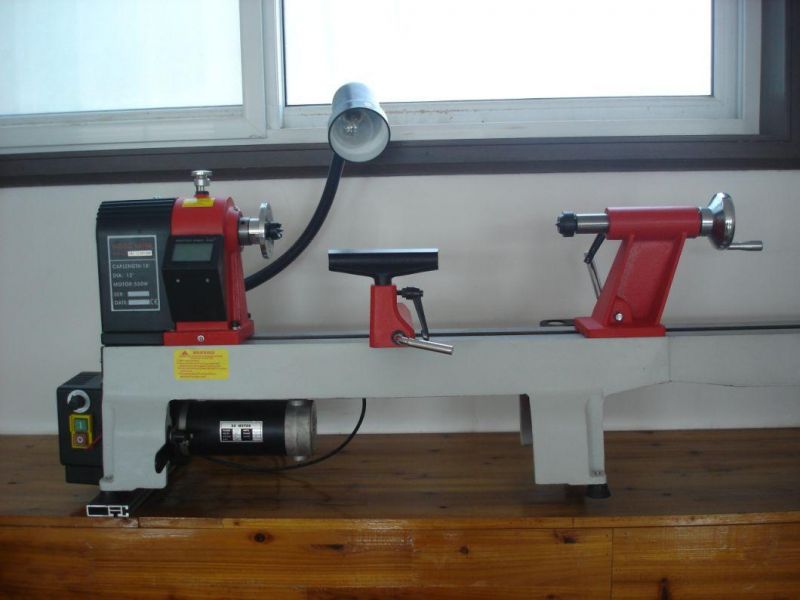

WOOD LATHE MODEL MC1218 VDB()SPEED VARIABLE
EXW PRICE USD 203.00
Motor(W) 550
Spindle Speed (rpm) 500-1800/1000-3800
Swing Over Bed 305
Distance Between Centers 450
Drive Spindle 1"8RH thread or other
Head and Tailstock Taper #2 Morse or other
Face Plate 3"
Tool Rest 6"
N.G.Weight (kgs) 42/44
Packing Size (cm) 92×33×47
Extention Lathe bed length 62CM price USD37.00
After add Extention lathe bed lathe total length is 109 CM

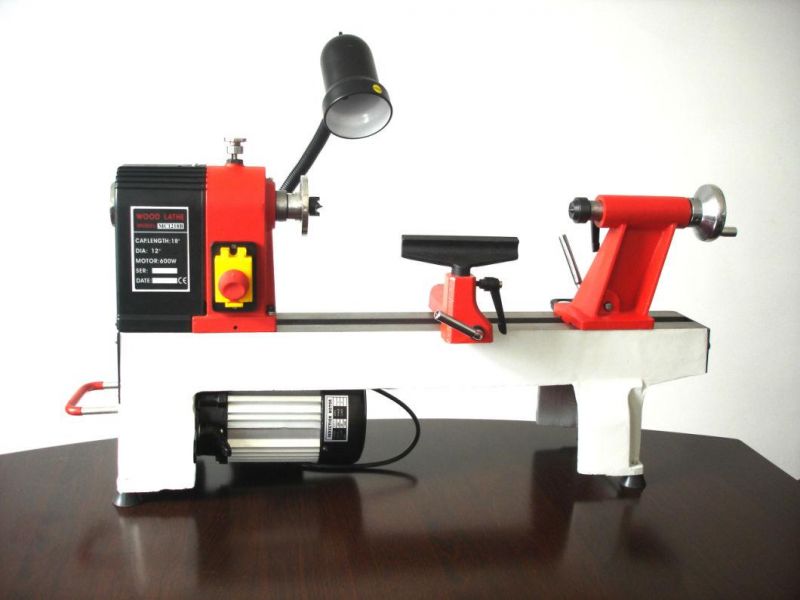

WOODLATHE MODE MC1218 B (6) SIX SPEED
EXW PRICE USD188.00
Motor(W) 600
Spindle Speed (rpm) 370/650/1000/1500/2200/3250
Swing Over Bed 305
Distance Between Centers 450
Drive Spindle 1"8RH thread or other
Head and Tailstock Taper #2 Morse or other
Face Plate 3"
Tool Rest 6"
N.G.Weight (kgs) 42/44
Packing Size (cm) 92×33×47
Main Features:
1. It is one of the most commonly used small machines in woodworking production.
2. The woodworking lathe performs rough and fine turning on the end face, section and cone of wood.
3. The woodworking lathe can use the forming tool to process quickly and accurately.
4. It has an easy to operate motor control system.
5. It has two belt transmission ratios with high torque when turning large diameter.
6. It can change the construction hoist quickly.
7. The lathe adopts cast iron structure, high stability and vibration free operation.
8. Matching cast iron bracket is available.
9. It can be combined with the extended operation platform to meet the requirements of large workpieces.
